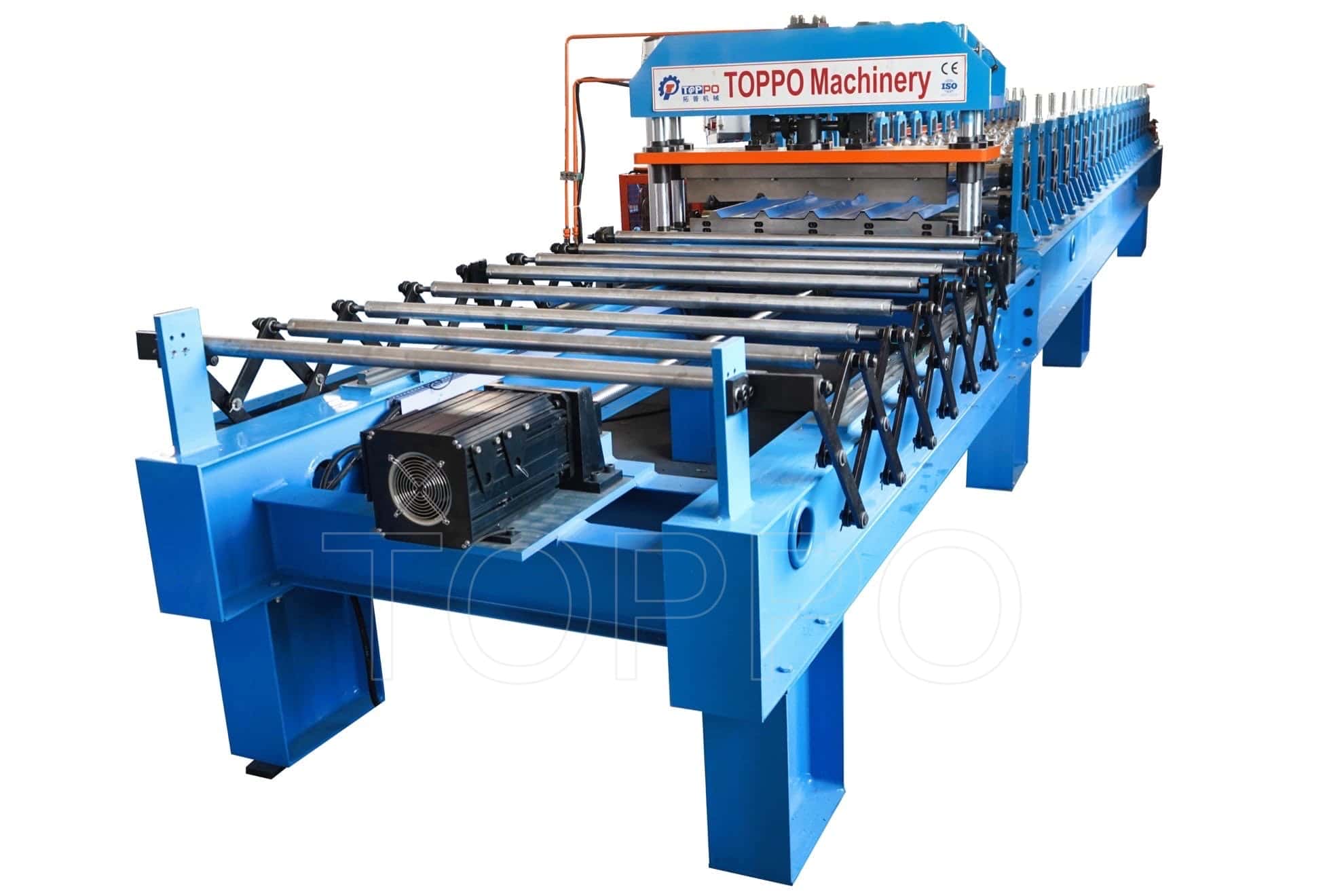

Machine Type: Trapezoidal Roll Forming Machine with Auto Stacker
Raw Material: GI, PPGI, Aluminum coils
Material Thickness: 0.3–0.8 mm
Feeding Width: 1220 mm
Effective Width: 1000 mm

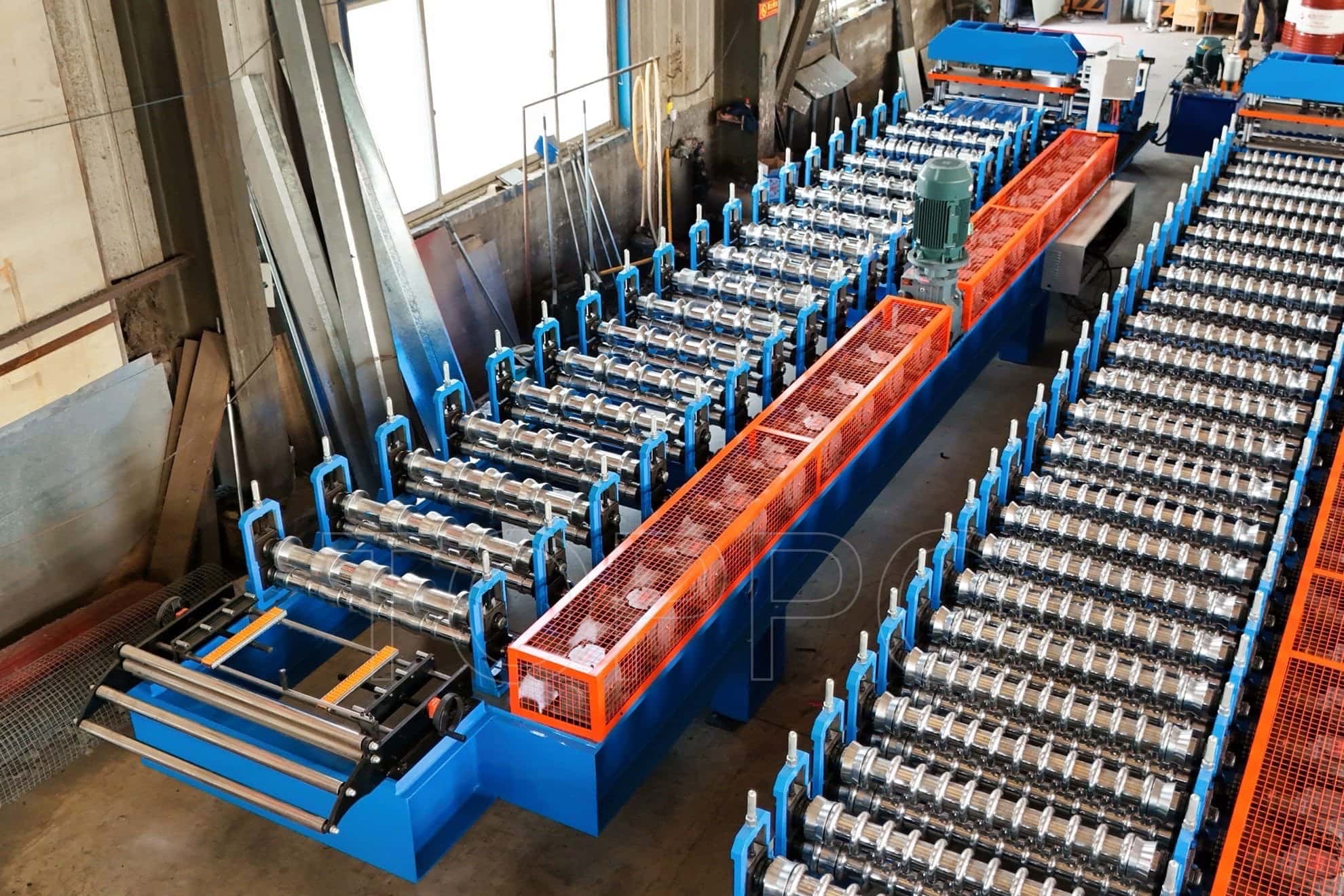

Roll Forming Stations: 18–24

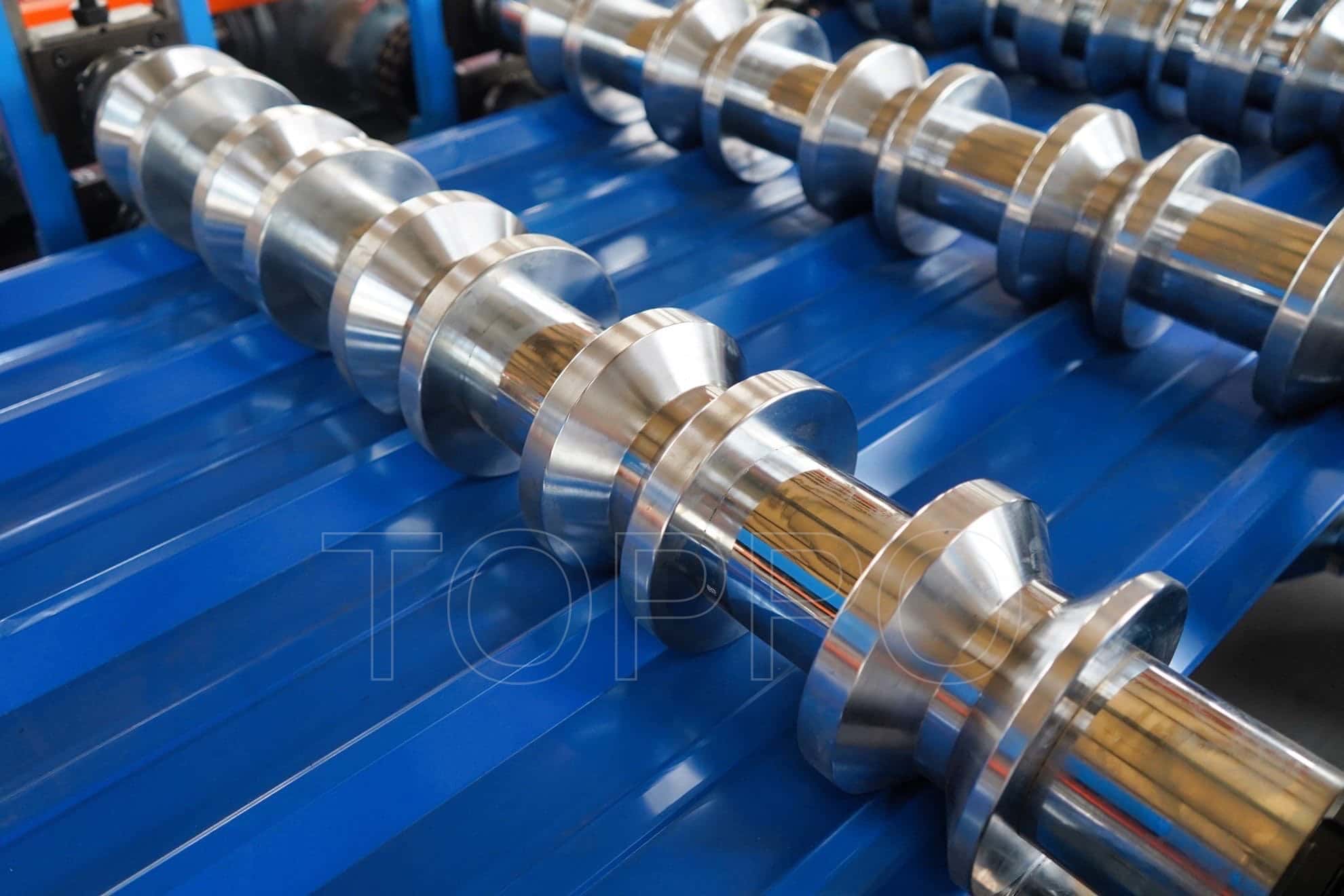

Roller Material: GCr15 with precision polishing and hard chrome
Shaft Diameter: 75 mm solid shaft
Forming Speed: 10–18 m/min
Drive Mode: Gearbox drive for stability and torque

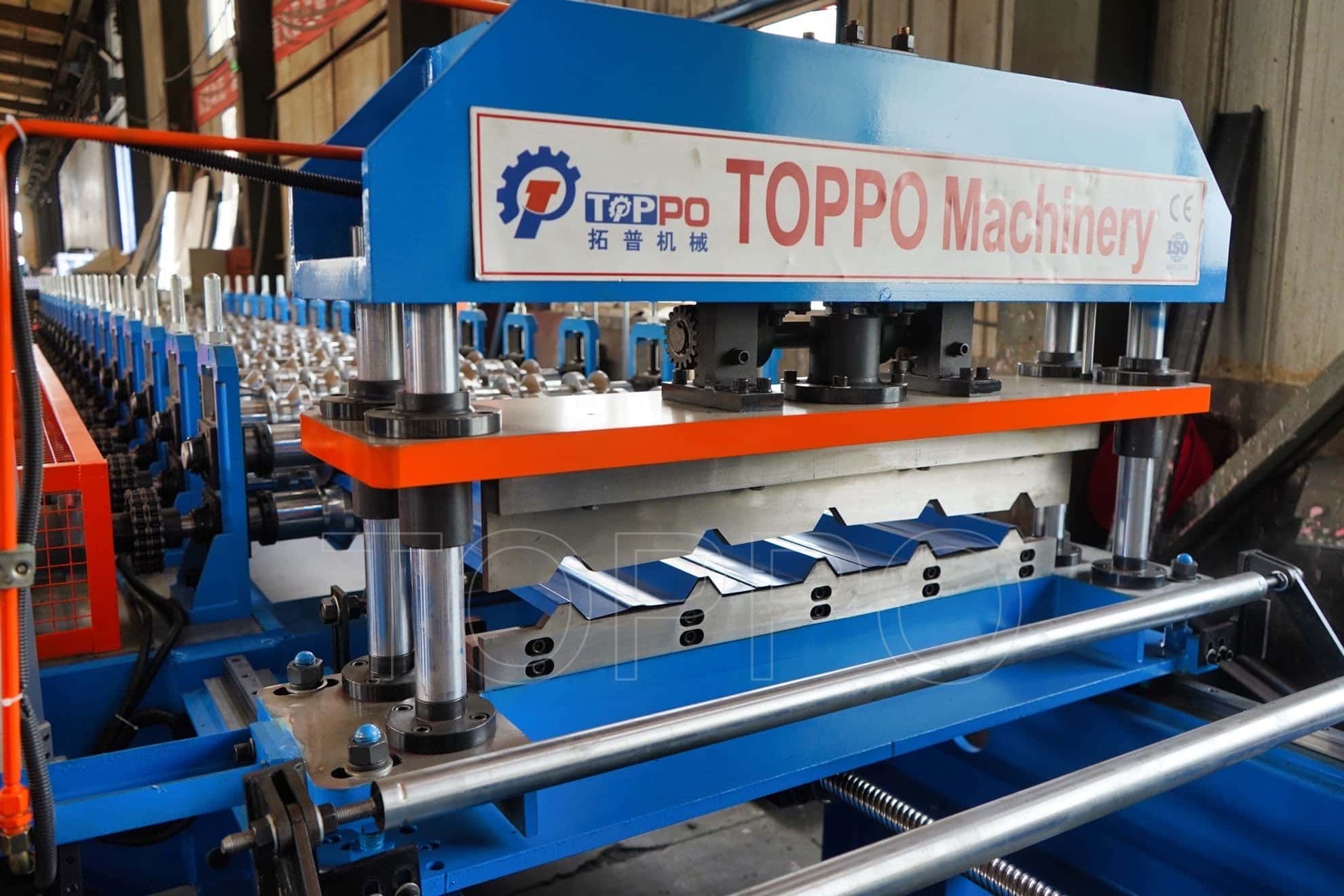

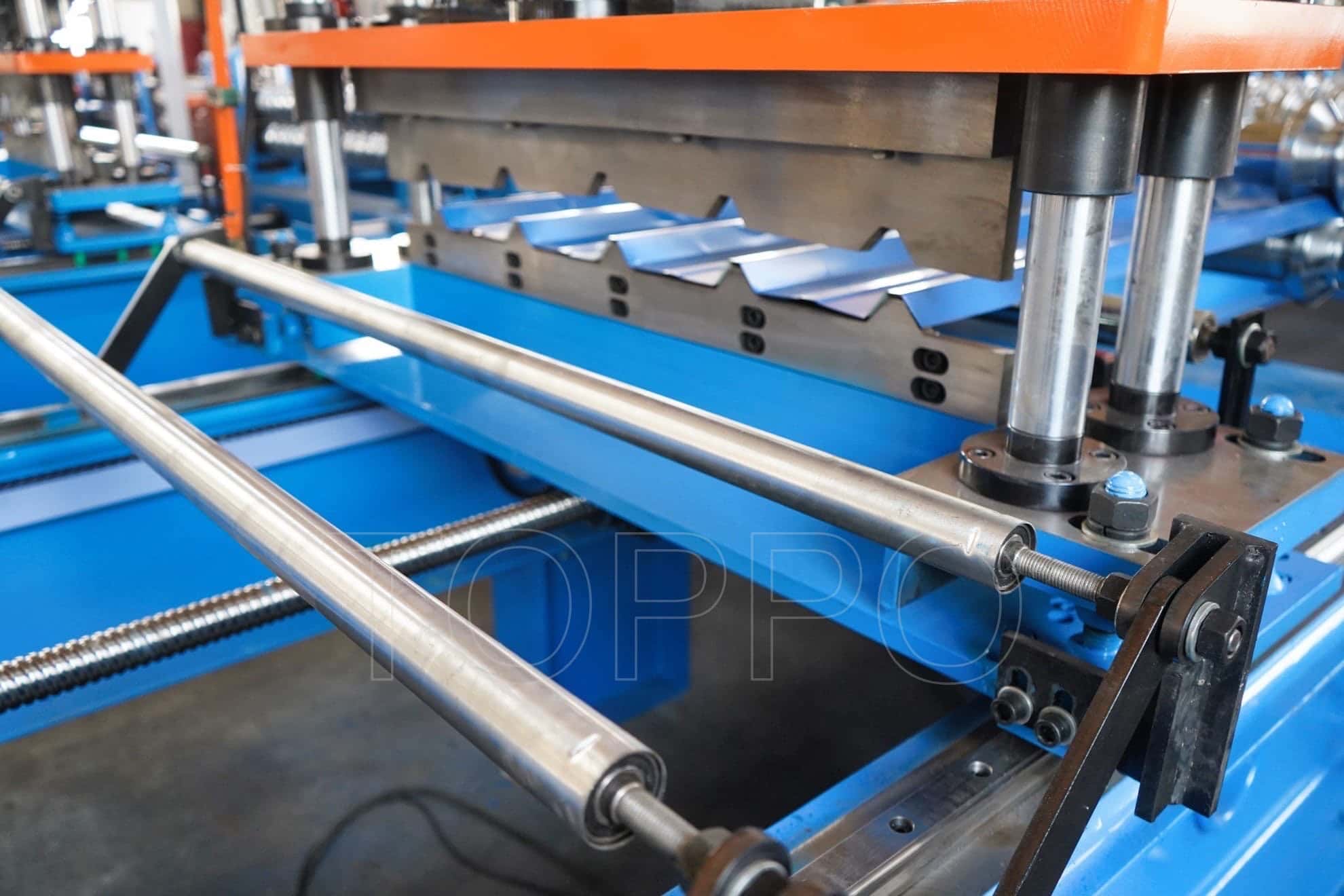

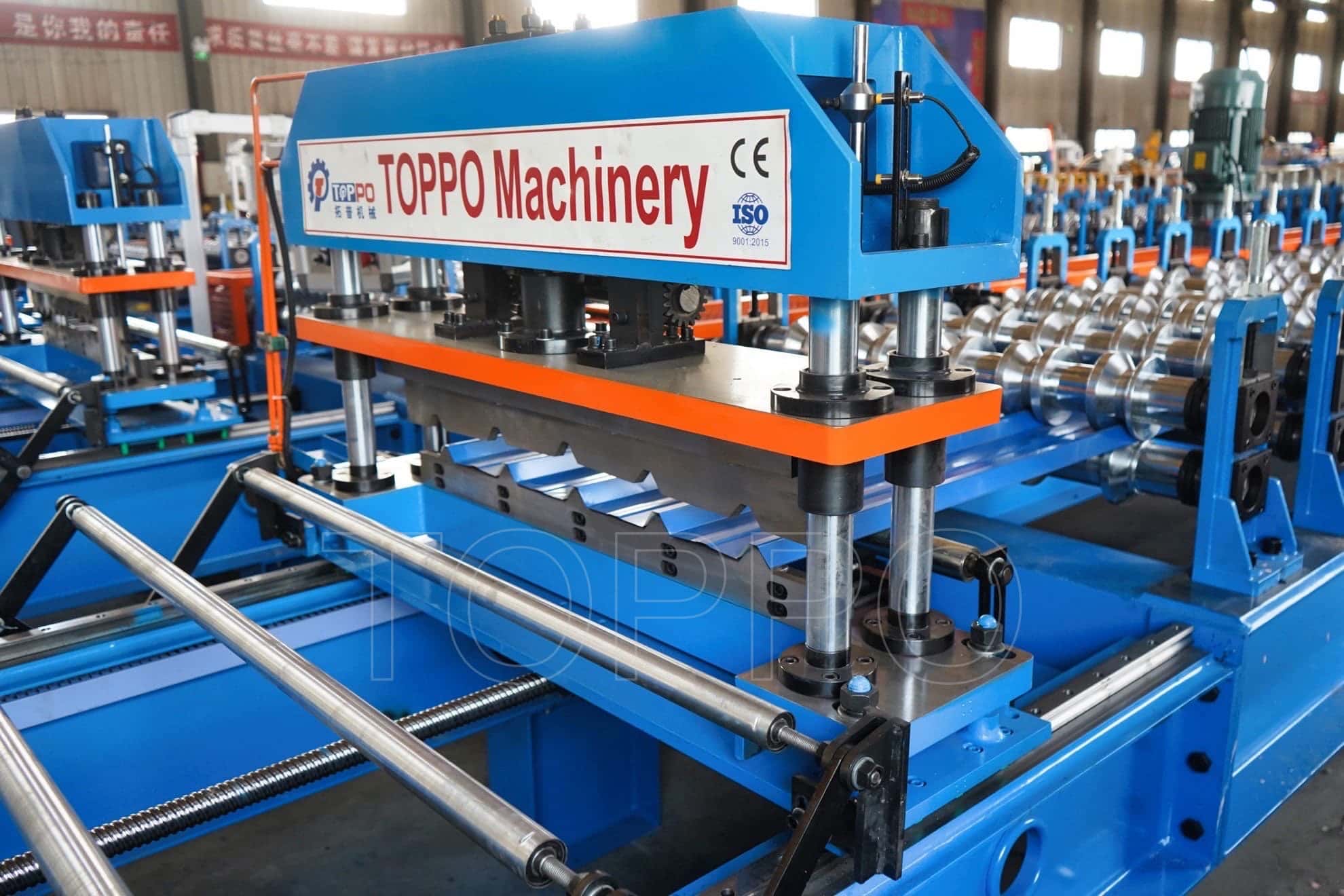

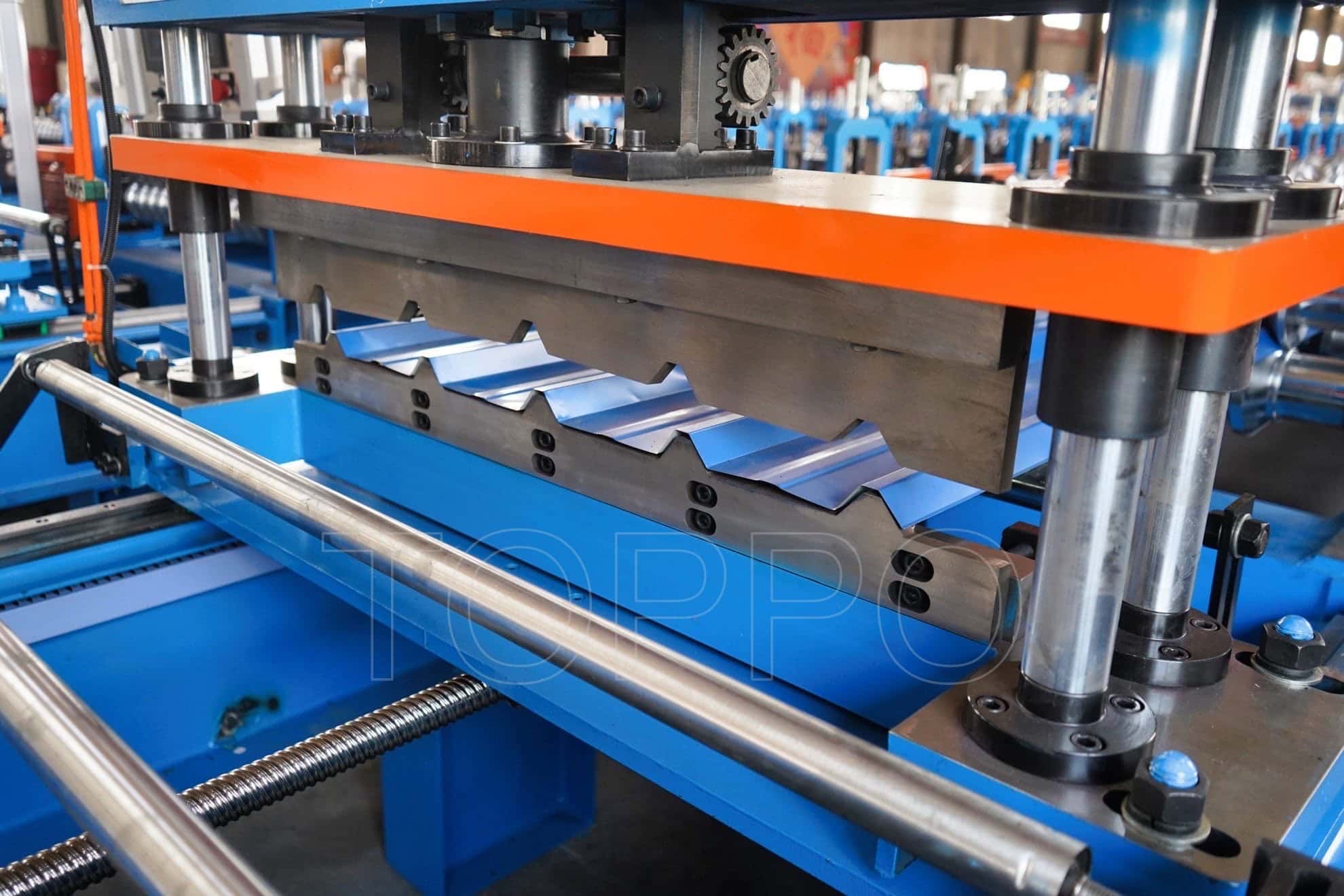

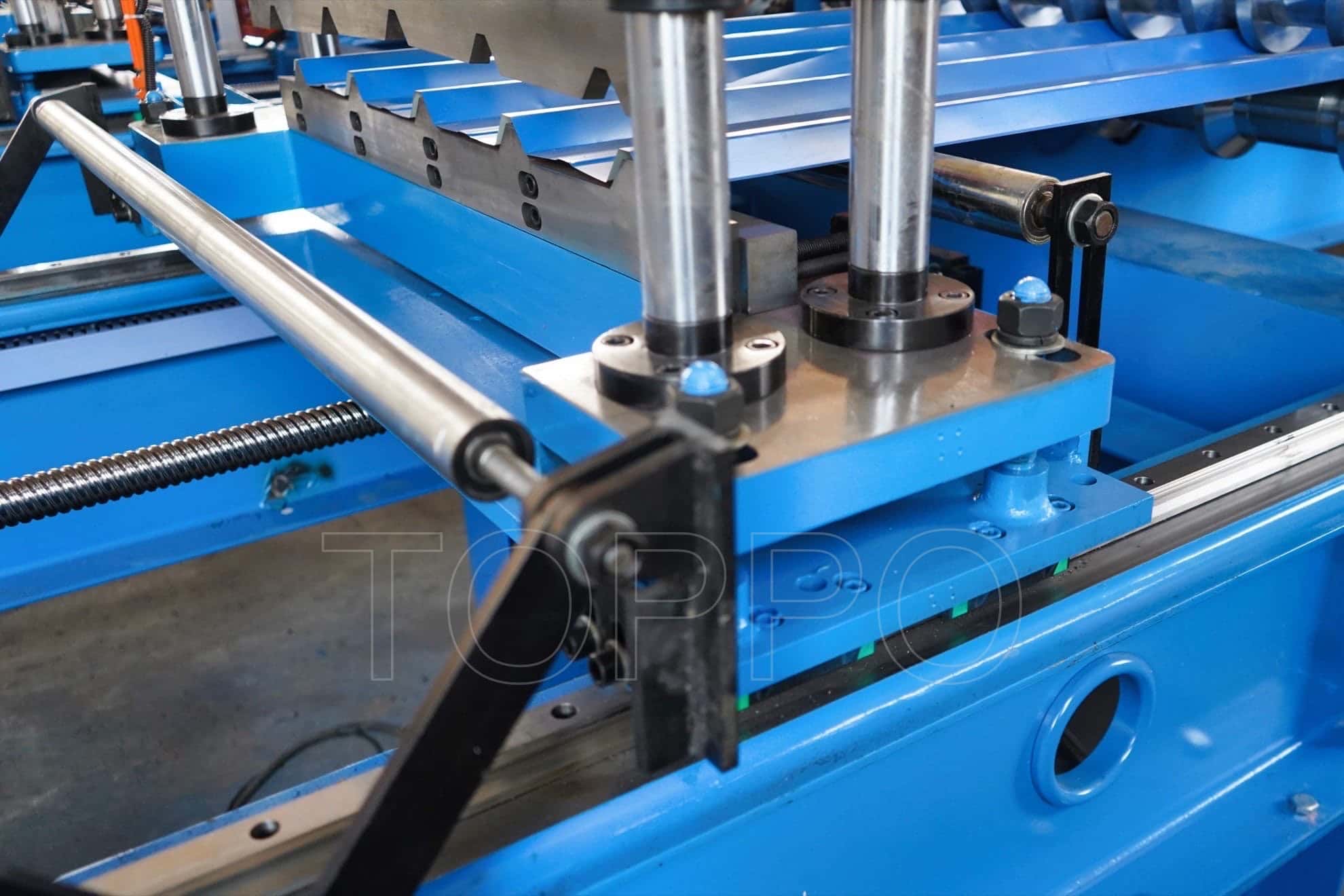

Cutting System: Hydraulic post-cutting
Blade Material: Cr12Mov steel, heat treated
Control System: Siemens/Delta PLC with touchscreen HMI
Voltage: 380V/50Hz/3Phase (customized optional)
Main Motor: 11 kW
Hydraulic Power: 5.5 kW
Frame Structure: 400H steel with welding and tempering
Machine Dimensions: 11m x 1.6m x 1.7m
Weight: Approx. 10 tons

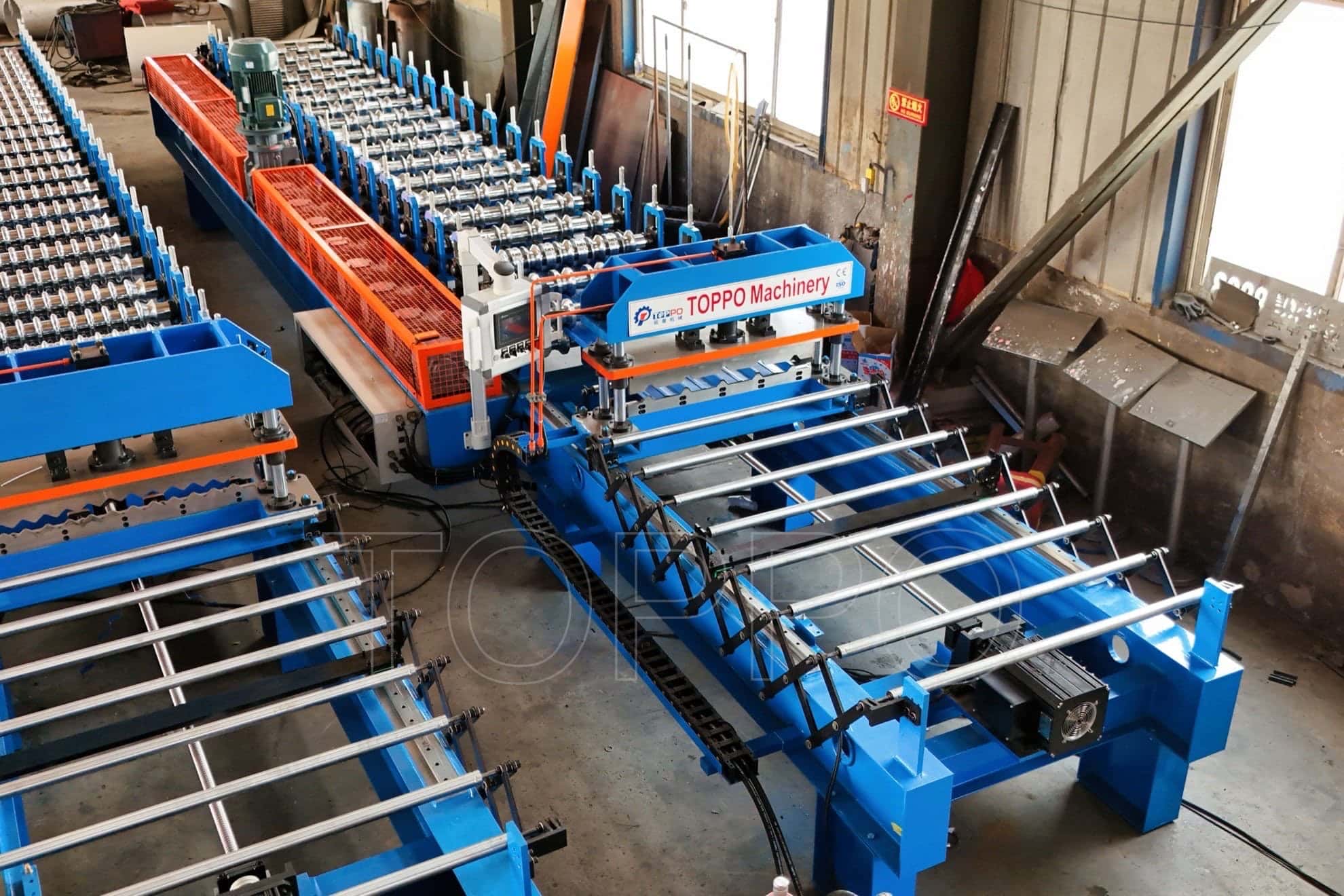

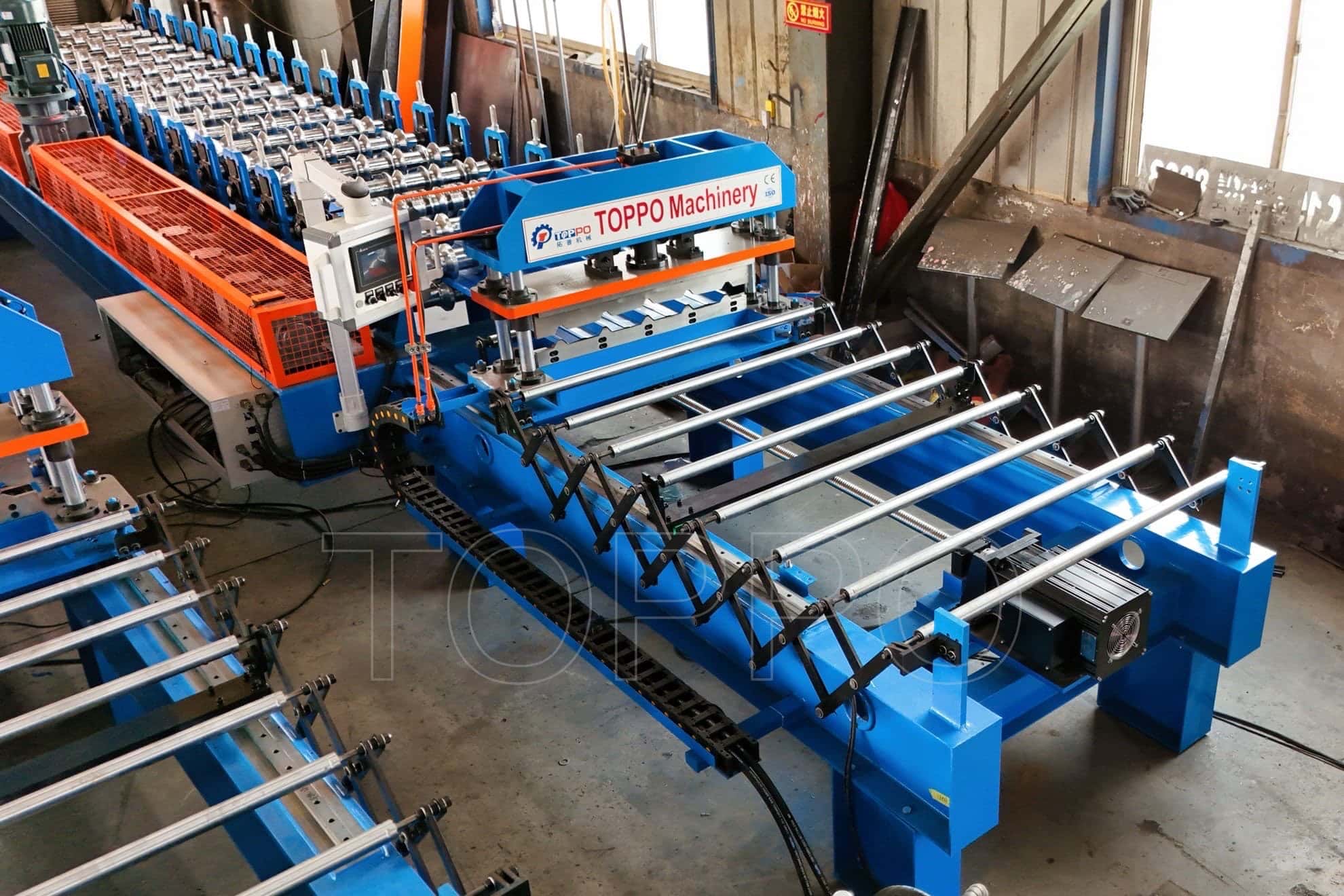

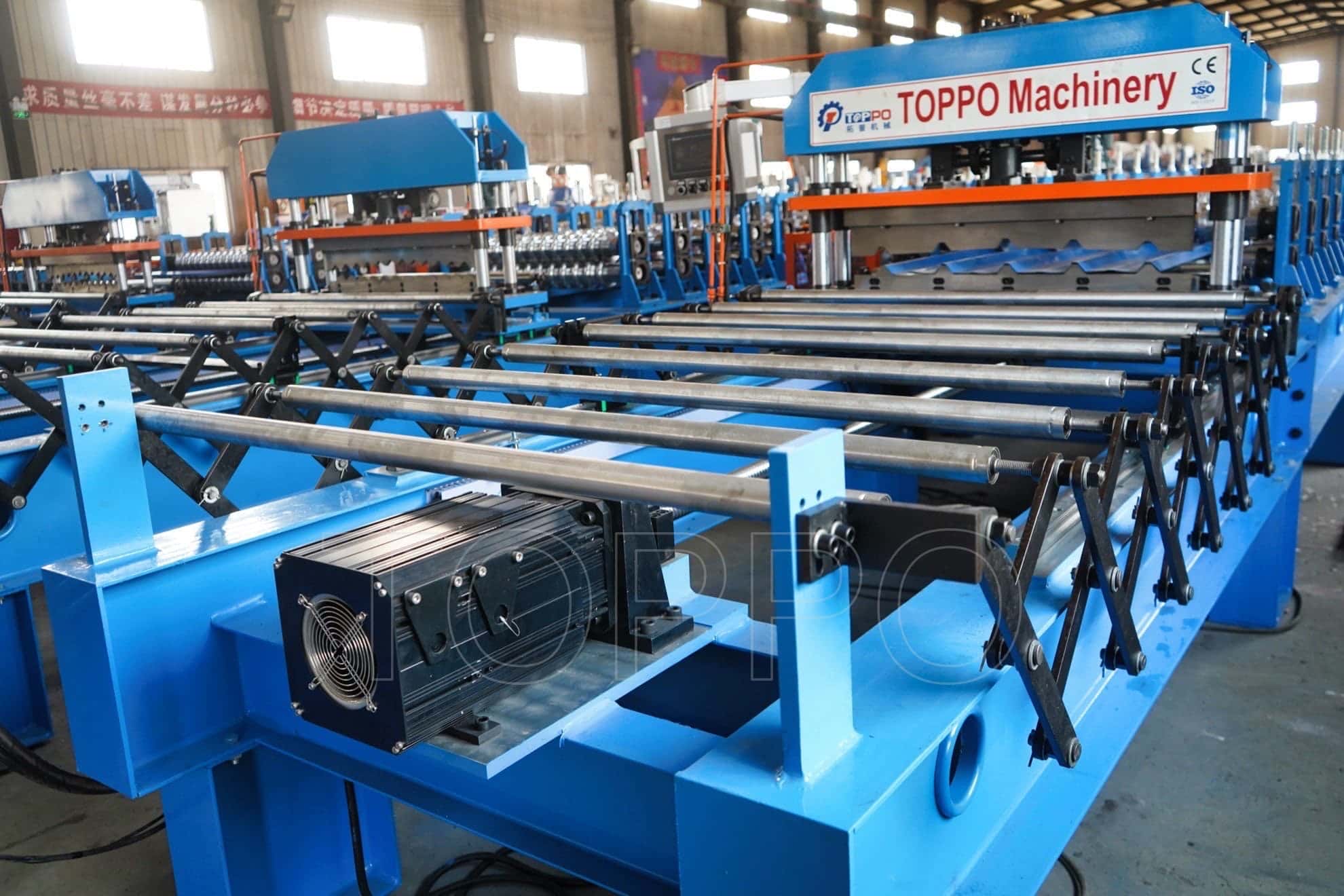

Auto Stacker: Included, synchronized with forming line
Control Accuracy: ±1.0 mm
Application: Roofing, wall panel, metal building systems
Noise Level: ≤ 80 dB
Decoiler: 5 Ton hydraulic decoiler with brake
Lubrication: Auto lubricating device installed
Roller Shaft Material: High strength forged steel
Safety Devices: Emergency stop, safety covers
Packaging: Anti-rust oil, film wrap, wire fix in container
Operator Panel: User-friendly interface

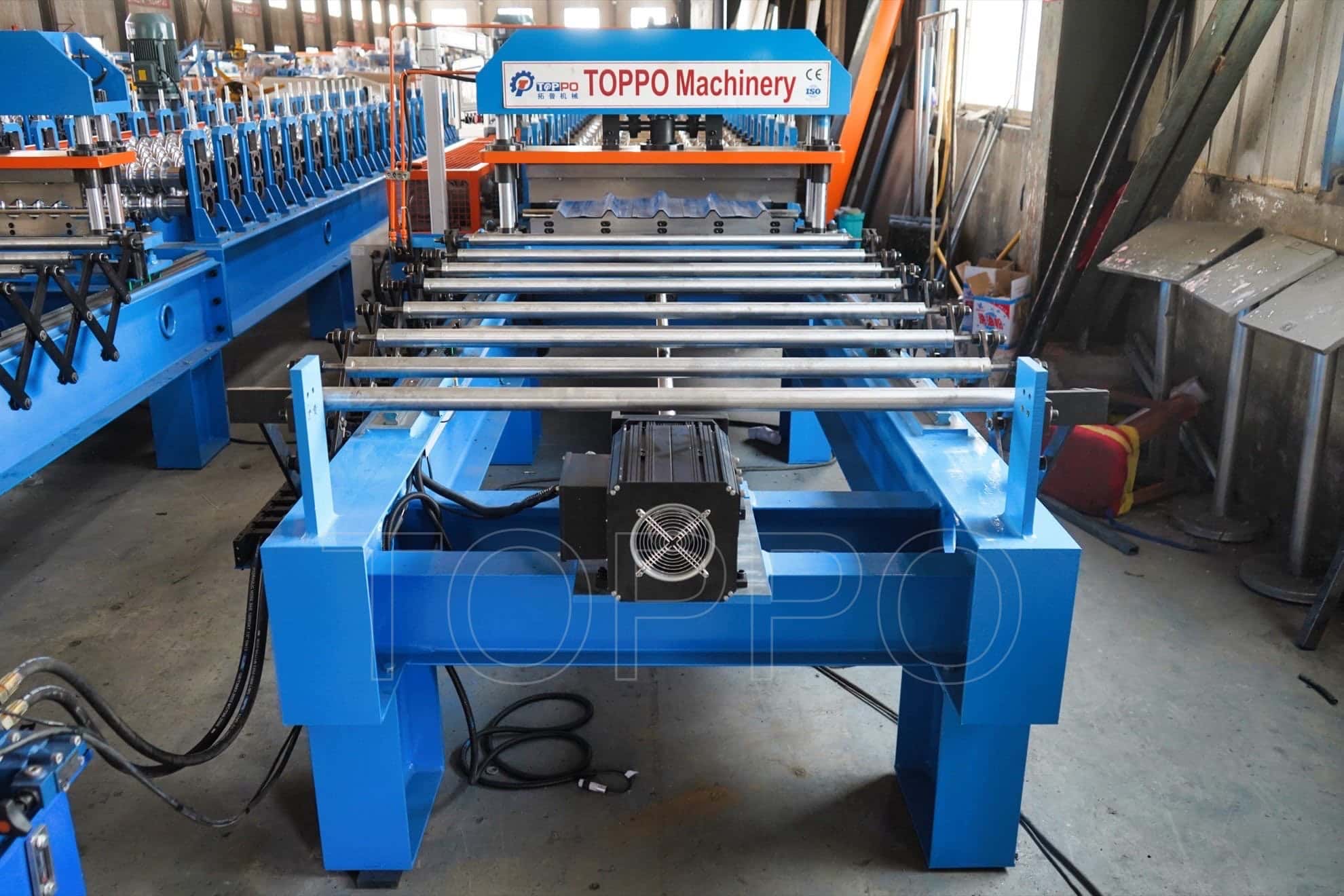

Output Table: Automatic stacker conveyor
Feeding Guide: Adjustable coil alignment system
Encoder: Omron
Color: Standard blue or customizable
Certification: ISO9001 / CE Certified
Warranty: 12 months
Installation Service: Overseas engineer support
Training: Full training manual and video
After-Sales: Online support + free spare parts
Customization: Acceptable with sample/profile drawing
Production Capacity: Up to 10,000 meters per day
This machine is designed for industrial-grade operations requiring high performance and minimal downtime. With an automatic stacker, it enhances efficiency and reduces labor, ensuring uniform stacking and continuous production.
