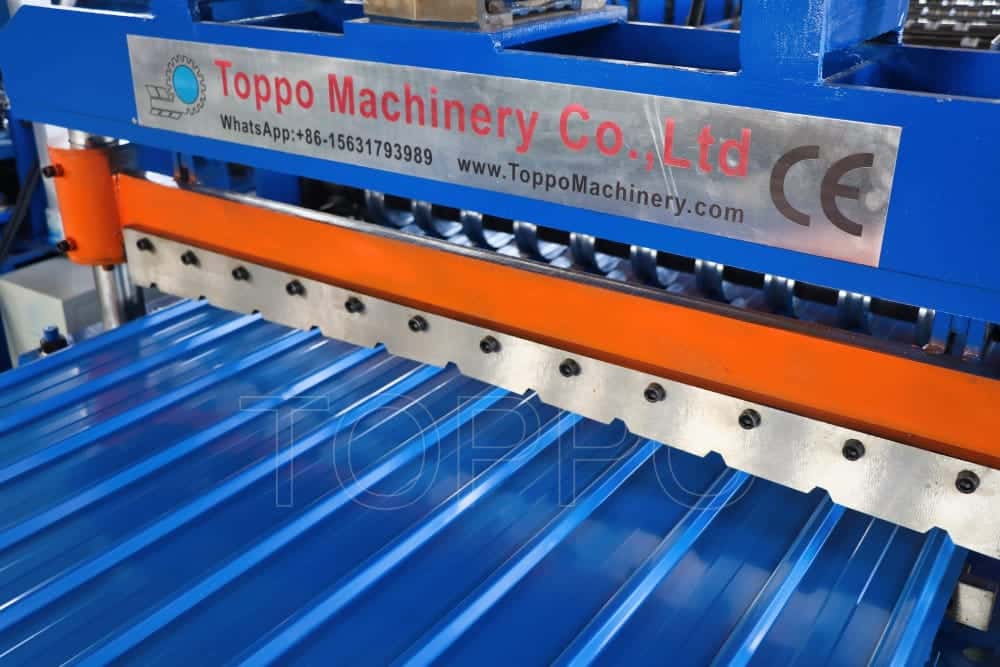

This Trapezoidal Roll Forming Machine offers an advanced control system, precision cutting, and inverter drive for stable high-speed production. Designed for producing trapezoidal steel sheets used in modern construction roofing and siding projects.
Model: TP-TFM-ID1100
Material: Galvanized Steel, Color Steel, Galvalume
Thickness Range: 0.3–0.8 mm
Feeding Width: 1220 mm
Effective Width: 1100 mm
Roller Stations: 16
Roller Material: 45# Steel with Hard Chrome
Drive System: Gearbox + Chain Drive
Shaft Diameter: 70 mm
Main Motor Power: 5.5 kW (Inverter Motor)
Hydraulic Cutting Power: 3 kW
Cutting System: Hydraulic Post Cutter
Control System: PLC Control with Touchscreen (Delta/Siemens)
Forming Speed: 10–15 m/min
Power Supply: 380V, 3Phase, 50Hz (Customizable)
Structure: Welded Steel Frame with Panel Cabinet
Blade Material: Cr12Mov with Heat Treatment
Machine Color: Blue & Orange / Customizable
Accuracy: ±1.0 mm
Operation: Fully Automatic
Size: 8500 × 1450 × 1500 mm
Weight: About 6.5 Tons
Warranty: 1 Year
Support: Video Technical Assistance, Spare Parts, Overseas Engineer
Application: Construction Roofing, Commercial Projects
Certifications: CE / ISO
This machine is an ideal solution for construction material manufacturers aiming to produce high-quality trapezoidal sheets with precision and reliability.
