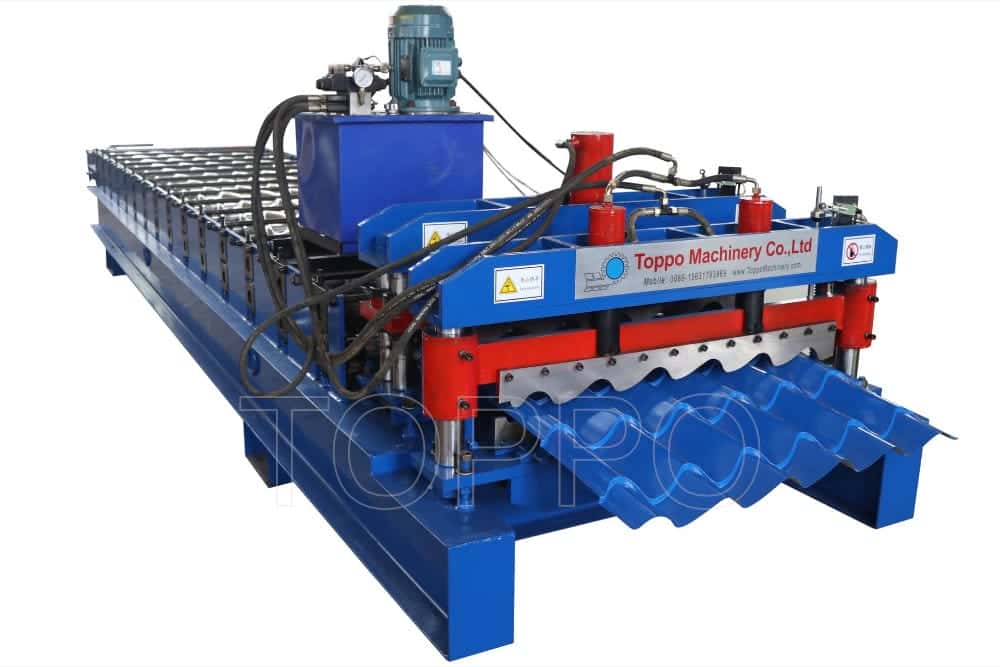

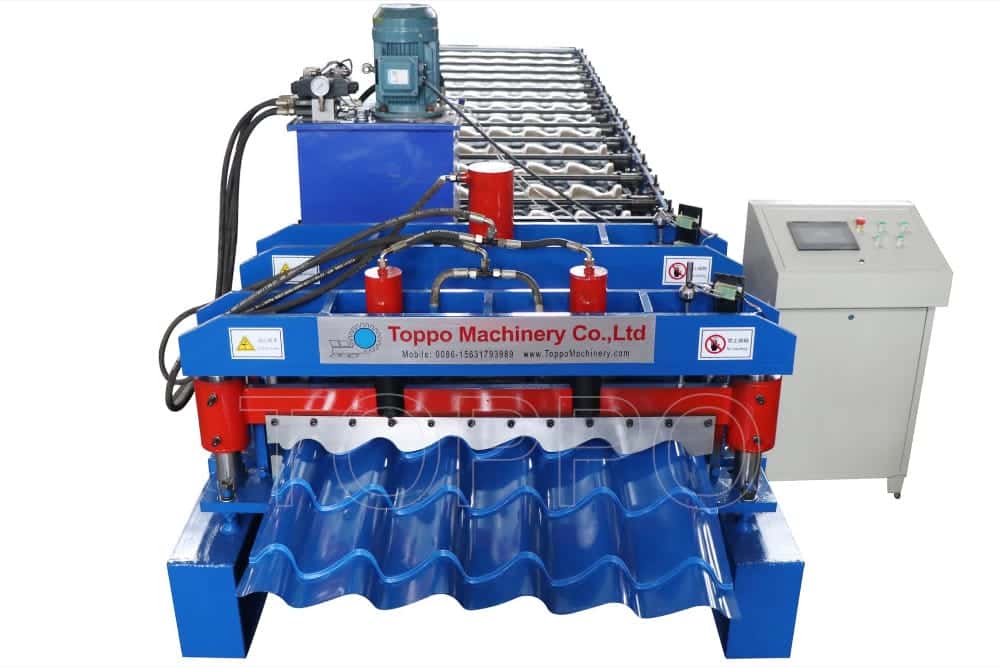

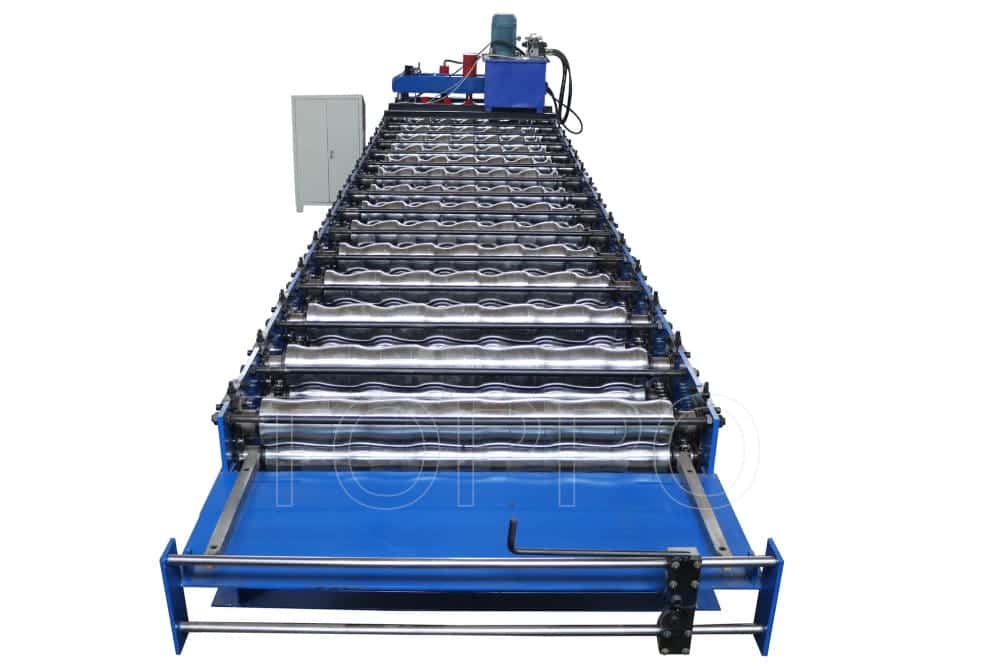

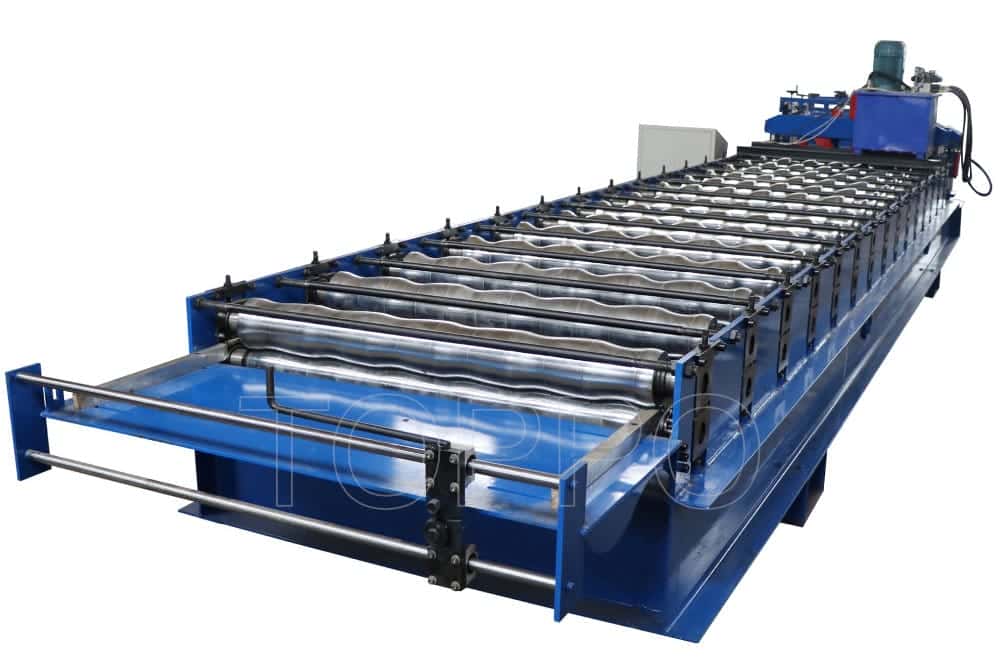

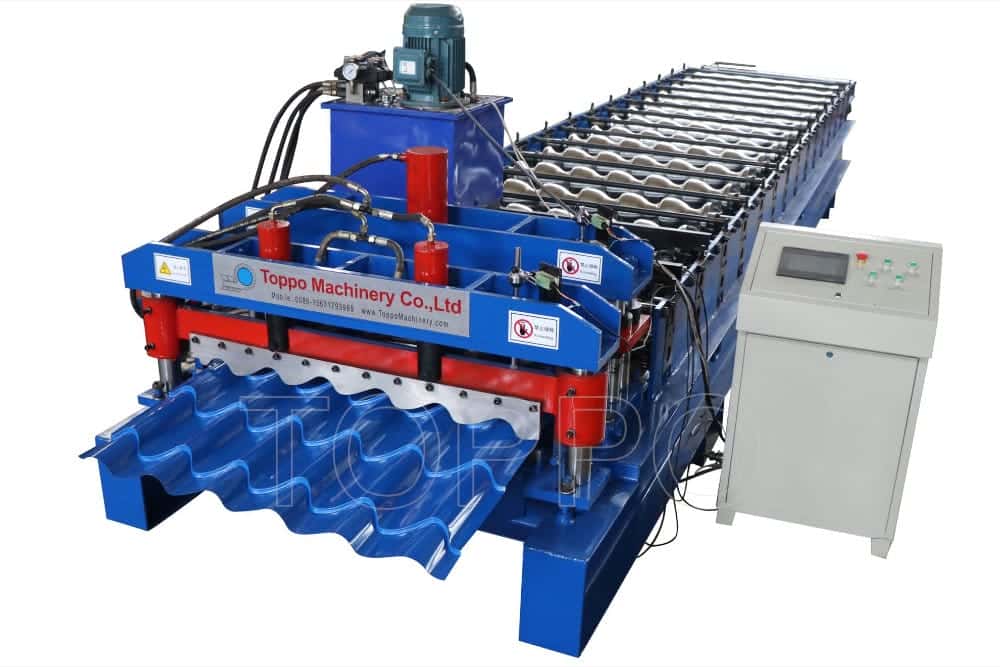

This wavy-style glazed tile roll forming machine is tailored for color steel roofing applications. With its ergonomic design and robust steel frame, it delivers high-precision performance for curved tile profiles.
1. Product Name: Wavy Glazed Tile Roll Forming Machine
2. Tile Shape: Curved / Wave Type
3. Applicable Material: Galvanized Steel, PPGI
4. Coil Thickness: 0.3–0.6 mm
5. Coil Width: 1000–1250 mm
6. Effective Width: 840–1050 mm

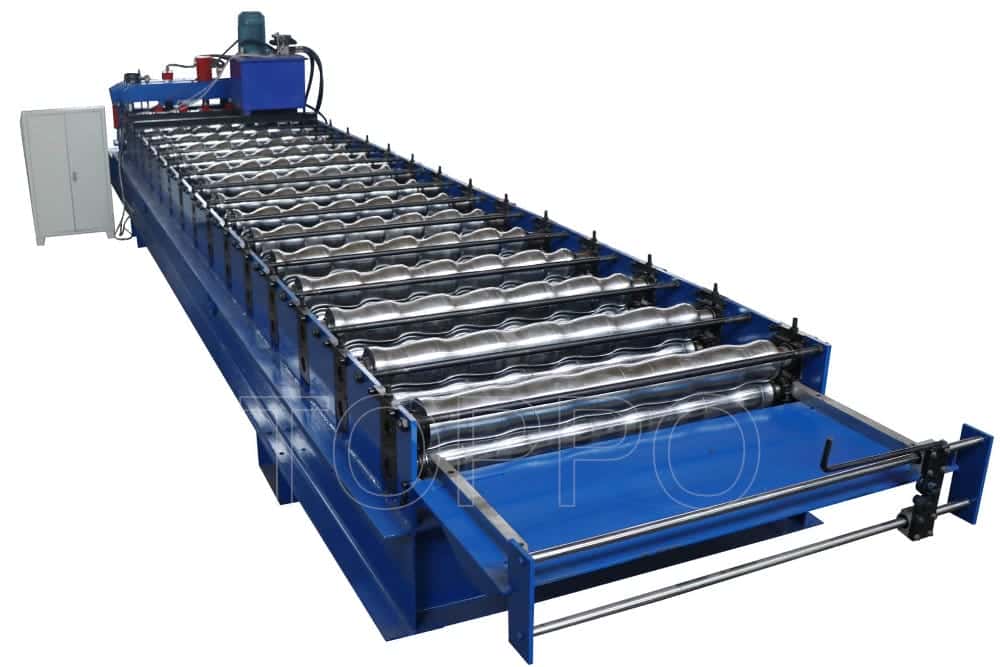

7. Roller Stations: 16–22

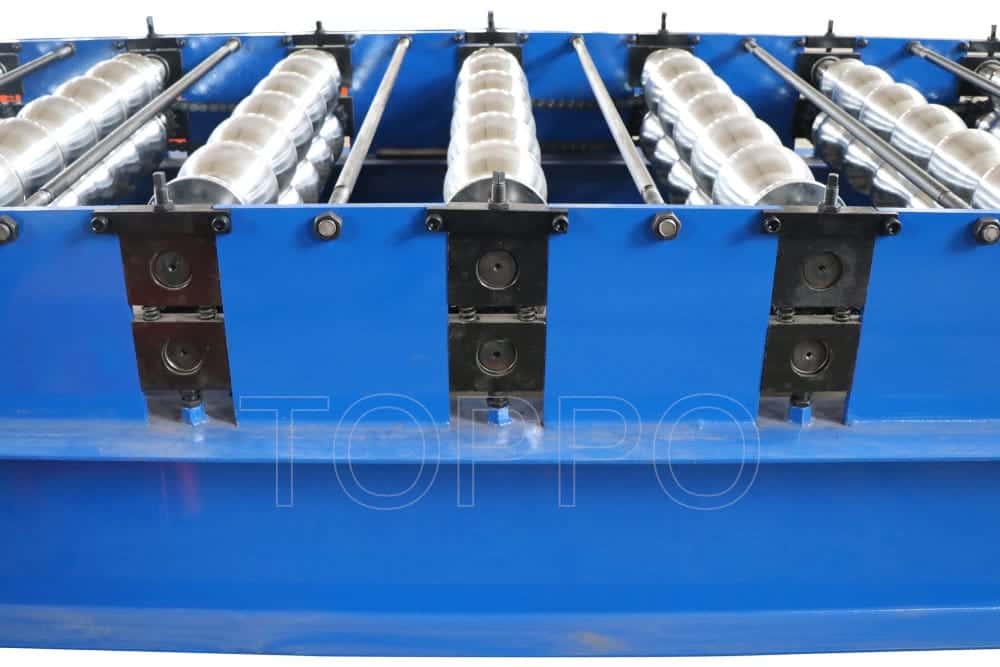

8. Shaft Diameter: 75 mm
9. Shaft Material: High-Grade Steel

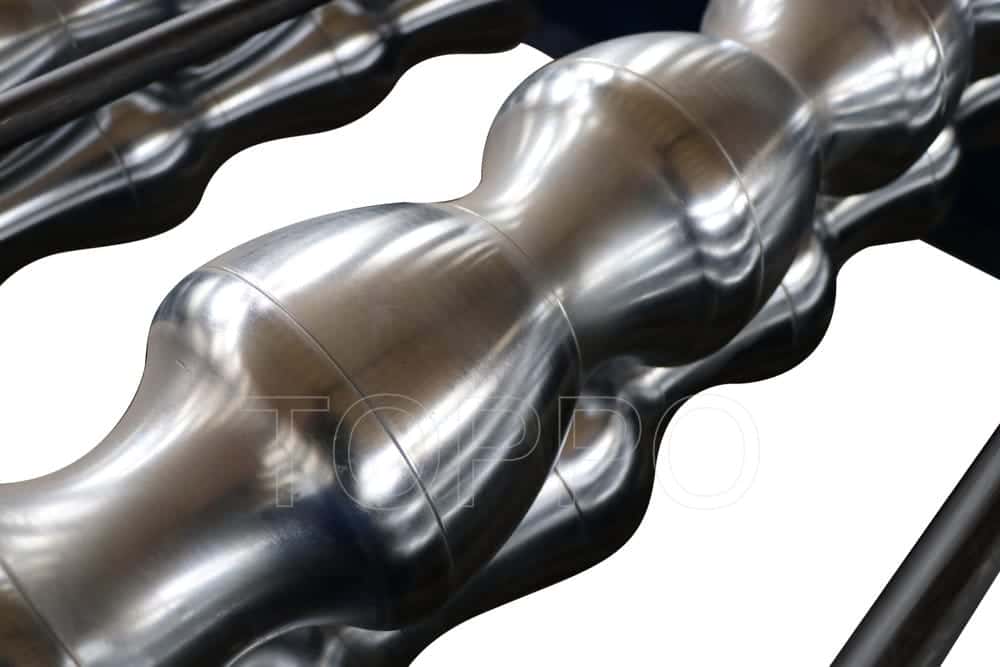

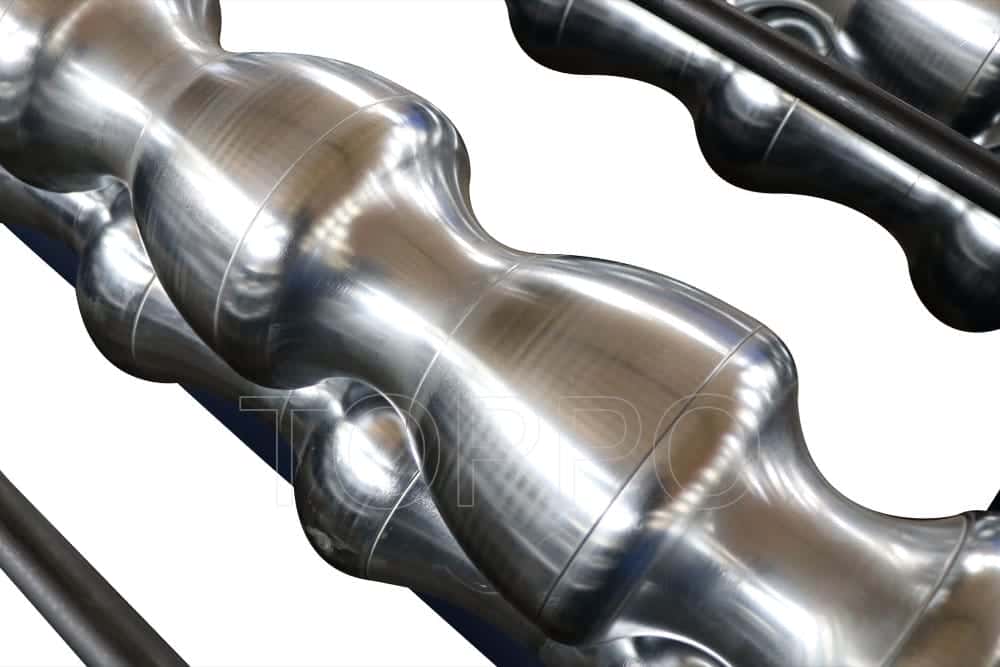

10. Roller Material: GCr15 with Hard Chrome Plating

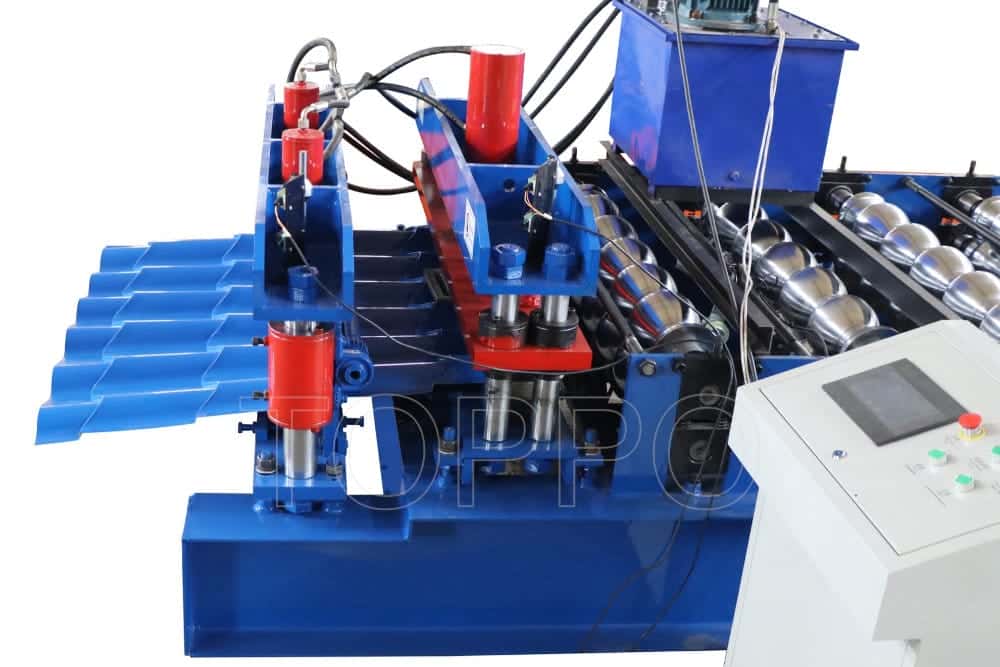

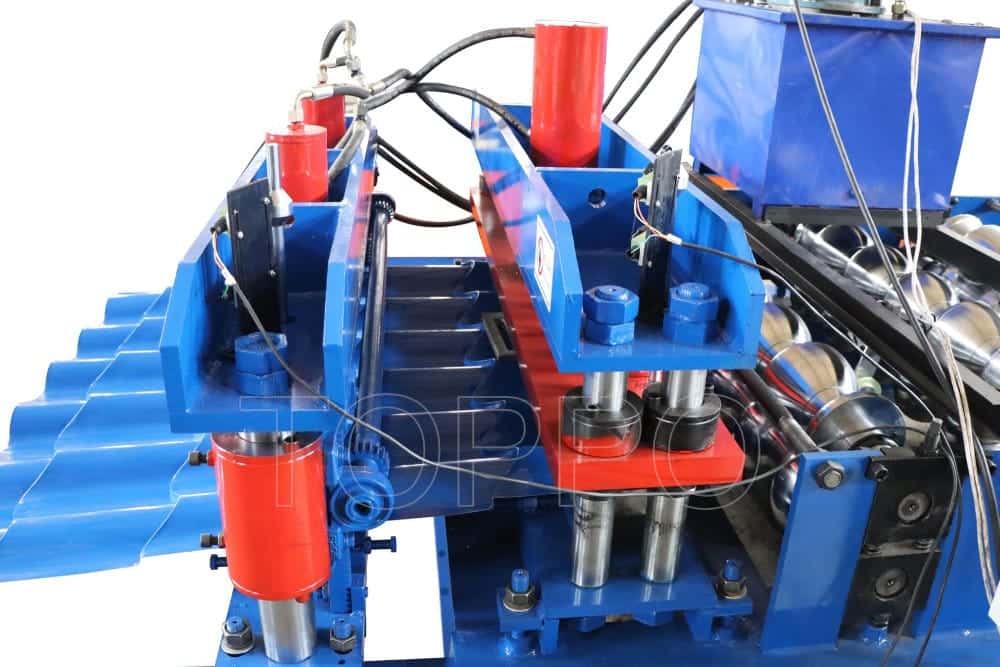

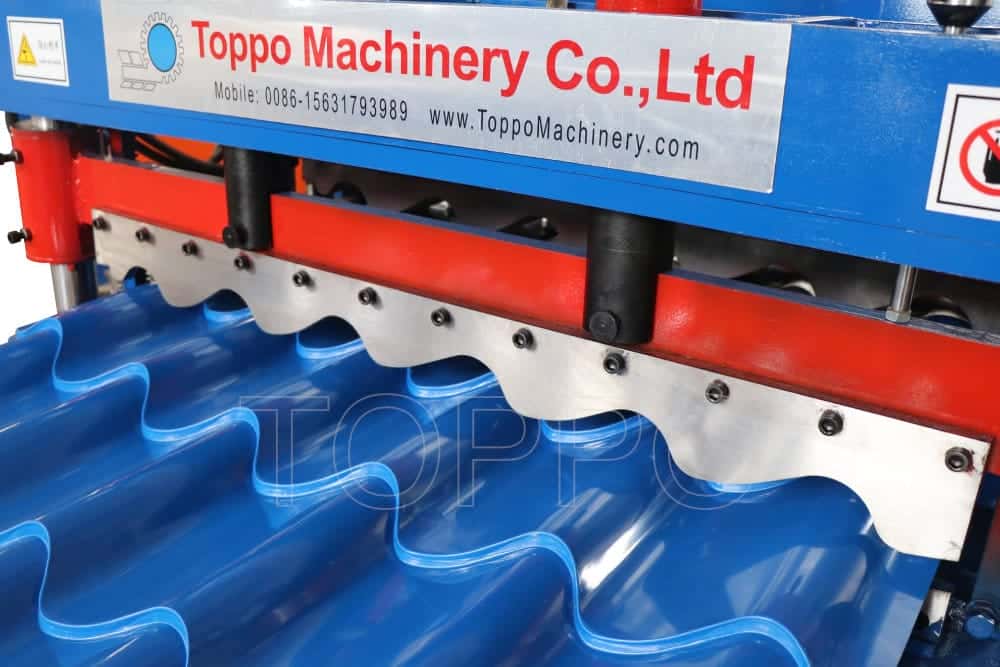

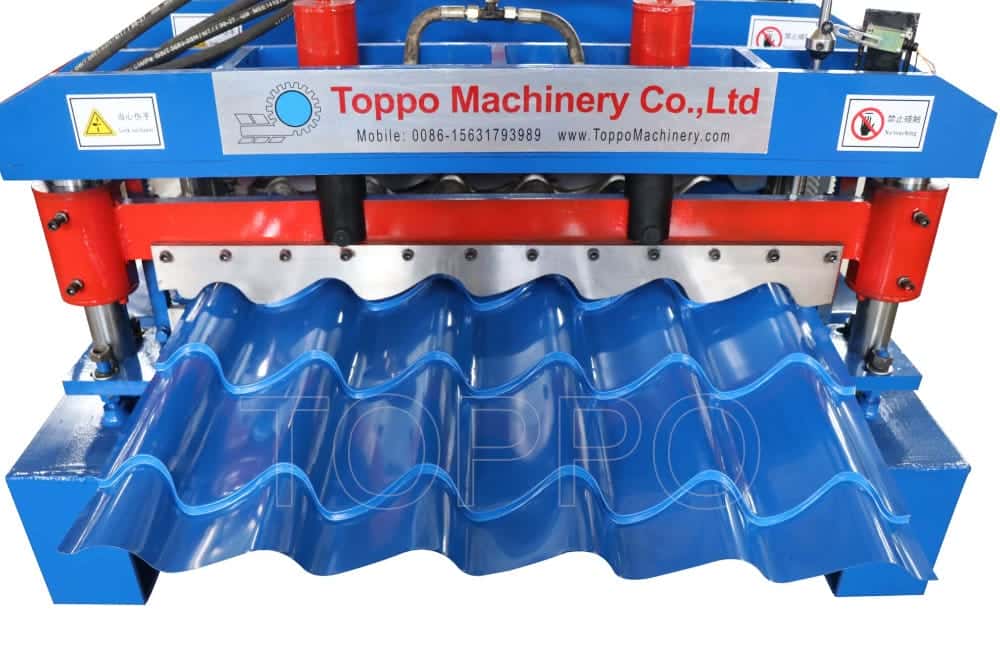

11. Cutting Type: Hydraulic Shearing

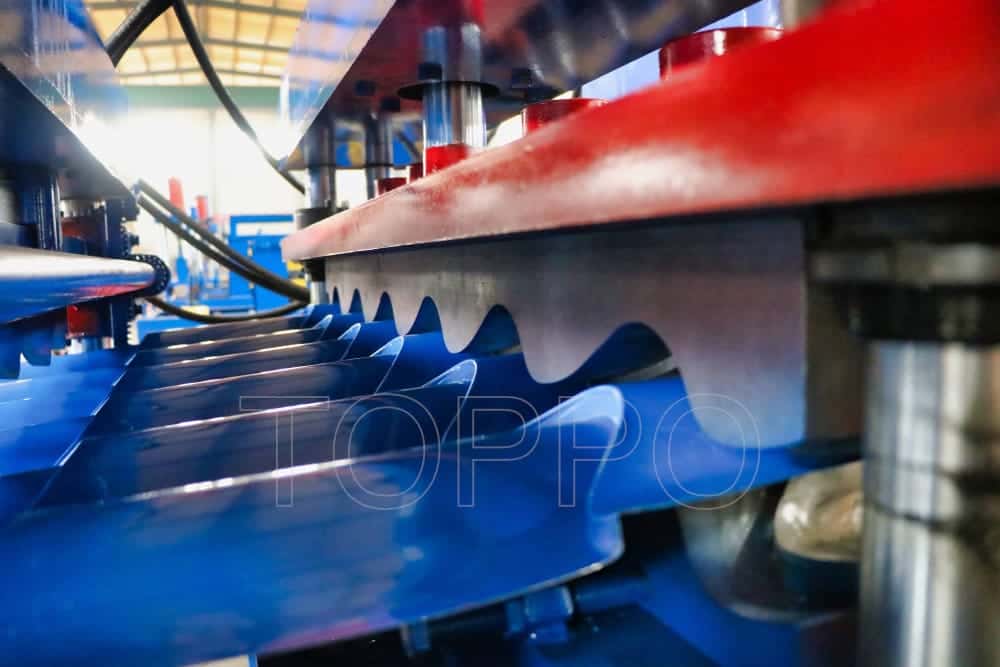

12. Cutting Blade: Cr12MoV Hardened Steel
13. Motor Power: 5.5 kW
14. Hydraulic Station Power: 4 kW
15. Machine Frame: 350H Beam Welded
16. Transmission: Chain Drive
17. Voltage: 380V/50Hz/3Phase
18. Control System: Button Panel + Digital Display
19. Forming Speed: 5–7 m/min
20. Operating Mode: Fully Automatic

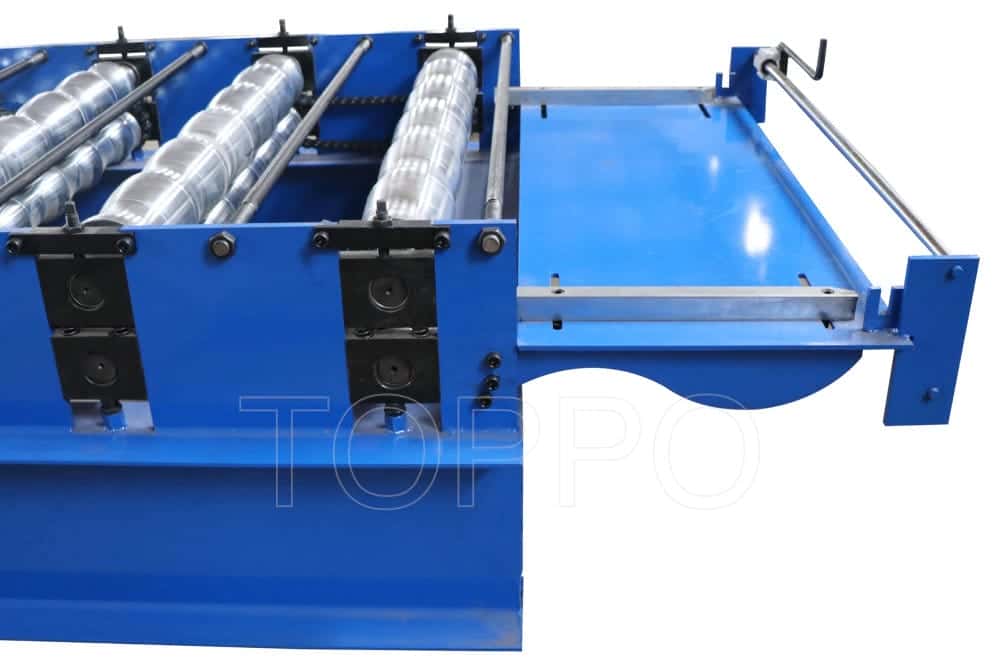

21. Material Feed: Guided Roller Entry
22. Color Options: Customizable
23. Control Panel: Integrated Cabinet
24. Output Shape: Semi-arch roof tiles
25. Noise Level: ≤70 dB
26. Blade Control: Sensor-triggered Cut
27. Decoiler: Optional Manual or Hydraulic
28. Cooling Method: Air Cooled
29. Lubrication: Manual Lubrication Points
30. Warranty Period: 1 Year
31. Packaging: Waterproof Film & Steel Frame
32. Delivery Time: 25 Days
33. Certification: CE & ISO
34. Machine Weight: About 6.5 Tons
35. Machine Size: 8m x 1.5m x 1.6m
36. Production Application: Roofing of Villas, Factories
37. Customization: Profile, Color, Logo
38. Emergency Stop: Installed
39. Output Capacity: 8–12 m/min
40. After-Sales Service: Video Support & Spare Parts
