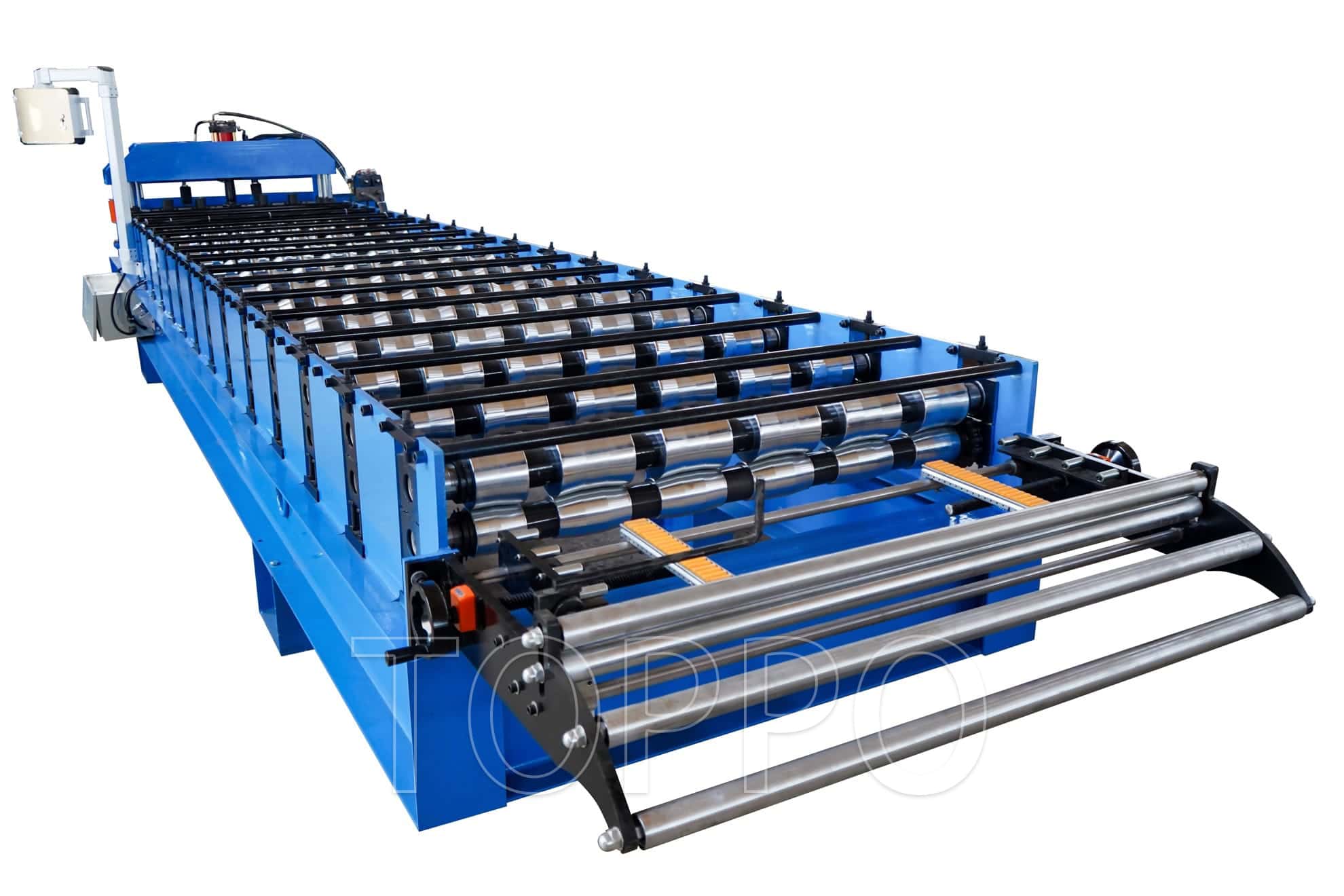

Type: Glazed Tile Roll Forming Machine
Material Type: PPGI, GI, Color steel
Material Thickness: 0.3–0.8 mm
Input Width: 1000–1250 mm
Effective Output Width: 828–1100 mm
Production Speed: 5–6 m/min
Roller Stations: 18–22 steps
Roller Material: 45# steel, coated with hard chrome
Forming Shaft: 70 mm solid steel

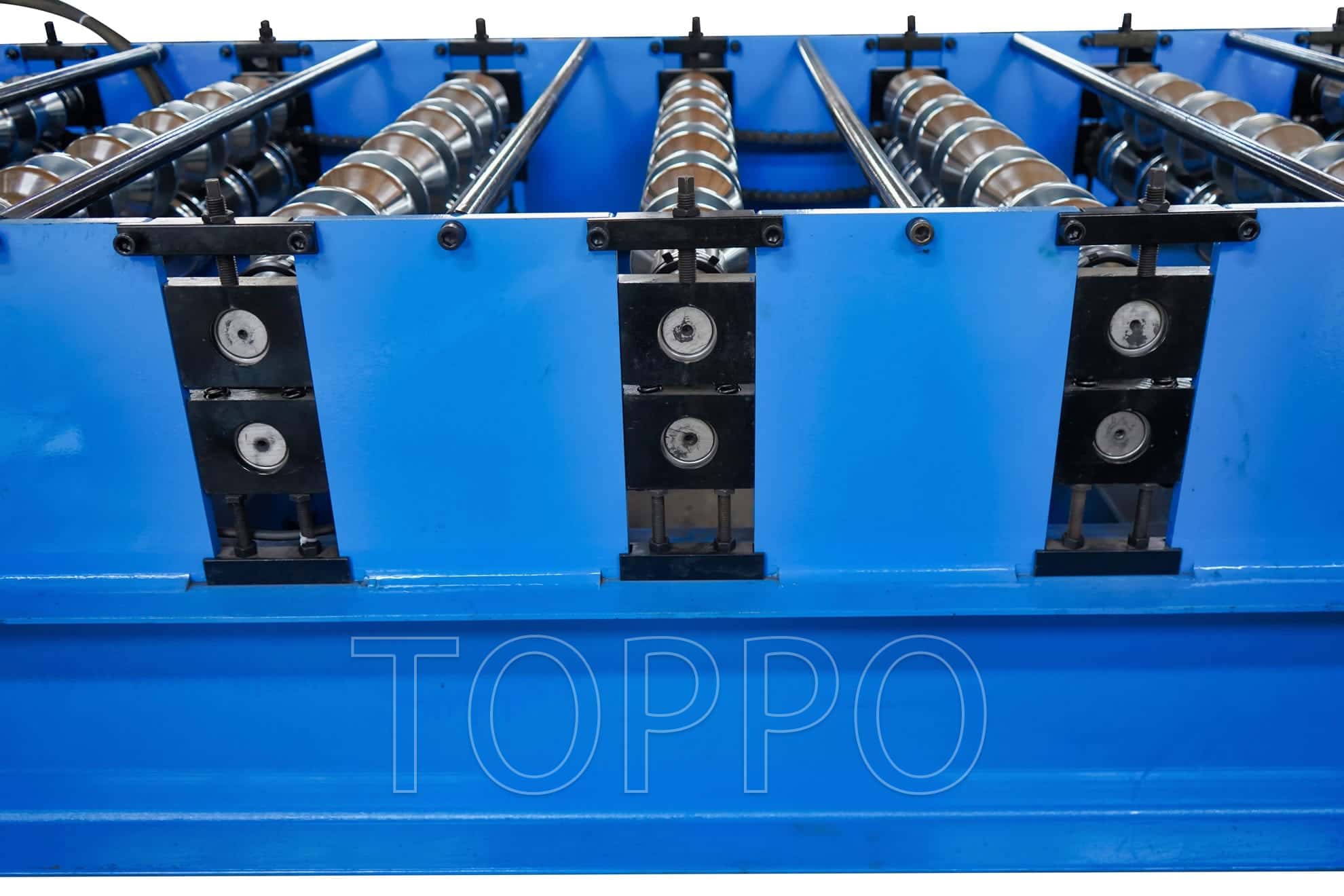

Machine Frame: Welded H-beam steel
Transmission Type: Chain drive or gear drive
Main Power: 7.5 kW

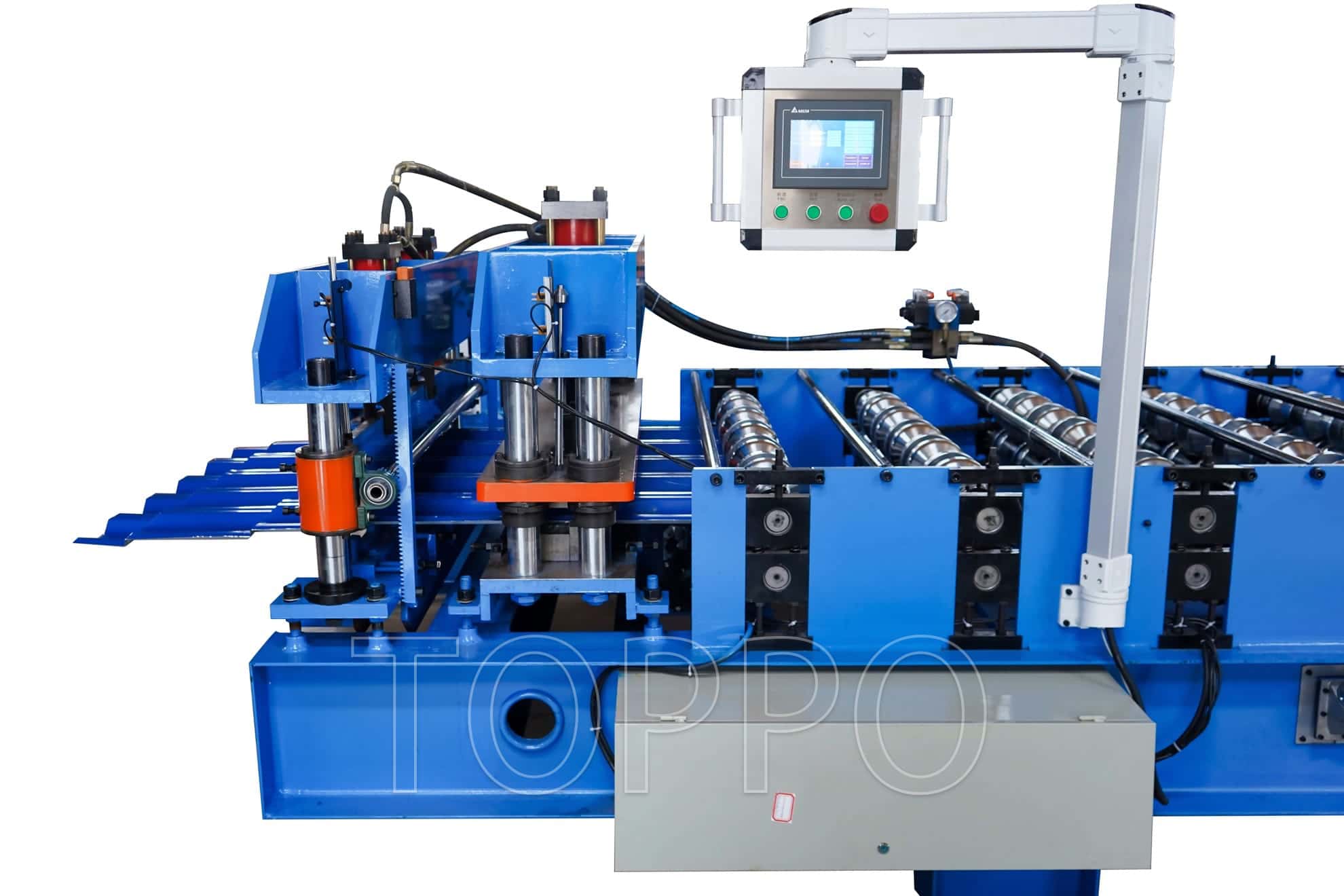

Hydraulic System: 4 kW hydraulic cutting system

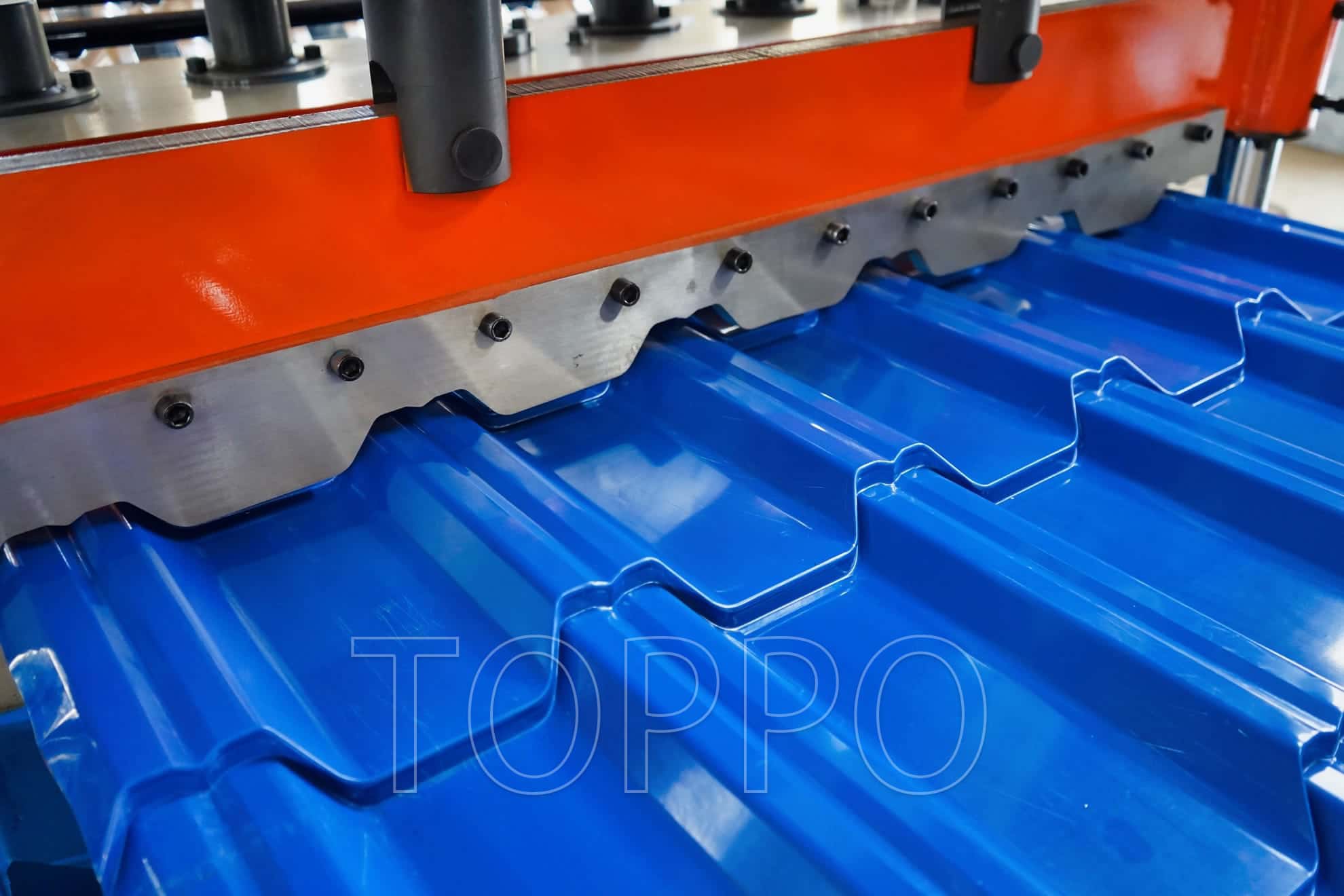

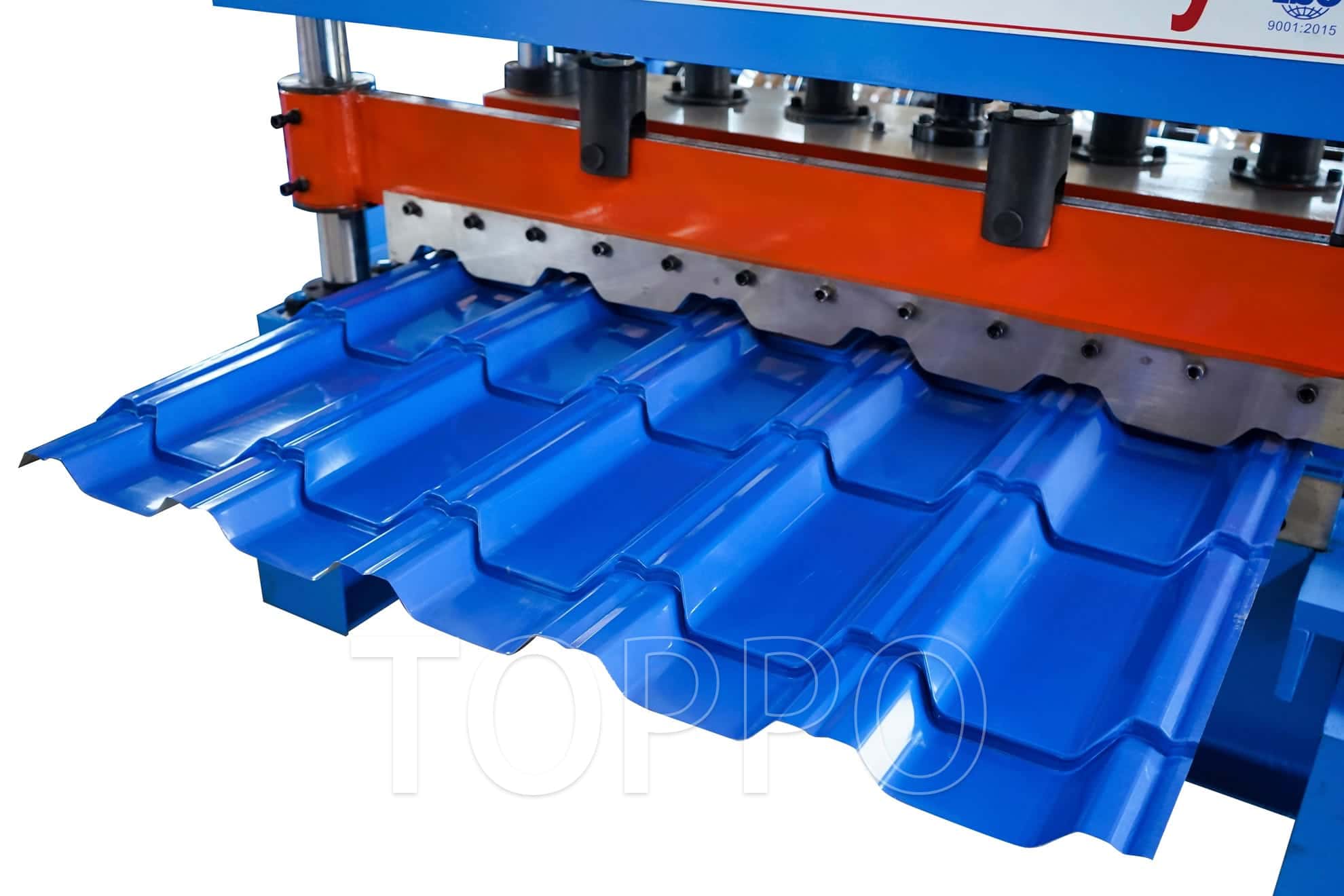

Cutting Blade: Cr12Mov with precision machining

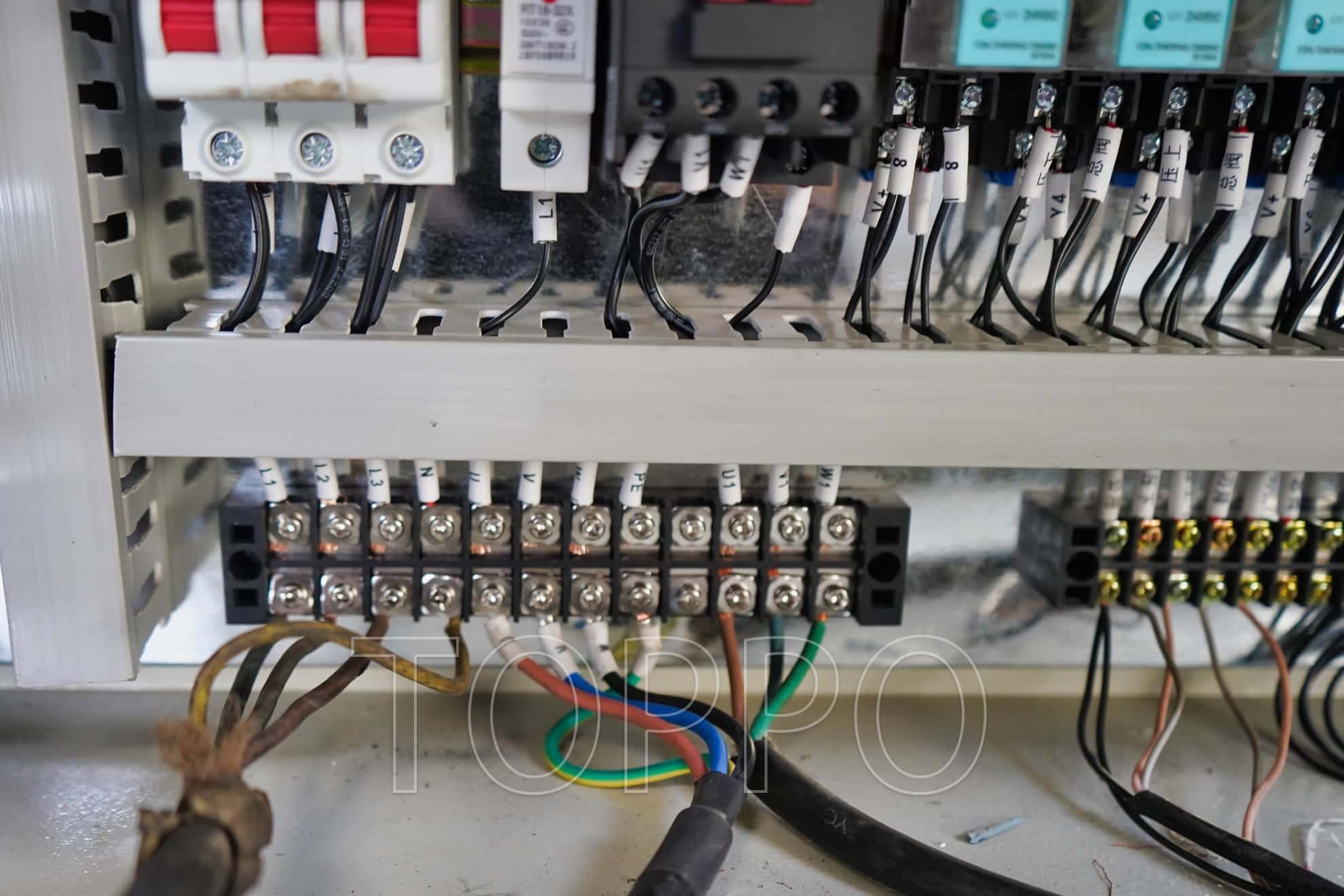

Control System: Delta/Siemens PLC system
Operation Panel: 7" Touchscreen + emergency buttons
Voltage: 380V/50Hz/3Phase (optional custom)
Machine Size: 9.8m × 1.5m × 1.6m
Machine Weight: About 7 tons
Forming Accuracy: ±1 mm
Color: Blue and orange (custom available)

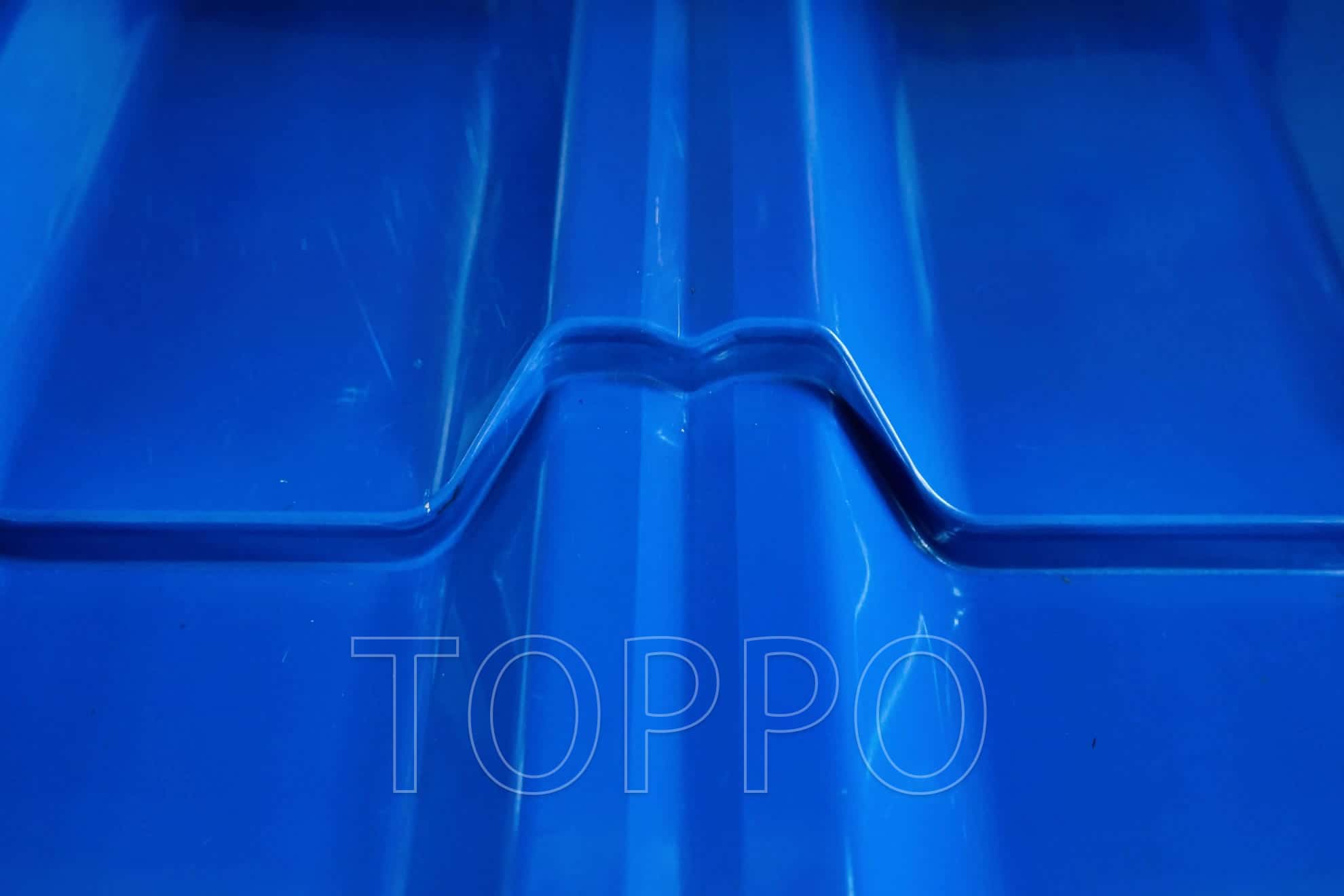

Tile Profile: Classic glazed style
Application: Roofing tiles for homes, offices, warehouses
Output Capacity: 8–12 tons/day
Noise Level: ≤ 75 dB
Cooling System: Air fan in control cabinet
Safety: Equipped with safety guards and emergency stop
Automation: Fully automatic
Feeding System: Manual/hydraulic decoiler
Surface Finish: Anti-corrosion coating
Packaging: Plastic wrap or export wooden box
Delivery Period: 30–45 business days
Installation: On-site setup and training available
Support: Remote technical assistance + spare parts
Warranty: 1 year
Certifications: ISO, CE
This high-speed roll forming machine offers enhanced production efficiency, stable performance, and beautiful glazed tile profiles, making it ideal for high-volume metal roofing applications.
