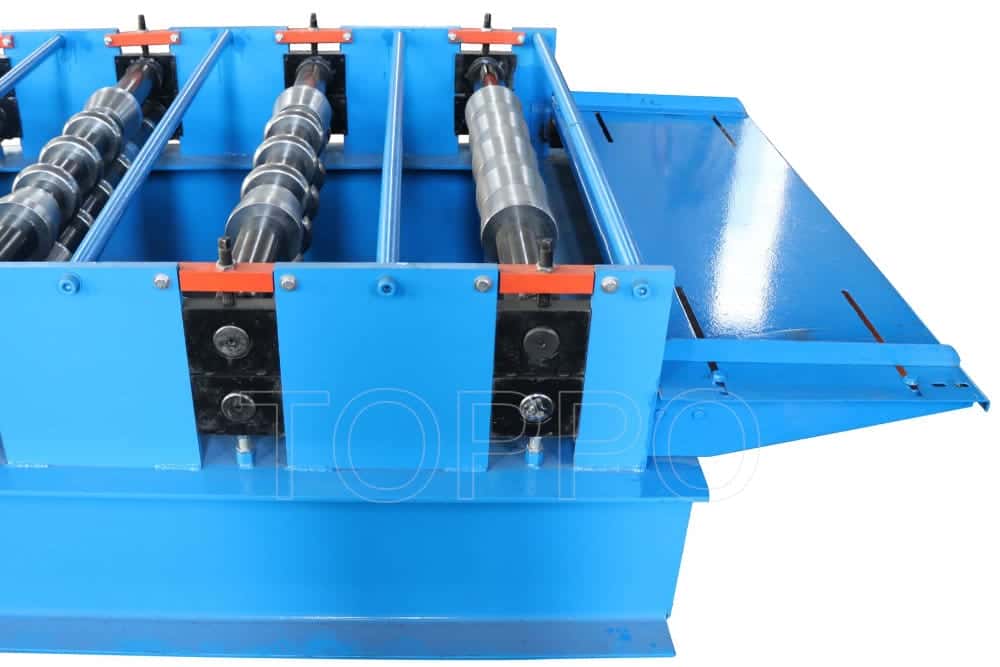

Compact Glazed Tile Roll Forming Machine - Specifications

• Machine Type: Glazed Tile Roll Forming Machine

• Material Supported: Galvanized steel, PPGI, color-coated sheet

• Material Thickness: 0.3–0.7 mm

• Feeding Width: 1000–1220 mm

• Effective Output Width: 828–1100 mm

• Production Speed: 4–6 m/min

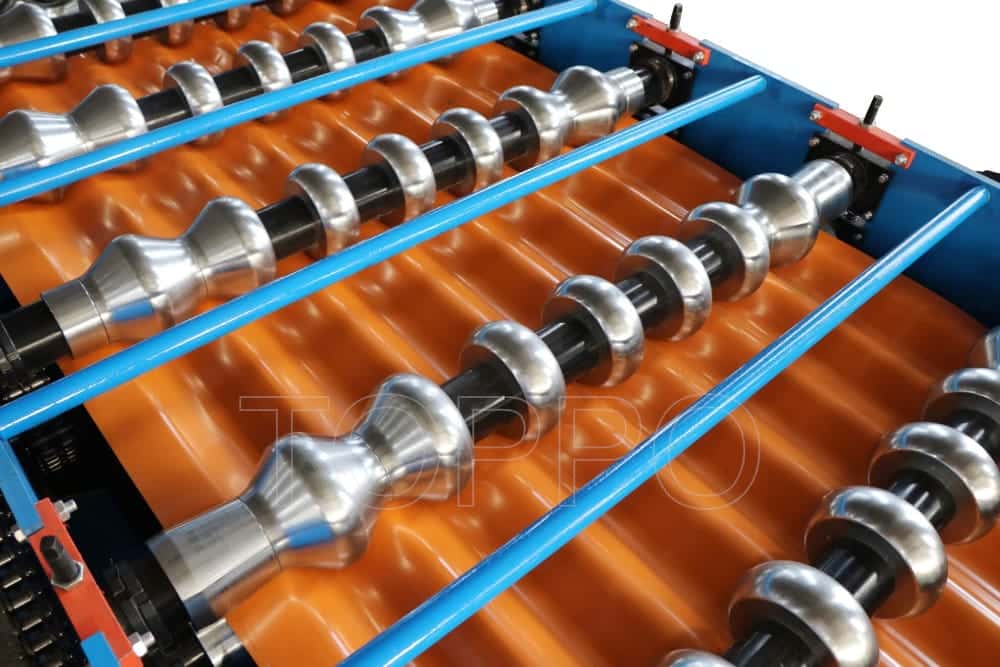

• Roller Stations: 18 rows

• Shaft Diameter: 70 mm

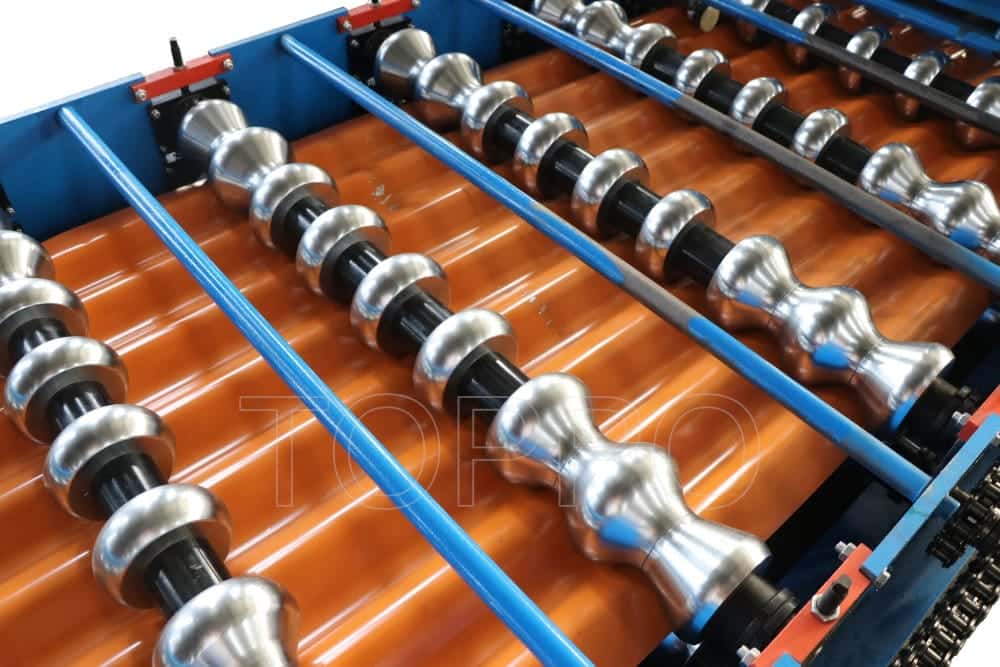

• Roller Material: 45# steel with hard chrome coating

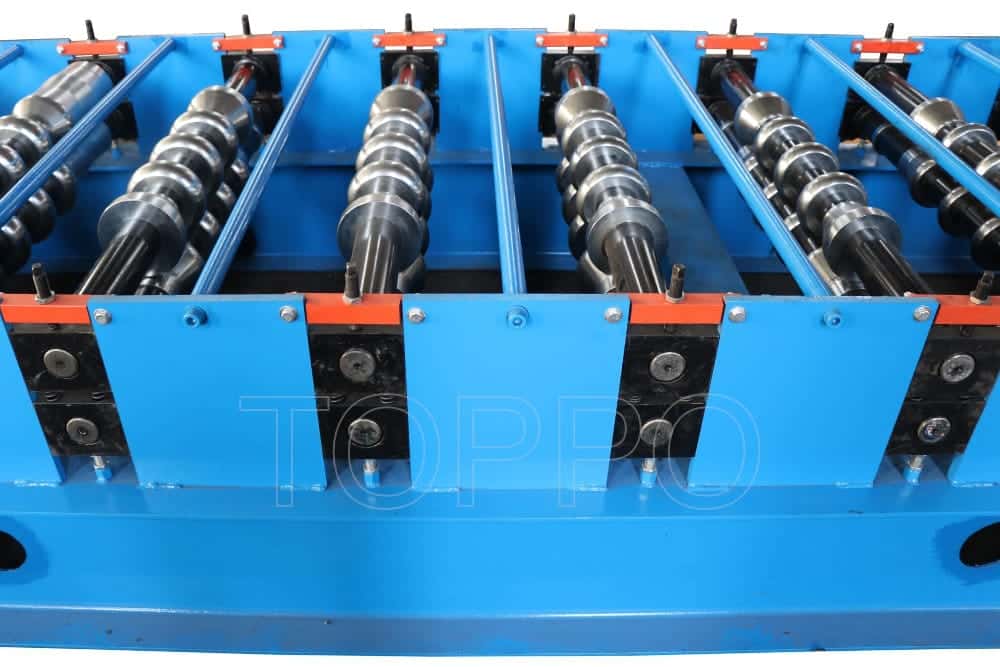

• Frame Structure: Welded steel base

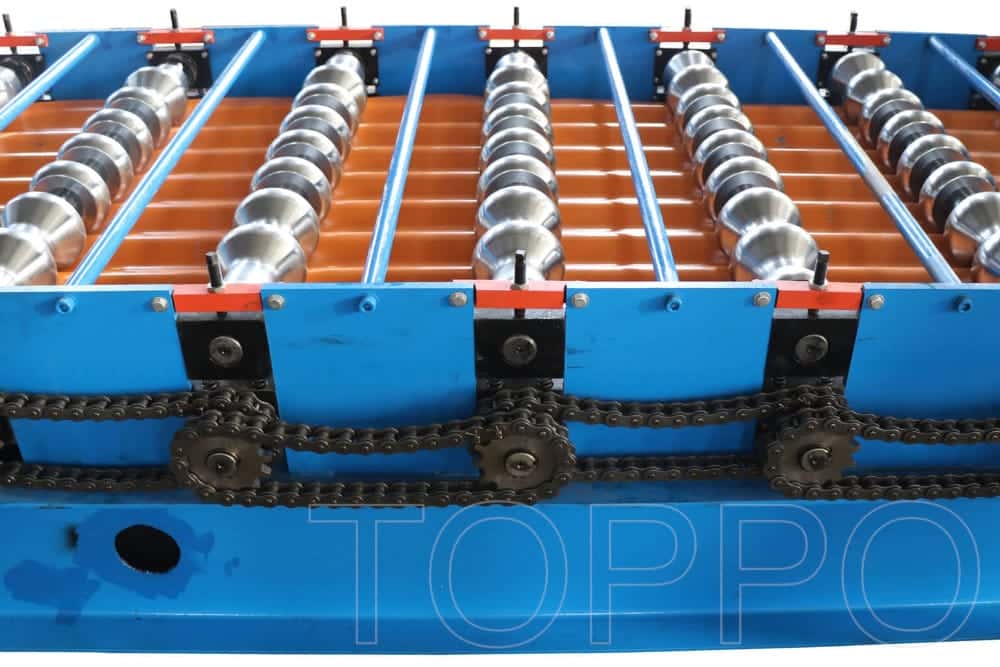

• Drive Mode: Chain or gearbox

• Main Motor Power: 5.5 kW

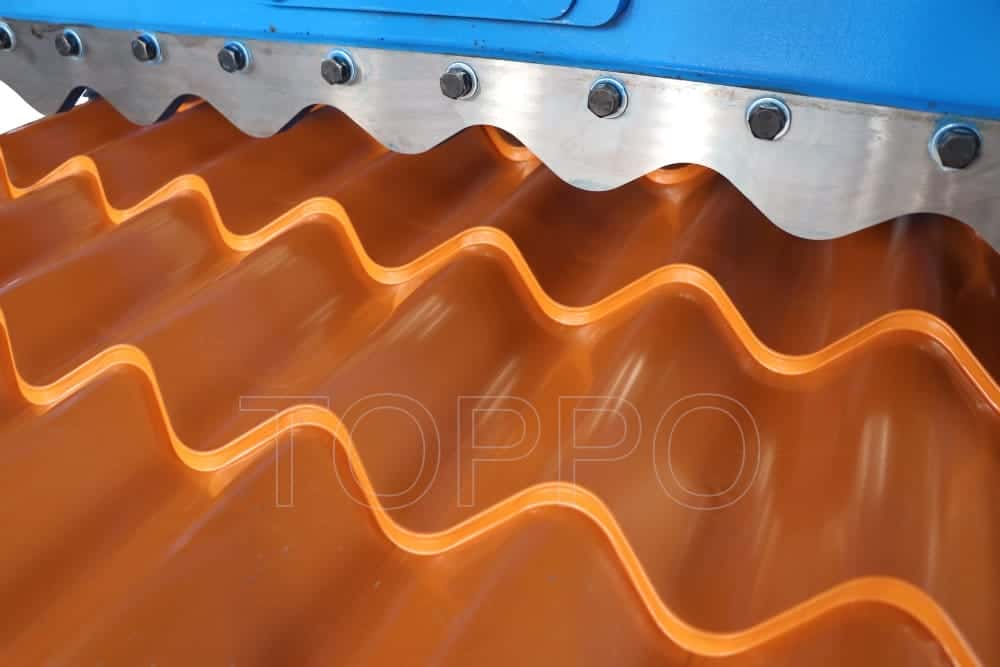

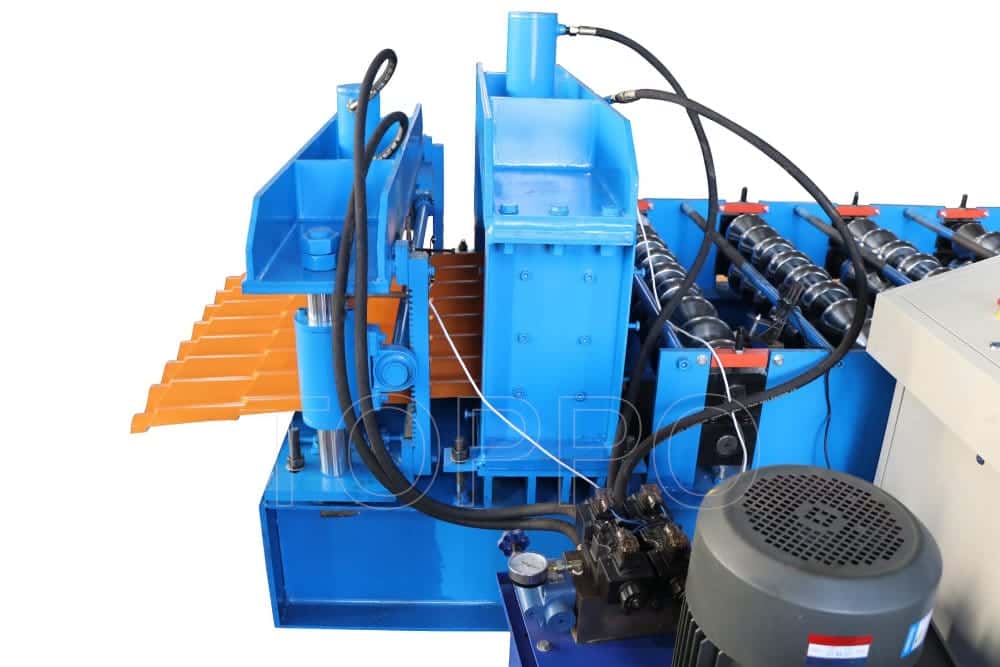

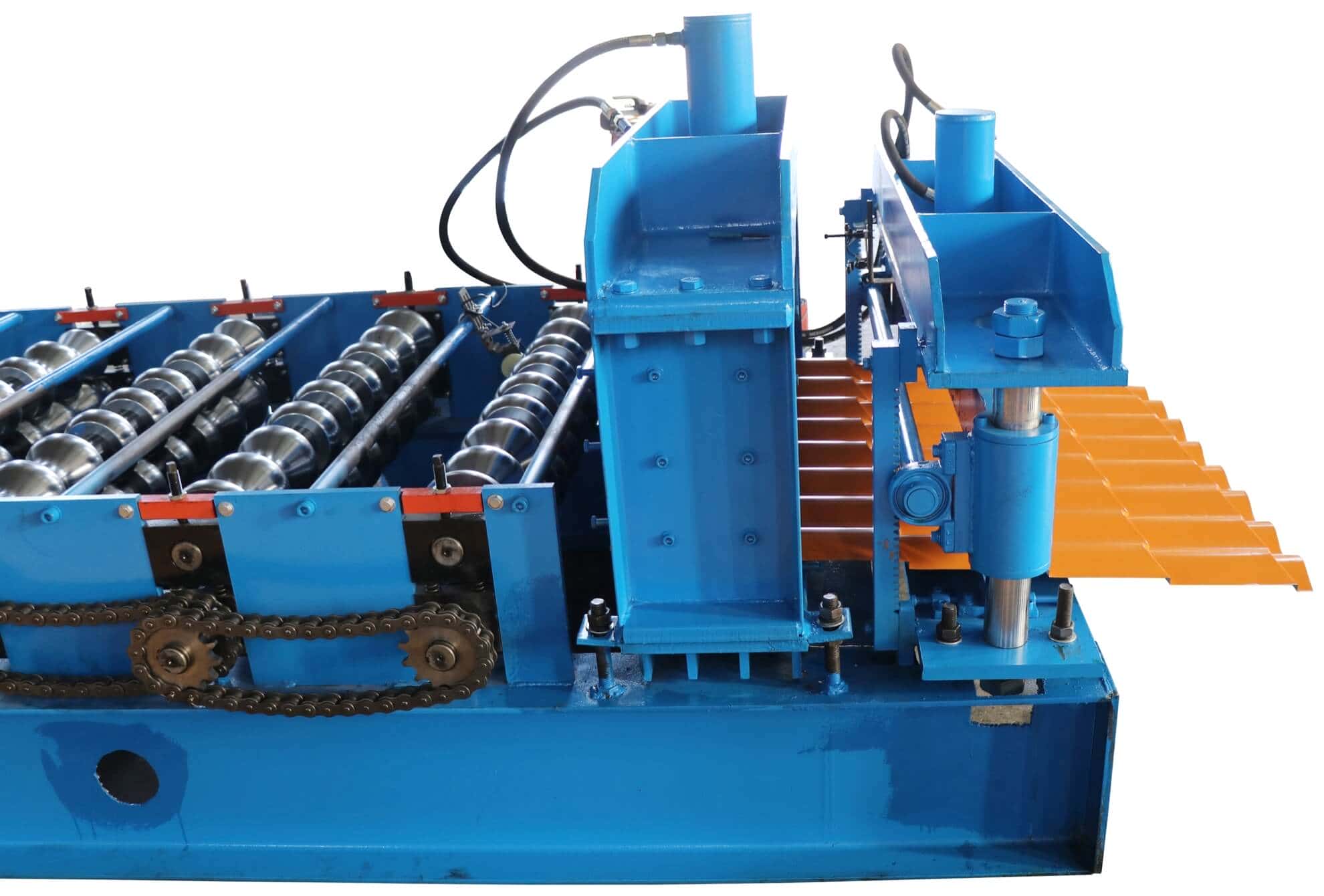

• Hydraulic Cutting: 3 kW motor with Cr12 blade

• Control System: PLC with integrated touch control box

• Operation Interface: LCD touchscreen + push buttons

• Voltage: 380V/50Hz/3P (customized accepted)

• Machine Dimensions: 8.5m × 1.3m × 1.4m

• Machine Weight: 6 tons approx.

• Accuracy: ±1 mm cutting tolerance

• Color: Standard blue (customizable)

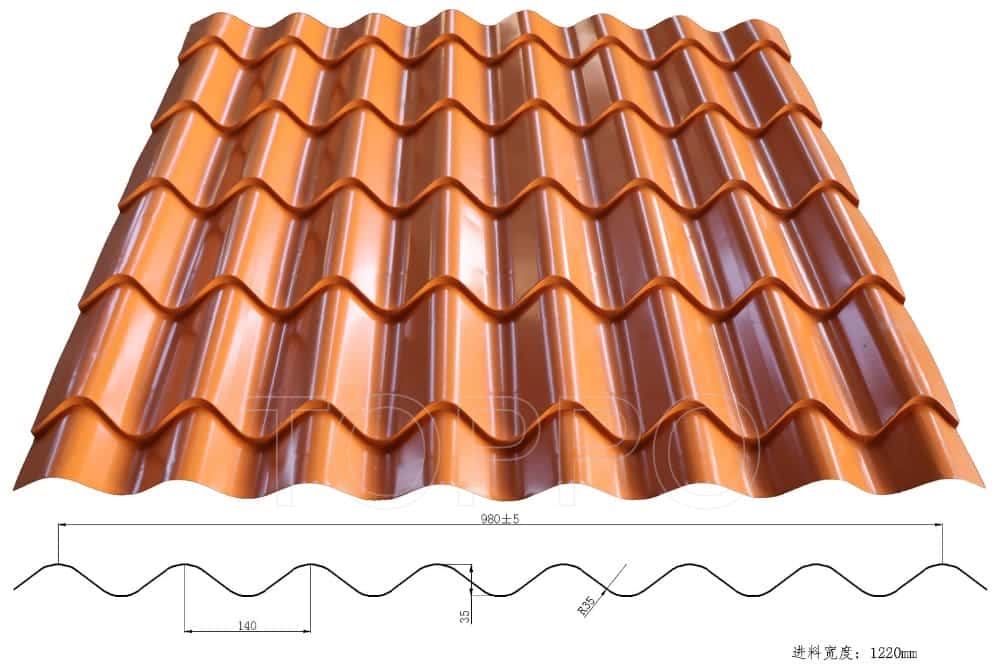

• Tile Output: Classic wave glazed roof tiles

• Application: Metal roofing for houses, storage, villas

• Daily Capacity: 7–10 tons

• Cooling System: Air-cooled cabinet

• Noise Level: ≤ 78 dB

• Protection: Safety covers, emergency stop

• Automation: Fully automatic

• Feeding Equipment: Manual or hydraulic decoiler

• Surface Finish: Anti-rust coating

• Packaging: Film wrap or wooden case

• Shipping Method: By container

• Warranty: 12 months

• Certifications: CE, ISO9001

• After-Sales: Online technical support + on-site available

This compact glazed tile roll forming machine is engineered for businesses with limited space, offering full automation and precision control through an integrated electrical cabinet for seamless tile production.
