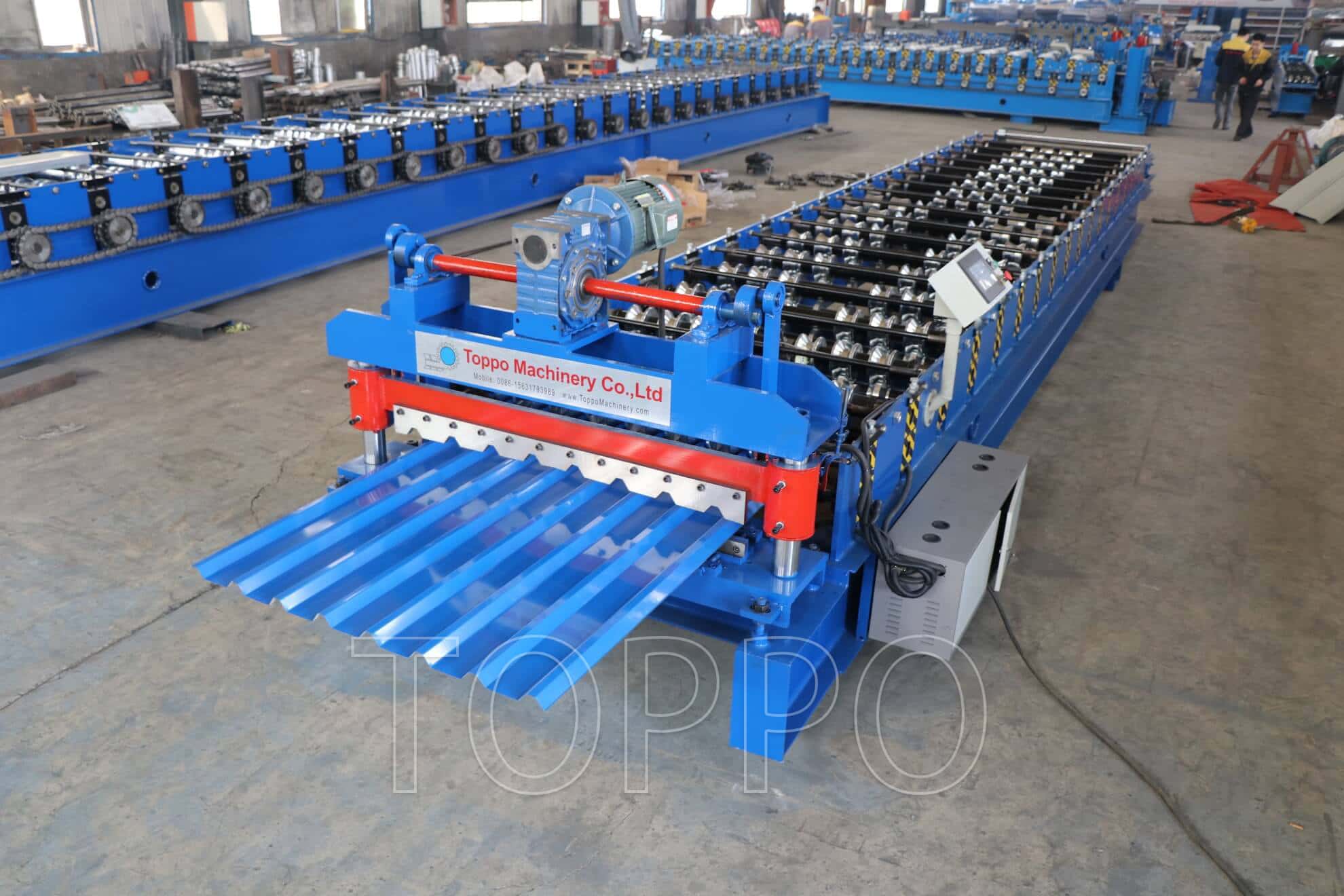

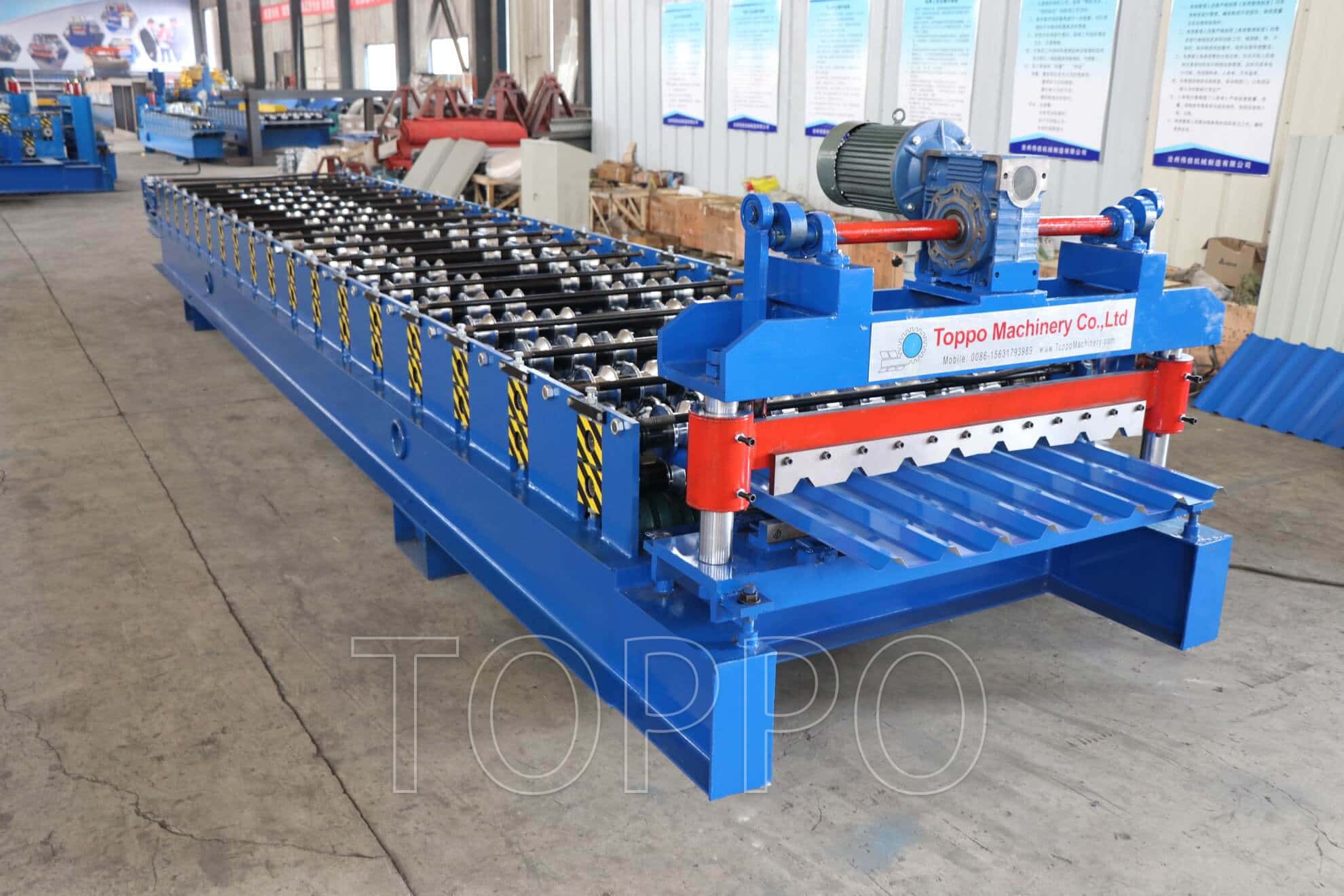

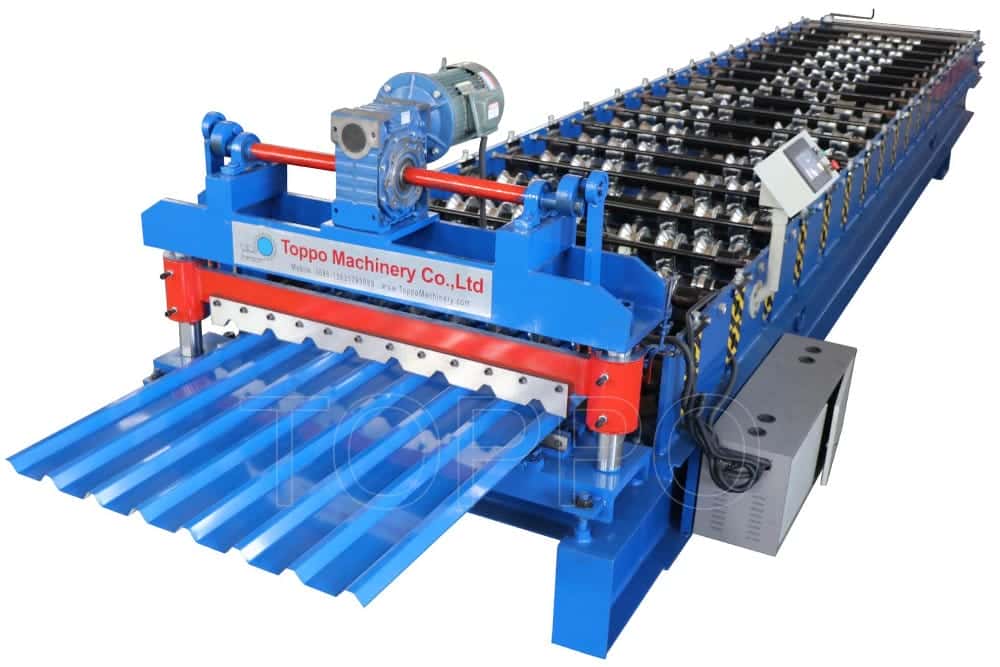

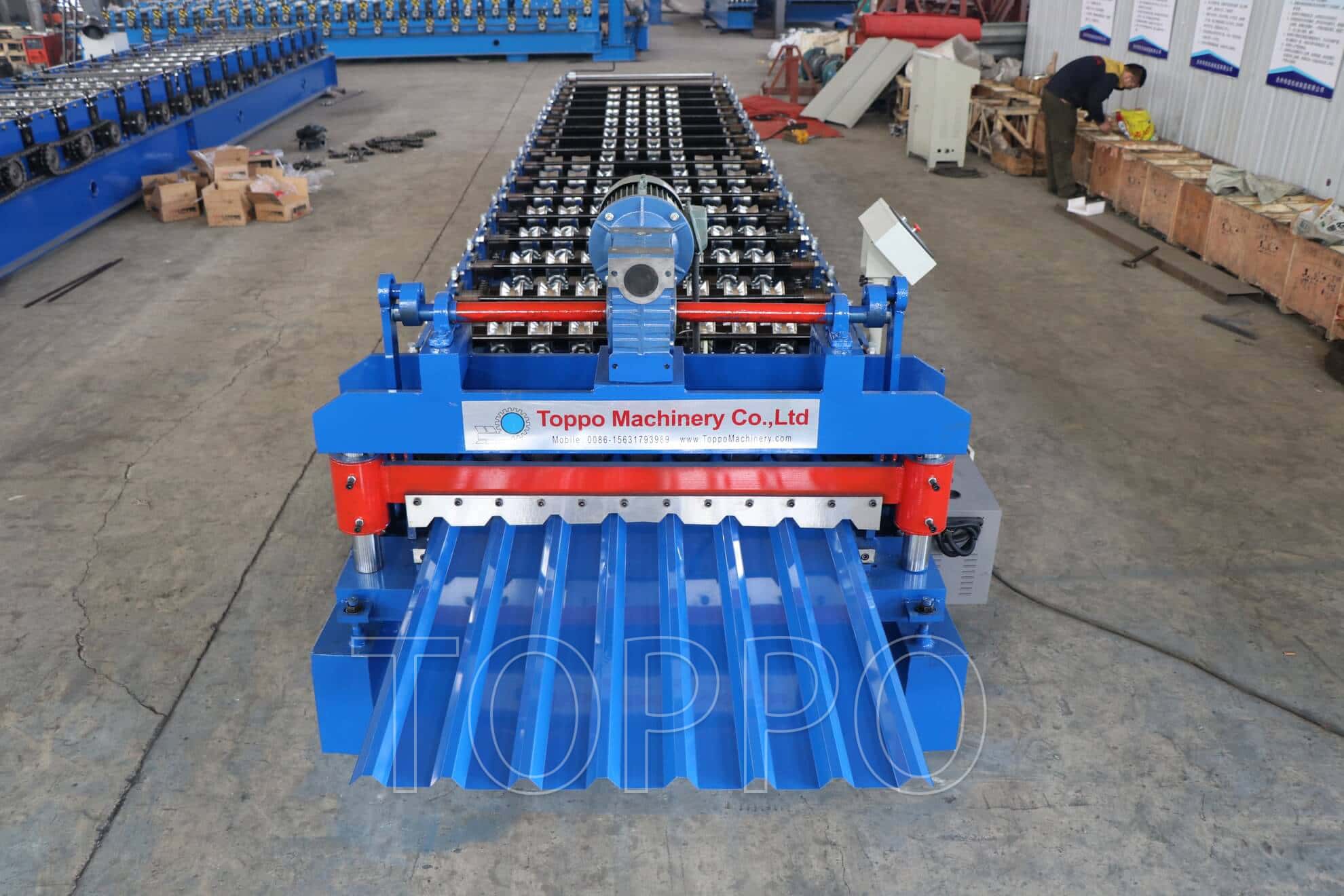

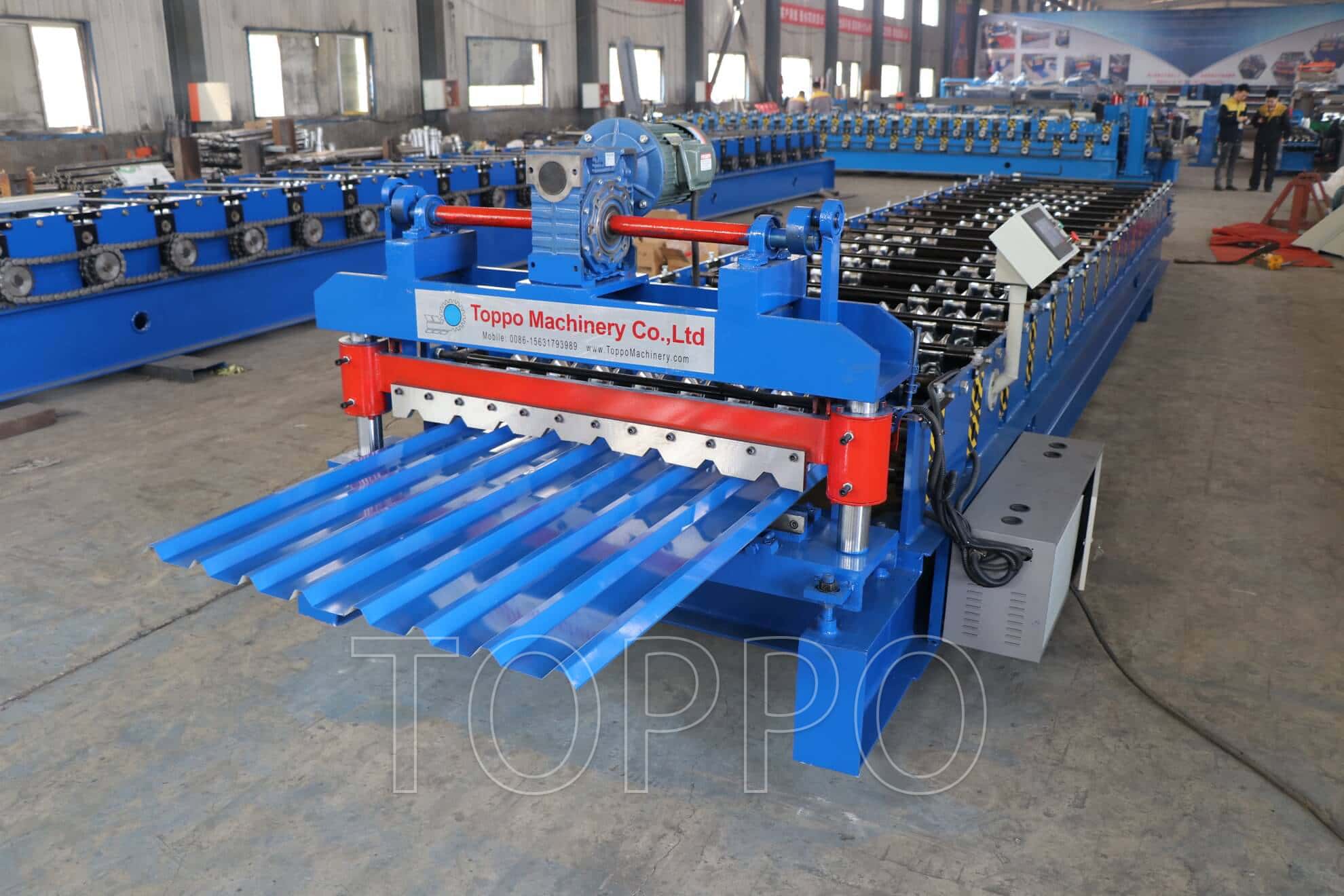

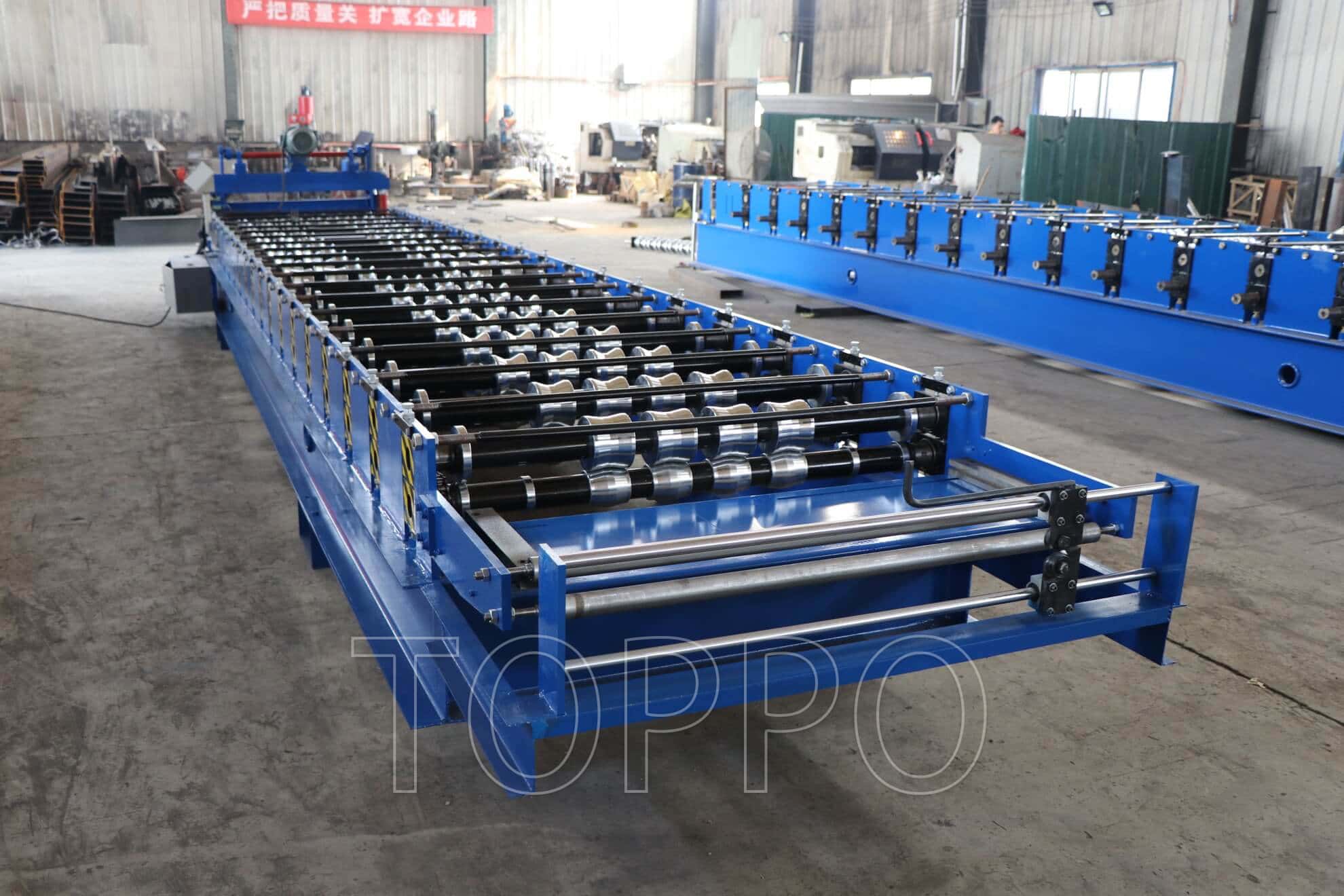

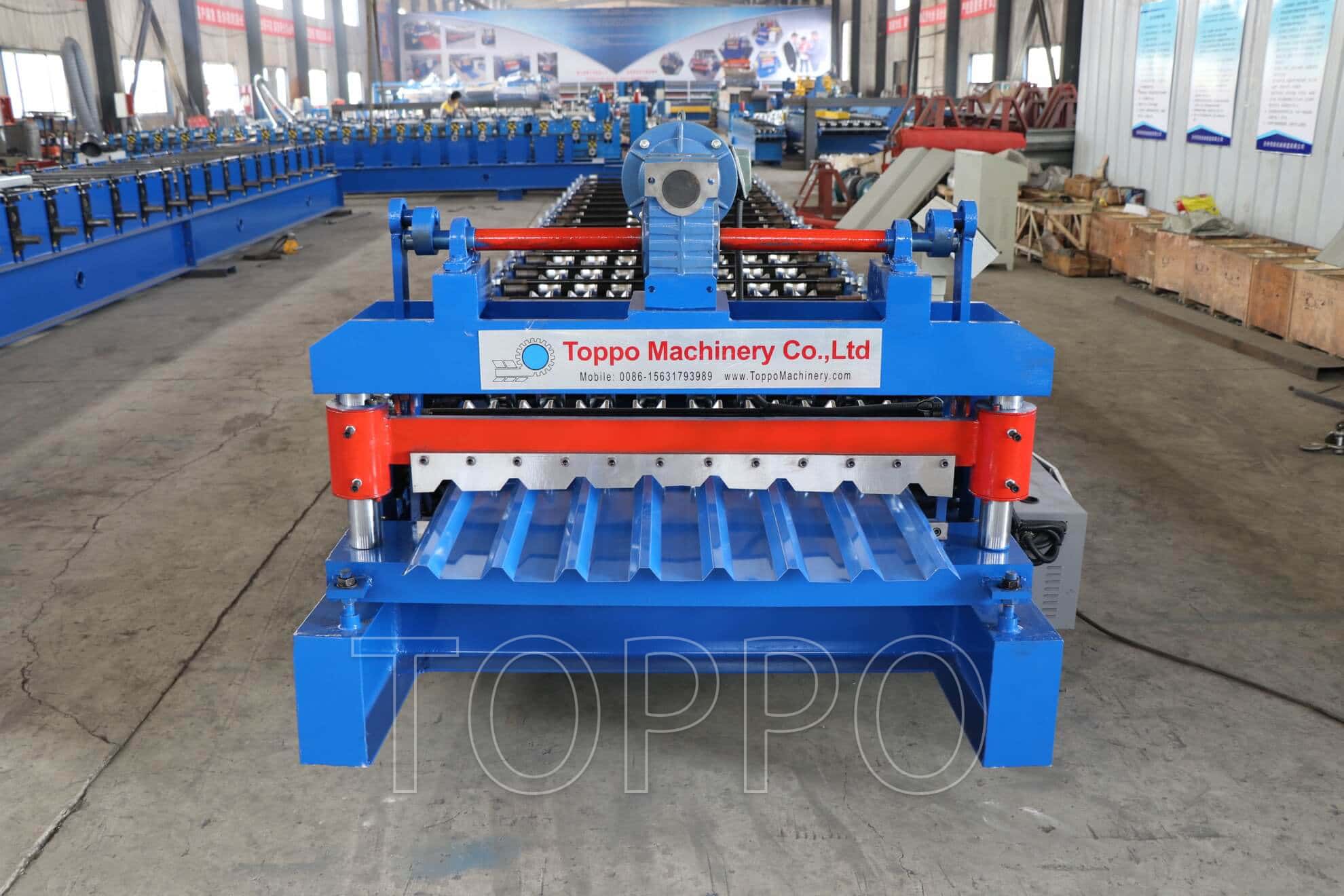

Machine Type: Trapezoidal Roof Sheet Roll Forming Machine
Application: Roofing panel production
Material: Galvanized steel, Color steel, Aluminum
Material Thickness: 0.3-0.8 mm
Forming Speed: 10-15m/min

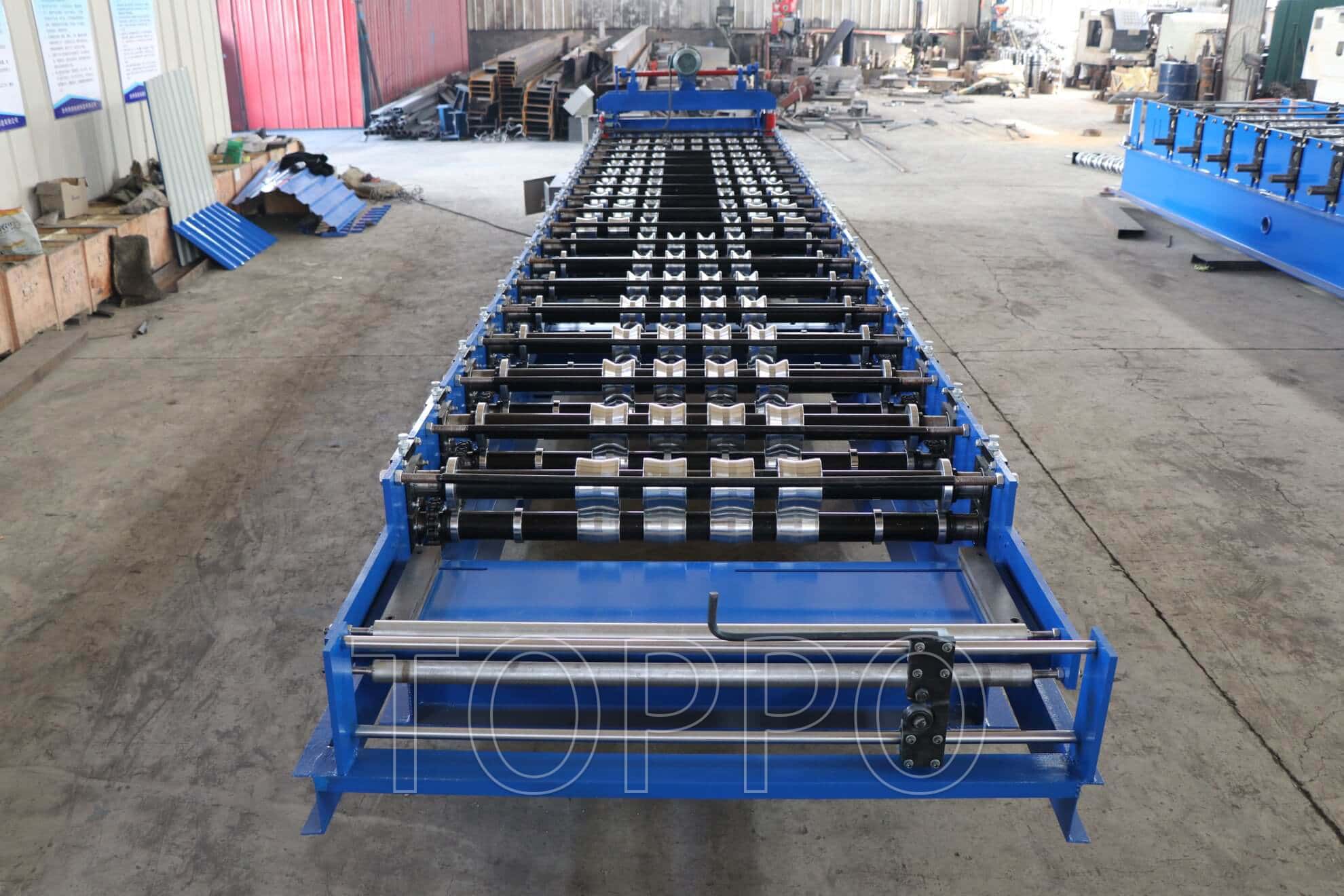

Roller Stations: 16-20 rows

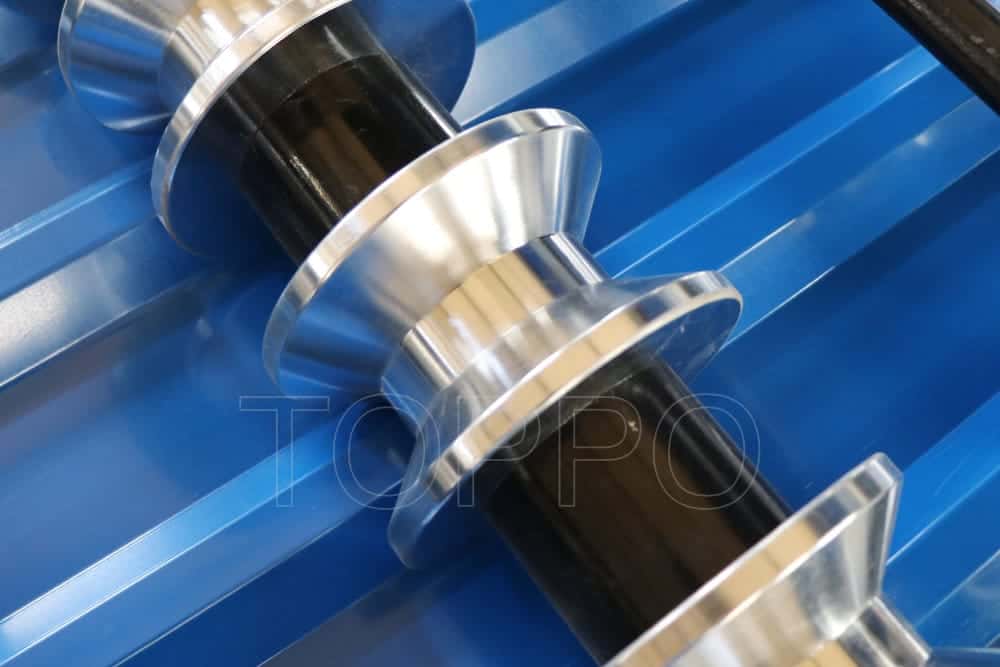

Roller Material: 45# steel with hard chrome coating
Shaft Diameter: 75 mm
Drive System: Chain drive or gear drive

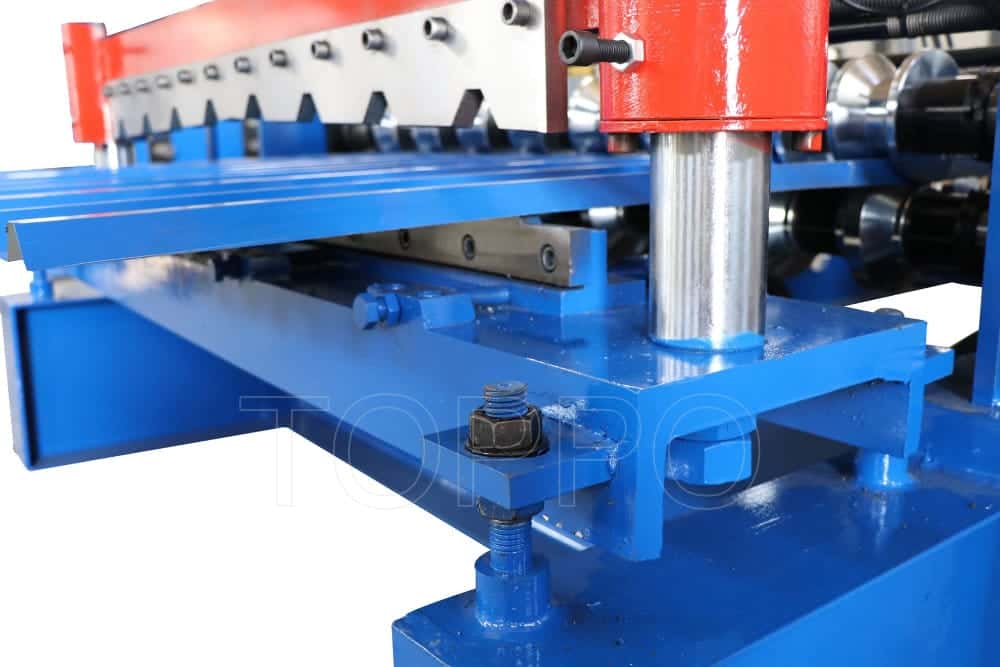

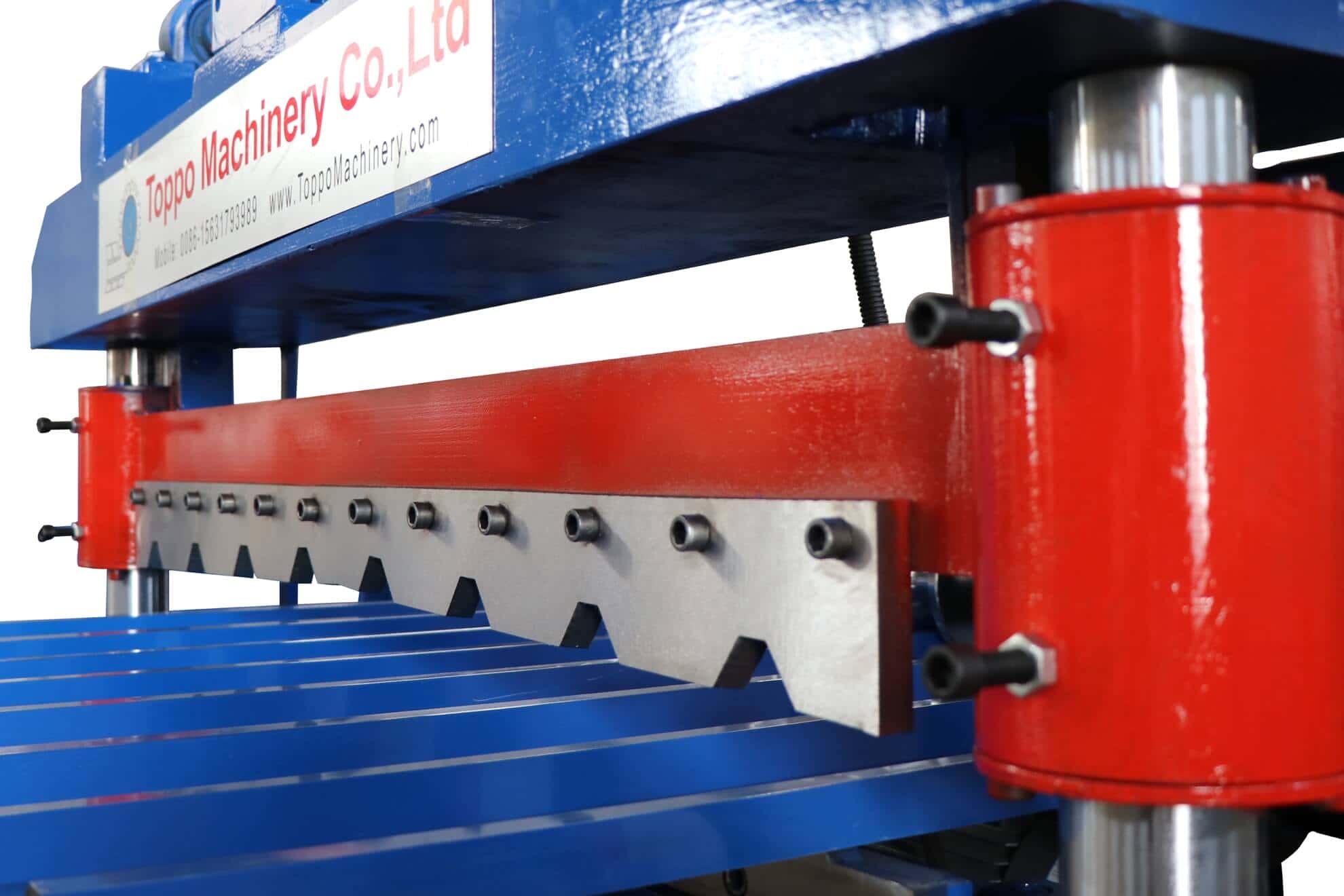

Cutting System: Hydraulic cutting
Cutting Blade Material: Cr12Mov steel

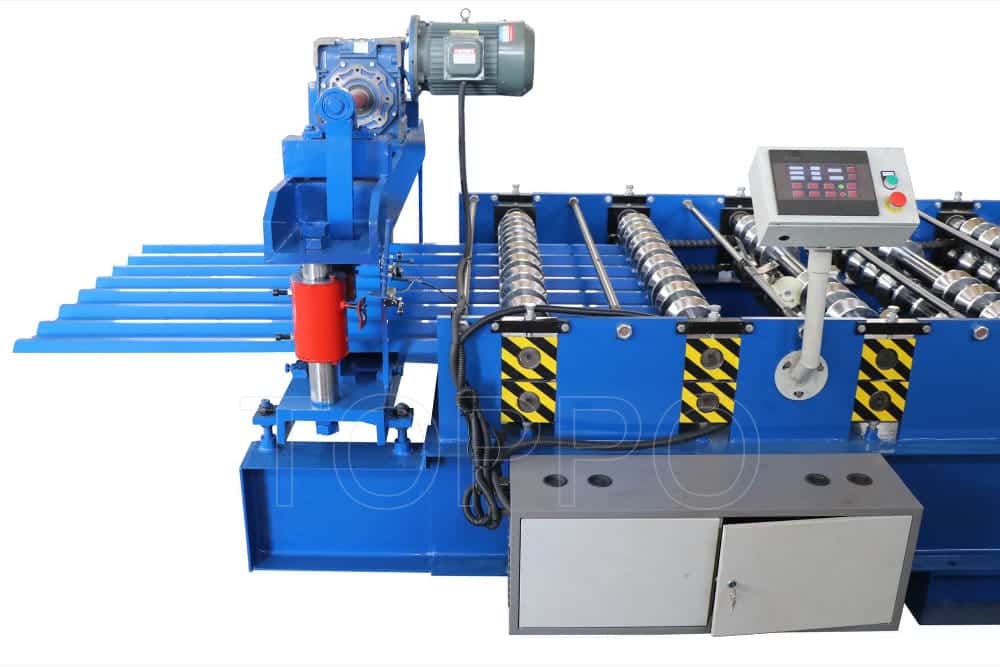

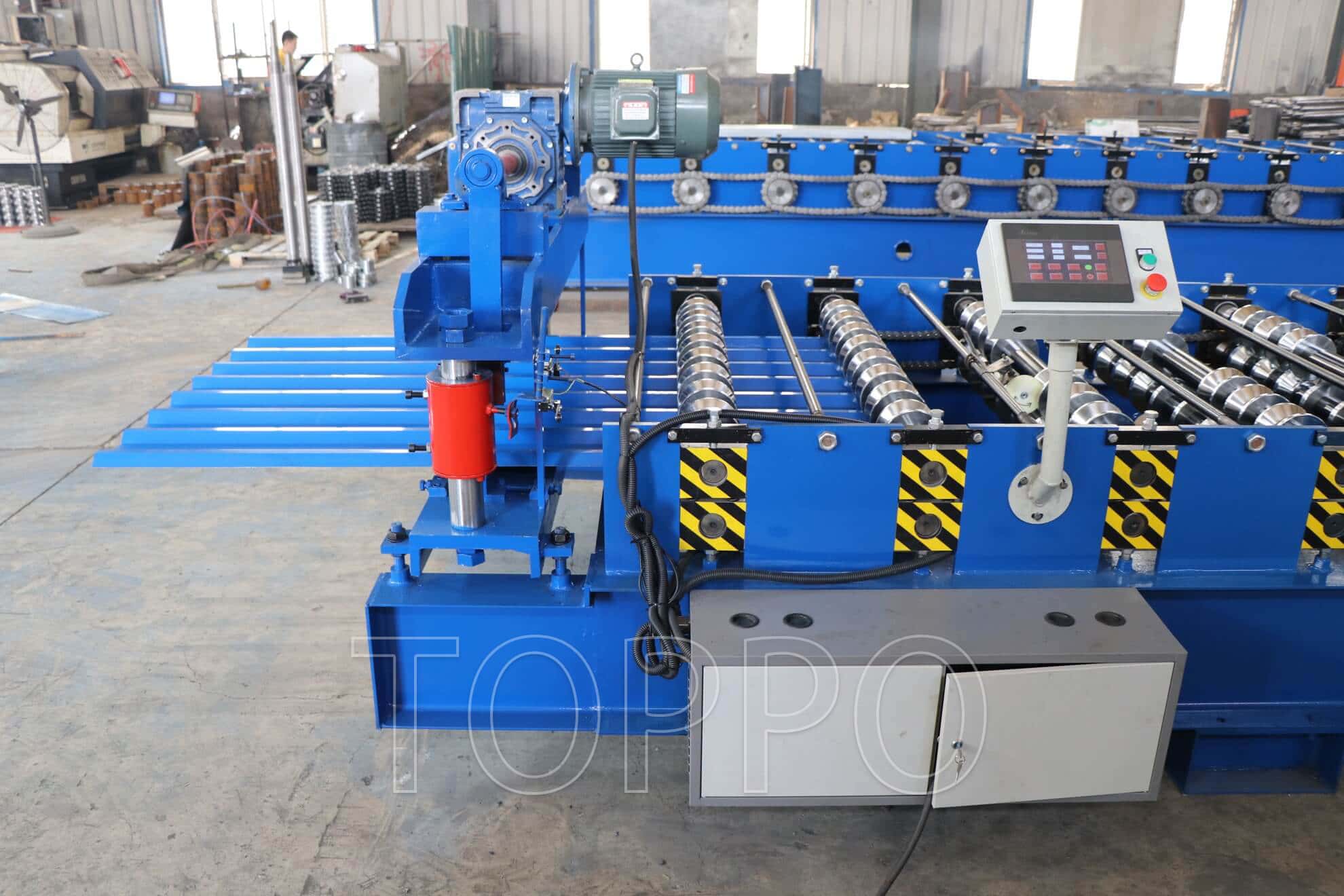

Control System: PLC control (e.g., Delta, Siemens)
Power Supply: 380V, 3-phase, 50Hz (customizable)
Main Motor Power: 5.5kW
Hydraulic Station Power: 4kW
Operation Mode: Automatic
Machine Frame: 300H steel welded
Chain Size: 1.2 inch

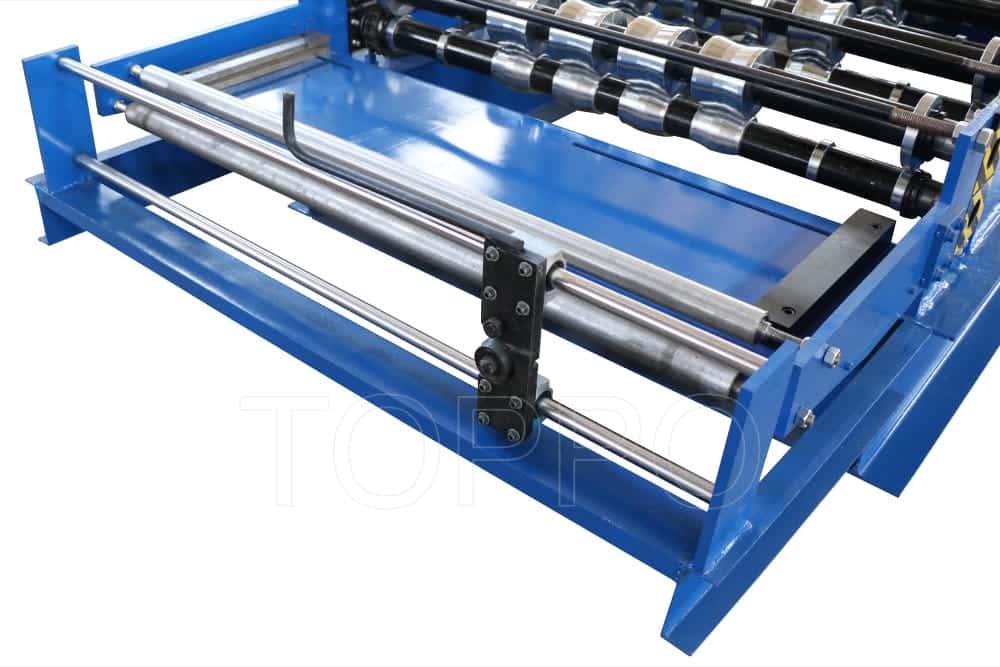

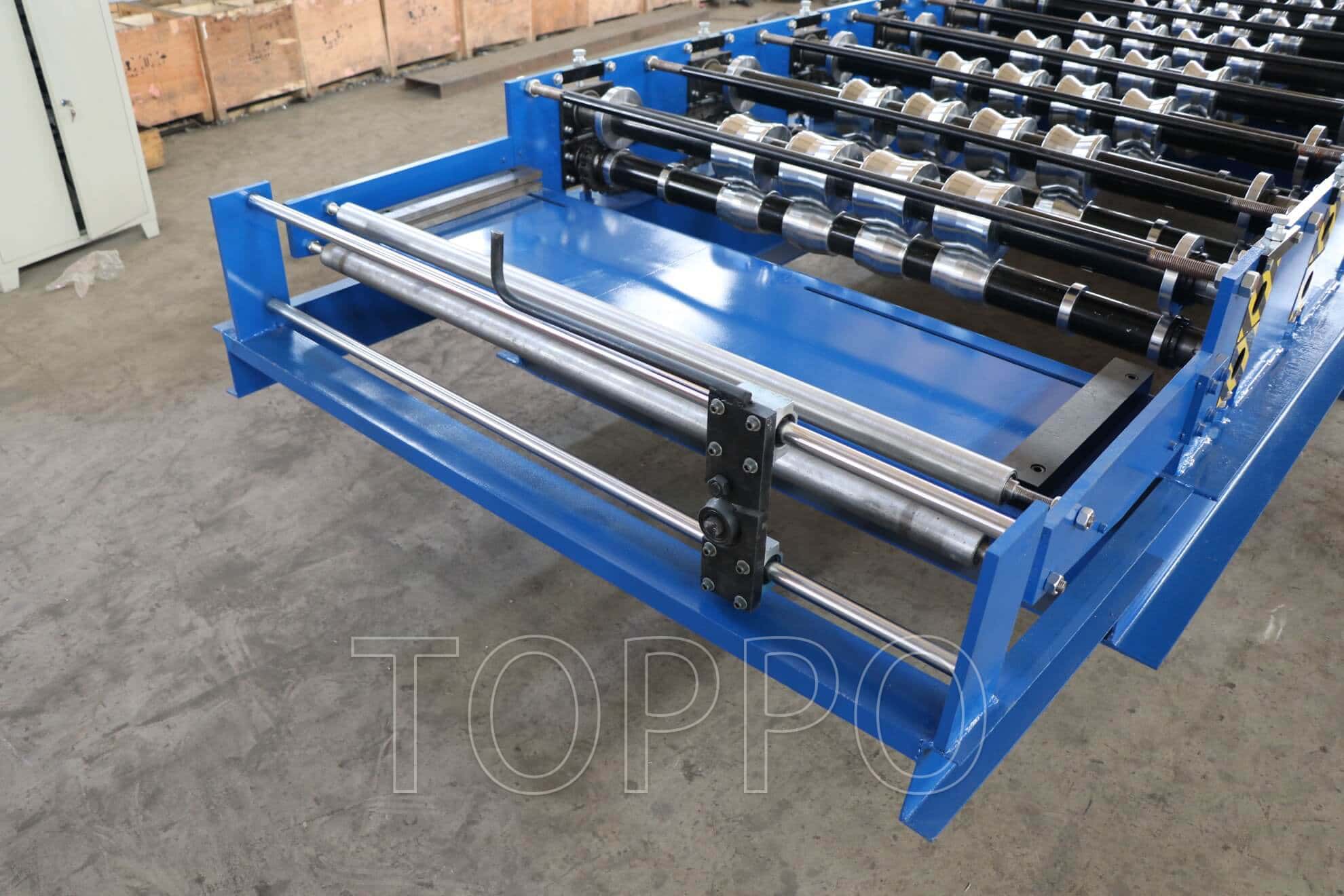

Leveling System: Manual adjustment
Feeding Width: 1000mm
Effective Width: 828mm
Product Shape: Trapezoidal wave panel
Panel Use: Roofing, wall cladding
Color: Customizable (default blue)
Dimension: Approx. 8500mm x 1500mm x 1500mm
Weight: Around 6.5 tons
Language Interface: English
Packaging: Plastic film + steel pallet
Delivery Time: 30 days
Warranty: 12 months
After-sale Service: Engineers available to service overseas
Certification: CE/ISO9001
Production Capacity: Up to 8 hours/day
Transport: By sea or land
Noise Level: Low noise operation
Stability: High structural stability
Durability: Long lifespan with heavy-duty frame
Operation Safety: Emergency stop button equipped
Installation: On-site installation available
Technical Support: Online and offline support
This trapezoidal roof roll forming machine is specifically engineered for durable, accurate, and high-speed metal panel production. With a user-friendly PLC control system and reliable hydraulic cutting unit, it ensures stable operation and consistent quality. Ideal for building and construction material manufacturers seeking efficiency and precision in panel forming.
