Machine Type: Trapezoidal Roll Forming Machine
Material Type: Color steel, Galvanized steel, Aluminum
Material Thickness: 0.3 - 0.8 mm
Forming Speed: 12-18 meters/min
Roller Stations: 18-20 rows
Roller Material: 45# steel with hard chrome coating
Shaft Diameter: 75 mm
Drive System: Chain or gear drive
Cutting Type: Hydraulic cutting with Cr12 steel blades
PLC Brand: Delta/Siemens
Main Motor Power: 5.5 kW
Hydraulic Power: 4.0 kW
Voltage: 380V/50Hz/3Phase (customizable)
Control System: Full automatic PLC control system
Operation: Touch screen and button panel
Feeding Width: 1200 mm
Effective Width: 1000 mm
Panel Profile: Trapezoidal corrugated shape
Machine Frame: 300H steel with welded structure
Cutting Tolerance: ±1mm
Machine Color: Standard blue (customizable)
Dimensions: 8500mm x 1500mm x 1500mm
Weight: 6-7 tons approx.
Production Capacity: 6-8 hours/day
Interface Language: English
Packaging: Covered with plastic film, loaded on steel pallet
Delivery Time: Around 30 days
Certification: CE & ISO9001
Warranty: 1 year
Support: Online and overseas support
Safety System: Emergency stop button included
Noise Level: Low
Durability: Strong structure and long service life
Suitable Industry: Building materials, construction, steel structure
Automation: Fully automatic operation
Feeding System: Manual or motor-driven
Roll Form Design: Customizable panel shapes
Installation: Engineer guide service available
Technical Support: Lifetime support
Usage: Roofing panel manufacturing
Application: Industrial roofing, warehouses, metal building

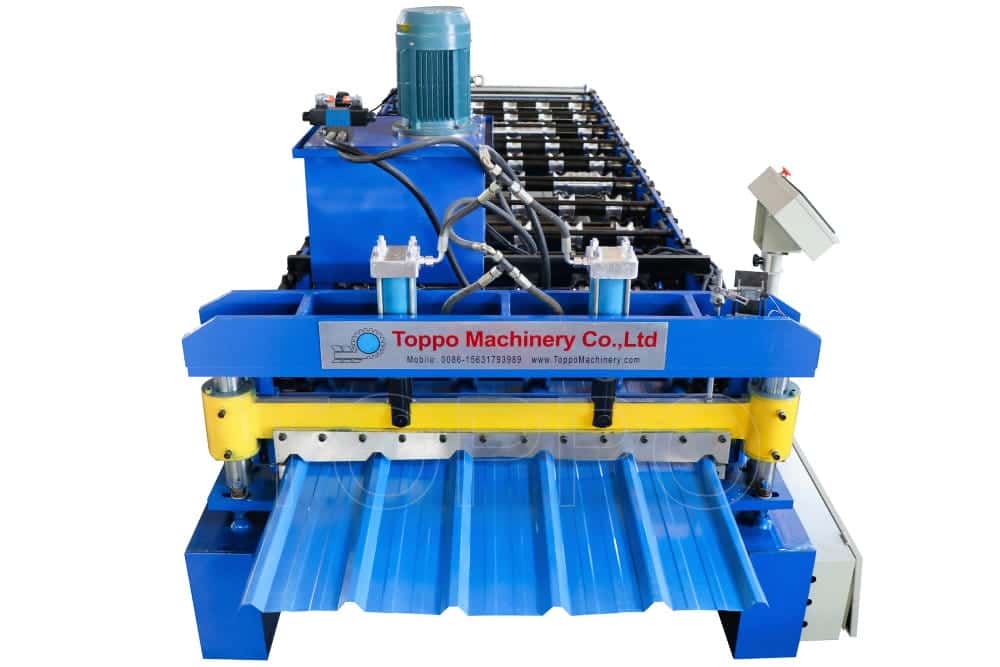

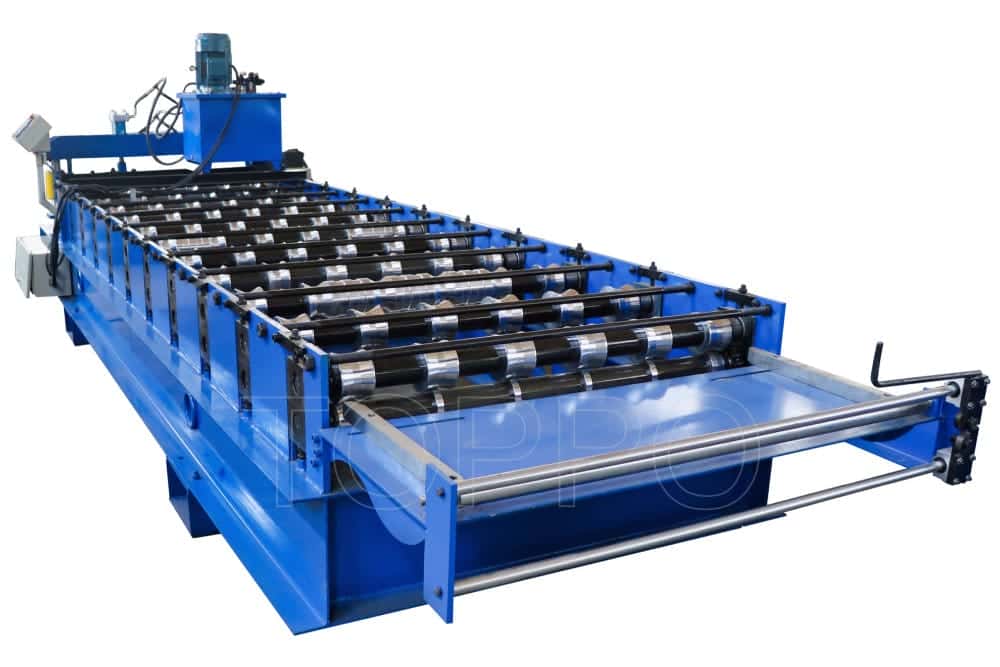

This trapezoidal roll forming machine delivers high productivity and precision in creating trapezoidal roofing sheets. It features a robust construction, automated control system, and a hydraulic cutting mechanism for consistent quality production. Ideal for mass production of roofing panels, this machine serves industries such as construction, steel structure, and building materials.
