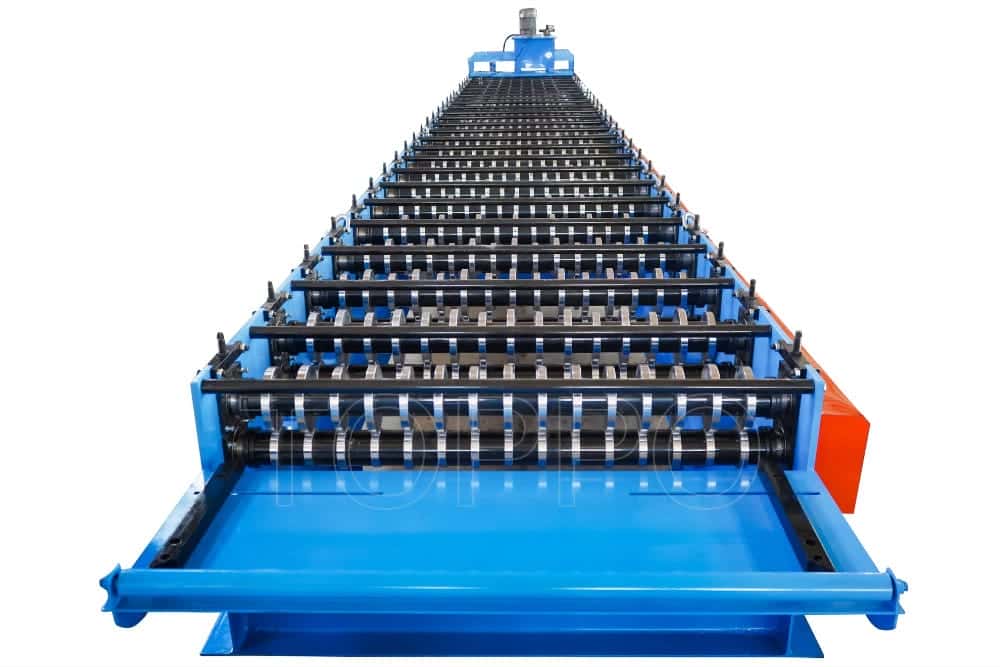

Machine Type: Trapezoidal Roof Roll Forming Machine
Material Type: Color steel, Galvanized steel, Aluminum
Material Thickness: 0.3 - 0.8 mm
Forming Speed: 12-18 meters/min
Roller Stations: 18-20 rows
Roller Material: 45# steel with hard chrome coating
Shaft Diameter: 75 mm
Drive System: Chain or gear drive
Cutting Type: Hydraulic cutting with Cr12 steel blades
PLC Brand: Delta/Siemens
Main Motor Power: 5.5 kW
Hydraulic Power: 4.0 kW
Voltage: 380V/50Hz/3Phase (customizable)
Control System: Full automatic PLC control system
Operation: Touch screen and button panel
Feeding Width: 1200 mm
Effective Width: 1000 mm
Panel Profile: Trapezoidal corrugated shape
Machine Frame: 300H steel with welded structure
Cutting Tolerance: ±1mm
Machine Color: Standard blue (customizable)
Dimensions: 8500mm x 1500mm x 1500mm
Weight: 6-7 tons approx.
Production Capacity: 6-8 hours/day
Interface Language: English
Packaging: Covered with plastic film, loaded on steel pallet
Delivery Time: Around 30 days
Certification: CE & ISO9001
Warranty: 1 year
Support: Online and overseas support
Safety System: Emergency stop button included
Noise Level: Low
Durability: Strong structure and long service life
Suitable Industry: Building materials, construction, steel structure
Automation: Fully automatic operation
Feeding System: Manual or motor-driven
Roll Form Design: Customizable panel shapes
Installation: Engineer guide service available
Technical Support: Lifetime support
Usage: Roofing panel manufacturing
Application: Industrial roofing, warehouses, metal building
This trapezoidal roof roll forming machine is a top-tier solution for producing metal roofing panels quickly and accurately. Equipped with an automatic control system, it ensures minimal waste and maximum precision in panel production, ideal for industries focused on construction, infrastructure, and steel structures.
