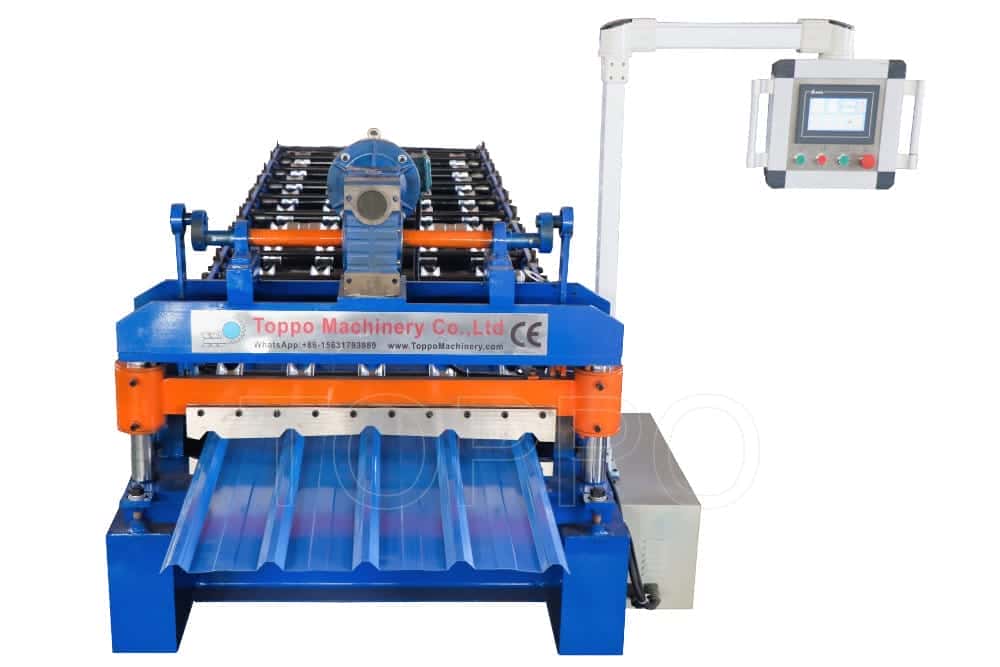

Machine Type: Trapezoidal Roof Roll Forming Machine
Material Type: Galvanized steel, Pre-painted steel, Aluminum
Material Thickness: 0.3 - 0.8 mm
Forming Speed: 12-18 meters/min
Roller Stations: 16-18 stations

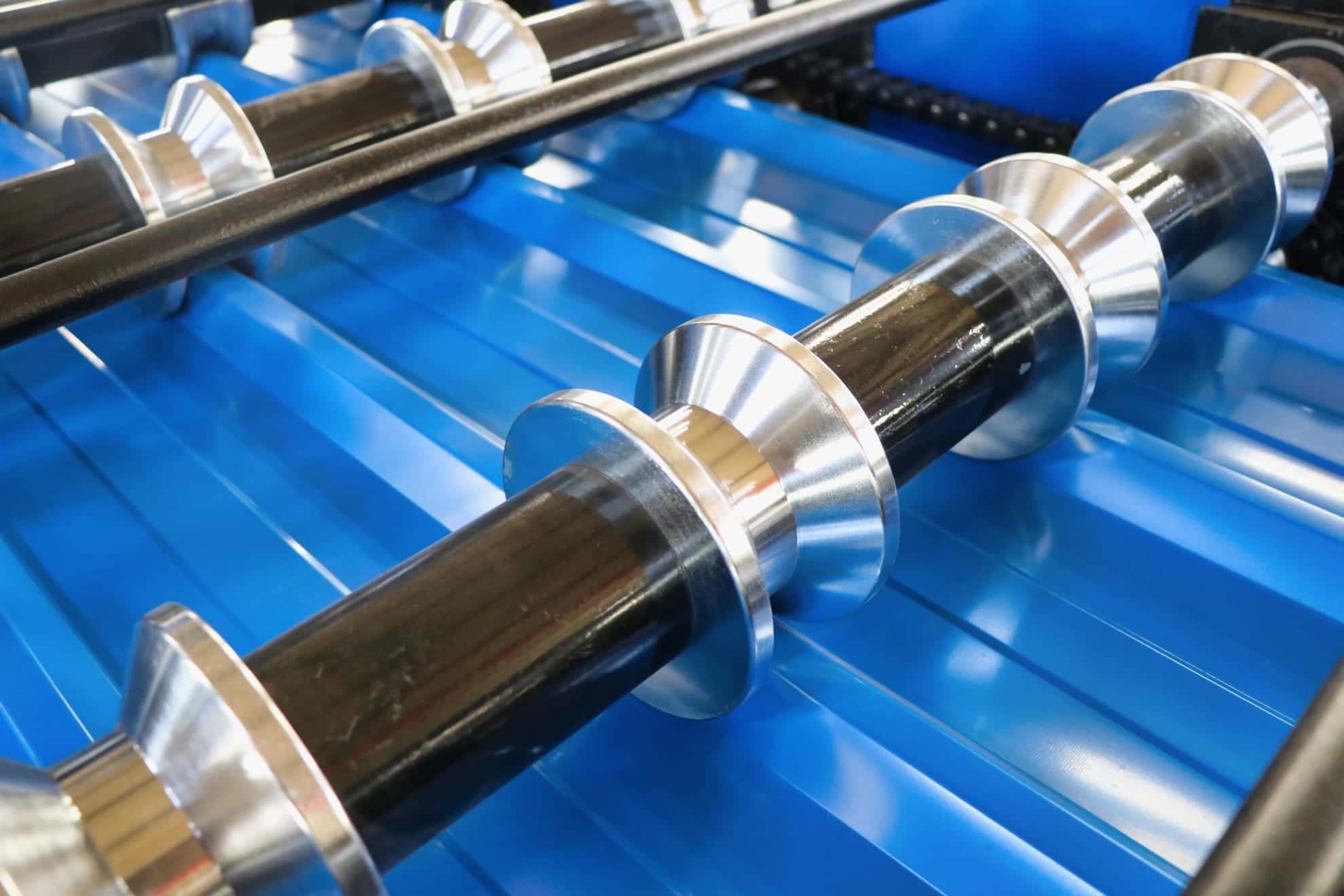

Roller Material: 45# steel with hard chrome coating
Shaft Diameter: 75 mm
Drive System: Chain drive
Cutting System: Hydraulic cutting with Cr12Mov steel blades
PLC System: Siemens/Delta with touch screen
Main Motor Power: 5.5 kW
Hydraulic Power Unit: 4.0 kW
Voltage: 380V/50Hz/3Phase (customizable)
Feeding Width: 1000 mm
Effective Panel Width: 828 mm

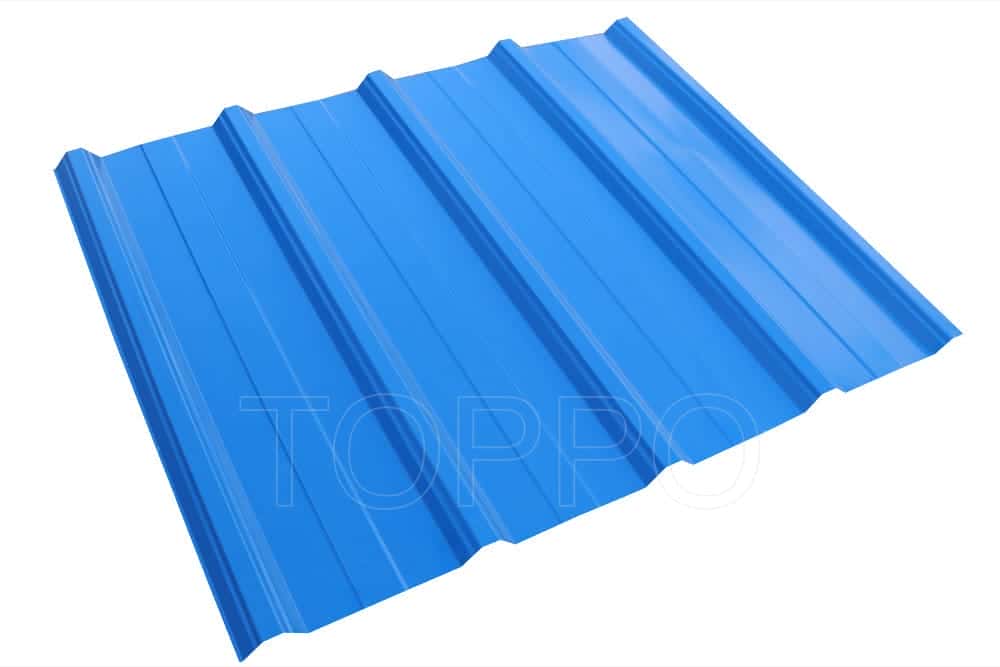

Profile Type: Trapezoidal corrugated roof panel
Frame Structure: 300H steel welded
Cutting Accuracy: ±1mm
Machine Color: Blue and yellow (customizable)
Overall Size: 8500mm x 1500mm x 1500mm
Weight: About 6.5 tons
Language: English interface
Packing: Film wrapped and steel skid mounted
Delivery Lead Time: 30 working days
Certification: CE & ISO9001 approved
Warranty Period: 1 year
After-Sales: Online & on-site service available
Daily Output: Up to 8 hours operation
Noise: Low-noise design
Application Areas: Roof covering, industrial cladding
Automation: Full PLC automatic control
Safety Equipment: Emergency stop & circuit protection
Design Flexibility: Profile customizable on request
This trapezoidal roll forming machine is engineered to produce high-precision metal roofing panels in mass production environments. Its robust frame, reliable hydraulic cutting, and intuitive control interface make it a dependable solution for industrial roofing manufacturers seeking efficiency, quality, and longevity.
