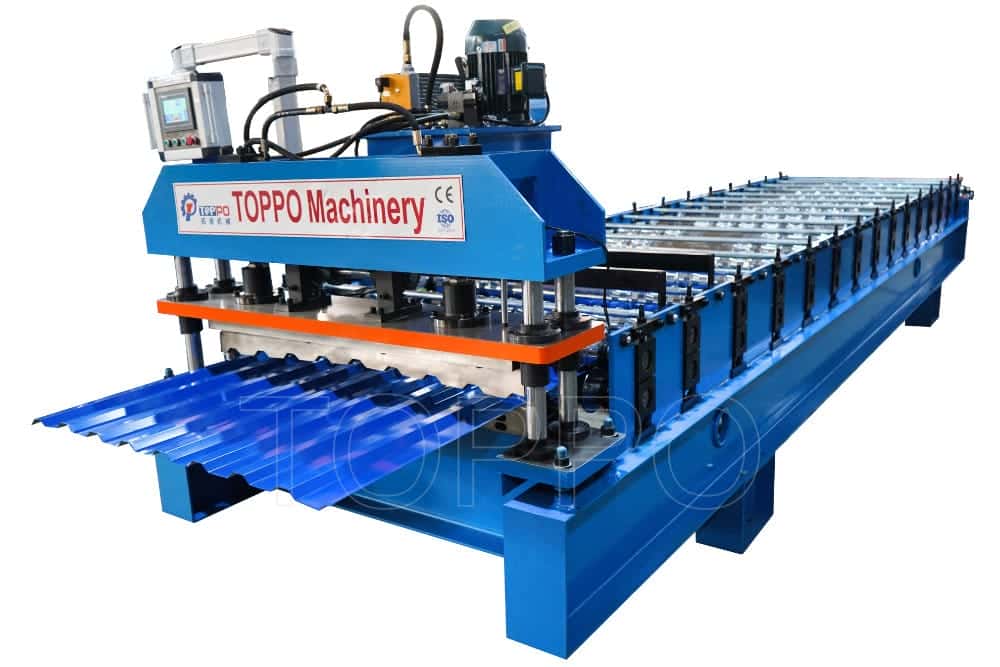

This advanced roll forming equipment is designed to manufacture trapezoidal metal roofing panels with high accuracy and efficiency. It's ideal for mass production in construction, roofing, and building material industries.
Material type: Galvanized steel, PPGI, Aluminum
Material thickness: 0.3 – 0.8 mm
Feeding width: 1000 mm (adjustable)
Effective width: 840 mm (adjustable based on profile)

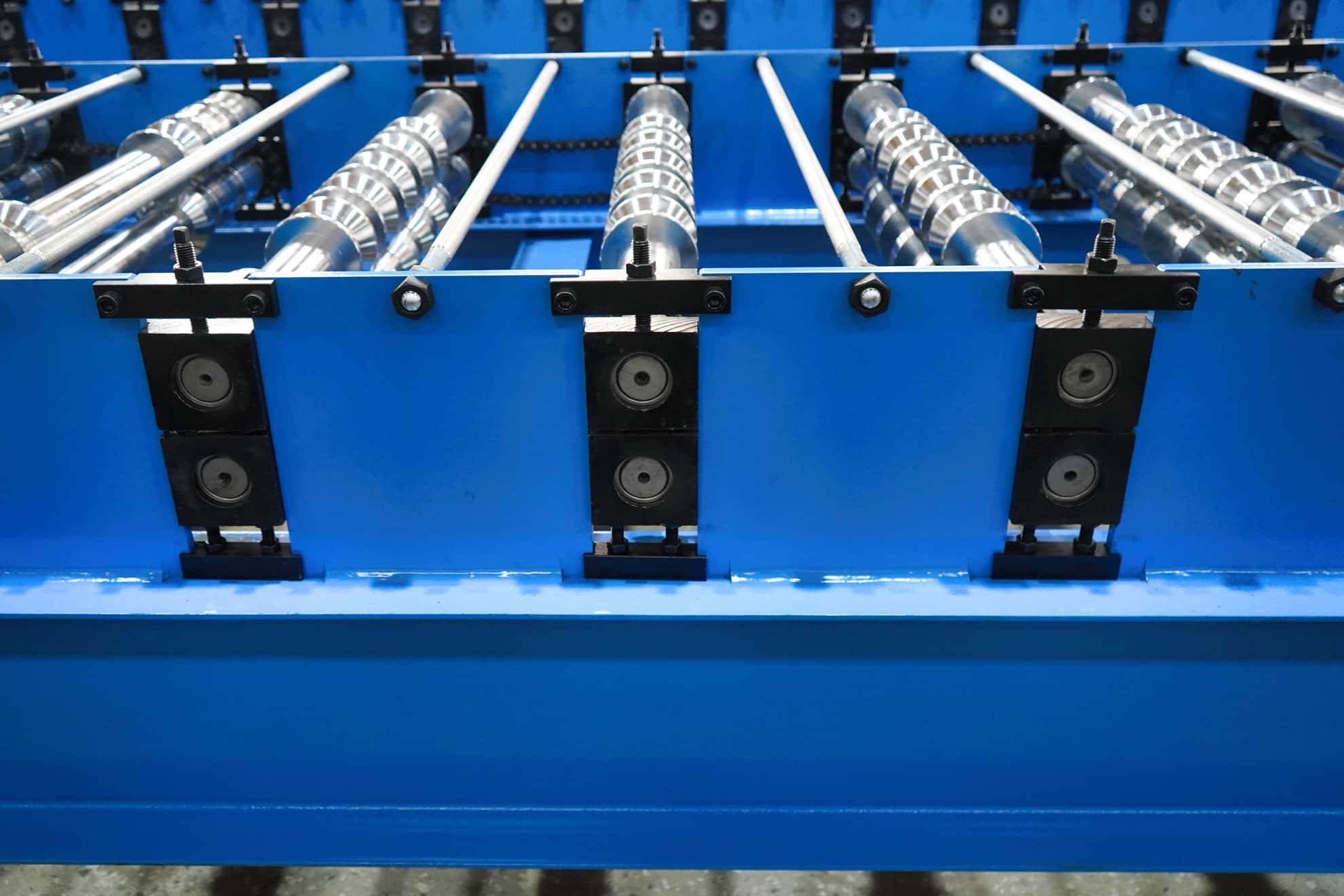

Roller stations: 14–18 stations
Roller material: High-grade 45# steel with hard chrome coating
Shaft diameter: 70 mm
Shaft material: 45# steel, precision machined
Transmission type: Chain drive or gear drive
Control system: PLC automatic control system with touch screen (Siemens/Delta optional)
Cutting type: Hydraulic cutting with Cr12Mov blade
Cutting tolerance: ±1 mm
Main motor power: 4–7.5 kW
Hydraulic station power: 4 kW
Line speed: 8–15 m/min
Voltage: 380V/50Hz/3Phase (customizable)
Frame structure: Welded steel frame with shot blasting and painting
Machine color: Customizable (standard blue & orange)
Operation: Fully automatic with length setting, batch counting
Safety features: Emergency stop, overload protection
Installation service: Available globally
Warranty: 1 year for mechanical parts
Maintenance: Easy to maintain with modular parts
Production environment: Indoor factory use
Application: Roofing, industrial sheds, warehouses
Noise level: Low-noise operation
Design software support: CAD profile customization
Roller forming accuracy: High-precision forming ±0.5 mm
Panel profile: Customizable trapezoidal shape
Feeding guide: Manual adjustable guider
Roller hardness: HRC 58–62
Decoiler compatibility: Manual or hydraulic decoiler
Uncoiling width: Max 1250 mm
Output table: 3–6 meters manual/automatic
Production line type: Continuous roll forming line
Surface treatment: Rust-proof coating on components
Cooling system: Air-cooled hydraulic unit
Shipping terms: FOB, CIF, EXW available
Packing method: Plastic film and steel pallet
Certification: CE certified
HS Code: 84552210
OEM/ODM service: Available
Lead time: 30 working days
This machine combines robust build quality, automated control, and customizable design to produce premium trapezoidal roofing sheets at scale.
