Machine Type: Compact Trapezoidal Roofing Roll Forming Machine
Applicable Material: GI, PPGI, GL, Aluminum
Material Thickness: 0.3–0.8 mm
Input Coil Width: 1000 mm / 1220 mm / 1250 mm
Output Width: 840 mm / 1050 mm (adjustable)
Roller Stations: 16 rows

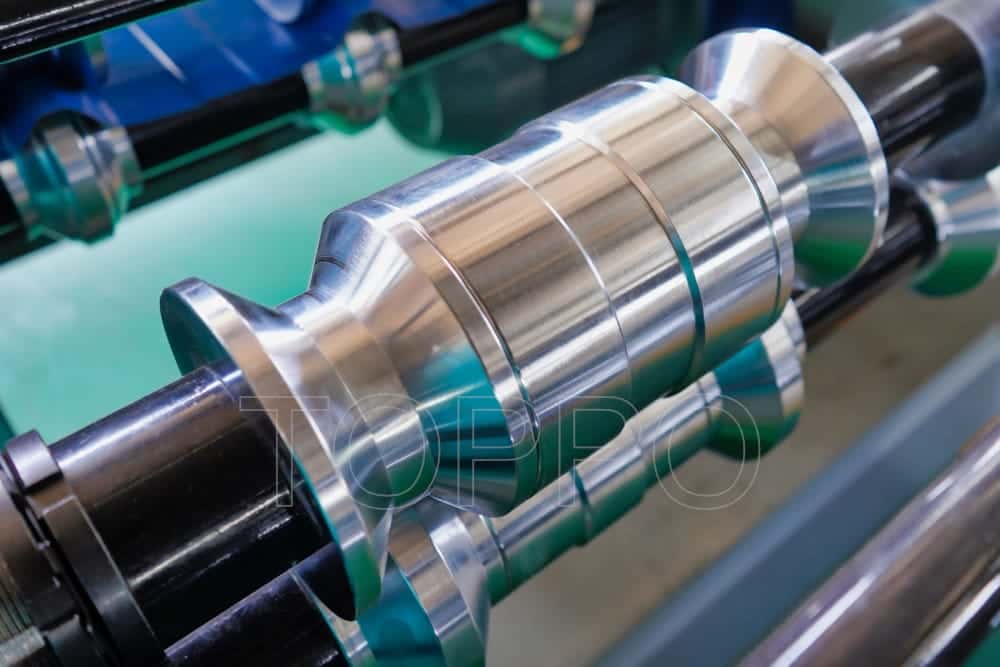

Roller Material: 45# steel with hard chrome coating
Shaft Diameter: 70 mm
Transmission Type: Gearbox drive
Frame Type: Welded steel base frame
Main Motor: 4.0–5.5 kW
Hydraulic Station: 3.7 kW
Cutting Blade: Cr12Mov, heat-treated
Cutting System: Hydraulic post cut
Cutting Accuracy: ±1 mm
Max Speed: 10–12 m/min
Controller: PLC + HMI (Touch Screen)
Touch Screen Brand: Delta / Siemens
Operation Language: English / Customizable
Voltage: 380V / 3Phase / 50Hz
Weight: Approx. 4.2 tons
Machine Size: 7.0 × 1.2 × 1.5 m
Uncoiler: Manual/Hydraulic optional
Output Rack: 3 meters (manual)
Color: Light teal / customizable
Production Mode: Continuous sheet feeding and cutting
Safety Systems: Emergency stop, protective covers
Lubrication: Manual points at bearings
Noise: ≤75 dB
Humidity Range: ≤90% RH
Ambient Temp: –5°C to +40°C
Maintenance: Easy access design

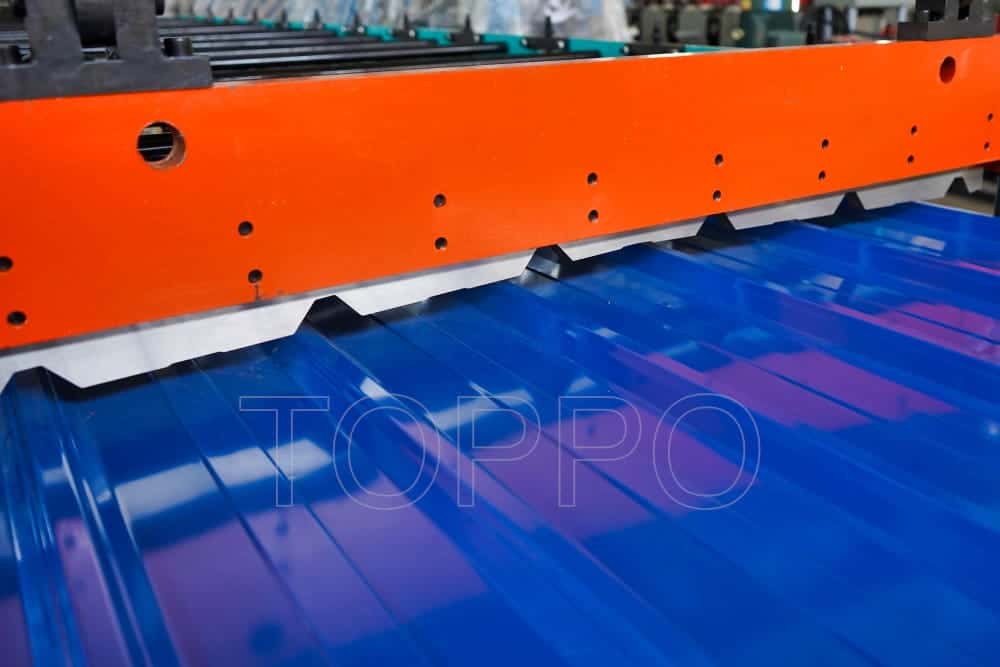

Profile Shape: Trapezoidal rib
Warranty: 2 years
Installation Support: Overseas technician optional
Training: Online support and manuals provided
Certifications: CE, ISO
Material Feeding Guide: Adjustable
Finish Quality: Ribbed sheet, scratch-free
Application Scope: Small factories, mobile plants, roofing contractors
Logo Marking: Optional digital marking system
Auto Stop Function: Yes, programmable
Color Customization: RAL code paint available
Ideal for users with limited space, this compact model balances performance and footprint. With robust mechanical structure and intuitive controls, it meets daily production demands while maintaining high accuracy.
Coil → Manual Feeding → Roll Forming → PLC Length Control → Hydraulic Cutting → Output
