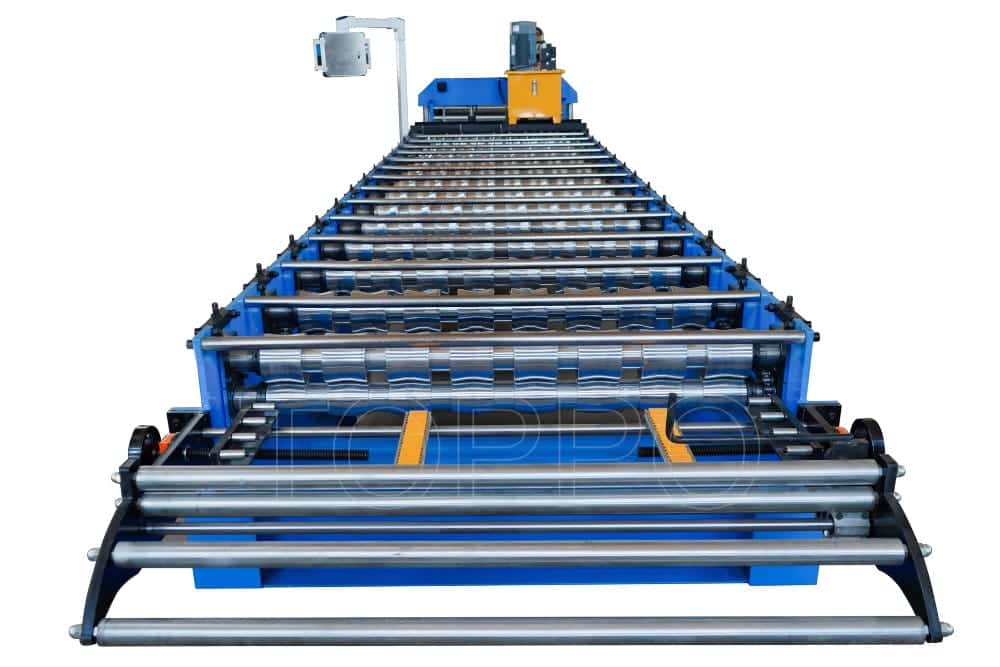

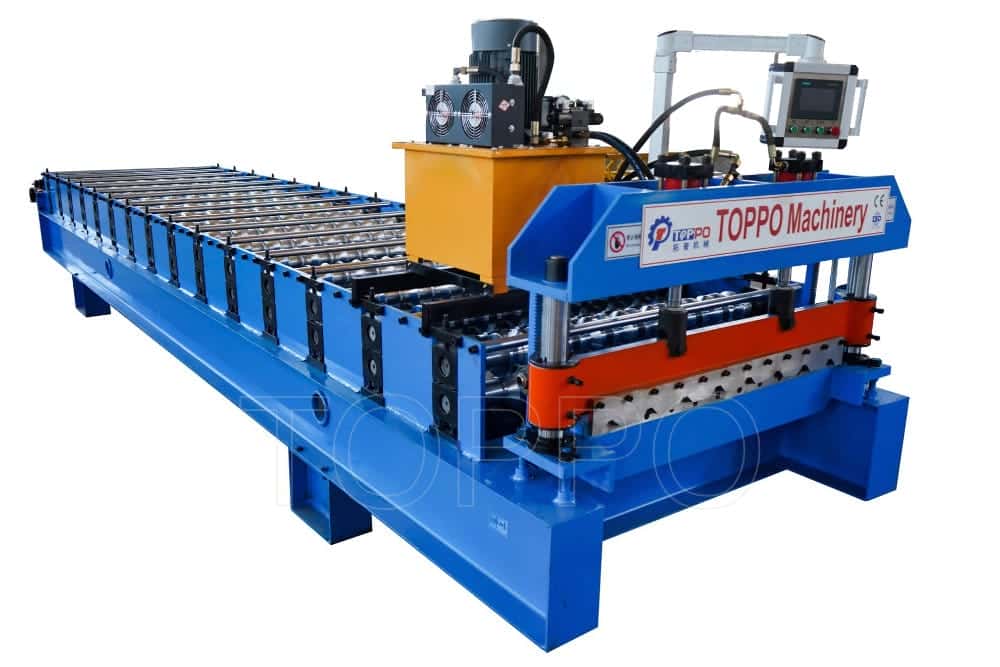

Model: Fully-Automatic Trapezoidal Roof Roll Forming Machine
Application: Steel roof sheet production, prefab roofing, export projects
Material Types: Galvanized steel (GI), PPGI, Aluzinc, Aluminum
Material Thickness Range: 0.3–0.8 mm
Coil Width: 1000–1250 mm (customizable)
Effective Sheet Width: e.g. 840 mm / 1050 mm
Roller Stations: 18–20 rows

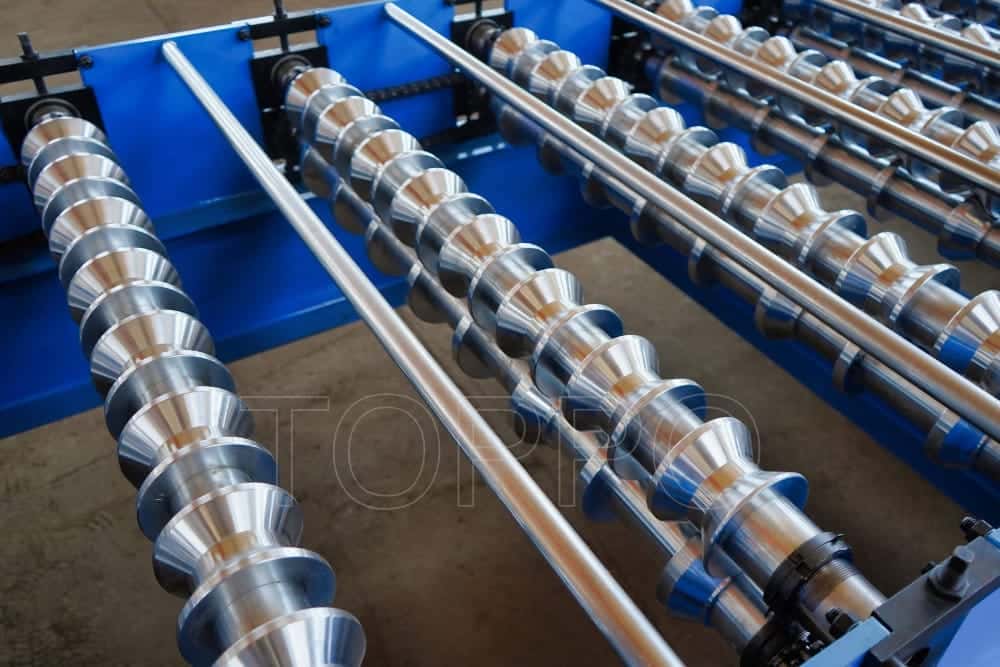

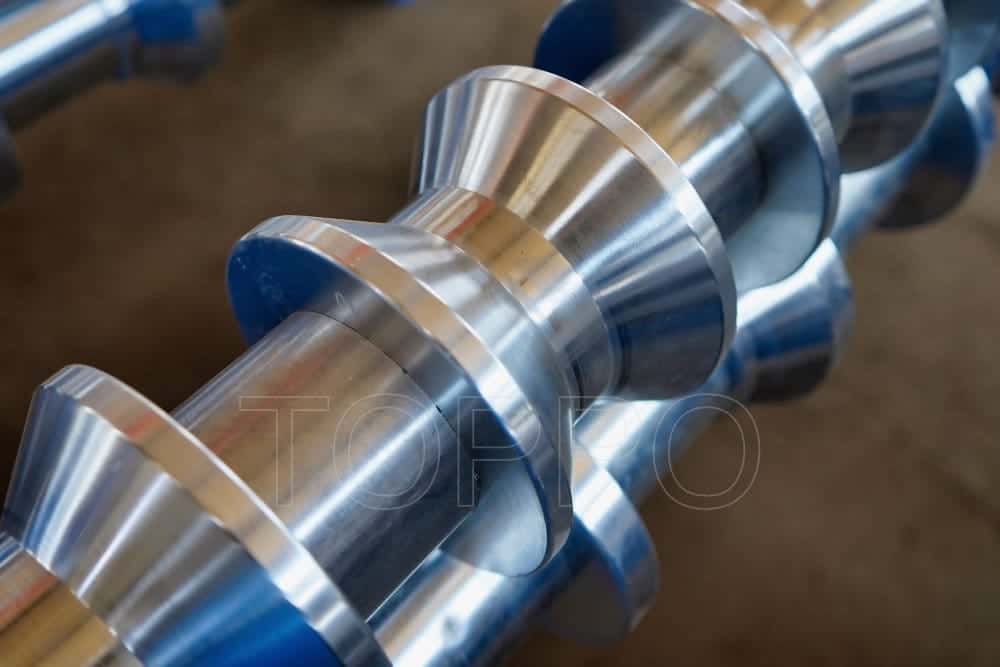

Roller Material: 45# steel, hard chrome plated
Shaft Diameter: 75 mm solid shaft

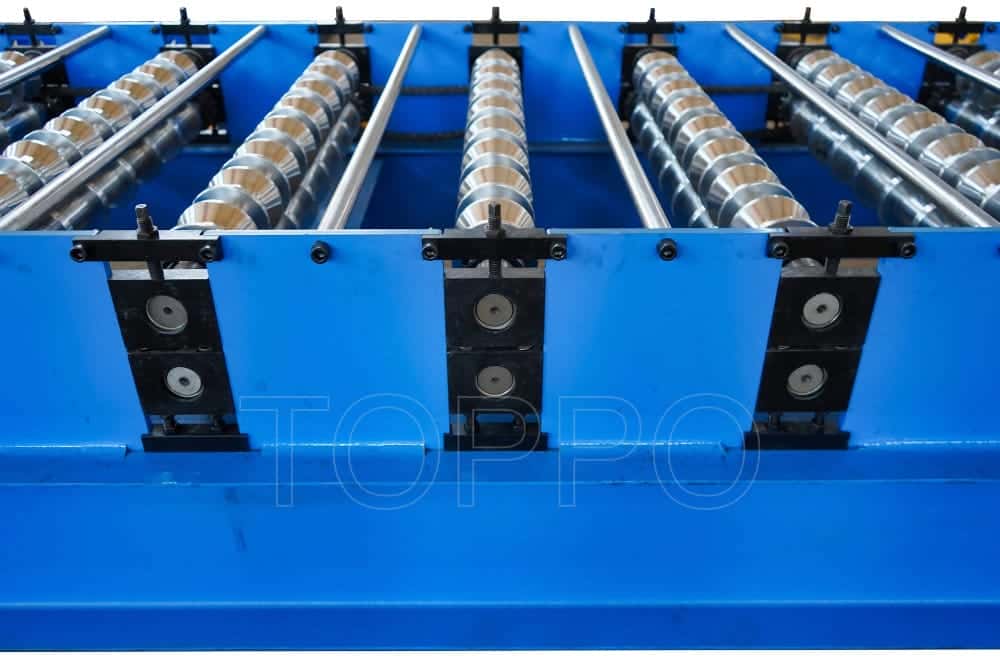

Frame: Industrial welded steel base
Drive System: Gearbox / Chain transmission
Main Motor Power: 7.5 kW

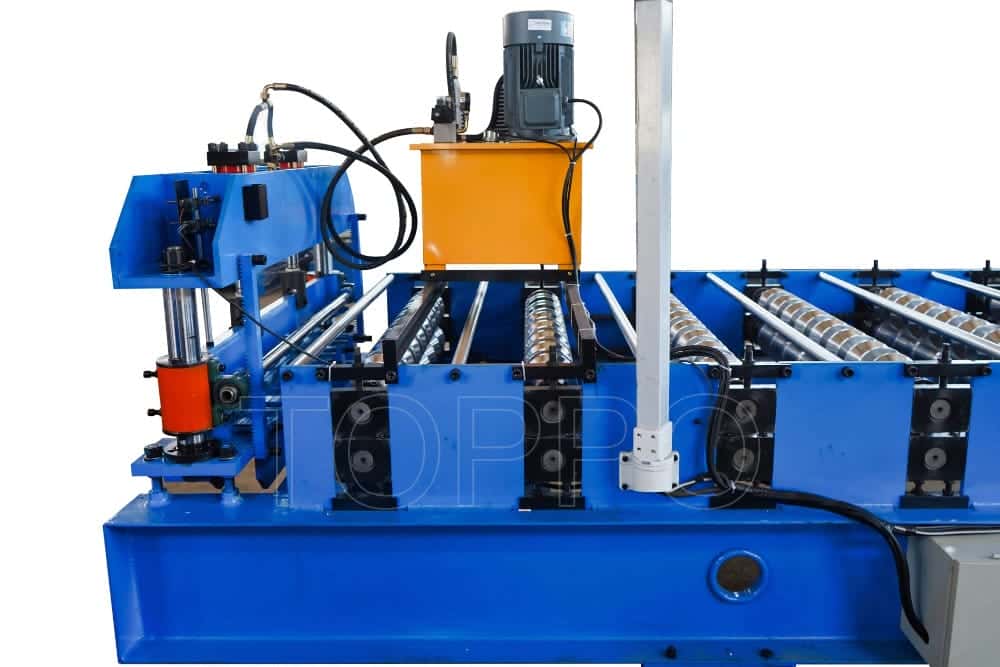

Hydraulic Power Unit: 5.5 kW, mounted on machine
Cutting Blade: Cr12Mov, quenched & tempered

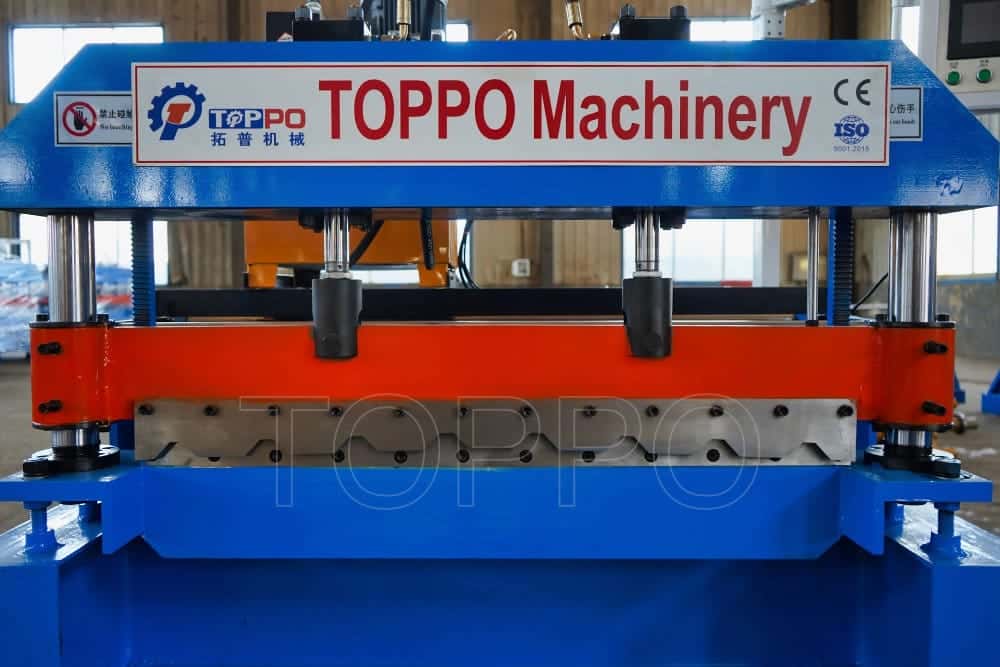

Cutting System: Hydraulic post cut
Cutting Precision: ±1 mm
Max Speed: 12–15 m/min

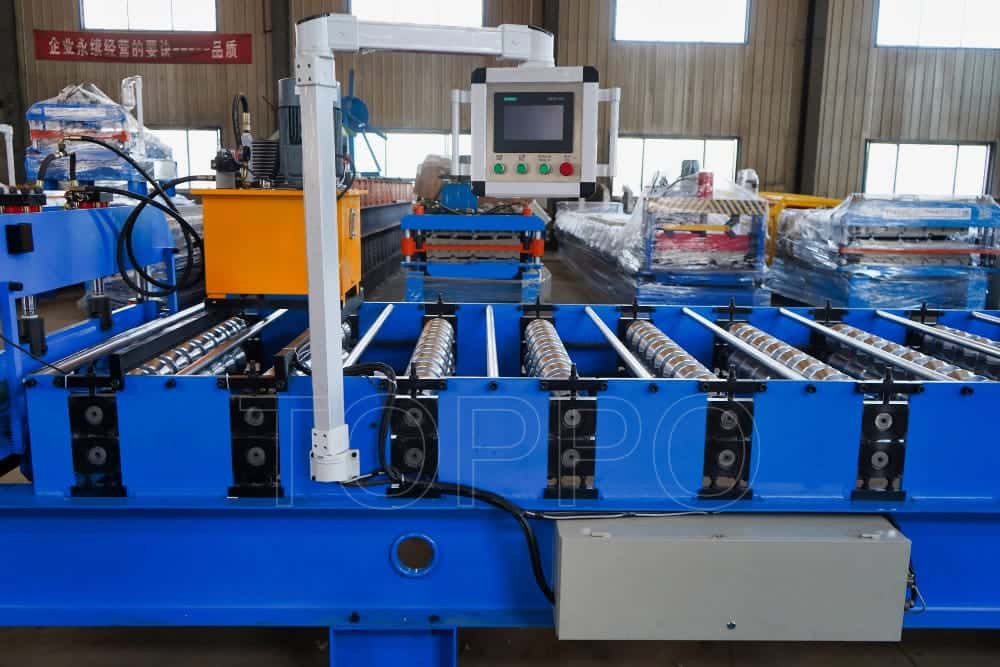

Control Type: PLC (Delta / Siemens) + HMI touchscreen
Operation Languages: English / Chinese / Optional
Voltage: 380V, 50Hz, 3-phase (customizable)
Machine Dimensions: 9.2 × 1.5 × 1.6 m
Weight: Approx. 6.2 tons
Decoiler: Optional manual or hydraulic (5T)
Output Rack: Manual or powered 3-meter table
Safety Features: Emergency stop, limit sensors, protective covers
Cooling System: Natural cooling / optional air cooling
Lubrication: Manual grease points
Noise Level: ≤78 dB
Finish Surface: Clean, precise, ribbed profile without burrs
Paint: Toppo blue + safety orange (custom RAL on request)
Humidity Tolerance: ≤90% RH
Operating Temperature: –10°C to +45°C
PLC Auto Functions: Length input, count tracking, auto stop
Profile Support: Custom profile design available
Tooling Change: Optional interchangeable roller sets
Training: Video tutorials + remote support
Installation Support: Overseas engineer optional
Warranty: 24 months for core parts
Certifications: CE, ISO9001

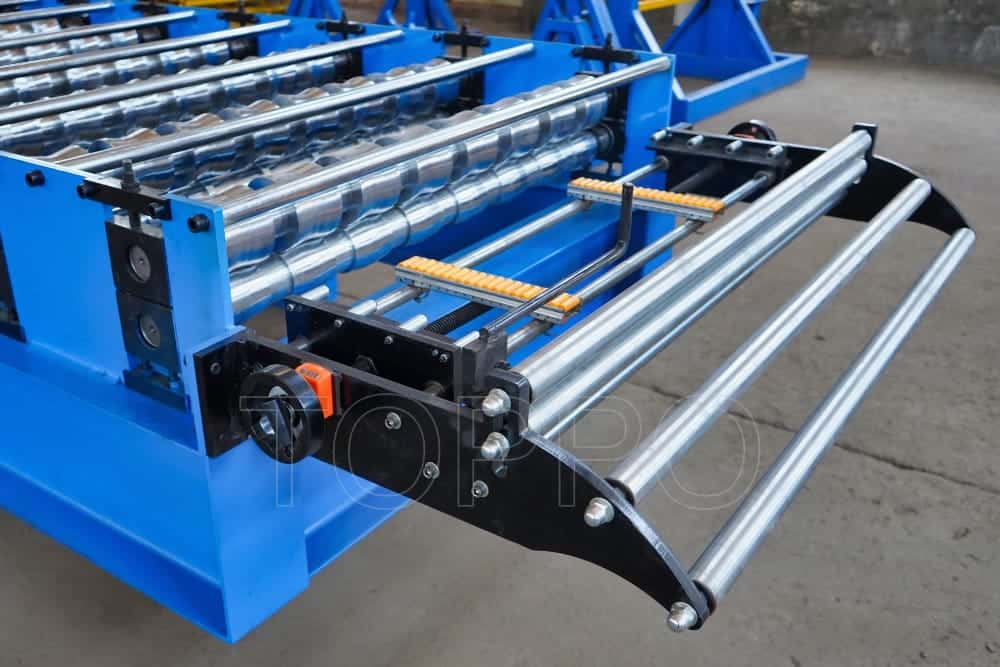

Production Flow: Decoiler → Guiding → Roll Forming → PLC Cutting → Output
With its built-in hydraulic system and PLC automation, this roll forming machine reduces production time, saves factory space, and offers easier maintenance. It’s a reliable choice for long-run roofing panel production.
