This heavy-duty glazed tile roll forming machine is designed for industrial-scale roofing tile production with high reliability and precision. Featuring a strong hydraulic system, full PLC automation, and robust build, the machine produces clear, accurate tile profiles with minimal maintenance required.
Machine Model: Industrial Glazed Tile Roll Forming Machine
Material Supported: PPGI, GI, PPGL, Aluminum
Sheet Thickness: 0.3mm - 0.8mm
Feeding Width: Up to 1250mm
Effective Output Width: 1050mm (tile profile dependent)

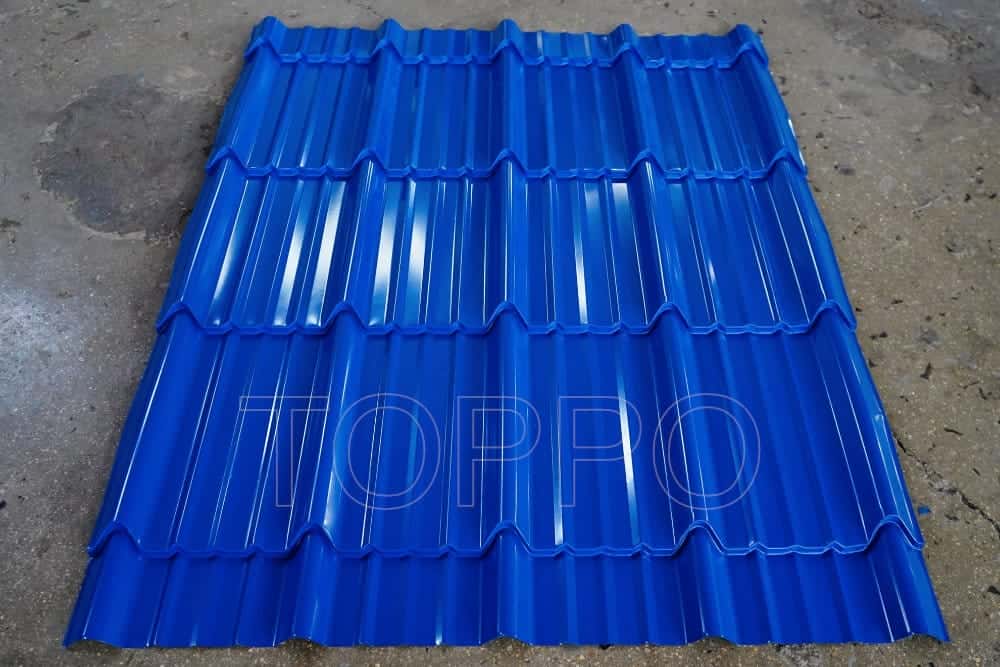

Tile Type: Wave and step-glazed profiles
Forming Stations: 18-22 rollers
Roller Material: GCr15 steel with heat treatment + hard chrome
Roller Shaft: Solid 70mm steel shaft
Main Drive Motor: 7.5KW
Hydraulic Pump Motor: 5.5KW
Voltage: 380V/50Hz/3Phase
Control Unit: PLC touch screen + manual backup
Cutting Mode: Hydraulic cutting with encoder feedback
Production Speed: 10-15m/min
Accuracy: ±1mm
Cooling System: Natural air cooling
Machine Frame: Heavy-duty 350H steel
Paint Color: Industrial blue + yellow details
Size: 10.5m x 1.6m x 1.5m
Weight: Approx. 6.8T
Stacking: Manual or automatic tile stacker available
Applications: Tile roofing for homes, factories, garages
Noise Level: Below 65 dB
Protection: Emergency stop, circuit breaker, limit switch
Daily Output: 3000-5000m²
Efficiency: High precision, low downtime
Support: Remote and field engineer assistance
Warranty: 1 year
Delivery Time: 25 working days
This equipment is ideal for industrial users aiming to achieve long-term stable output with high aesthetics and low operating cost. Its smart control and precise forming system ensures consistent results batch after batch.
