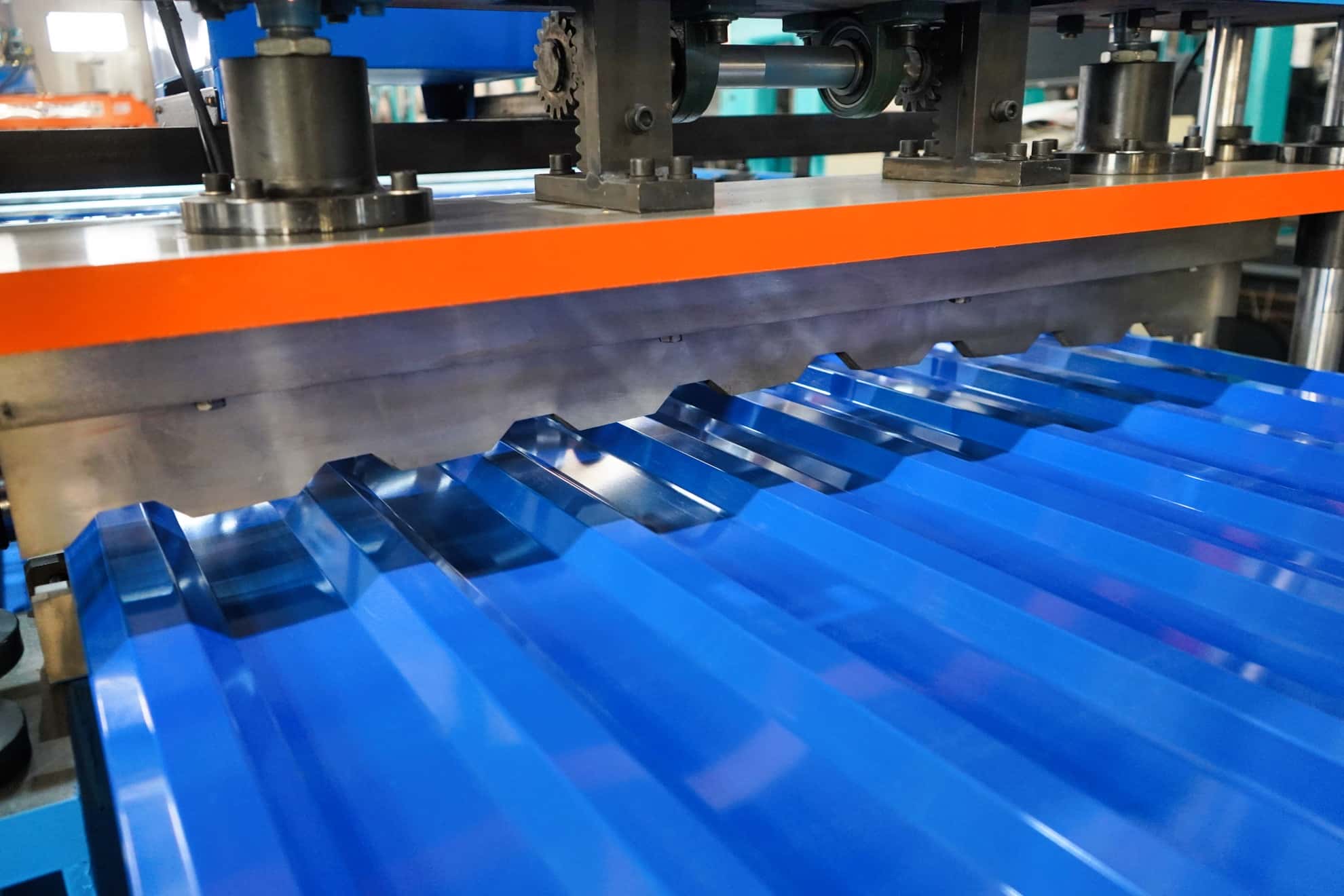

This Color Steel Metal Roof Trapezoidal Roll Forming Machine is designed for high-speed and precision production of trapezoidal roofing panels. The machine features a robust steel structure, hydraulic cutting system, and a smart PLC control interface for seamless operation. It is ideal for commercial, warehouse, and industrial roofing panel manufacturing.
Machine Type: Trapezoidal profile roll forming machine
Material: Color steel, galvanized steel, pre-painted steel
Thickness Range: 0.3mm – 0.8mm
Coil Width: 1000mm – 1250mm
Effective Panel Width: 828mm – 1000mm
Roller Stations: 15–20 stations (customizable)
Roller Material: GCr15 steel, chrome-plated
Shaft Diameter: 75mm to 90mm
Drive Type: Gearbox or chain drive
Main Motor Power: 7.5kW
Hydraulic Power: 4kW
Cutting Type: Hydraulic post-cutting
Cutting Blade: Cr12Mov with heat treatment
Control System: PLC with touch screen (Delta/Siemens)
Forming Speed: 10–15m/min
Voltage: 380V/50Hz/3Phase (customizable)
Machine Dimensions: 8500mm × 1500mm × 1200mm
Machine Weight: 6–8 tons
Frame: Heavy-duty welded H-beam steel
Operation: Fully automatic
Output Table: 3m length, manual or powered
Decoiler: Manual or hydraulic, 5T/10T options
Lubrication System: Manual or optional automatic
Packaging: Plastic film or wooden case
Lead Time: 25–30 working days
Application: Roofing panel production for industrial, warehouse, and commercial use
Certifications: CE, ISO9001
OEM/ODM Support: Available
Safety Features: Emergency stop, overload protection
Automation Level: Full automation with digital controls
