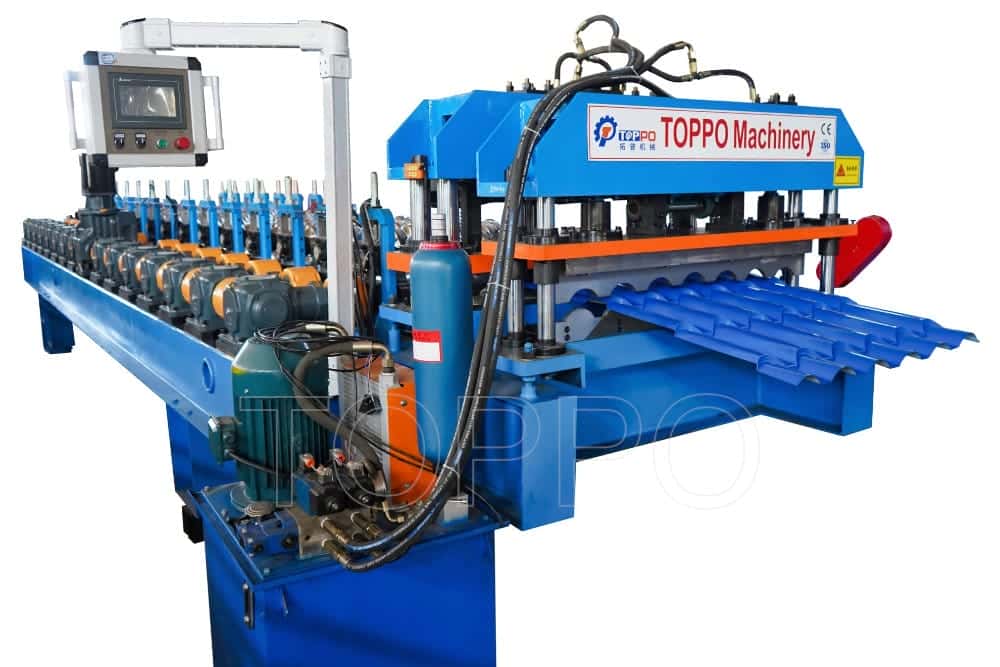

Model: Glazed Tile Roll Forming Machine
Material Compatibility: Galvanized steel, Pre-painted steel, Aluminum
Material Thickness Range: 0.3 – 0.6 mm
Feeding Width: 1200 mm
Effective Panel Width: 1050 mm
Tile Step Distance: 250 mm
Tile Height: 25 mm
Forming Speed: 8 – 12 m/min

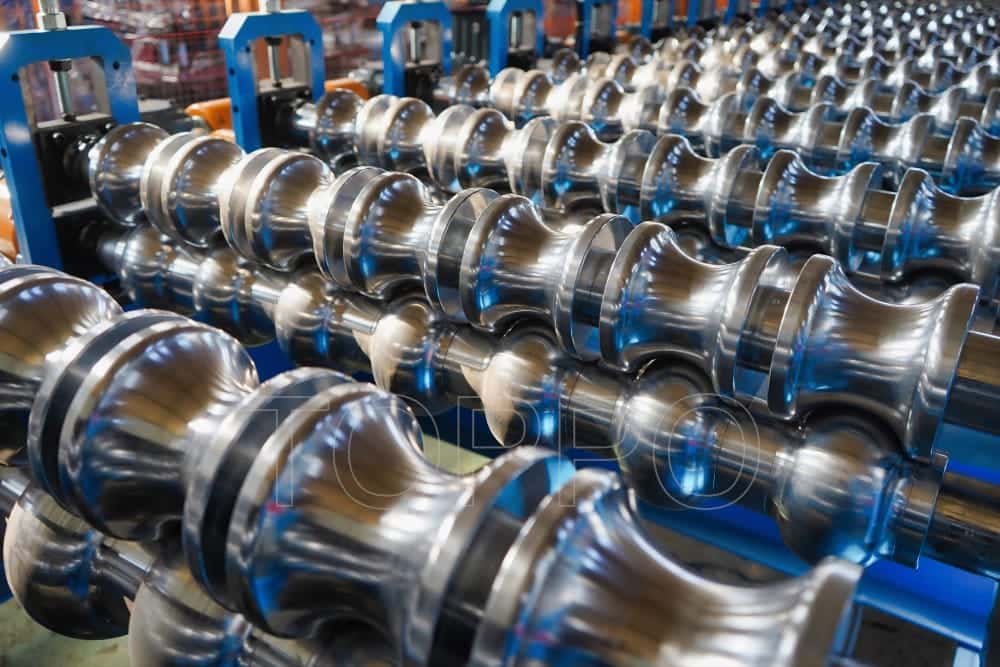

Roller Stations: 20 rows

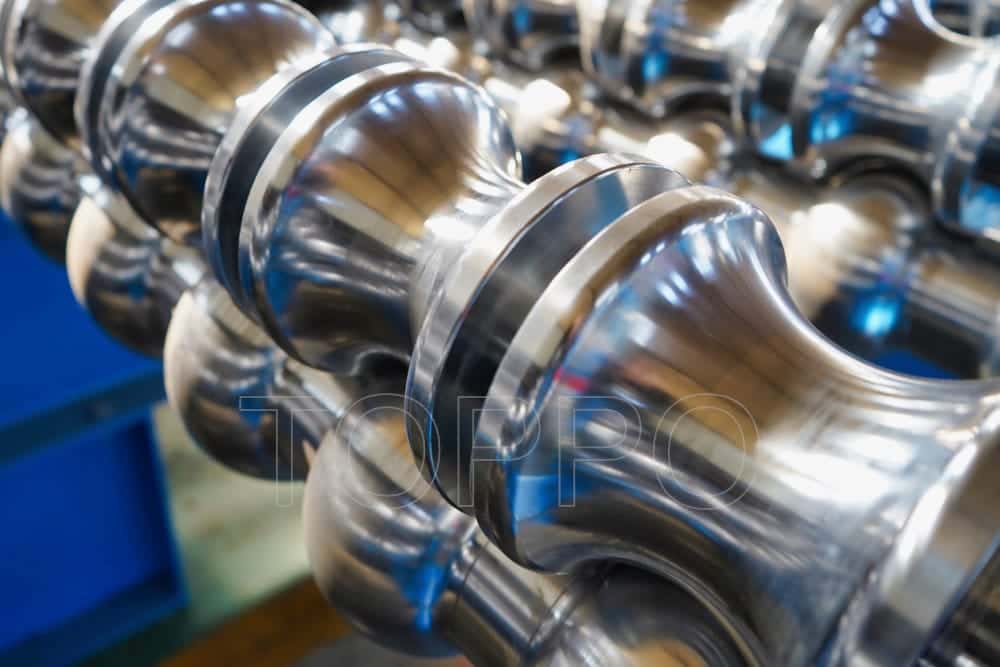

Roller Material: GCr15 bearing steel with hard chrome plating
Frame Base: 350 H-beam welded structure

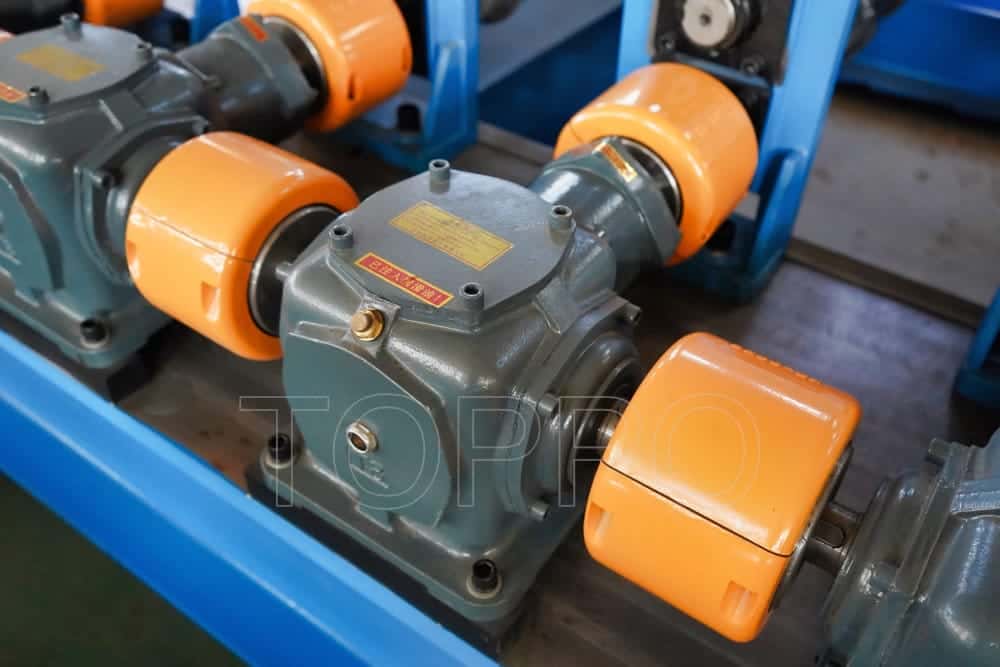

Drive System: Chain transmission
Main Power: 7.5 kW

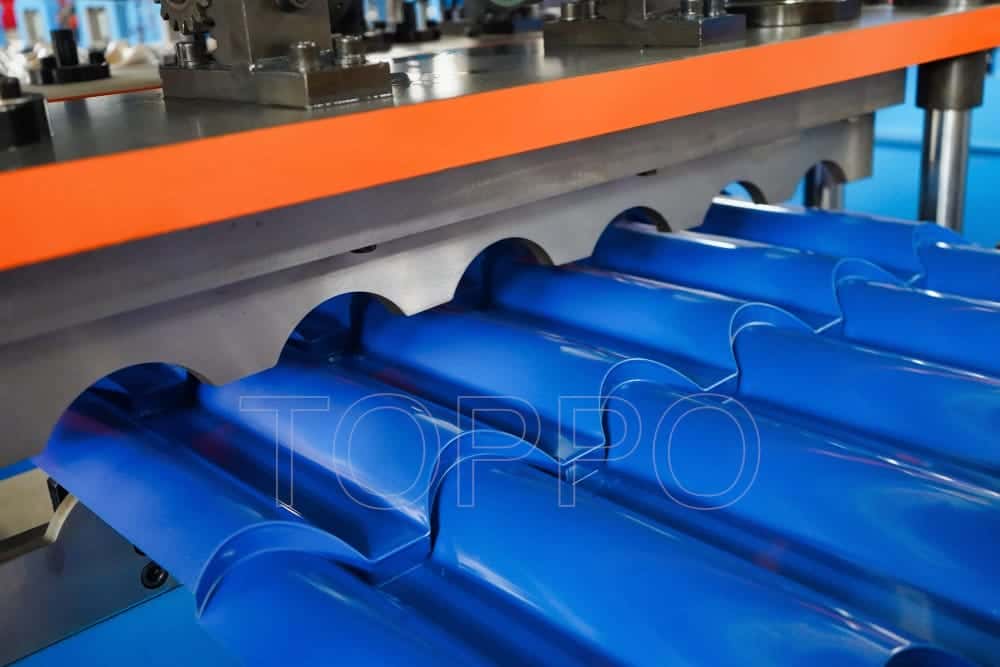

Hydraulic Cutting Power: 4 kW
Cutting Blade Material: Cr12Mov steel
Control System: Siemens/Delta PLC + Touchscreen
Power Supply: 380V / 50Hz / 3Phase
Automation Level: Fully automatic
Output Accuracy: ±1.0 mm
Machine Paint: Powder coating (custom color available)
Noise Level: Below 75 dB
Machine Dimensions: 11m × 1.6m × 1.6m
Machine Weight: 7–9 tons
Cooling System: Optional fan cooling
Panel Type: Glazed metal tile design
Production Application: Roofing panel manufacturing for commercial and industrial buildings
Productivity: Up to 6000 sqm/day
Safety Features: Emergency stop button, overload protection, warning labels
Operator Requirement: 1–2 people
Maintenance: Easy maintenance with durable components
Packaging: Plastic film wrapped and secured in steel frame or wooden case
Delivery Time: 30–45 working days
OEM/ODM Service: Available
Certifications: CE, ISO9001
Technical Support: Overseas engineer support available
Designed for reliable long-term performance, this machine is essential for manufacturers aiming to produce decorative and functional metal roof tiles at scale with automation and safety.
