Product Type: Glazed Tile Roll Forming Machine
Material: Galvanized steel, Pre-painted steel, Aluminum
Material Thickness: 0.3–0.6 mm
Feeding Width: 1000–1220 mm
Effective Width: 828–1050 mm
Step Distance: 250–300 mm
Step Height: 20–25 mm
Forming Speed: 10–15 m/min
Roller Stations: 18–22 sets
Roller Material: GCr15 steel with hard chrome
Machine Frame: 350 H-beam, heavy-duty welded
Transmission Mode: Gearbox or chain drive
Main Power: 7.5–11 kW
Hydraulic Cutting Power: 4 kW
Blade Material: Cr12 steel, heat treated

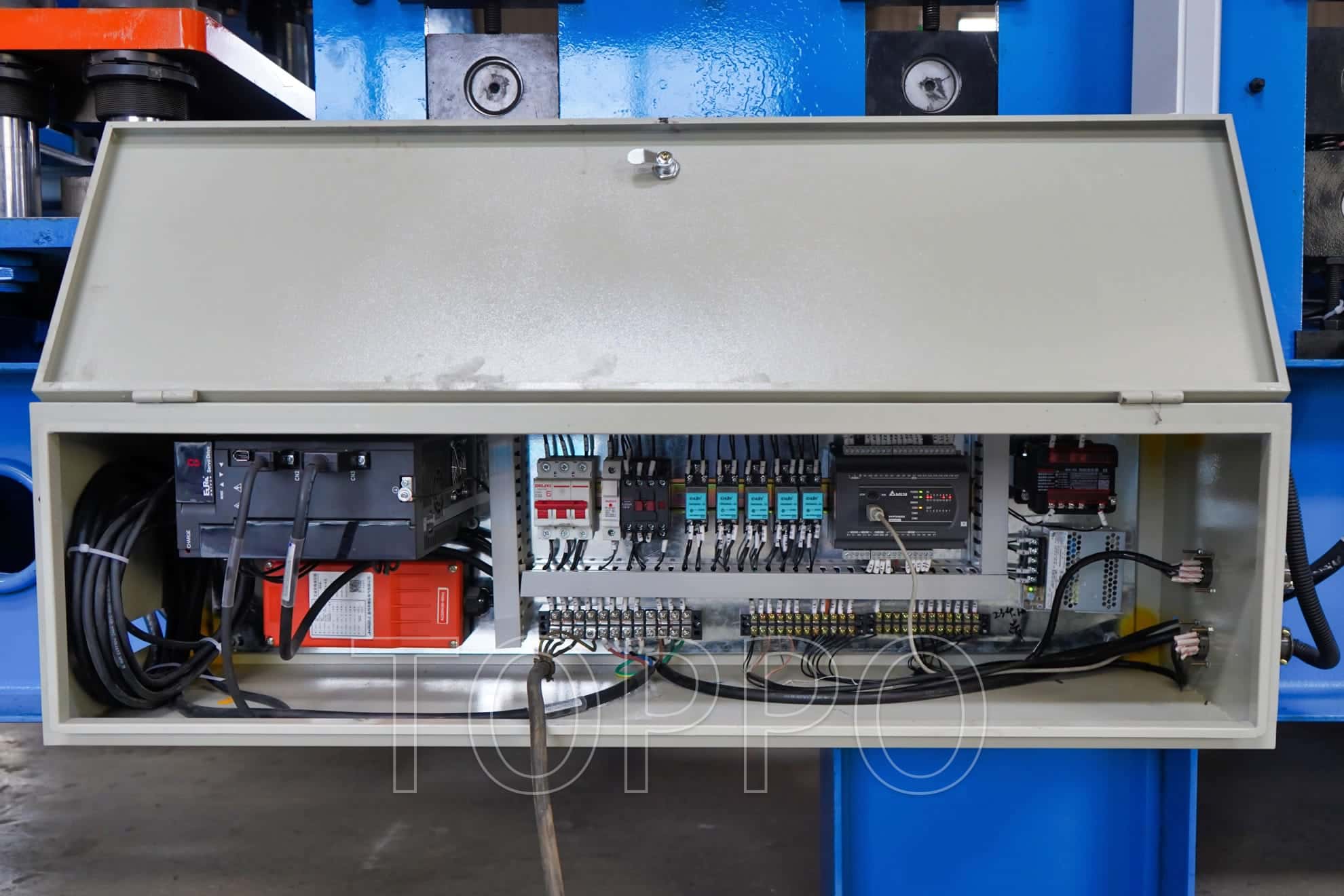

Control System: Delta/Siemens PLC with touchscreen
Operation Mode: Fully automatic
Voltage: 380V/50Hz/3Phase (adjustable)
Cutting Precision: ±1 mm
Paint Type: Powder coating
Machine Color: Blue (customizable)
Noise Level: ≤75 dB
Machine Dimensions: Approx. 11m × 1.6m × 1.6m
Weight: 7–9 tons
Cooling Method: Air cooling (optional)

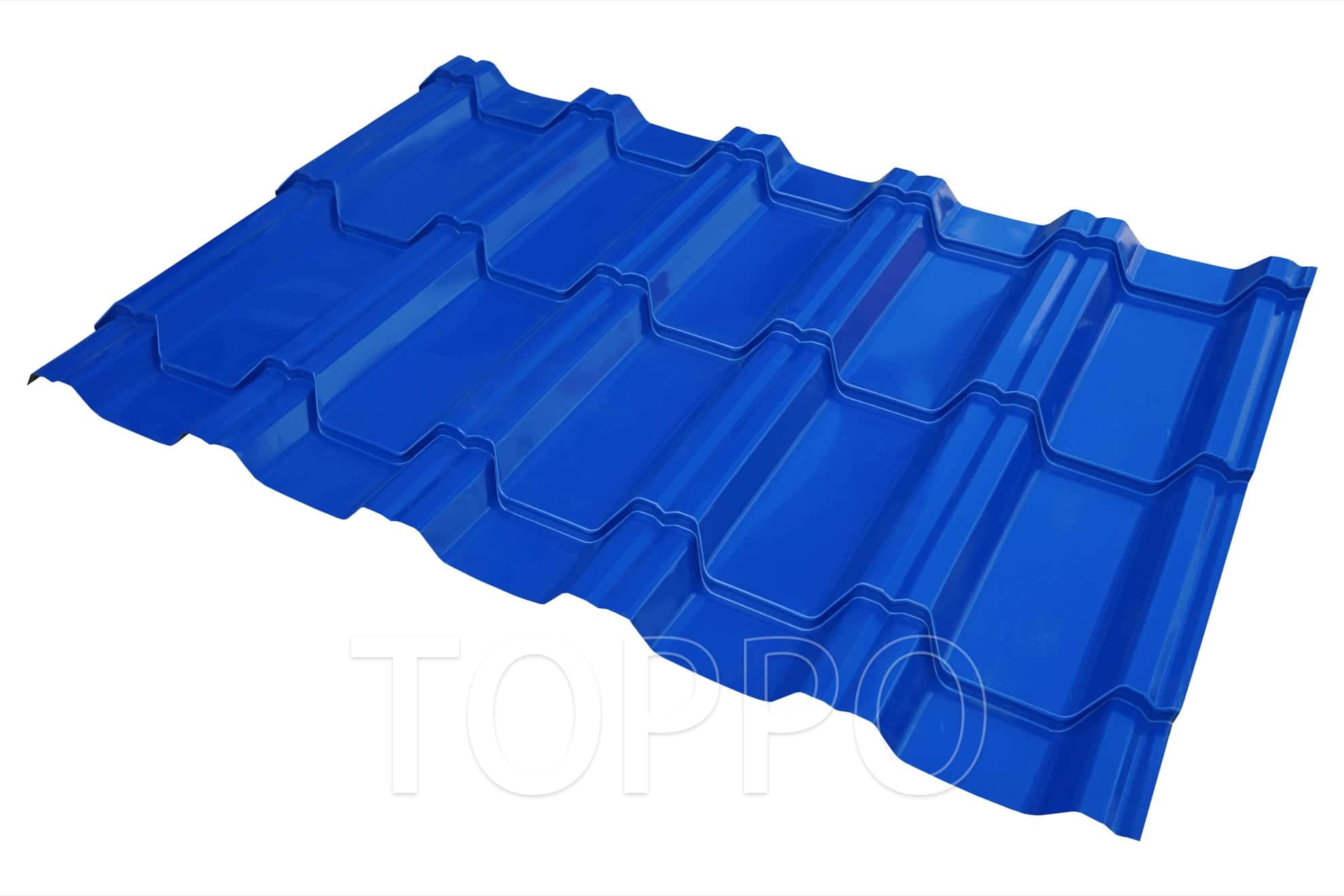

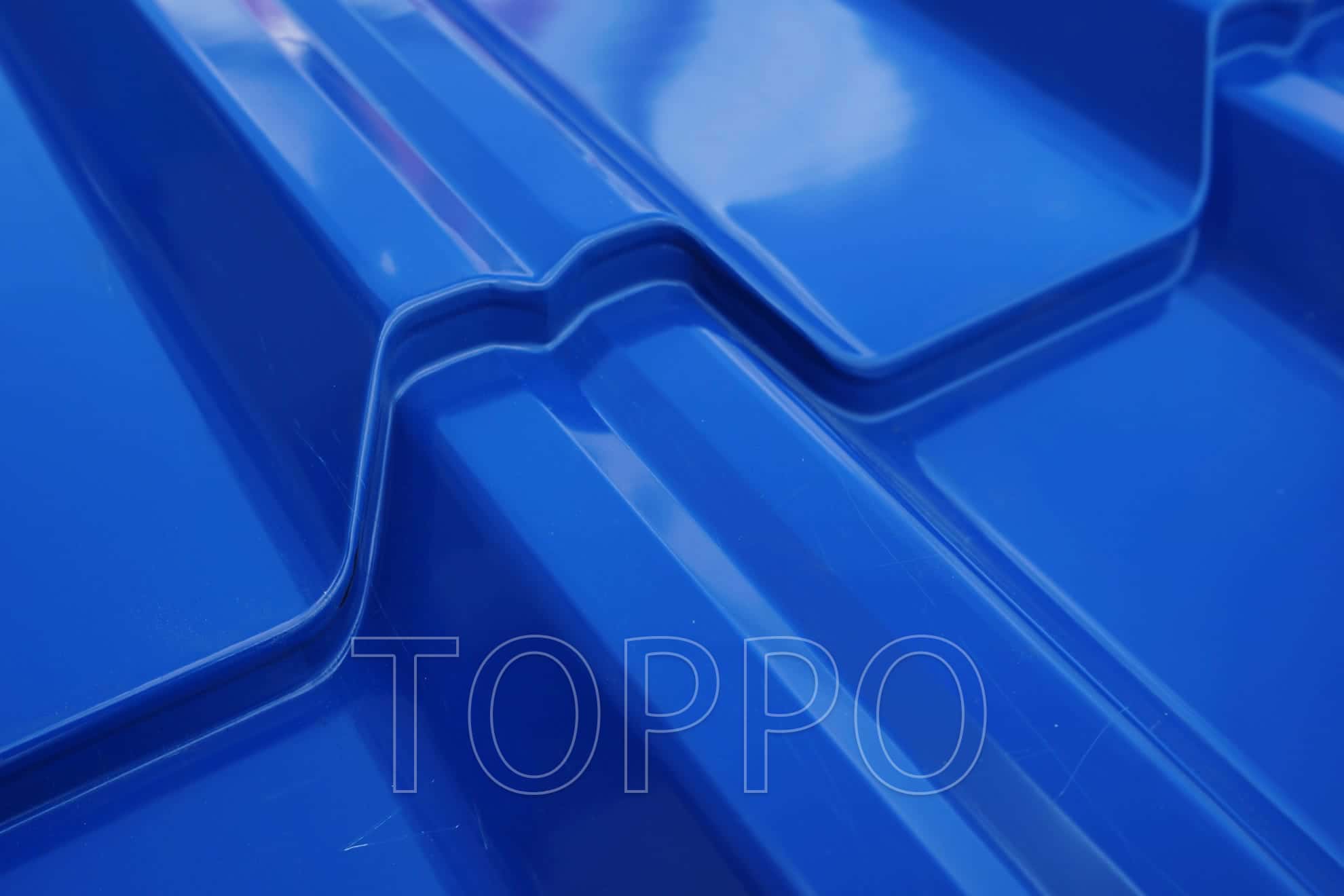

Panel Profile: Curved/glazed tile style
Daily Output: Up to 6000 sqm/day
Application: Roofing panel manufacturing for civil and commercial buildings
Safety Features: Emergency stop, overload protection
Operator Requirement: 1–2 persons
Maintenance: Low-maintenance design with accessible structure
Packing: Film wrapped, steel or wooden frame secured
Lead Time: 30–40 working days
OEM/ODM: Acceptable
Certifications: CE, ISO9001
Support: On-site installation and remote guidance available
Designed for production efficiency and long-term durability, this machine is perfect for manufacturers of high-quality metal roofing panels who value automation and operational simplicity.
