    Engineered for rapid tile production, this glazed tile roll forming machine features a reinforced frame, high-speed hydraulic cutting, and industrial-grade rollers. Suitable for mass production of metal roof tiles.
    • ￥0.00
      ￥0.00
      ￥0.00
      ￥0.00

    • Satisfaction：

      Sales： 0

      Review： 0

    Weight：0.000KG
    • Quantity：
Description
Engineered for rapid tile production, this glazed tile roll forming machine features a reinforced frame, high-speed hydraulic cutting, and industrial-grade rollers. Suitable for mass production of metal roof tiles.

Product Description

This High Speed Glazed Tile Roll Forming Machine is a heavy-duty solution for producing uniform glazed roofing sheets. It features an enhanced cutting system and precision roller stations, offering superior output efficiency, low noise, and long-term performance.

Machine Features and Technical Specifications:

  • Machine Type: Glazed Tile Roll Forming Machine

  • Number of Rollers: 18 rollers

  • Material Thickness: 0.3–0.7 mm

  • Feeding Coil Width: 1200 mm

  • Effective Sheet Width: 1050 mm

  • Roller Material: GCr15 bearing steel, quenched and hard chrome plated

  • Roller Shaft Diameter: 70 mm

  • Main Frame: 350 H-beam welded frame

  • Transmission: Chain drive with 1.2 inch chain

  • Motor Power: 5.5 KW

  • Hydraulic Station Power: 4 KW

  • Cutting System: Hydraulic post cutting with curved blade design

  • Blade Material: Cr12Mov, HRC58-60

  • Control Mode: PLC automatic system (Delta/Siemens)

  • Display: Touch screen with user-friendly interface

  • Working Speed: 4–6 meters/minute

  • Voltage: 380V/50Hz/3Phase (can be customized)

  • Control Cabinet: Separate cabinet with cooling fan

  • Decoiler: 5 Ton manual or hydraulic optional

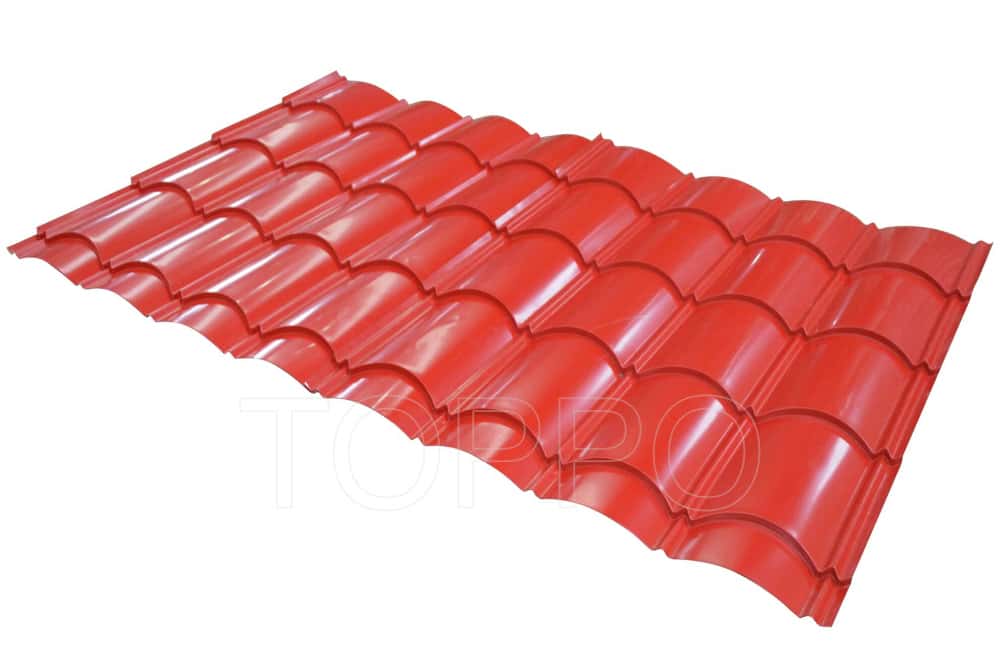

  • Panel Shape: S-wave curved glazed tile

  • Machine Dimension: 8600×1400×1500 mm

  • Machine Weight: Around 6.5 Tons

  • Precision: ±1 mm per cut

  • Noise: Less than 70 dB

  • Maintenance: Easy-access rollers and blades

  • Safety System: Emergency stop, overload protection

  • Supported Materials: PPGI, PPGL, Galvanized steel, Aluminum

  • Paint Finish: Anti-rust industrial enamel

  • Forming Structure: Stable and vibration-free

  • Application: Residential, commercial, industrial roofing

  • Operator Requirement: Single person operation

  • Control Language: Multi-language supported

  • Warranty: 12 months

  • After-sales Service: Technical guidance, parts replacement

  • Installation: Available overseas

  • Certification: CE, ISO

  • Delivery Time: 25–40 working days

  • Packing: Waterproof film + wire rope secured

  • Production Capacity: 1500 m²/day

  • OEM: Acceptable with customer logo

Applications

Ideal for manufacturing high-end glazed roof tiles for modern houses, factories, and steel structure buildings. This machine combines aesthetics with function, ensuring strength, weather resistance, and consistent tile shapes.
