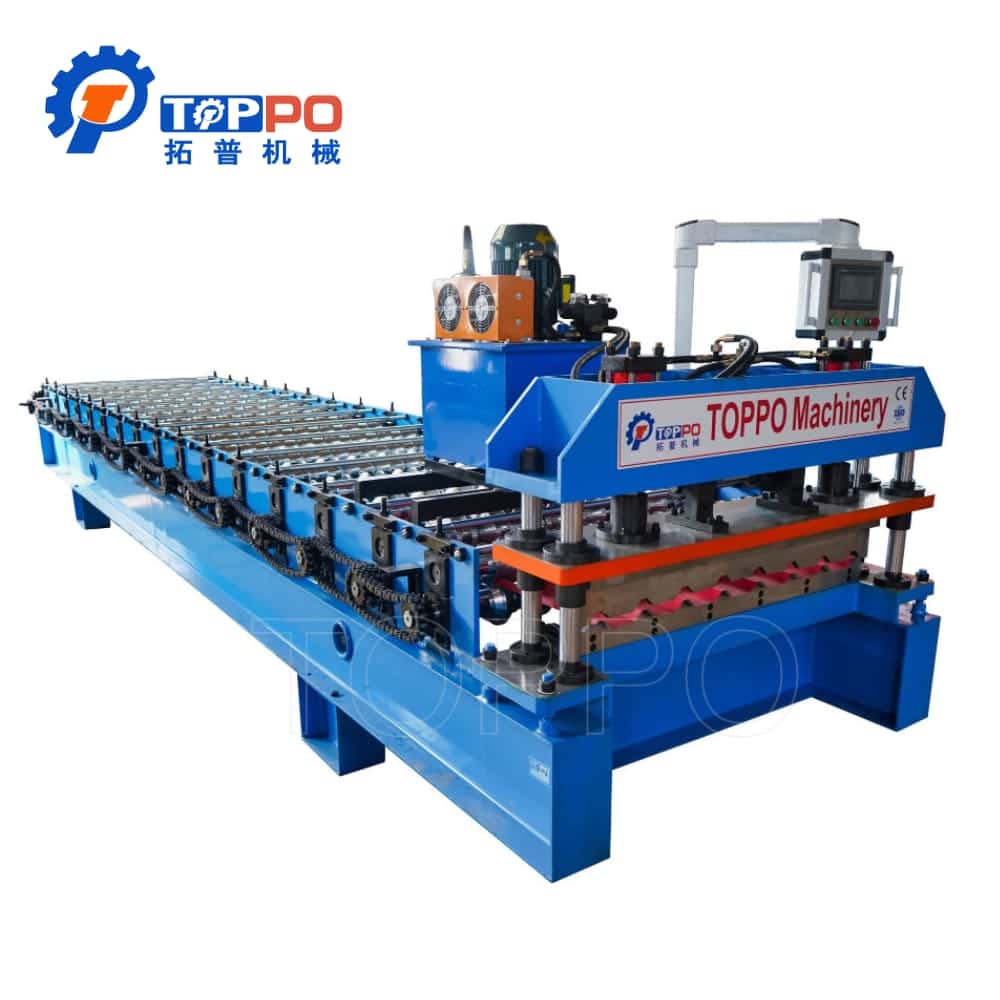

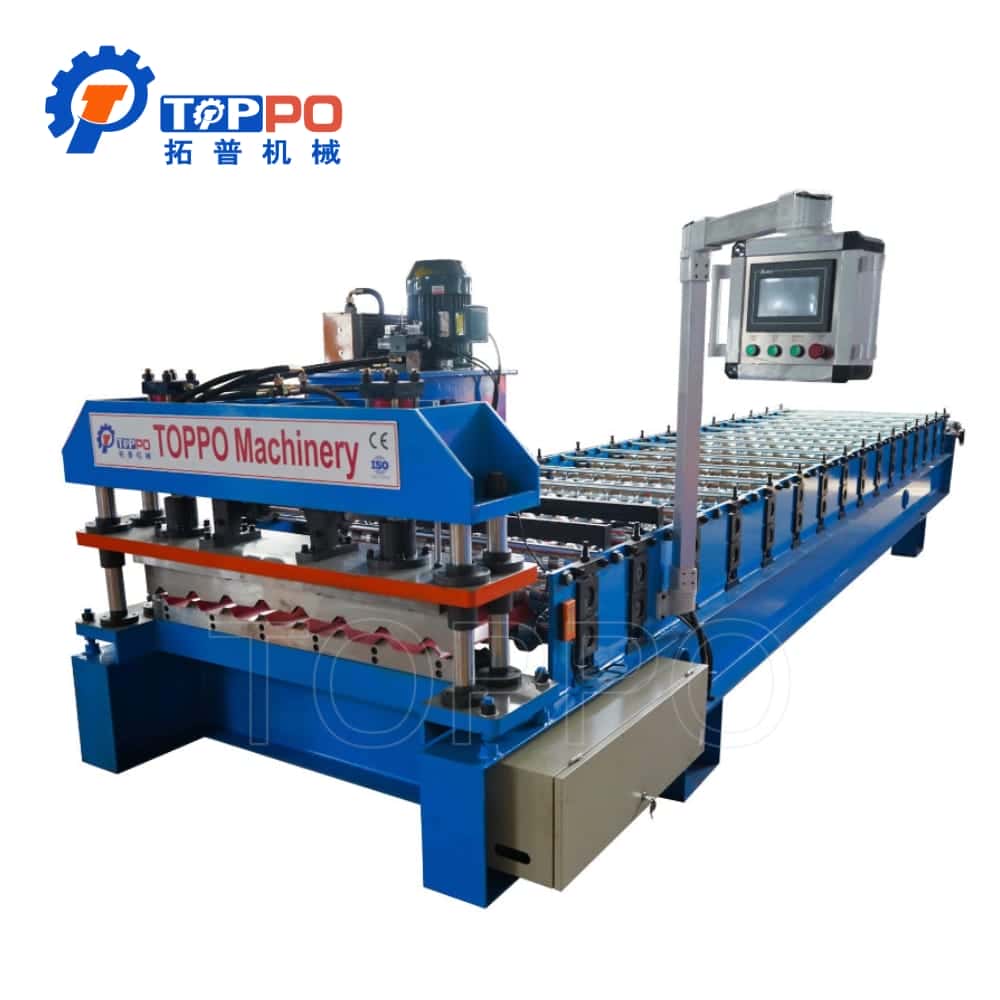

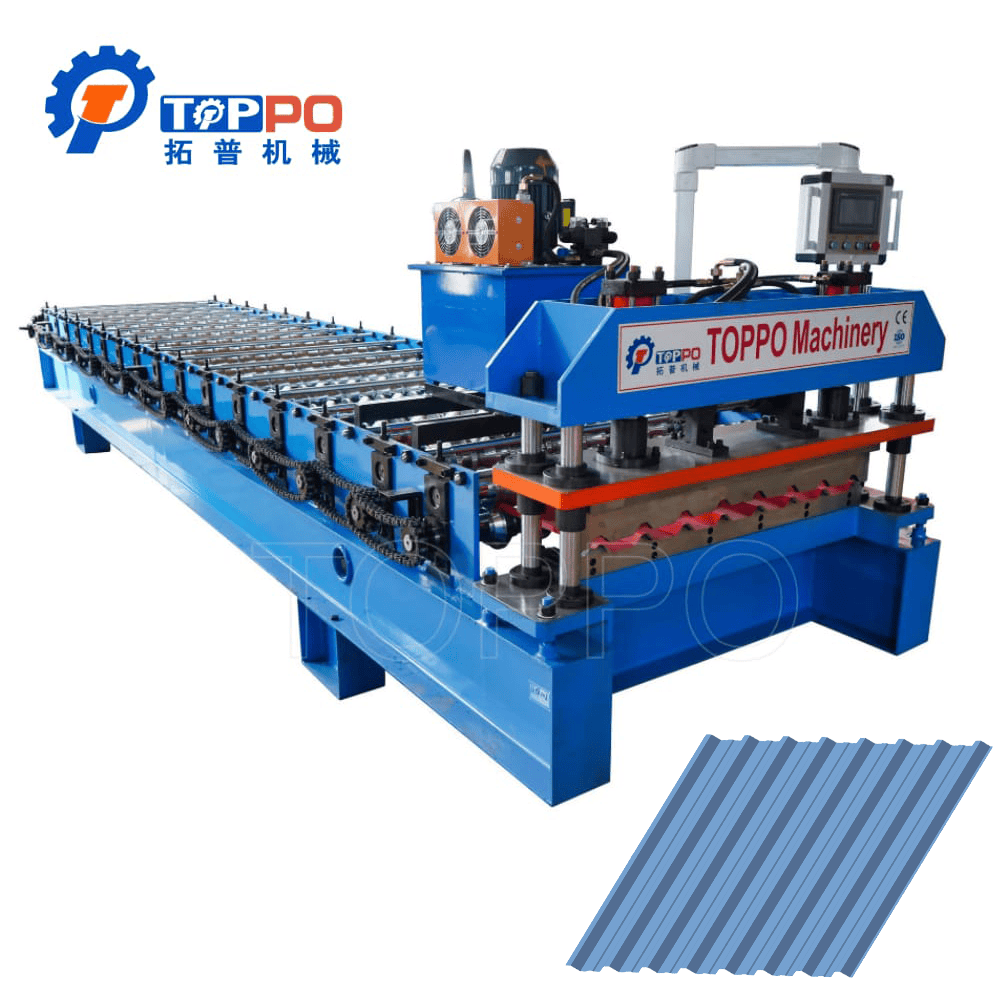

This high-efficiency trapezoidal roll forming machine is ideal for producing precise and uniform trapezoidal roofing sheets. It is engineered for durability and consistent performance, equipped with advanced control and cutting systems.
Material Type: Color steel, galvanized steel, aluminum
Material Thickness: 0.3-0.8 mm
Material Width: 1000-1250 mm
Forming Speed: 10-15 m/min
Roller Stations: 16
Roller Material: 45# steel, hard chrome coated
Shaft Diameter: 70 mm
Shaft Material: 45# steel, precision turned
Drive Type: Chain drive
Main Motor Power: 5.5 kW
Hydraulic Power: 4 kW
Cutting Type: Hydraulic cutting
Cutter Material: Cr12Mov with heat treatment
Control System: PLC system (Delta brand)
Operation Interface: Touch screen
Voltage: 380V/50Hz/3Phase (customizable)
Machine Frame: 300 H-beam welded structure
Side Panel Thickness: 16 mm
Transmission Mode: Chain and gearbox
Roll Forming Accuracy: ±1 mm
Working Pressure: 12-16 MPa
Machine Color: Blue (customizable)
Certification: CE, ISO
Warranty: 1 year
After-Sales Service: Engineers available to service machinery overseas
Installation: Manual and video support included
Packaging: Plastic film and wooden case
Delivery Time: 30 days after deposit
MOQ: 1 set
Usage: Metal roof panel production
Applicable Industries: Building material shops, construction works
Machine Length: About 8.5 m
Machine Width: About 1.6 m
Machine Height: About 1.4 m
Total Weight: 6.5 tons
Roller Shaft Bearings: Heavy-duty
Coil Feeding Guide: Manual adjustable
Roller Support Frame: Welded steel frame
Safety Protection: Emergency stop and protective covers
Output Sheet Type: Trapezoidal profile
This model is designed to meet the needs of modern metal roofing sheet production, combining efficiency, automation, and reliability into one powerful machine.
