Type: Corrugated Panel Roll Forming Machine
Applicable Materials: PPGI, GI, Aluminum, Galvalume
Material Thickness: 0.3mm–0.8mm
Forming Speed: 10–15m/min
Main Motor: 5.5kW
Hydraulic Station: 4kW power
Forming Stations: 16–20
Roller Material: High-grade 45# steel with chrome plating
Drive Method: Chain Drive
Control System: PLC (Siemens/Delta) with touch panel

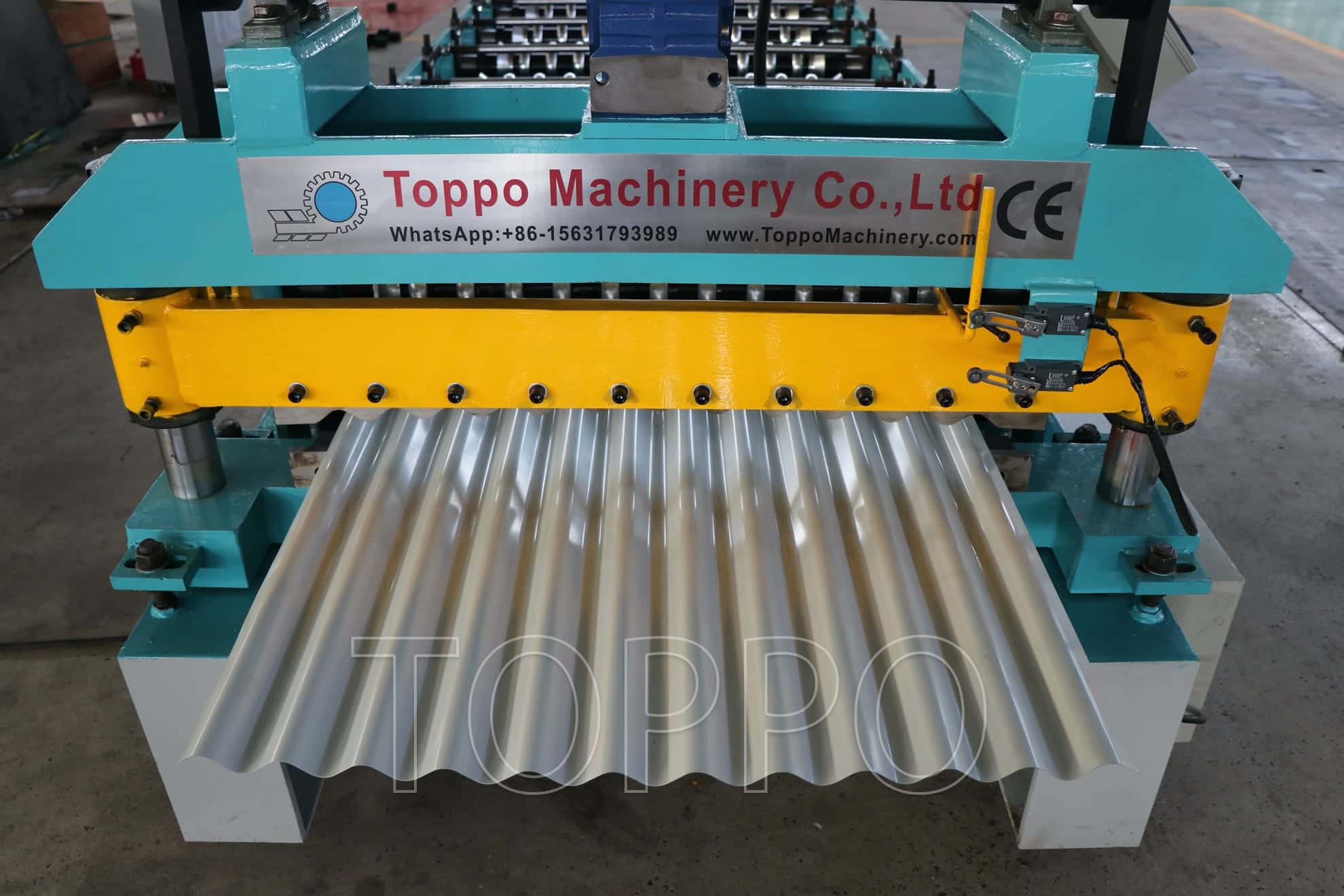

Cutting Type: Hydraulic cutting with Cr12 blade
Voltage: 380V/50Hz/3Phase or customizable
Machine Size: 7.5m x 1.2m x 1.4m
Machine Weight: Approx. 6 tons
Panel Profile: Standard corrugated profile (custom available)
Color: Custom color options
Warranty: 1 year
Certification: ISO, CE
Noise Level: ≤75dB
Lubrication: Centralized system
Safety: Covers and emergency stop
Touch Interface: HMI with multi-language support
Uncoiler: Manual/Hydraulic 5–10T optional
Stacker: Optional automatic stacker
Feeding Width: 1000mm–1250mm
Effective Width: 840mm–1050mm
Automation Level: Fully Automatic
Output Precision: ±1mm
Usage: Roofing and wall panel production
Production Capacity: 10 sets/month
Export Market: Global
Software: Upgradeable control software
Support: Online/onsite installation & training
OEM: Available
Free Accessories: Spare parts for 1 year
Packaging: Standard seaworthy
Delivery Time: 25–30 working days
Company: Toppo Machinery
Engineered for efficiency and precision, this corrugated sheet roll forming machine is perfect for mass production of high-quality metal sheets for roofing and siding applications. The machine combines robust mechanical design with intelligent automation, offering unmatched performance and reliability for manufacturers worldwide.
