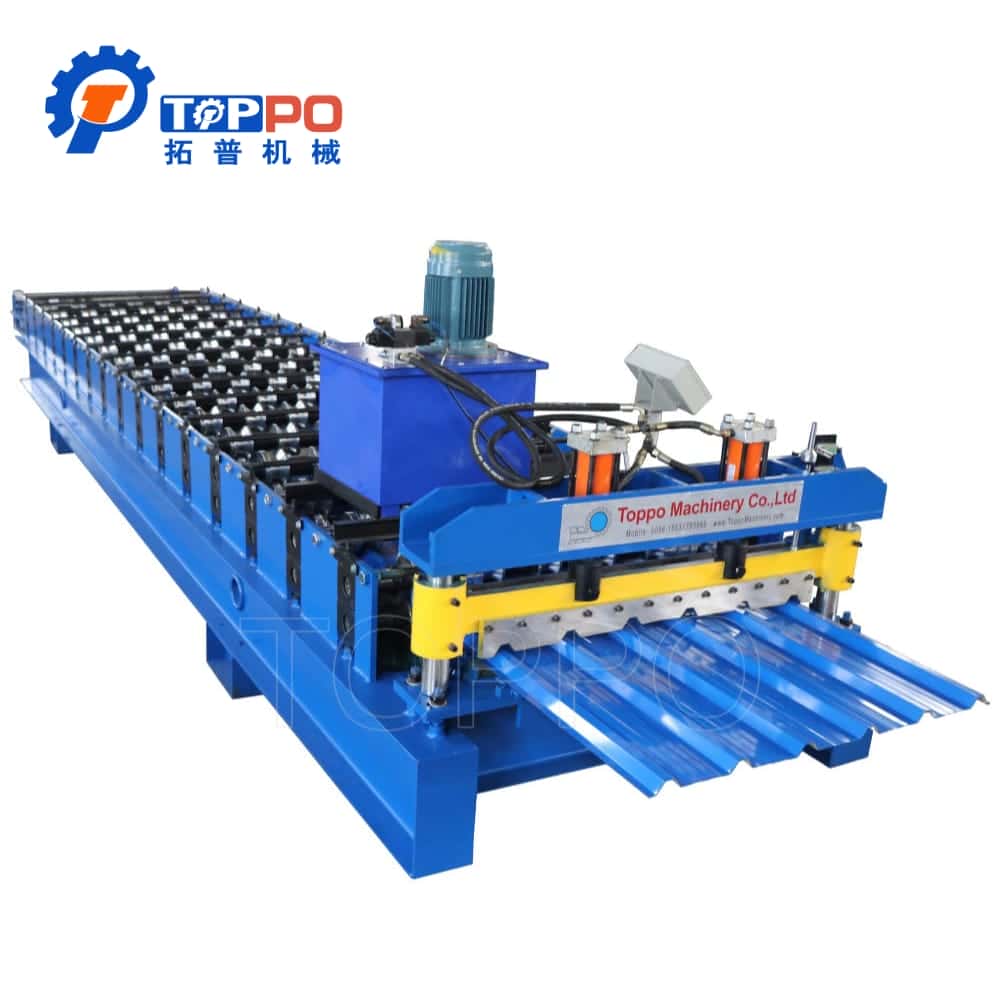

Model: 6P Dolly Type Roofing Sheet Forming Machine
Material: Galvanized Steel, PPGI, Galvalume, Aluminum
Thickness Range: 0.3mm – 0.8mm
Feeding Width: 1000–1250mm
Effective Width: 828–1050mm
Forming Speed: 10–15m/min
Main Motor Power: 5.5kW
Hydraulic Power: 4kW
Roller Stations: 16 rows
Roller Material: 45# steel with hard chrome plating
Drive System: Chain-driven system
Cutting Blade: Cr12Mov steel, quenched
Control System: PLC (Siemens/Delta) with touch panel
Voltage: 380V/50Hz/3Phase or customizable
Machine Dimensions: Approx. 7.5m x 1.5m x 1.2m
Machine Weight: Approx. 6 tons
Color: Customizable
Certification: ISO9001, CE
Warranty: 12 months
Safety Features: Emergency stop, guards, low noise
Automation: Full automatic control
Stacker: Optional auto/manual stacker
Decoiler: Manual/Hydraulic 5T–10T
Packaging: Steel frame with waterproof wrap
Production Capacity: 10–12 sets/month
Application: Roofing systems in workshops, commercial warehouses, prefabricated buildings
Operator Panel: HMI multi-language
This dolly-type trapezoidal roll forming machine ensures stable performance and excellent sheet profile consistency. Designed for high-efficiency metal sheet production with durable components and easy maintenance, it is ideal for high-volume roofing panel manufacturing needs.
