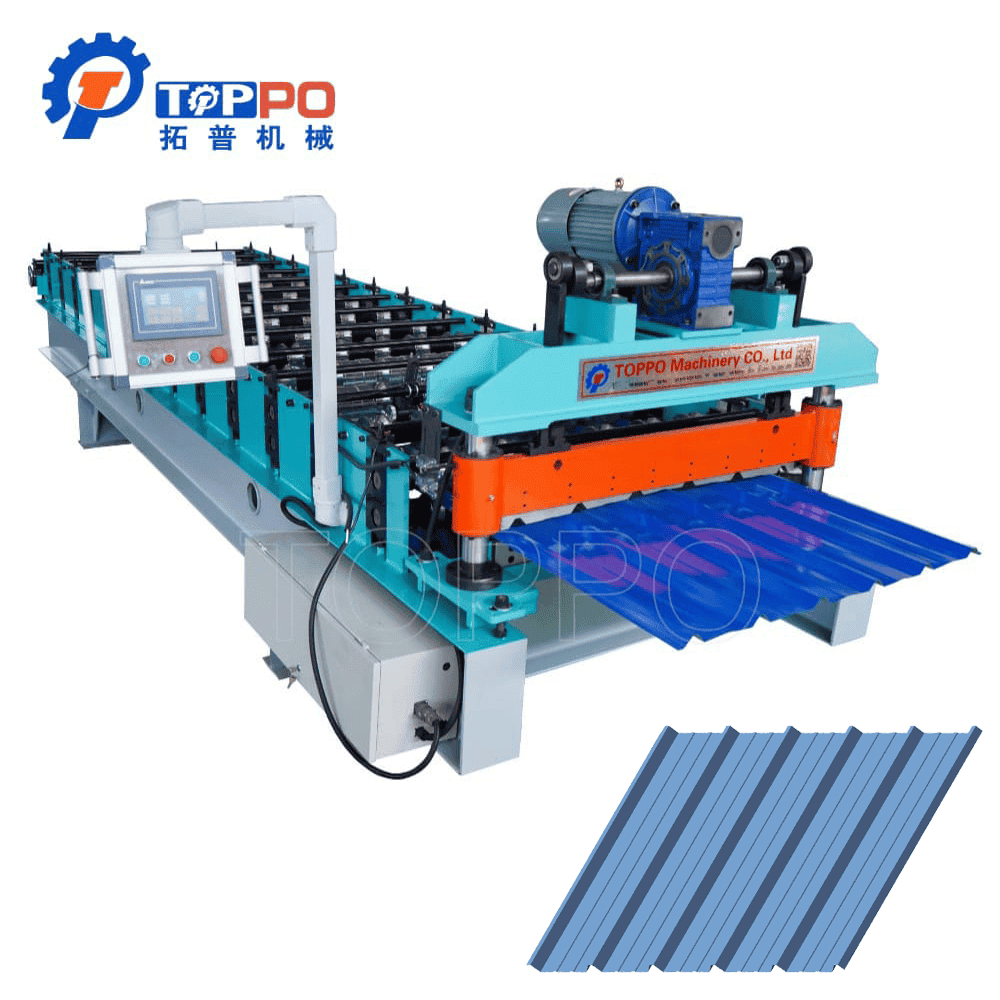

The Trapezoidal Sheet Roll Forming Machine is a high-precision equipment for producing trapezoidal metal roofing sheets used in various construction applications. Built with robust components and intelligent control systems, it ensures consistency, durability, and productivity.
Material Type: Galvanized steel, PPGI, aluminum
Material Thickness: 0.3–0.8mm
Working Speed: 10–15m/min
Roller Stations: 16 rows
Roller Material: 45# steel with hard chrome plating
Shaft Diameter: 75mm solid shaft
Transmission Type: Chain drive
Main Frame: 350H steel welded structure
Cutting System: Hydraulic cutting with Cr12Mov blade
Control System: PLC (Delta/Siemens)
Power Supply: 380V/50Hz/3Phase or customized
Main Motor Power: 5.5kW
Hydraulic Station Power: 4kW
Machine Dimensions: About 8.5m × 1.5m × 1.2m
Weight: Approx. 5.5 tons
Forming Type: Trapezoidal profile
Application: Roofing sheet, wall cladding
Warranty: 1 year
After-sales Service: Engineer available overseas
Certification: CE, ISO
Automation: Fully automatic with touch screen
Length Tolerance: ±1mm
Width Tolerance: ±1mm
Operating Mode: Electric & hydraulic
Color: Customized
Noise Level: Low noise operation
Roller Shaft Material: High-strength steel
Drive System: Gear and chain
Embossing Rollers: Optional
Decoiler: Manual or hydraulic optional
Output Table: Manual or automatic
Forming Accuracy: High precision
Changeover Time: Quick setup
Surface Treatment: Painted and rust-proof
Cutting Blade Material: Cr12 with heat treatment
Voltage: 220V/380V/415V
Motor Brand: Siemens or customized
PLC Brand: Delta/Siemens
Touch Screen: Delta/Weinview
Application Field: Industrial and commercial buildings
