Model: TP-TF914
Forming Stations: 18 steps
Material Thickness: 0.3–0.8 mm
Applicable Materials: Galvanized steel, pre-painted steel, aluminum
Feeding Width: 1220 mm
Effective Width: 914 mm
Roller Shaft Diameter: 75 mm
Roller Material: GCr15 with heat treatment and chrome coating
Drive Type: Chain drive
Main Motor Power: 7.5 kW
Hydraulic System Power: 4 kW
Cutting Type: Hydraulic shear
Blade Material: Cr12 with heat treatment
Control System: PLC (Siemens/Delta)
Operator Panel: Touch screen display
Speed: 10–15 m/min
Machine Frame: Welded steel 350H structure
Machine Dimensions: 8800 × 1500 × 1400 mm
Weight: Approx. 7.8 tons
Voltage: 380V/50Hz/3Phase (or customized)
Sheet Profile: Trapezoidal
Product Usage: Roofing panel manufacturing
Operation Mode: Automatic
Noise Level: ≤70 dB
Forming Accuracy: ±1 mm
Surface Treatment: Blue painted with anti-rust
Packaging: Wrapped with plastic film, fixed in container
Certification: CE, ISO
Production Capability: 30 sets/month
Delivery Lead Time: 20–30 working days
FOB Port: Tianjin, China
Trademark: TOPPO Machinery
Warranty: 12 months
After-sales Service: Online support and overseas engineers available
Optional Accessories: Decoiler, auto stacker, embossing unit
Environmental Compliance: RoHS & CE standards
Safety Features: Emergency stop, safety covers
Key Benefits: Stable performance, user-friendly interface, reliable structure

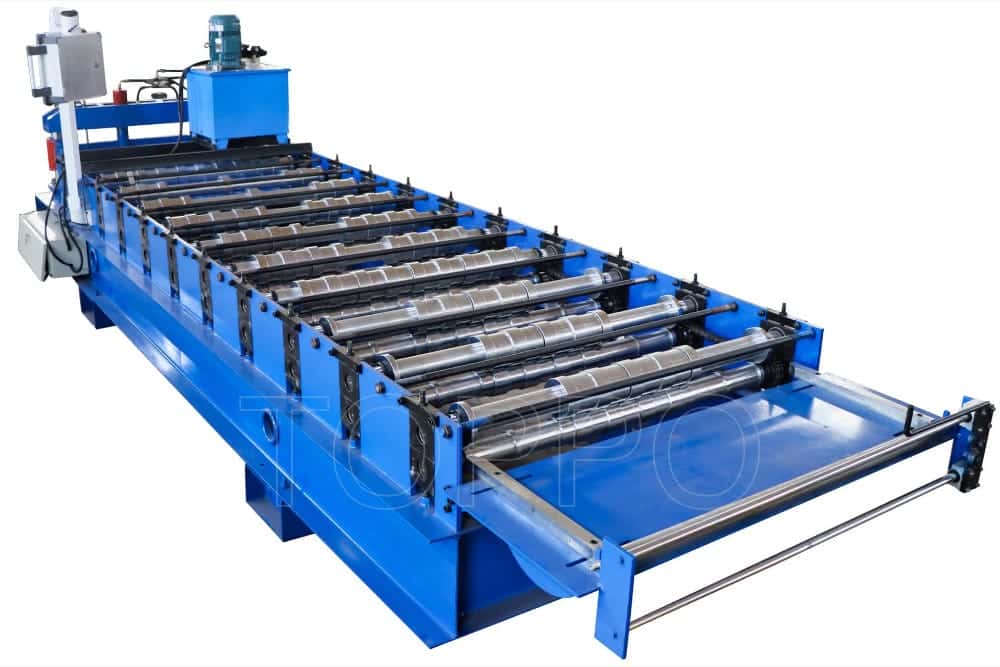

TOPPO's trapezoidal roll forming machine is a trusted solution for manufacturers producing high-volume roofing sheets. Its durable build, smart PLC control, and precise cutting system ensure consistently high-quality outputs for industrial construction needs.
