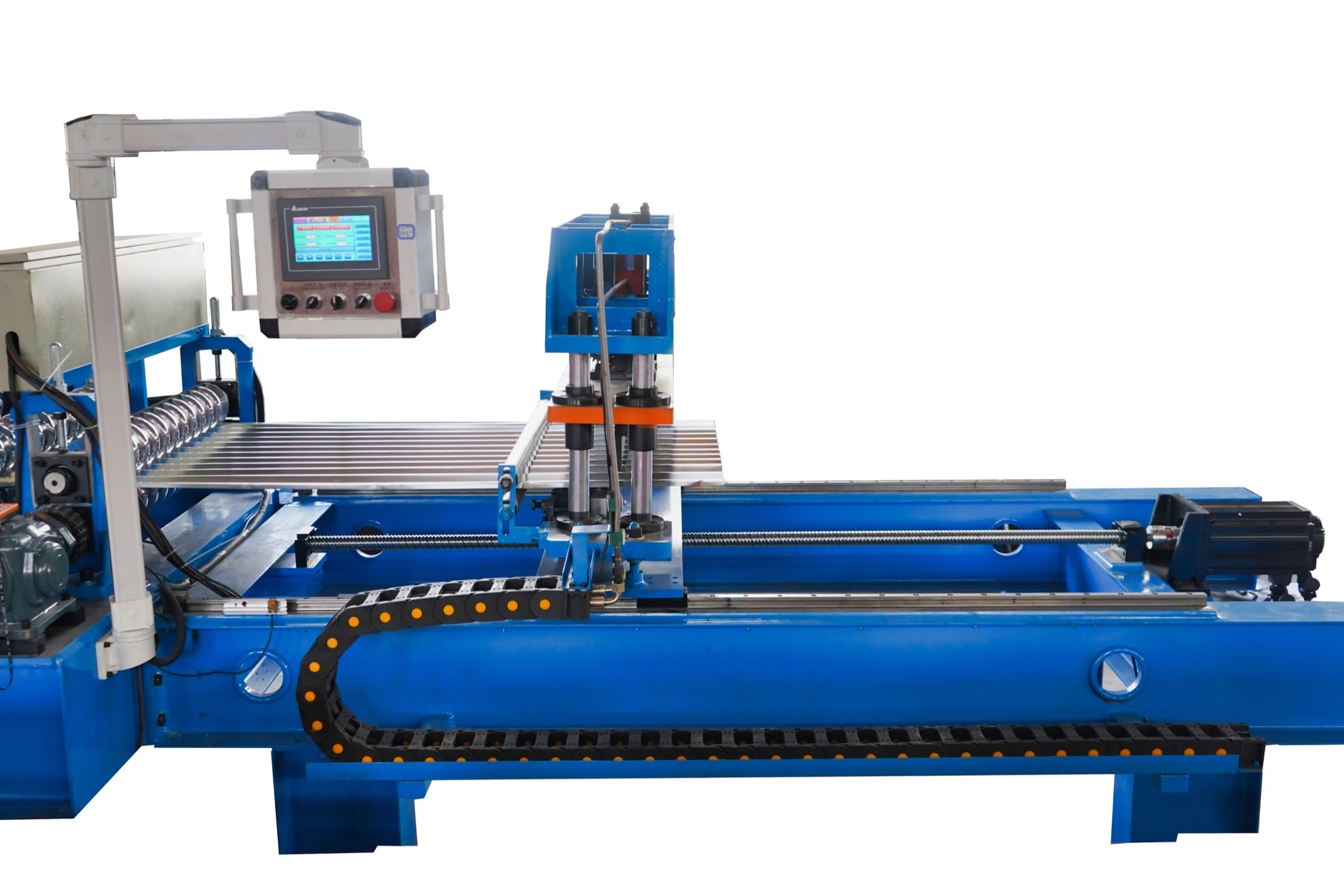

This automatic metal roofing panel roll forming machine integrates advanced roll forming technology with a hydraulic pressing system to produce high-quality roofing sheets with consistent profiles and excellent surface finish. It is widely used in industrial buildings, warehouses, and steel structure projects.
Machine Type: Roofing Panel Roll Forming Machine
Function: Sheet Forming & Hydraulic Pressing
Material Compatibility: Galvanized Steel, PPGI, GI
Thickness Range: 0.3mm - 0.8mm
Forming Speed: 8-15m/min
Hydraulic System: Integrated High-pressure Unit
Roller Material: 45# Steel with Chrome Coating
Number of Roller Stations: 14-20
Shaft Material: High-grade Steel
Shaft Diameter: 70-80mm
Main Motor Power: 5.5KW - 7.5KW
Hydraulic Power: 4KW
Cutting System: Hydraulic Cutting Device
Cutting Accuracy: ±1mm
Drive Type: Chain / Gear Transmission
Control System: PLC with Touch Screen
Operation Mode: Fully Automatic
Voltage: 380V / 50Hz / 3 Phase
Frame Structure: Heavy-duty Welded Steel
Machine Color: Customizable
Feeding Width: Adjustable
Profile Type: Roofing Sheet / Panel
Production Efficiency: High Output
Noise Level: Low Noise
Lubrication: Automatic Lubrication System
Cooling System: Air Cooling
Safety Features: Emergency Stop & Protection Cover
Control Interface: User-friendly Panel
Tolerance Control: Precision Forming
Surface Finish: Smooth & Uniform
Durability: Long Service Life
Maintenance: Easy Maintenance
Installation: Simple Setup
Automation Level: High Automation
Operator Requirement: Low Skill Required
Transport: Container Shipment
After-sales Service: Technical Support Available
Warranty: 12 Months
Certification: CE / ISO
Customization: Available
The equipment is designed for continuous and stable production, ensuring uniform panel profiles and reduced material waste. The hydraulic pressing system enhances the shaping precision, making it suitable for complex roofing designs. With a user-friendly PLC control system, operators can easily adjust parameters and monitor production. This machine is an ideal solution for manufacturers seeking efficiency, durability, and high-quality output.
