Hydraulic Metal Sheet Embossing Machine with Cutting System
This hydraulic embossing machine is designed for processing metal coils into patterned sheets with integrated leveling and cutting functions. It ensures stable feeding, uniform embossing depth and precise cut-to-length output, making it ideal for industrial sheet metal production lines.
Product Overview
The machine combines embossing rollers, hydraulic drive, leveling unit and cutting system into one efficient production solution. It enhances sheet rigidity, improves surface appearance and supports continuous operation for large-scale manufacturing.
Main Attributes
| 1. Product type | Hydraulic metal embossing machine |
| 2. Function | Embossing, leveling, feeding and cutting |
| 3. Material | Galvanized steel, aluminum, stainless steel, carbon steel |
| 4. Material form | Metal coil or sheet |
| 5. Structure | Heavy-duty welded steel frame |

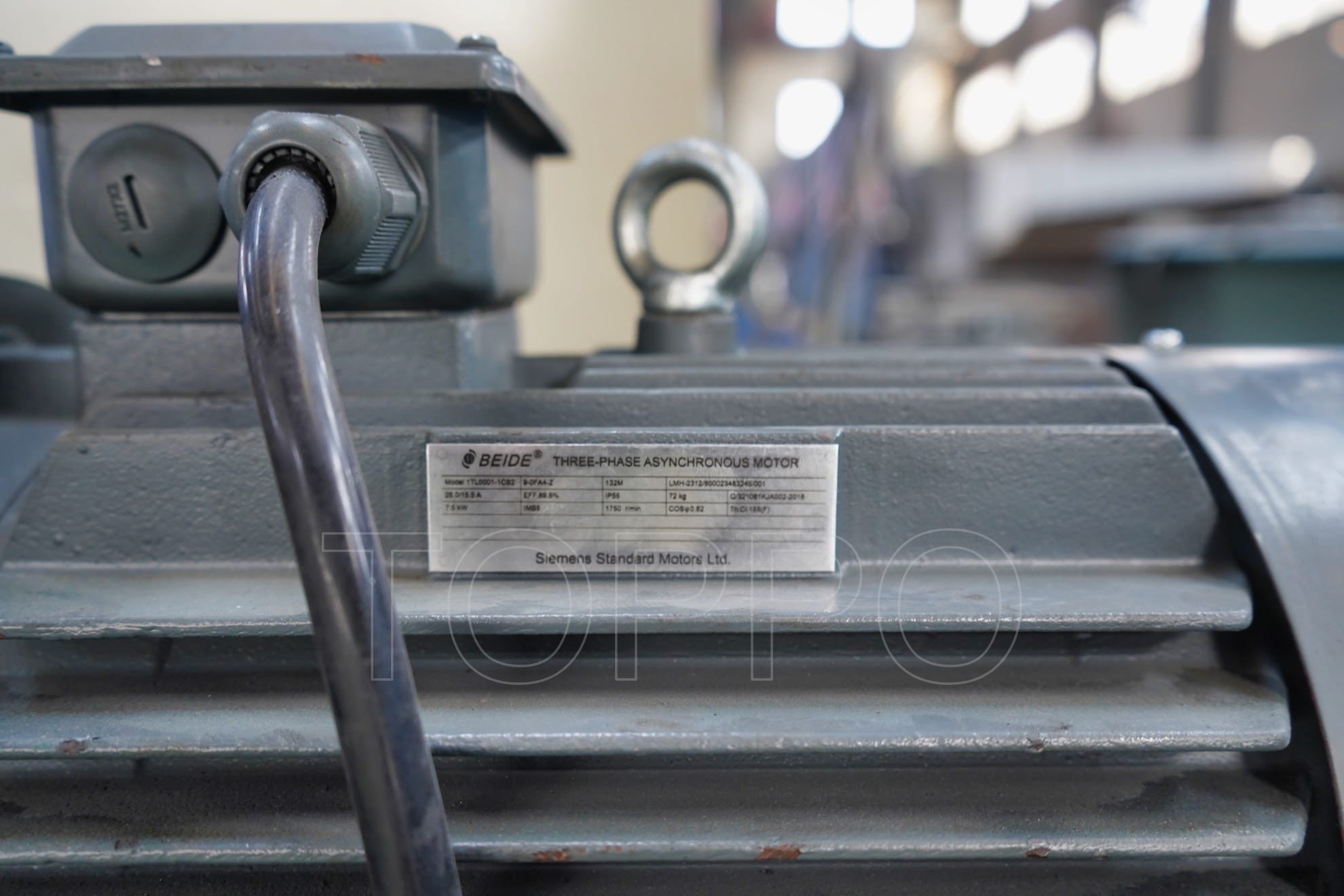

| 6. Drive system | Hydraulic + motor drive |
| 7. Embossing rollers | Patterned steel rollers |
| 8. Leveling rollers | Multi-stage leveling system |
| 9. Cutting system | Hydraulic cutting device |
| 10. Control system | PLC control with touch panel |
| 11. Operation mode | Automatic and manual |
| 12. Sheet width | Customizable |
| 13. Sheet thickness | Customizable |
| 14. Embossing depth | Adjustable |
| 15. Pattern type | Custom roller design |
| 16. Feeding system | Continuous coil feeding |

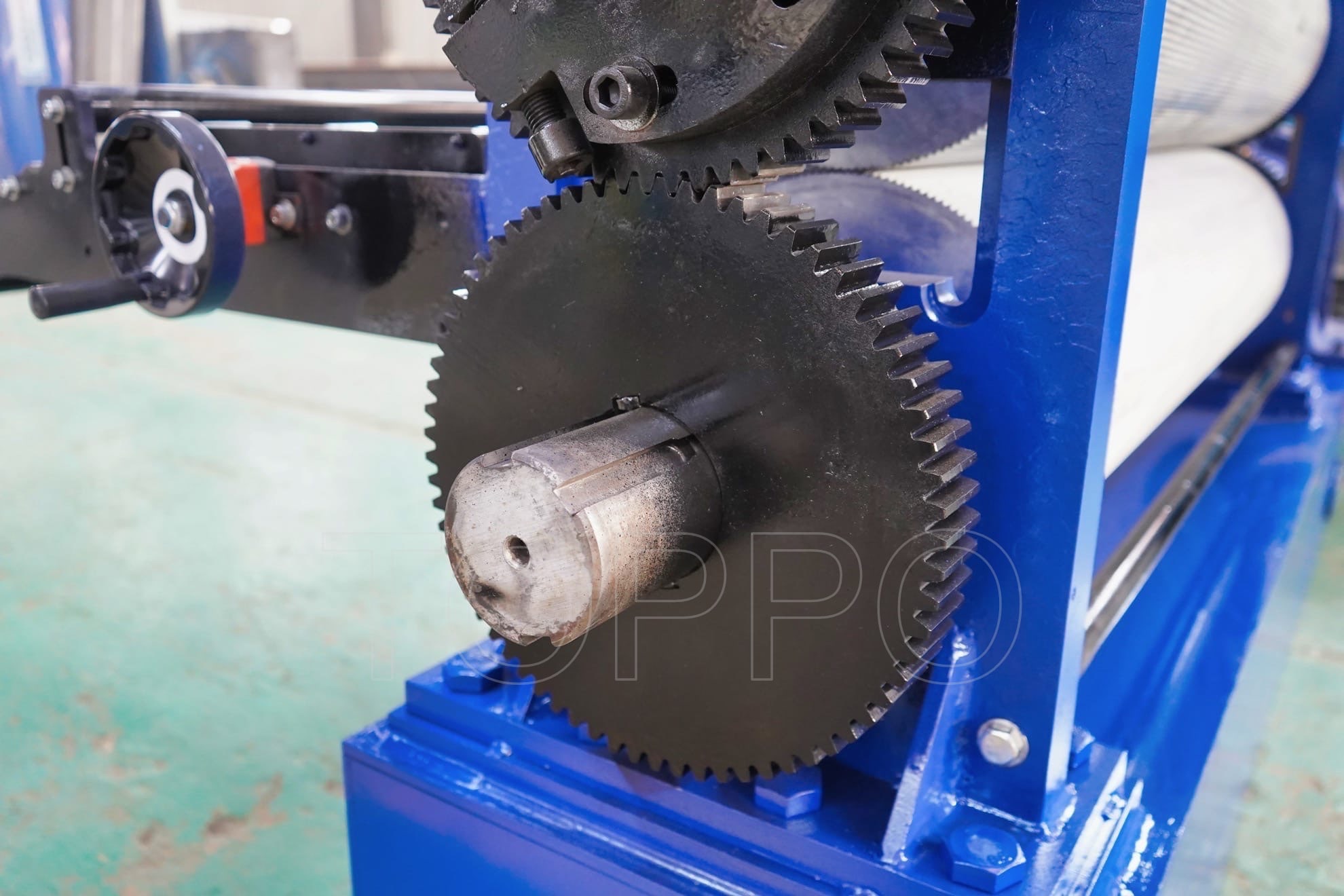

| 17. Transmission | Gear and chain transmission |
| 18. Motor power | Configured based on capacity |
| 19. Voltage | 380V/50Hz or customized |
| 20. Production speed | Adjustable speed |
| 21. Cutting length | Programmable |
| 22. Machine color | Blue or customized |
| 23. Surface finish | Anti-corrosion coating |
| 24. Base frame | Stable industrial base |
| 25. Pressure adjustment | Hydraulic pressure control |
| 26. Leveling adjustment | Manual/automatic adjustment |
| 27. Safety system | Emergency stop and protection |
| 28. Accuracy | High precision cutting |
| 29. Efficiency | Continuous production capability |
| 30. Maintenance | Easy maintenance design |
| 31. Application | Roofing, wall panels, decorative sheets |
| 32. Output product | Embossed flat sheets |
| 33. Sheet flatness | Improved after leveling |
| 34. Texture quality | Uniform embossing pattern |
| 35. Installation | Floor-mounted |
| 36. Workspace | Industrial workshop use |
| 37. Customization | Full customization available |
| 38. Optional equipment | Decoiler, stacker |
| 39. Control panel | Independent control cabinet |
| 40. Hydraulic unit | Integrated hydraulic station |
| 41. Noise level | Low industrial noise |
| 42. Durability | Long service life |
| 43. Stability | Smooth operation |
| 44. Production line | Compatible with roll forming lines |
Key Features
Hydraulic system ensures strong and stable embossing pressure
Integrated cutting improves production efficiency
Custom embossing rollers for various patterns
PLC control for easy and precise operation
Robust structure suitable for continuous industrial use
Applications
Widely used in construction materials, metal decoration panels, roofing sheets, wall cladding, appliance panels and industrial sheet processing industries.
Advantages
This machine provides a complete solution for embossing and cutting metal sheets with high efficiency, precision and customization flexibility, making it ideal for modern manufacturing environments.
