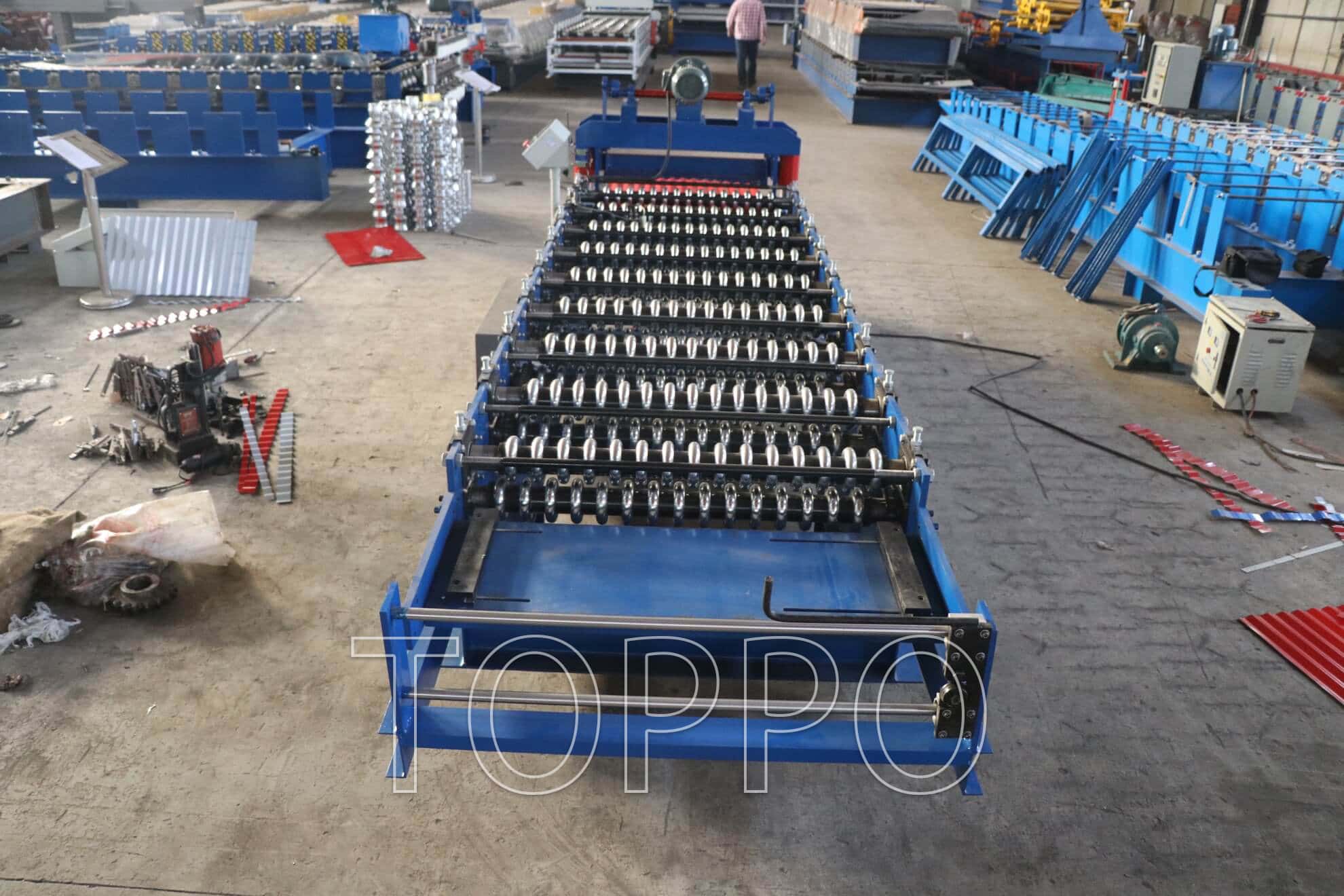

This corrugated roofing panel making machine is a high-performance roll forming system specially engineered for manufacturing durable and precise metal roofing sheets. It integrates decoiling, feeding, roll forming, and hydraulic cutting into one automated production line, ensuring efficiency and consistency.
Machine Type: Corrugated Roofing Panel Machine
Forming Method: Cold Roll Forming
Production Speed: 8-30 m/min
Material Thickness: 0.25-1.0 mm
Applicable Materials: GI, PPGI, Aluminum Sheets
Feeding Width: 1000-1250 mm
Effective Width: Customized
Control System: PLC with Touch Screen
Cutting System: Hydraulic Cutting
Cutting Accuracy: ±1mm
Drive System: Chain Drive / Gearbox Optional
Main Motor Power: 5.5-11 kW
Hydraulic Power: 4-5.5 kW
Roller Stations: 12-20 Stations
Roller Material: 45# Steel Chrome Plated
Shaft Material: High Strength Steel
Shaft Diameter: 70-90 mm
Frame Structure: Welded Steel Frame
Voltage: 380V/50Hz/3Phase (Customizable)
Decoiler Type: Manual / Hydraulic
Decoiler Capacity: 5T / 10T
Machine Weight: 5-10 Tons
Machine Length: 7-15 Meters
Profile Type: Corrugated / Trapezoidal
Surface Finish: Smooth & Uniform
Blade Material: Cr12 Heat Treated
Lubrication System: Automatic Lubrication
Noise Level: Low Noise Design
Automation Level: Fully Automatic
Operation Interface: User-Friendly HMI
Safety Features: Emergency Stop & Protection Covers
Cooling System: Air Cooling
Production Capacity: High Output Efficiency
Tolerance Control: High Precision
Energy Consumption: Low Energy Usage
Maintenance: Easy Maintenance
Installation: Quick Installation
Durability: Long Service Life
Flexibility: Custom Profiles Supported
Compatibility: Multi-material Processing
Application Industry: Construction & Roofing
Usage: Industrial, Commercial, Residential Roofing
Output Type: Continuous Sheet Production
This machine is designed with advanced forming technology to ensure consistent wave patterns and strong structural integrity of roofing sheets. Its intelligent PLC system allows precise control over length, speed, and cutting, reducing material waste and improving productivity.
The equipment is widely used in steel structure buildings, warehouses, factories, and residential housing projects. With customizable roller designs, it can produce various corrugated profiles to meet different market demands.
Its robust structure, stable operation, and low maintenance requirements make it an ideal choice for manufacturers aiming to scale up roofing sheet production efficiently.
