This hydraulic roofing panel making machine is a high-performance roll forming system engineered for continuous production of metal roofing sheets. It combines advanced hydraulic cutting, precision forming rollers, and intelligent PLC control to deliver consistent quality and high productivity.
Machine Type: Corrugated Roofing Panel Roll Forming Machine
Forming Process: Cold Roll Forming
Production Speed: 10-35 m/min
Material Thickness: 0.3-1.2 mm
Material Type: GI, PPGI, Aluminum, Steel Coil
Feeding Width: 1000-1250 mm
Effective Width: Customizable

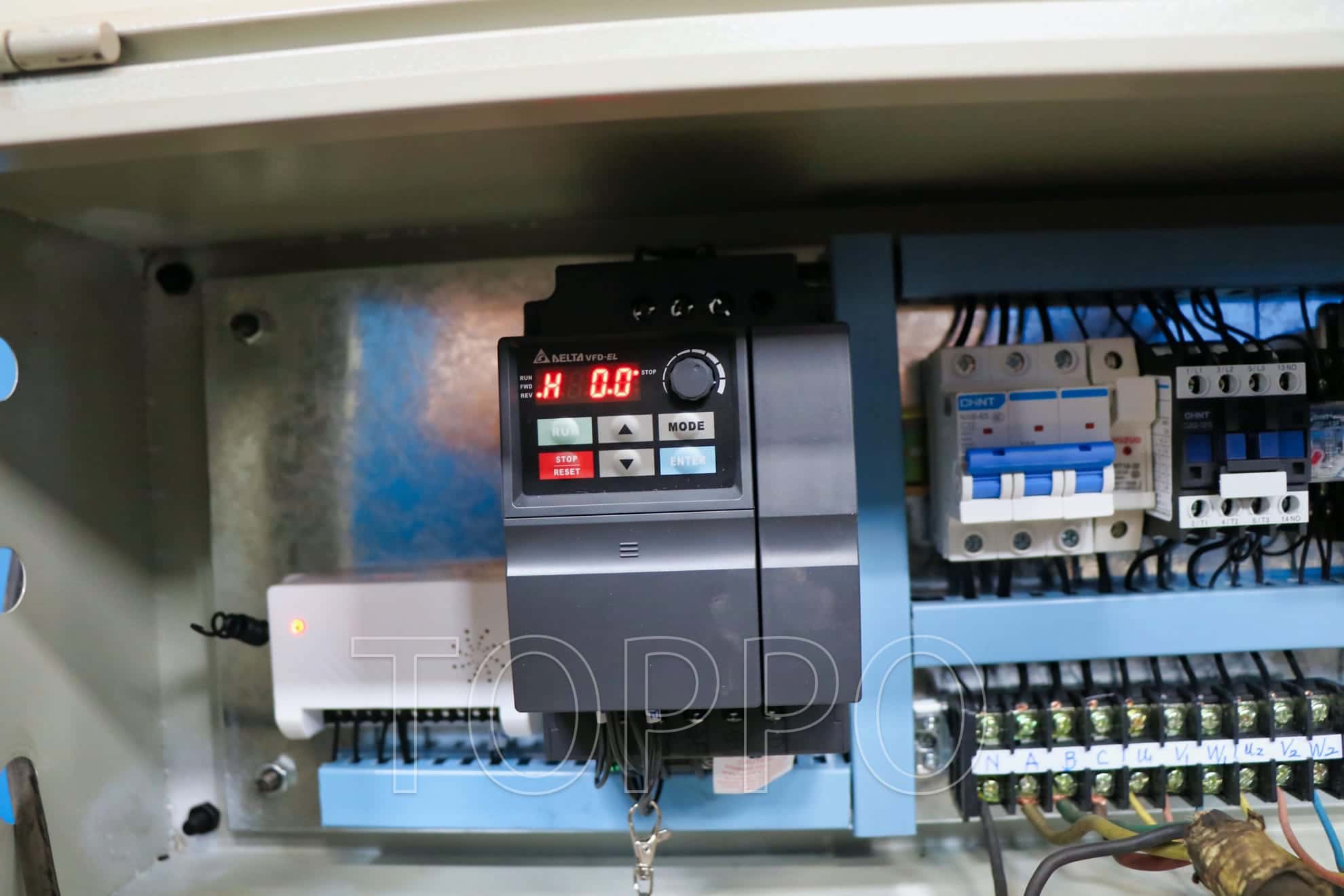

Control System: PLC Automatic Control
Operation Interface: Touch Screen HMI

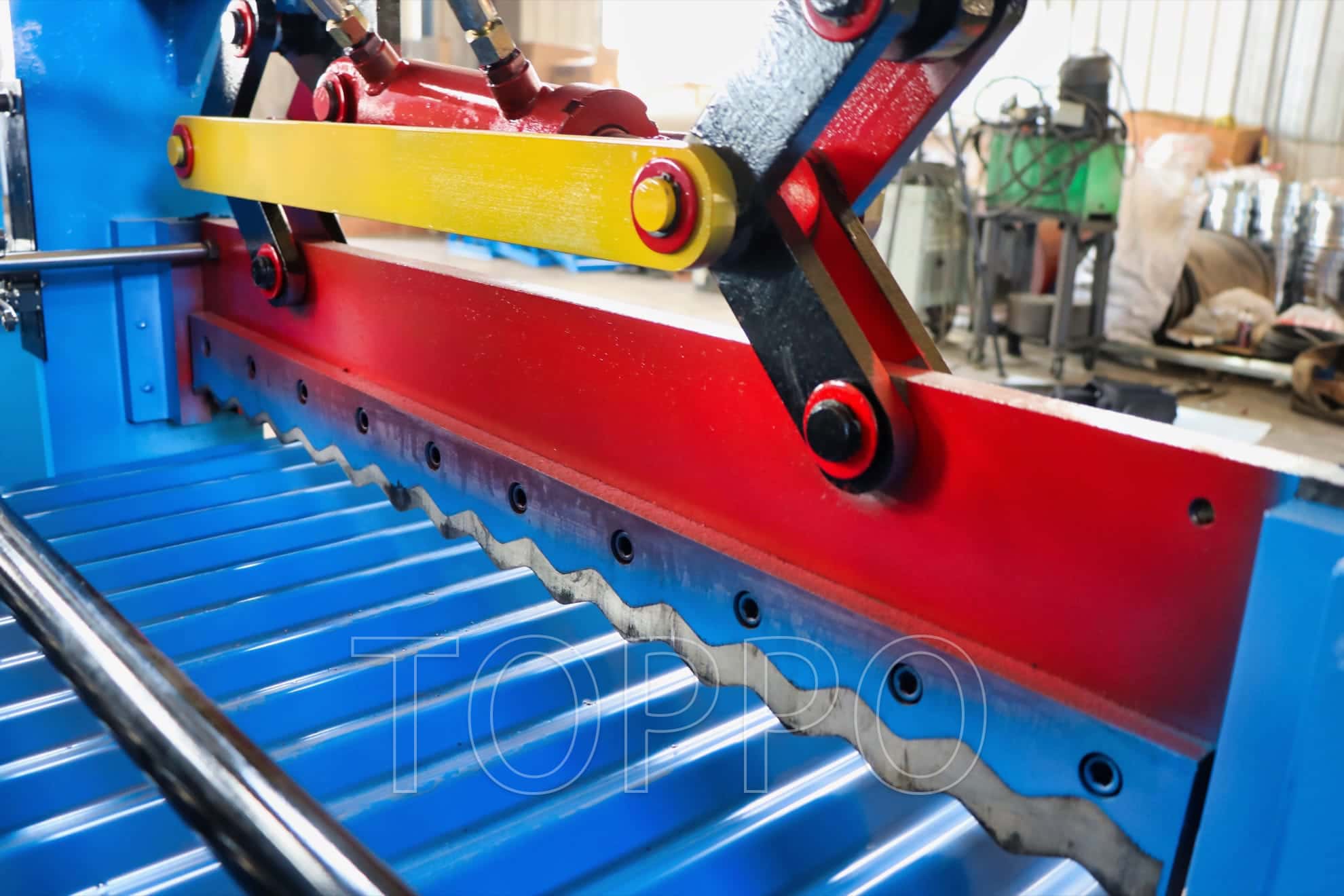

Cutting Method: Hydraulic Cutting System
Cutting Accuracy: ±1 mm
Main Motor Power: 7.5-15 kW
Hydraulic Power: 4-7.5 kW
Drive System: Chain Drive / Gearbox Optional
Roller Stations: 14-26 Stations
Roller Material: 45# Steel Chrome Plated
Shaft Material: High Strength Alloy Steel
Shaft Diameter: 70-100 mm
Frame Structure: Heavy Duty Welded Steel Frame
Voltage: 380V/50Hz/3Phase (Customizable)
Decoiler Type: Manual / Hydraulic / Automatic
Decoiler Capacity: 5-12 Tons
Machine Length: 8-20 Meters
Machine Weight: 6-15 Tons
Profile Type: Corrugated / Trapezoidal / Custom
Blade Material: Cr12Mov Heat Treated Steel
Lubrication System: Automatic Lubrication
Noise Level: Low Noise Operation
Automation Level: Fully Automatic
Cooling System: Air Cooling
Safety Features: Emergency Stop & Protective Guards
Production Capacity: Continuous High Output
Tolerance Control: High Precision Forming
Energy Consumption: Optimized Low Power Usage
Maintenance: Easy Maintenance
Installation: Quick Installation
Durability: Long Service Life
Flexibility: Custom Profile Design Supported
Compatibility: Multi-material Processing
Application: Roofing & Wall Panel Manufacturing
Industry Use: Construction, Industrial Buildings, Warehouses
Output Quality: Smooth Surface & Accurate Corrugation
This machine adopts a powerful hydraulic cutting system and reinforced forming structure, ensuring stable operation and precise sheet shaping even under continuous production conditions.
The intelligent PLC control system allows automatic length setting, counting, and cutting, significantly improving production efficiency and reducing labor costs.
It supports a wide range of roofing sheet profiles and can be customized according to specific customer requirements, making it highly flexible for different markets.
With its durable construction, high output capacity, and low maintenance requirements, this roofing panel making machine is an ideal investment for modern metal roofing manufacturers.
