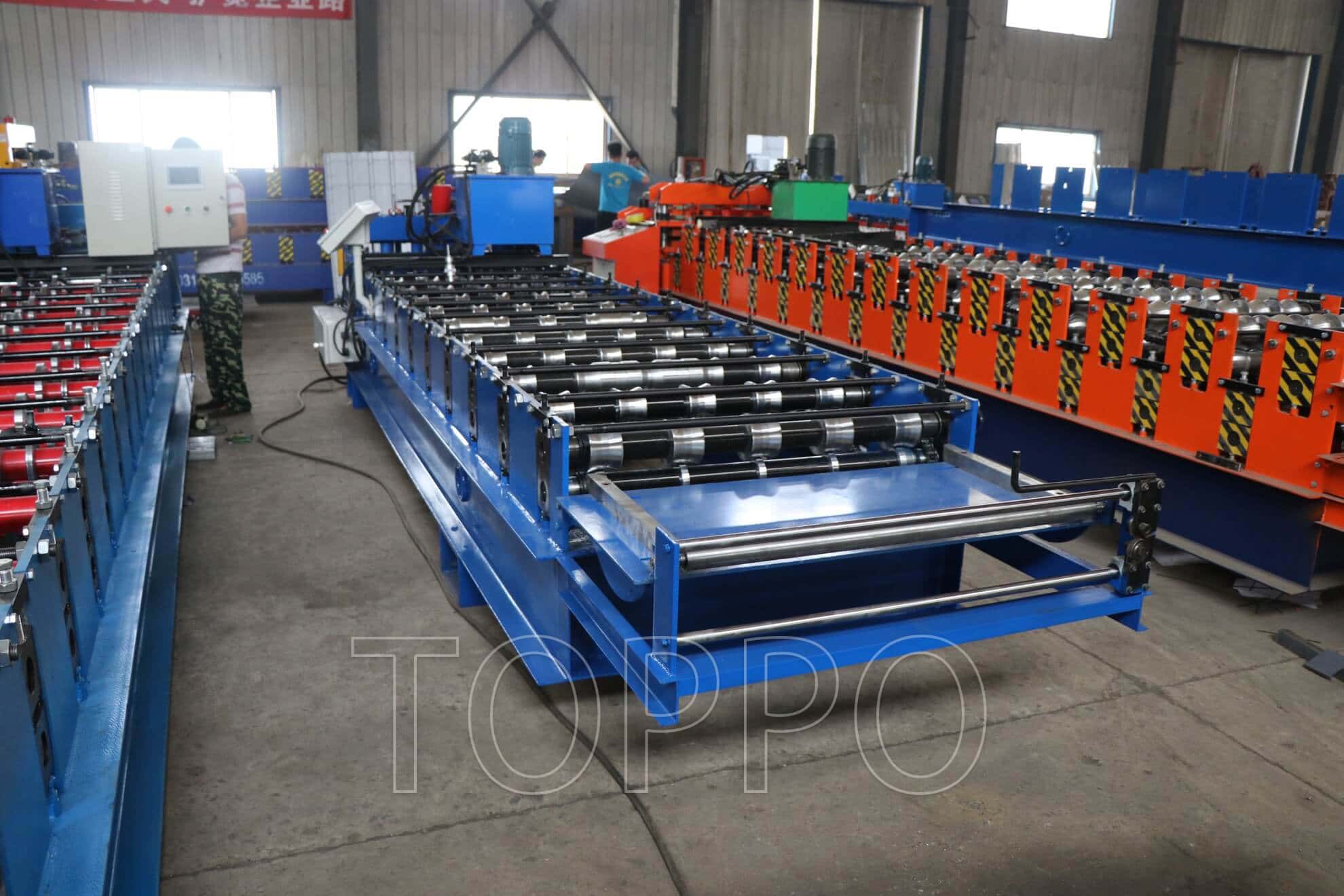

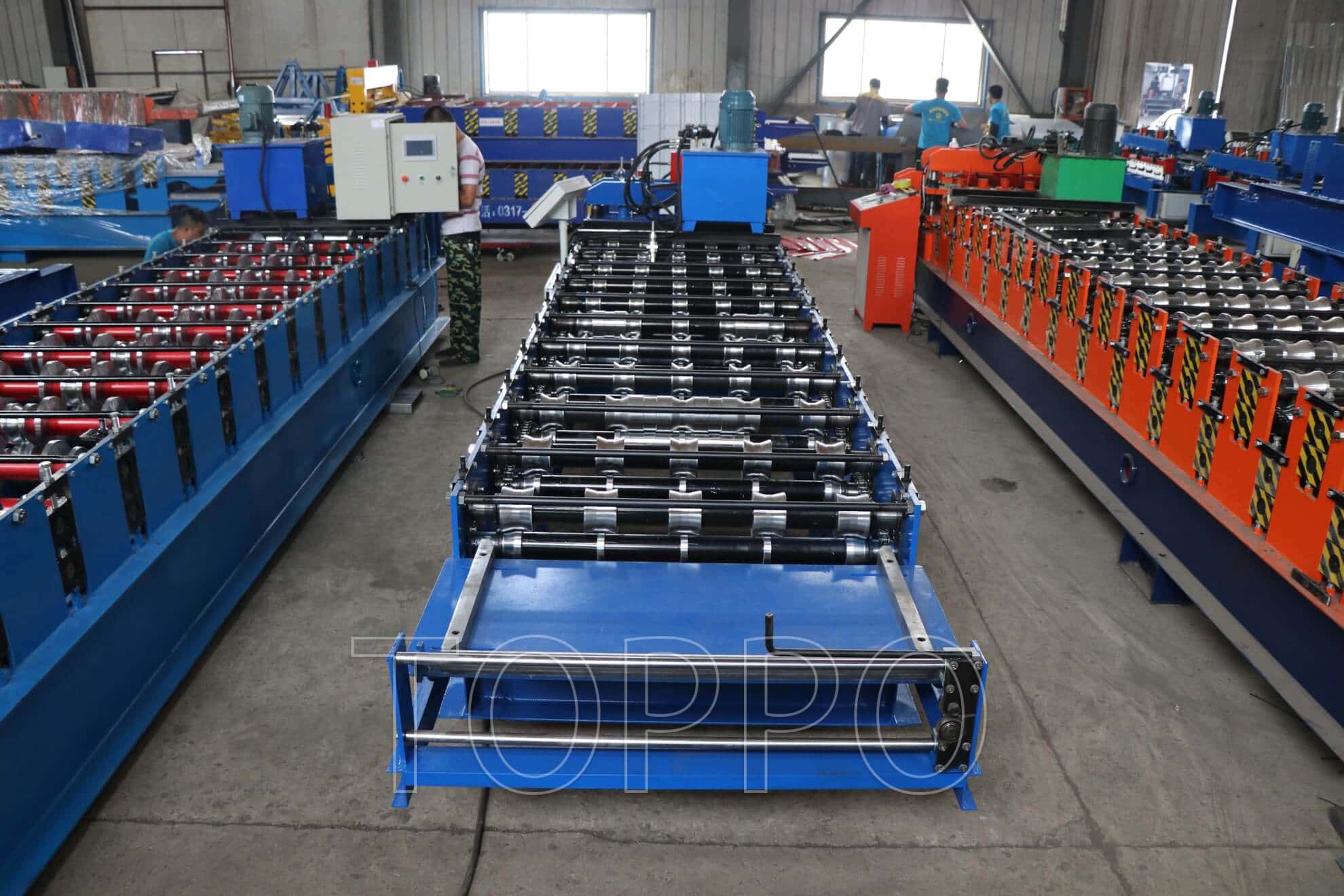

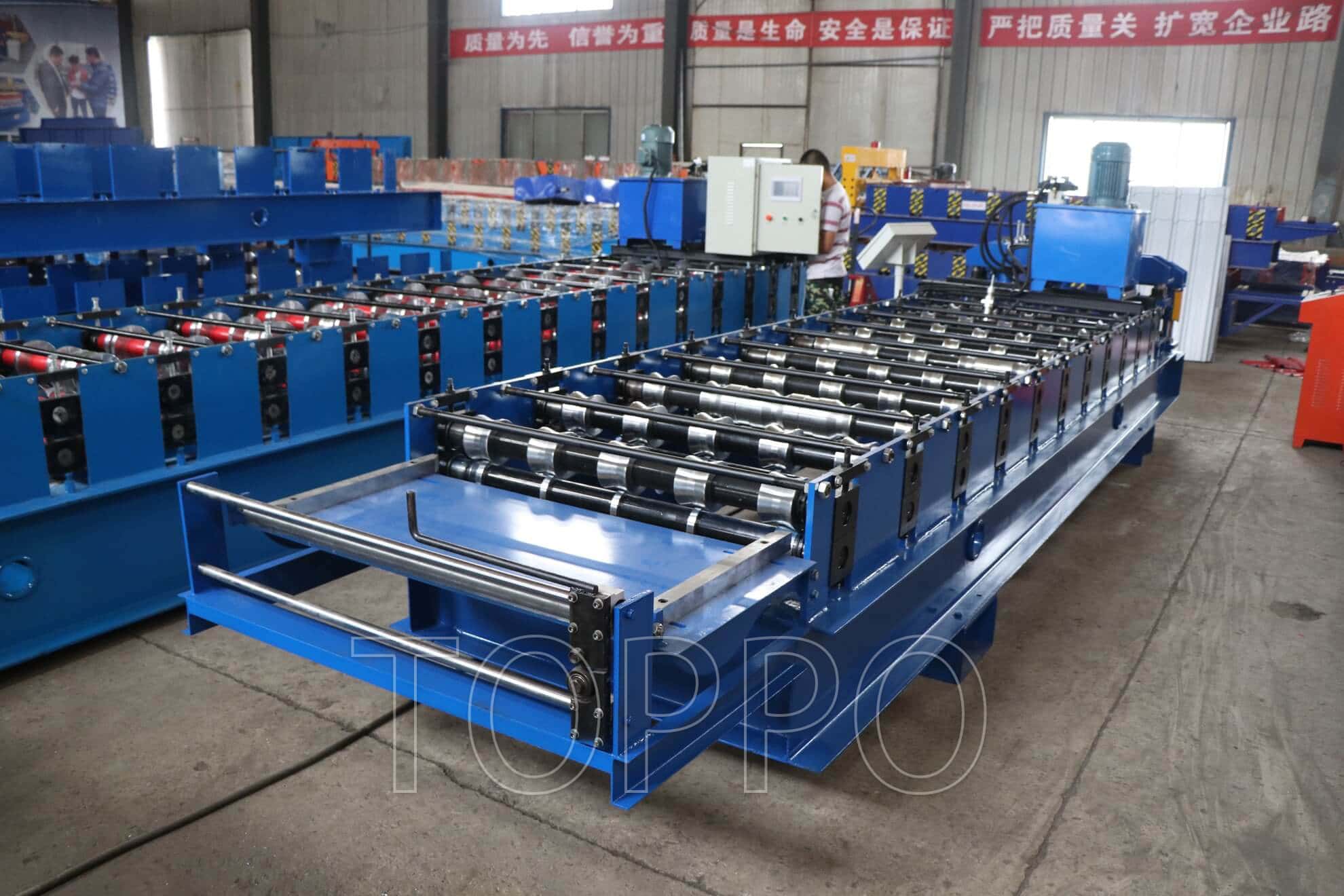

This roofing panel making machine is developed for producing high-quality glazed metal roofing sheets with attractive appearance and excellent structural performance. The machine integrates automatic feeding, roll forming, hydraulic pressing and cutting into one efficient production line, making it ideal for modern roofing sheet manufacturing factories.

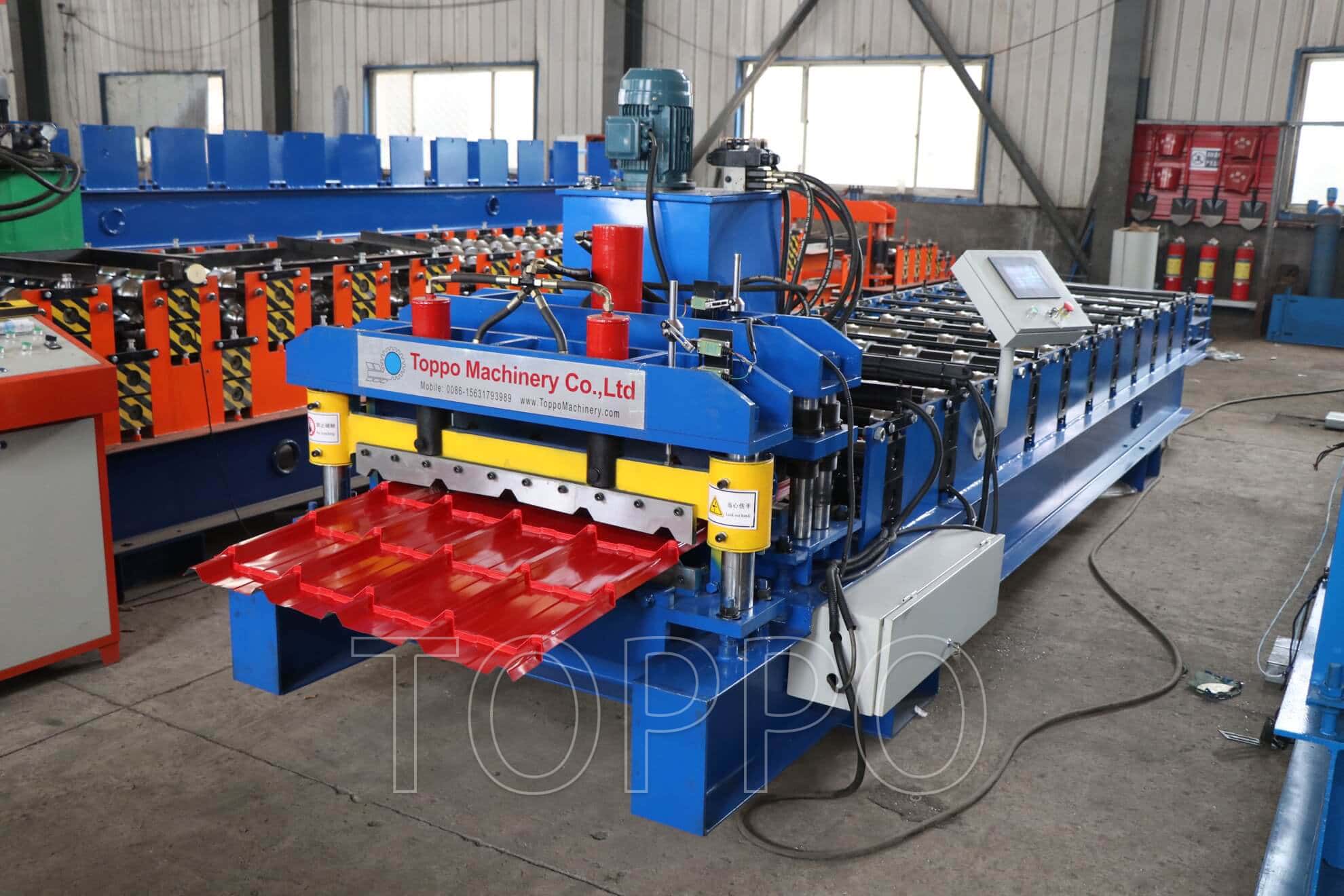

The machine adopts a durable blue steel frame, hydraulic pressing unit, precision forming rollers and PLC touch screen control system. It can continuously process color coated steel coils, galvanized steel coils and aluminum sheets into glazed roof tile panels with accurate dimensions and smooth surfaces.
Product Name: Roofing Panel Making Machine
Machine Type: Glazed Roof Tile Roll Forming Machine

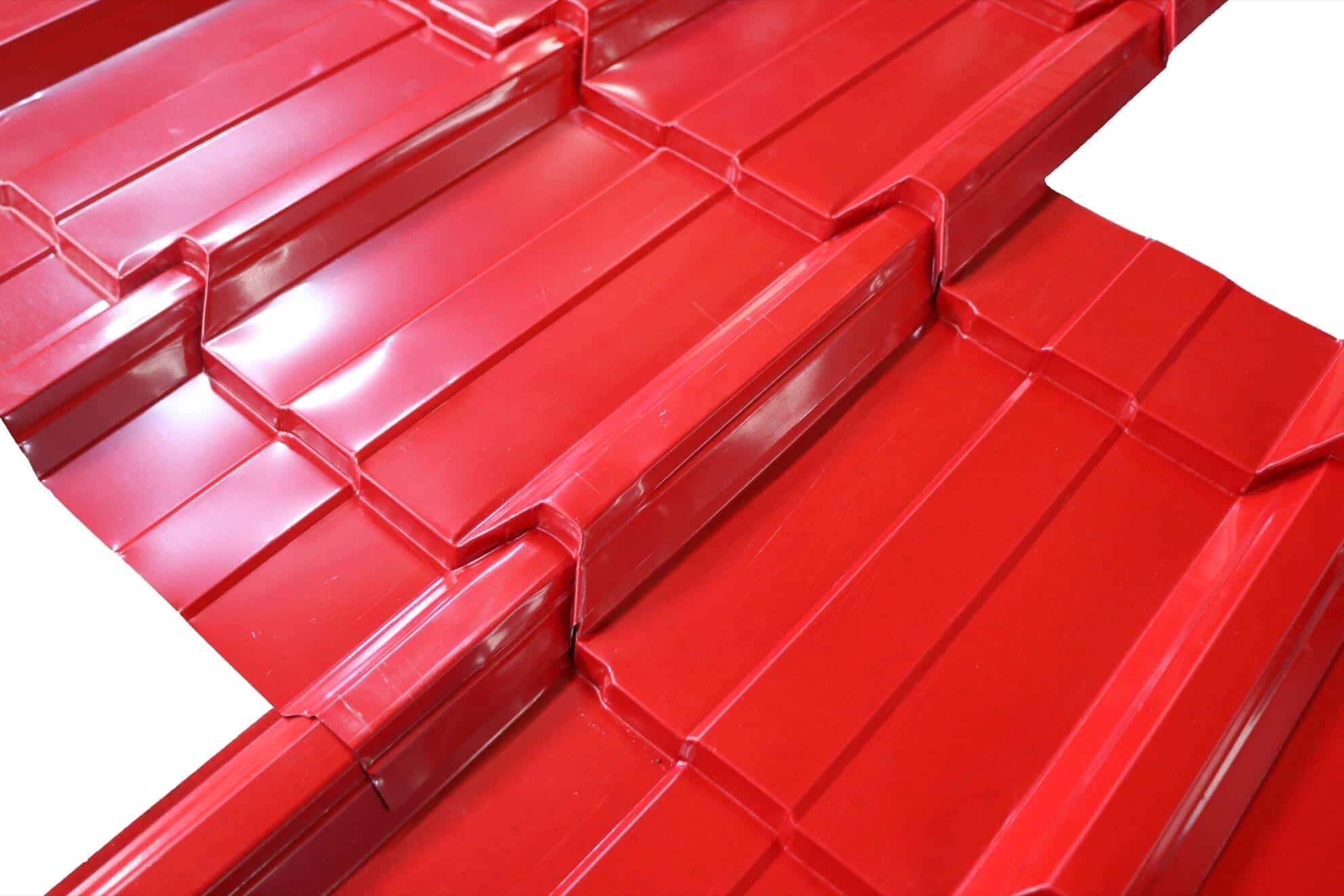

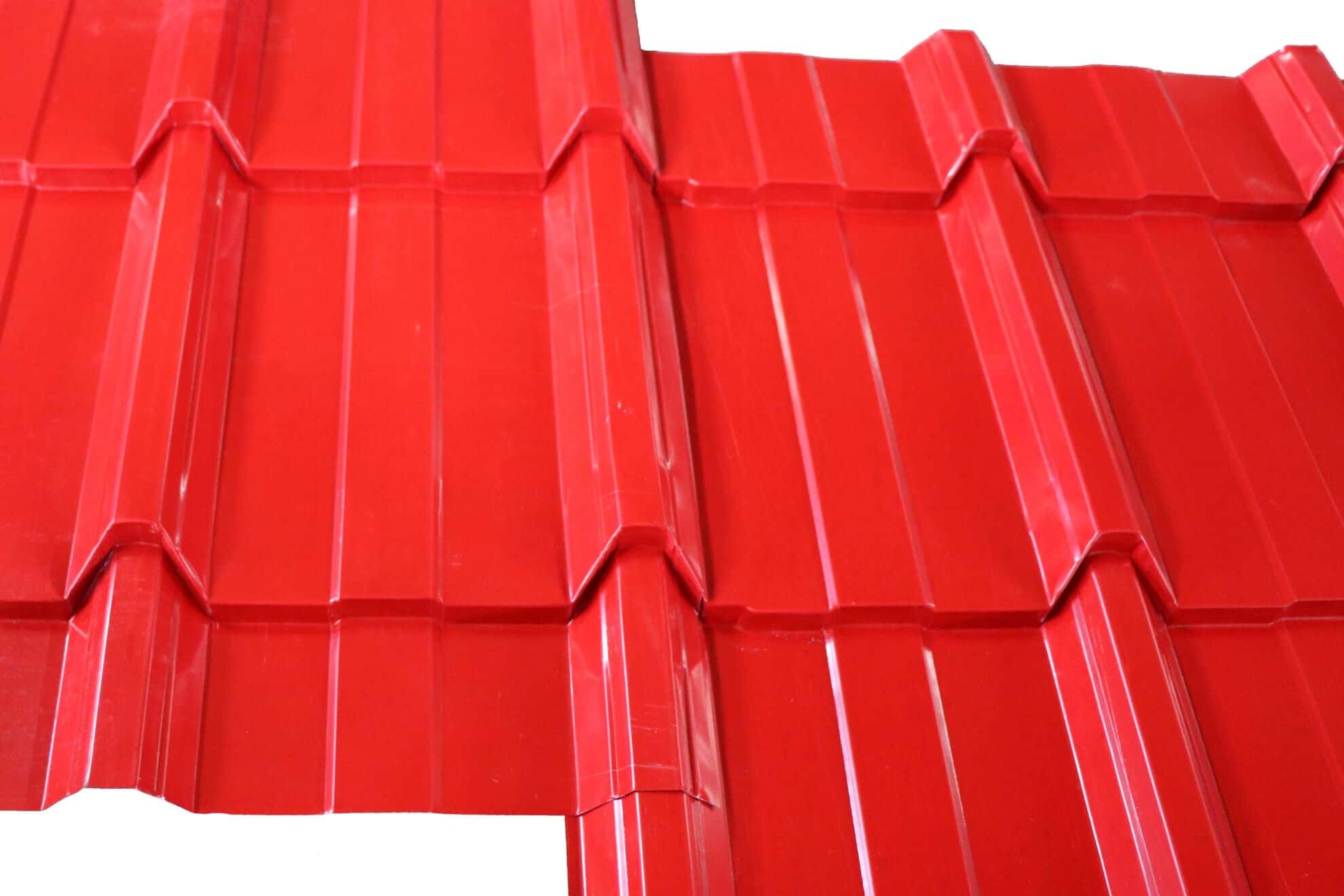

Finished Product: Metal Glazed Roofing Sheets
Production Technology: Cold Roll Forming
Application Industry: Roofing Material Manufacturing
Suitable Material: Galvanized Steel Coil
Suitable Material: PPGI Steel Coil
Suitable Material: Aluminum Coil
Suitable Material: Color Coated Steel Sheet
Sheet Thickness: 0.3-0.8mm
Coil Width: Customized According to Profile
Control System: PLC Automatic Control
Operation Interface: Touch Screen Display
Operation Mode: Fully Automatic
Hydraulic System: Included
Cutting System: Hydraulic Cutting
Pressing System: Hydraulic Tile Pressing
Length Measurement: Encoder Measuring System
Drive Type: Chain Transmission
Main Motor: Industrial Electric Motor
Roller Material: 45# Steel
Roller Surface Treatment: Chrome Plating
Forming Stations: Multiple Roll Forming Stations
Main Frame: Heavy-duty Steel Structure
Machine Base: Integrated Steel Base
Production Speed: High Efficiency Production
Production Capacity: Continuous Forming

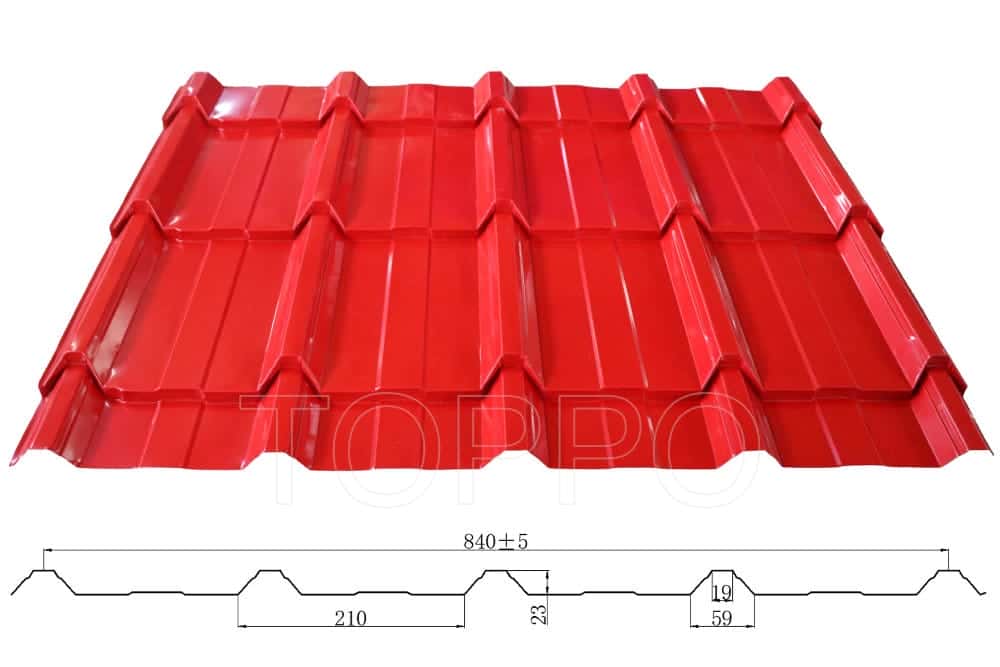

Roof Panel Shape: Glazed Tile Profile
Forming Precision: High Accuracy
Machine Color: Blue and Yellow Customizable
Voltage: Customized for Different Countries
Feeding Method: Automatic Coil Feeding
Sheet Guiding System Included
Lubrication System: Automatic Lubrication
Hydraulic Oil Cooling System
Noise Level: Low Noise Operation
Power Consumption: Energy Saving
Machine Stability: Excellent Stability
Finished Surface: Smooth and Uniform
Tile Appearance: Decorative and Durable
Machine Lifespan: Long Service Life
Safety Device: Emergency Stop Button
Operator Requirement: One or Two Operators
Installation Service: Technical Guidance Available
Training Support: Provided
Customization Service: Supported
Maintenance Requirement: Low Maintenance
Packaging Method: Standard Export Package
After-sales Service: Technical Support and Spare Parts
Warranty Period: 12 Months
Application Scene: Residential Roofing Panel Production
Application Scene: Industrial Building Roofing
Application Scene: Commercial Roof Sheet Manufacturing
Application Scene: Steel Structure Construction Projects
The glazed roofing panel machine is widely used in construction material factories, steel structure companies, roofing sheet manufacturers and building contractors. The finished glazed roof panels are suitable for villas, warehouses, residential buildings, workshops, industrial plants and commercial projects.
This machine combines advanced hydraulic pressing technology with precision roll forming capability, allowing manufacturers to produce roofing sheets with attractive appearance, accurate dimensions and excellent durability. The automatic PLC control system improves production efficiency and reduces manual operation costs.
The roofing panel making machine is designed for customers requiring reliable performance, stable production and customizable roof tile profiles. With durable machine construction and efficient forming technology, it provides an ideal solution for long-term industrial roofing sheet production.
