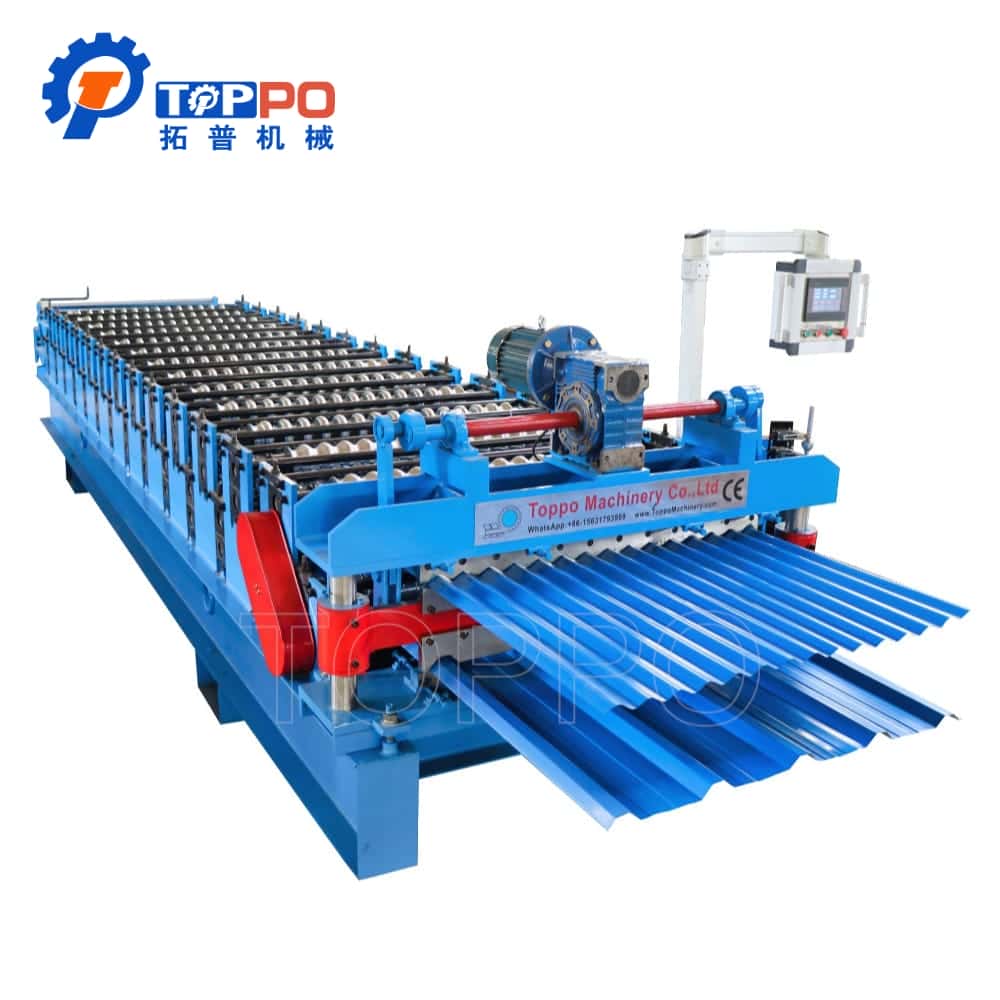

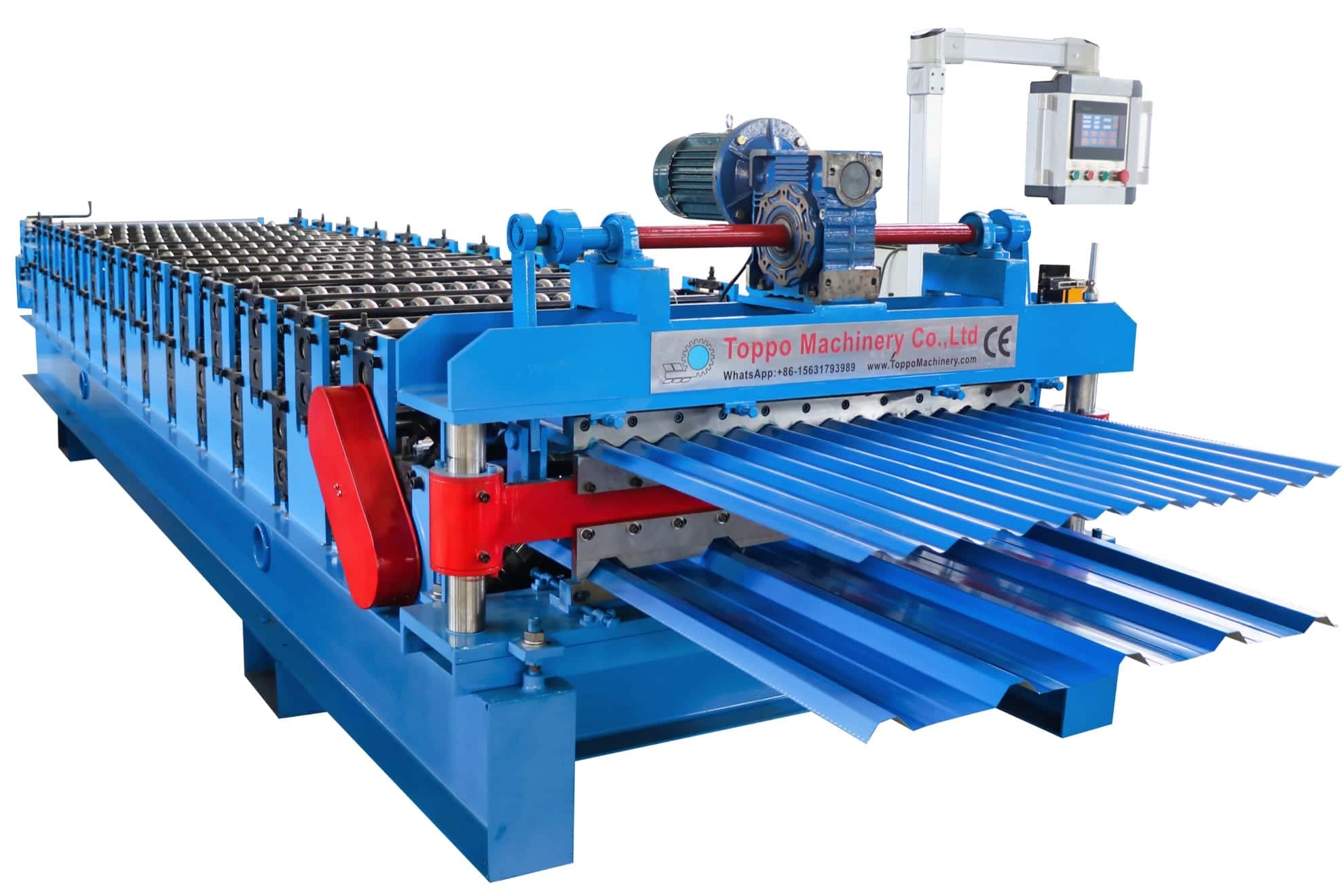

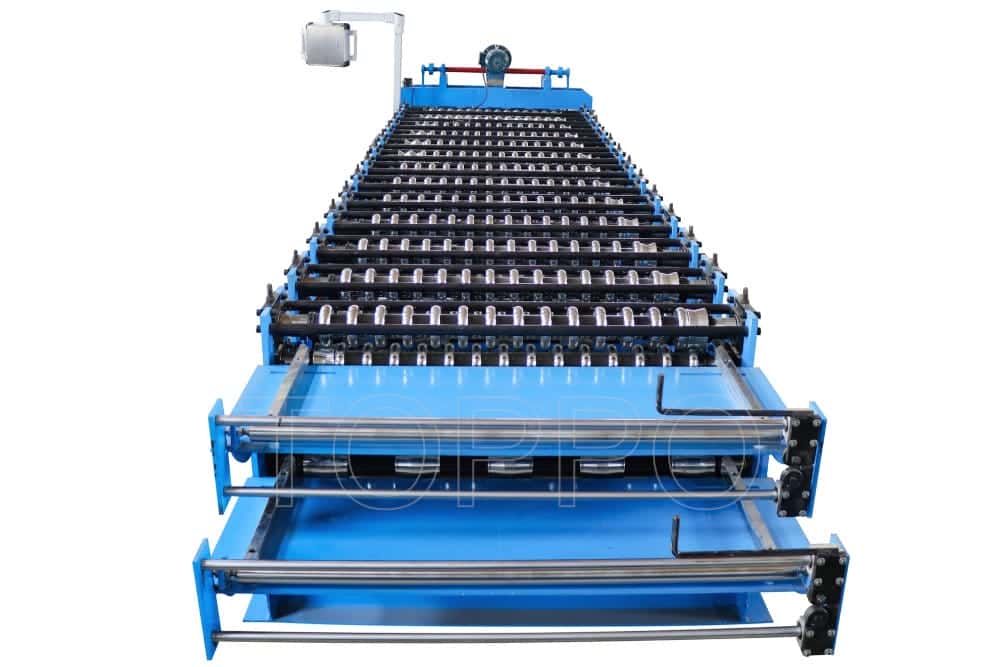

Automatic Aluminum Steel Trapezoidal Roofing Sheet Roll Forming Machine

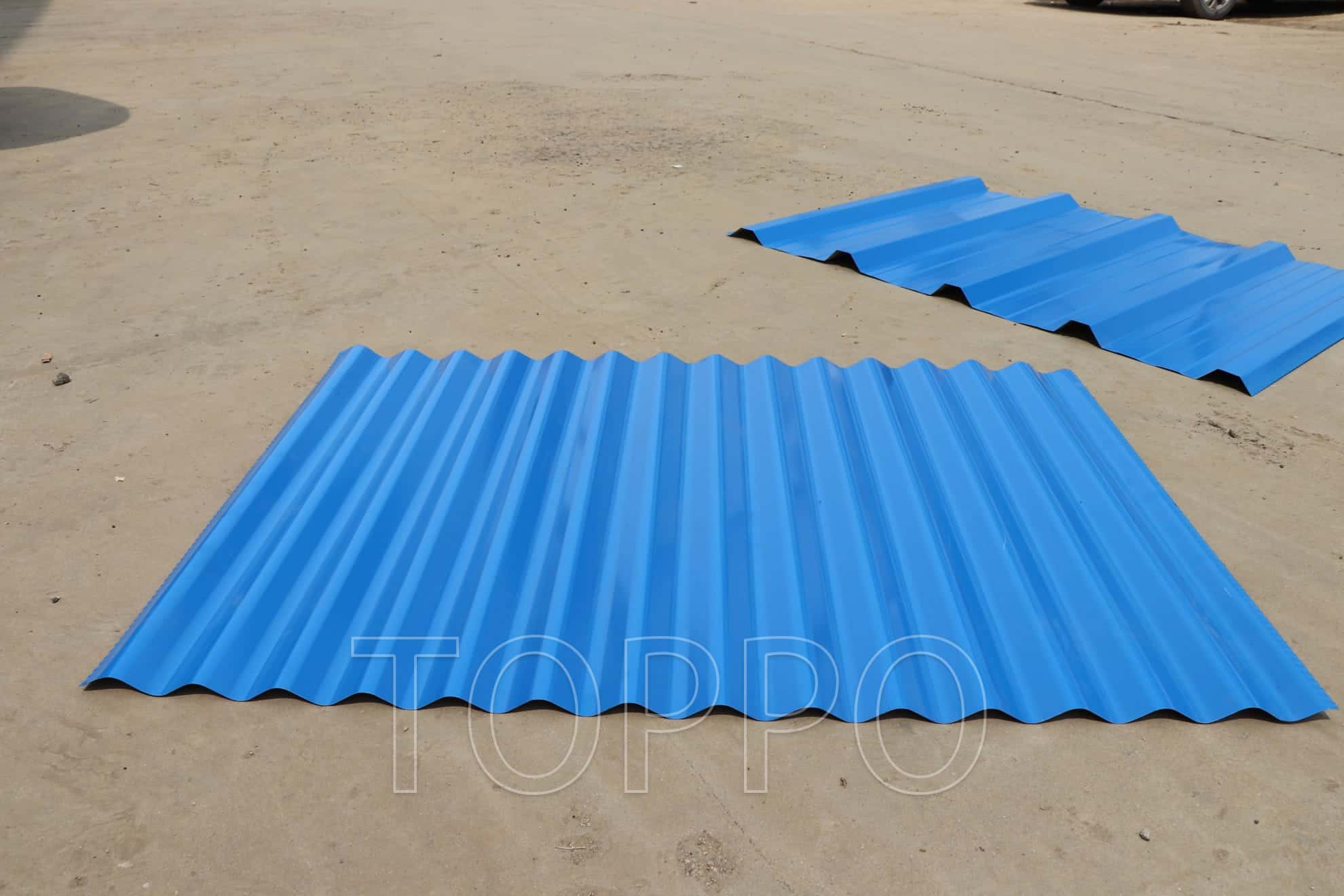

This advanced roofing sheet roll forming machine is specially designed for manufacturing trapezoidal and corrugated roofing panels from aluminum sheets, galvanized steel, and color-coated steel coils. The machine adopts precision cold roll forming technology combined with PLC automatic control to ensure stable operation, accurate forming, and efficient continuous production.

With a heavy-duty welded machine frame, high-strength forming rollers, hydraulic cutting system, and intelligent touch screen interface, the equipment provides reliable industrial performance and long service life. It is widely used in steel structure construction, warehouses, industrial workshops, agricultural roofing systems, factories, and commercial roofing projects.

Main Features

The machine supports automatic feeding, continuous roll forming, precise hydraulic cutting, and intelligent production control. It can produce customized roofing sheet profiles according to customer drawings and technical requirements.

The roofing panel forming machine offers excellent production efficiency, easy maintenance, low operating cost, and stable forming precision, making it an ideal solution for roofing sheet manufacturers and construction material suppliers.

Technical Features & Product Attributes

• Machine Type: Roofing Sheet Roll Forming Machine

• Suitable Materials: Aluminum Sheet, Galvanized Steel, PPGI Coil

• Material Thickness: 0.3mm - 0.8mm

• Control System: PLC Automatic Control

• Operation Interface: Touch Screen HMI

• Production Speed: 10-25m/min

• Forming Stations: 16-24 Stations

• Roller Material: High Strength 45# Steel

• Roller Surface Treatment: Hard Chrome Coating

• Shaft Material: Heat Treated 45# Steel

• Drive System: Chain Transmission

• Cutting Method: Hydraulic Cutting

• Cutting Blade Material: Cr12 Mold Steel

• Main Motor Type: Industrial Motor

• Hydraulic Station: High Pressure Hydraulic Unit

• Voltage Standard: 380V / 50Hz / 3Phase

• Machine Frame: Heavy Duty Welded Steel Structure

• Machine Color: Customizable

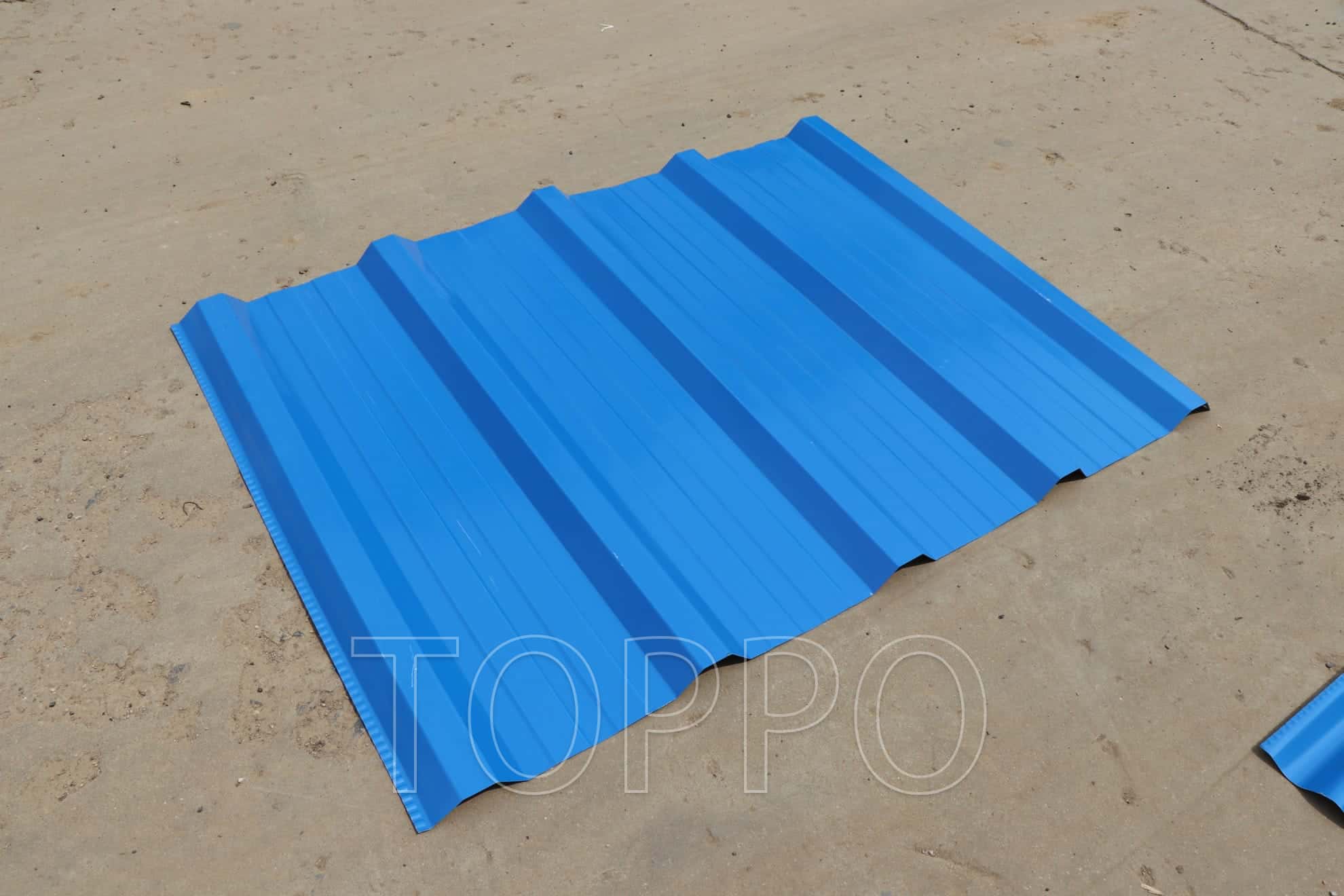

• Suitable Profile: Trapezoidal Roofing Panel

• Feeding Width: Customized Available

• Cutting Accuracy: ±1mm

• Length Measuring System: Encoder Measuring

• Automation Level: Fully Automatic

• Continuous Production: Supported

• Low Noise Operation: Yes

• Lubrication System: Optional

• Hydraulic Decoiler Compatible: Yes

• Manual Decoiler Compatible: Yes

• Stable Forming Performance: Yes

• High Precision Forming: Yes

• Strong Structural Rigidity: Yes

• Corrosion Resistant Rollers: Yes

• Energy Saving Technology: Yes

• Industrial Electrical Components: Yes

• Automatic Counting Function: Included

• Emergency Stop Function: Included

• Safety Protection Cover: Optional

• Easy Maintenance Structure: Yes

• Easy Operation Design: Yes

• Custom Profile Design: Supported

• Custom Voltage Configuration: Available

• Roofing Panel Manufacturing: Yes

• Steel Structure Industry Application: Yes

• Industrial Roofing Production: Yes

• Long Service Life: Yes

• High Efficiency Production: Yes

• Installation Support: Available

• Online Technical Support: Available

• Machine Warranty: 12 Months

• Export Standard Packaging: Included

• Container Shipment Service: Available

Applications

The trapezoidal roofing sheet roll forming machine is widely used for producing roofing panels for factories, warehouses, steel structure buildings, shopping malls, logistics centers, agricultural facilities, industrial construction projects, and residential roofing systems.

Why Choose Our Roofing Sheet Machine

Our roofing sheet roll forming machine combines advanced engineering technology, strong machine construction, intelligent automation, and precision forming capability. The equipment is manufactured with premium industrial components to provide stable operation, high productivity, low maintenance cost, and reliable long-term performance for global customers.
