Automatic Aluminum Steel Corrugated Roofing Panel Roll Forming Machine

This advanced corrugated roofing panel roll forming machine is specially designed for manufacturing high-quality aluminum and steel roofing sheets with stable forming precision and efficient continuous production performance. The equipment integrates advanced cold roll forming technology, PLC automatic control systems, hydraulic cutting units, and durable industrial-grade components.

The machine is suitable for producing corrugated roofing sheets widely used in industrial workshops, steel structure buildings, warehouses, agricultural facilities, logistics centers, factories, shopping malls, and residential construction projects. It supports customized roofing profiles according to customer technical requirements.

Main Advantages

The roofing sheet roll forming machine adopts intelligent touch screen operation, automatic feeding systems, precision hydraulic cutting technology, and high-strength forming rollers to ensure reliable and stable production performance.

The machine offers high automation level, low maintenance cost, excellent forming accuracy, and long service life. It helps roofing sheet manufacturers improve production efficiency while reducing labor requirements and material waste.

Technical Features & Product Attributes

• Machine Type: Corrugated Roofing Panel Roll Forming Machine

• Suitable Material: Aluminum Sheet, Galvanized Steel, PPGI Coil

• Material Thickness Range: 0.3mm - 0.8mm

• Control System: PLC Fully Automatic Control

• Operation Interface: Touch Screen HMI

• Production Speed: 10-25m/min

• Forming Stations: 16-24 Stations

• Roller Material: High Strength 45# Steel

• Roller Surface Treatment: Hard Chrome Coating

• Shaft Material: Heat Treated Steel

• Transmission System: Chain Drive

• Cutting Method: Hydraulic Cutting

• Cutting Blade Material: Cr12 Mold Steel

• Main Motor Type: Industrial Grade Motor

• Hydraulic Station: High Pressure Hydraulic Unit

• Voltage Standard: 380V / 50Hz / 3Phase

• Machine Structure: Heavy Duty Welded Steel Frame

• Machine Color: Customized Available

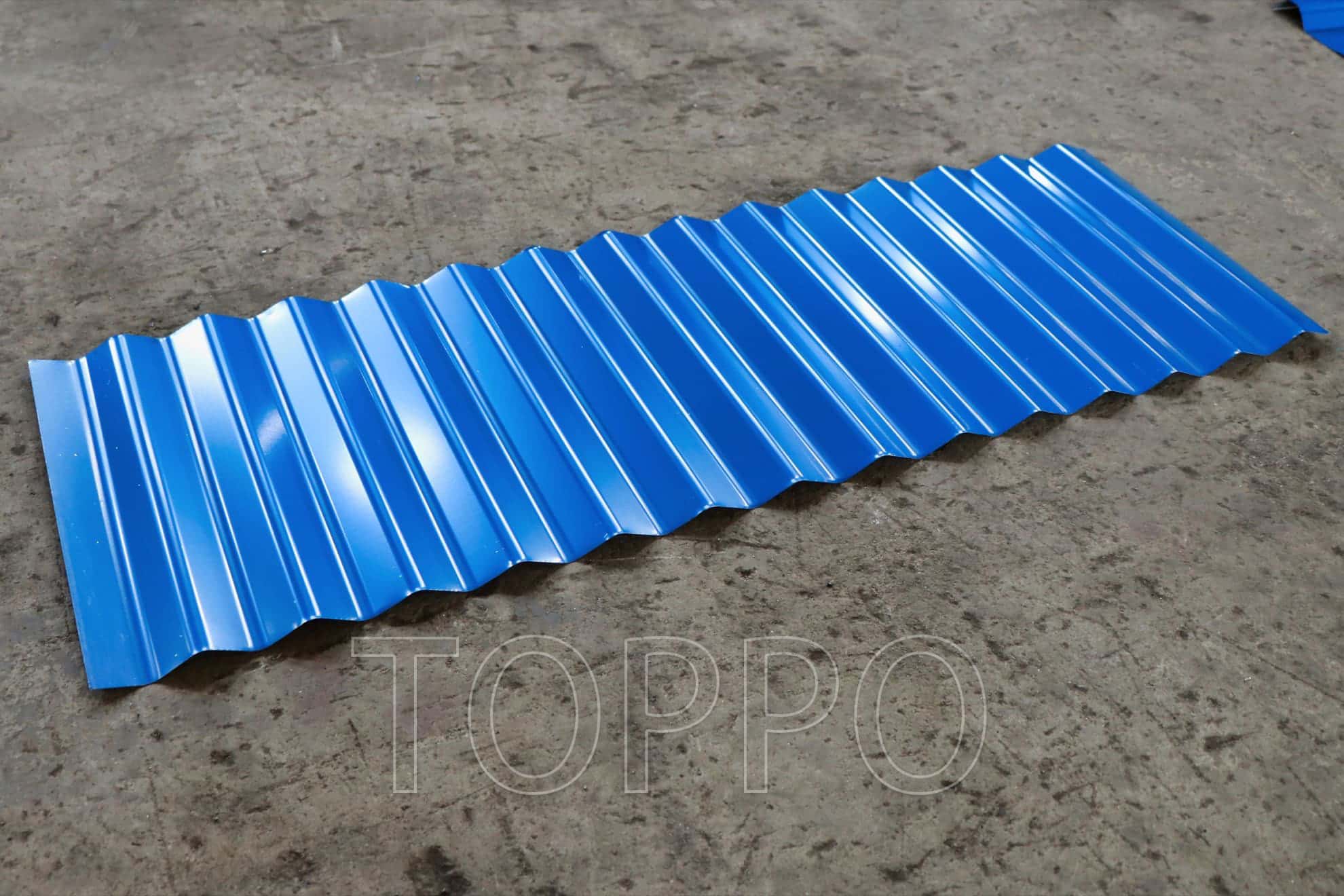

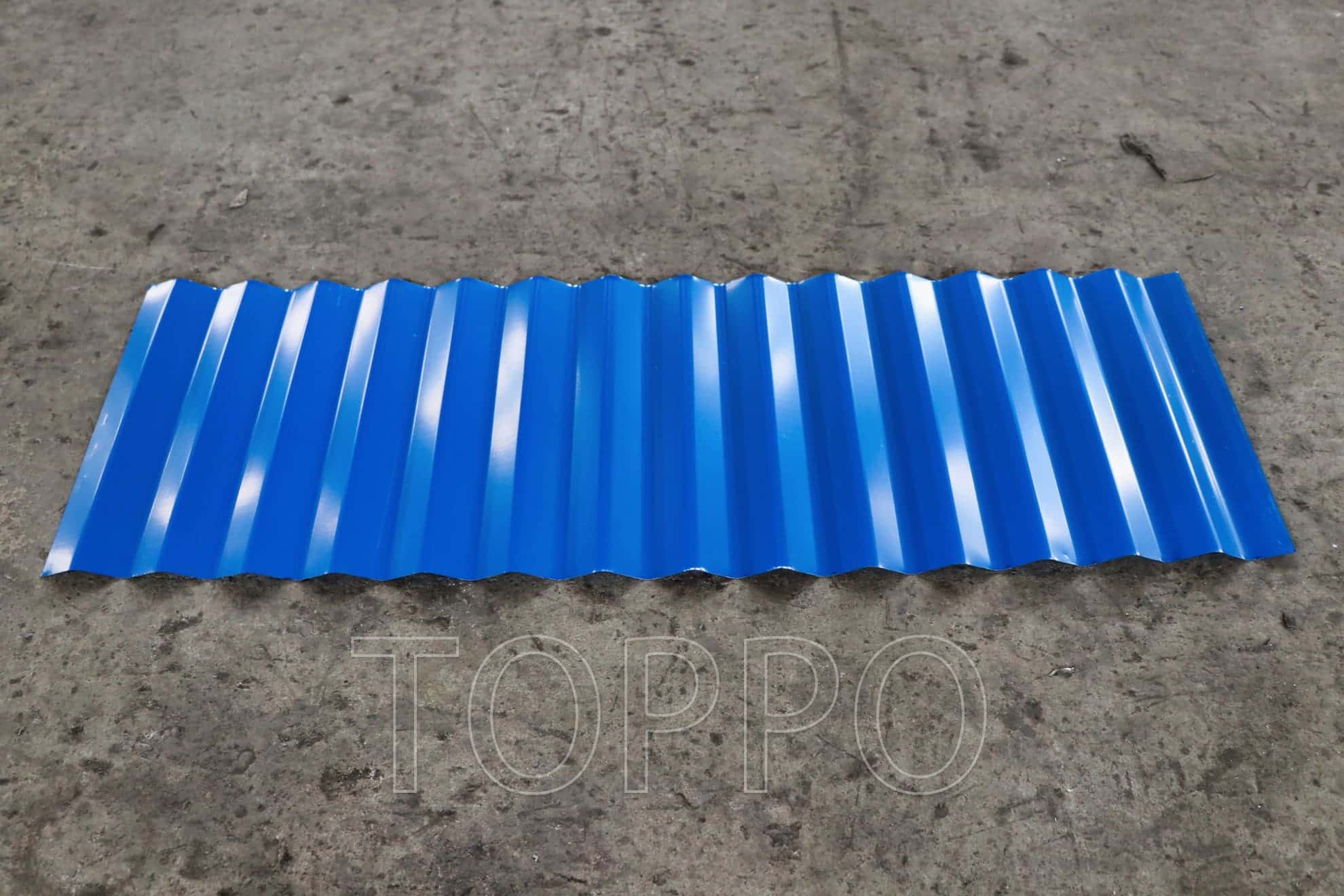

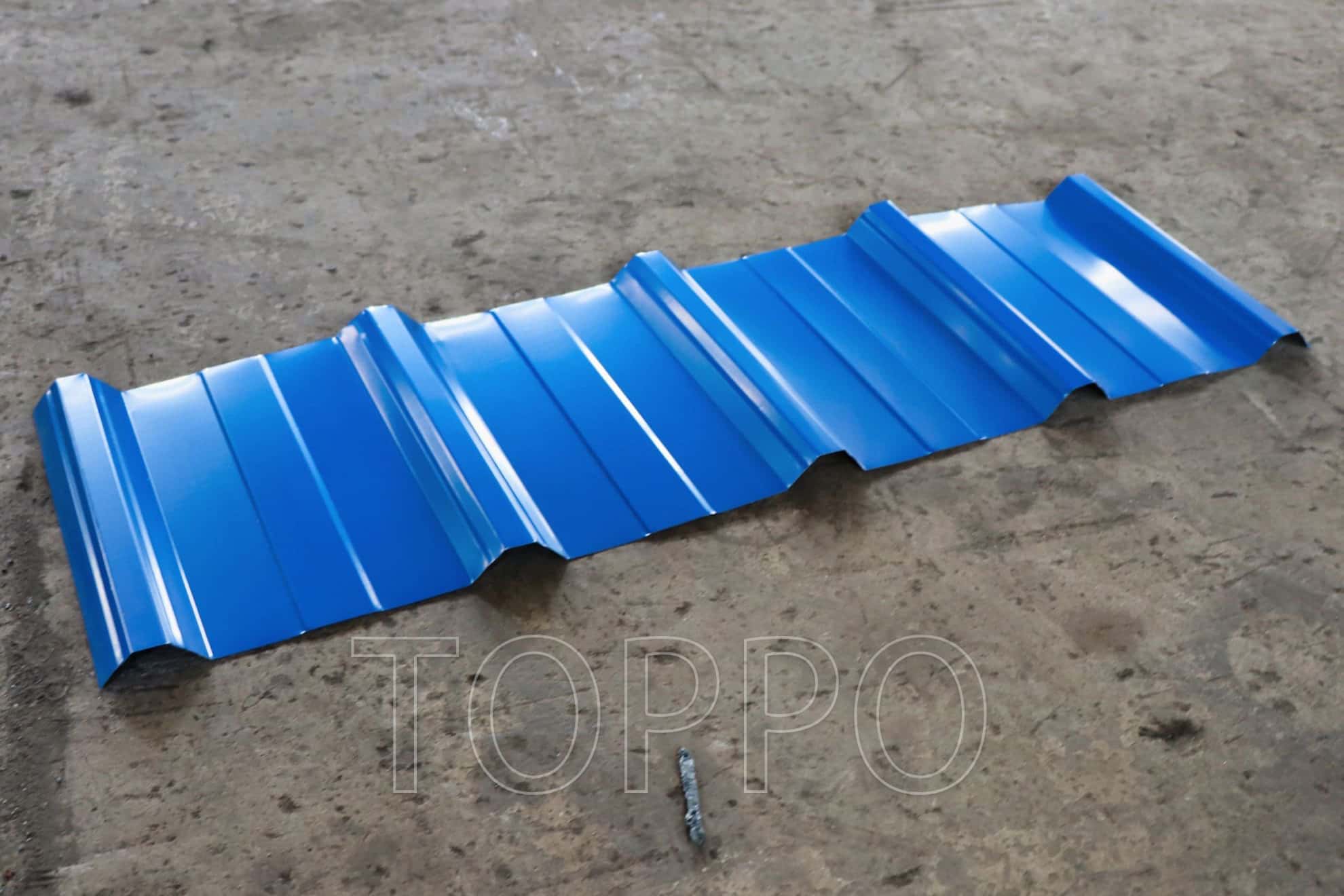

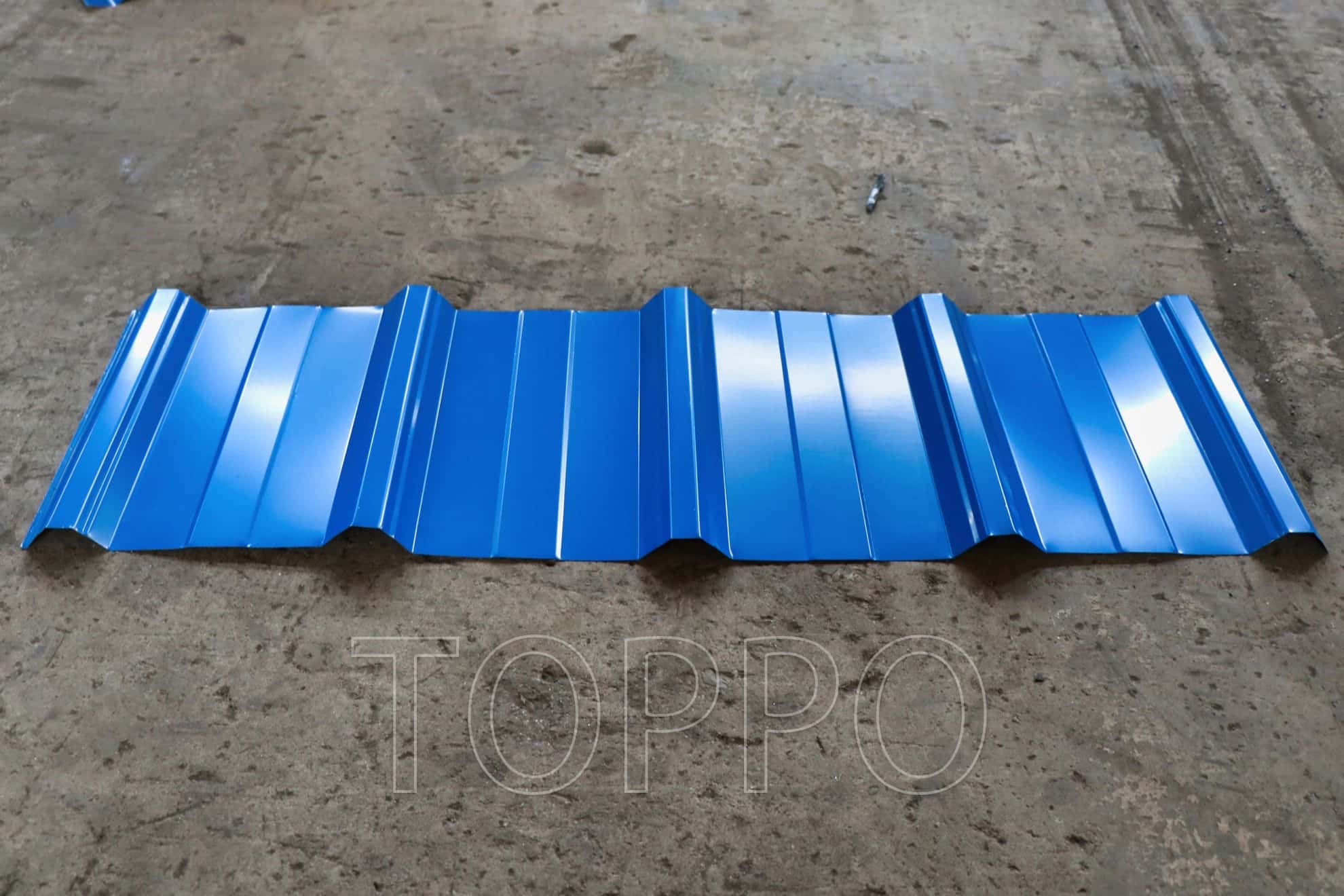

• Suitable Roofing Profiles: Corrugated Roofing Sheets

• Feeding Width: Customized

• Length Measuring System: Encoder Measuring

• Cutting Accuracy: ±1mm

• Automation Level: Fully Automatic

• Continuous Production Capability: Yes

• Low Noise Operation: Yes

• Automatic Lubrication System: Optional

• Hydraulic Decoiler Compatible: Yes

• Manual Decoiler Compatible: Yes

• Stable Forming Performance: Yes

• High Precision Forming: Yes

• Strong Structural Rigidity: Yes

• Corrosion Resistant Rollers: Yes

• Energy Saving Technology: Yes

• Industrial Electrical Components: Yes

• Automatic Counting Function: Included

• Emergency Stop System: Included

• Safety Protection Cover: Optional

• Easy Maintenance Structure: Yes

• Easy Operation Interface: Yes

• Custom Profile Design: Supported

• Custom Voltage Configuration: Available

• Roofing Sheet Manufacturing: Yes

• Steel Structure Industry Application: Yes

• Industrial Roofing Production: Yes

• Long Service Life: Yes

• High Efficiency Production: Yes

• Installation Support: Available

• Online Technical Support: Available

• Machine Warranty: 12 Months

• Export Standard Packaging: Included

• Container Shipment Service: Available

Applications

The corrugated roofing sheet roll forming machine is widely used in the production of roofing panels for factories, warehouses, steel structure workshops, shopping malls, agricultural facilities, logistics buildings, industrial construction projects, and residential roofing systems.

Why Choose Our Roofing Sheet Machine

Our roofing panel roll forming machine combines advanced engineering technology, intelligent PLC automation, durable machine structure, and precision forming capability. Manufactured using high-quality industrial components, the equipment ensures stable operation, high productivity, low maintenance cost, and reliable long-term production performance for customers worldwide.
