Aluminum Steel Roofing Sheet Roll Forming Machine Production Line
This aluminum steel roofing sheet machine is an automatic roll forming production line designed for producing corrugated roofing sheets, metal roof panels and wall cladding sheets from aluminum coil, galvanized steel coil, PPGI, PPGL and color coated steel. The machine in the image adopts a long forming base, precision roller stations, hydraulic cutting system, hydraulic power unit, suspended touch-screen control cabinet and robust welded steel structure. It is suitable for factories producing roofing materials for industrial, commercial, agricultural and residential buildings.
The full line supports continuous production from coil feeding to finished sheet cutting. With PLC control, operators can set panel length, production quantity and working parameters on the touch screen, helping improve production efficiency and reduce manual operation. The corrugated cutting die matches the roof panel profile to provide clean cut ends and stable panel quality.
Key Product Attributes
| 1. Product Name | Aluminum Steel Roofing Sheet Roll Forming Machine |
| 2. Product Type | Automatic roof sheet roll forming production line |
| 3. Main Application | Producing metal roofing sheets and wall cladding panels |
| 4. Suitable Material | Aluminum coil, galvanized steel coil, PPGI, PPGL, color steel coil |

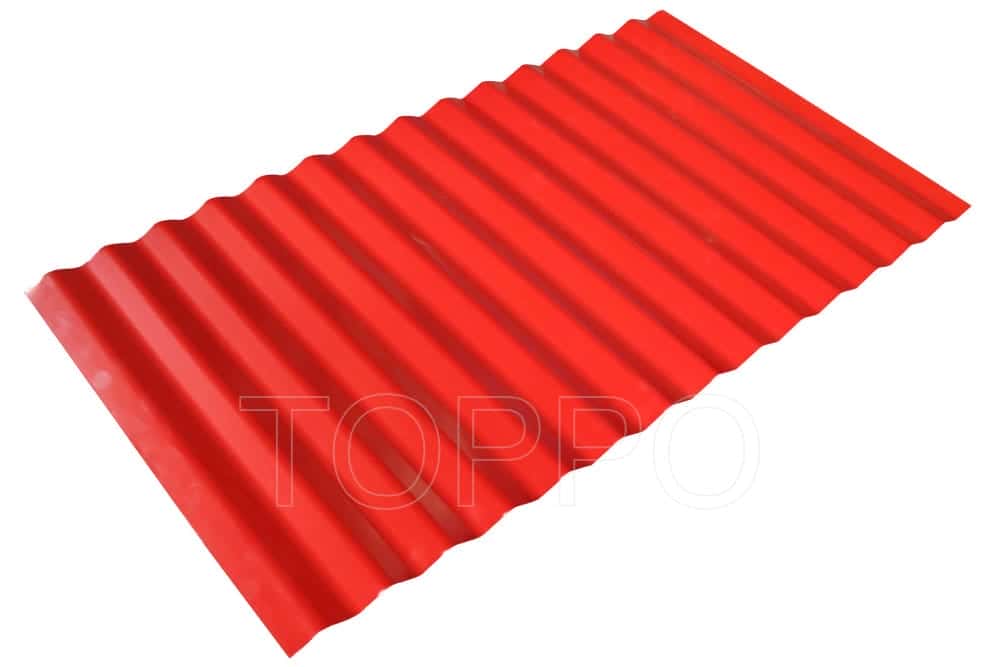

| 5. Finished Product | Corrugated roof sheet, trapezoidal roof panel, metal wall sheet |
| 6. Forming Process | Cold roll forming process |
| 7. Production Flow | Decoiling, feeding, guiding, roll forming, hydraulic cutting, output |
| 8. Machine Structure | Heavy-duty welded steel frame with long forming bed |
| 9. Frame Color | Blue machine base with orange cutting station, customizable color |
| 10. Control System | PLC automatic control system |
| 11. Operation Interface | Suspended touch-screen HMI control panel |
| 12. Cutting Method | Hydraulic profile cutting after roll forming |
| 13. Cutting Blade | Profile matched cutter for corrugated roofing sheet |
| 14. Hydraulic Station | Independent hydraulic power unit for cutting action |
| 15. Main Motor | Industrial electric motor for driving the forming system |
| 16. Forming Roller Stations | Multiple stations for gradual and accurate profile forming |
| 17. Roller Material | Hardened steel rollers for durable use and smooth forming |
| 18. Shaft Material | Solid steel shafts for stable transmission |
| 19. Transmission System | Chain or gear transmission according to configuration |
| 20. Working Mode | Continuous automatic production |
| 21. Length Control | Automatic fixed-length cutting through PLC setting |
| 22. Quantity Control | Batch quantity can be set and counted automatically |
| 23. Profile Design | Corrugated, trapezoidal or custom roof panel profile |
| 24. Effective Width | Customized according to roof sheet drawing |
| 25. Coil Width | Designed according to required panel profile and customer coil |
| 26. Material Thickness | Customizable for common aluminum and steel roofing sheet gauges |
| 27. Forming Speed | Standard and high-speed versions available |
| 28. Voltage | Customized according to local industrial power supply |
| 29. Control Language | English and other interface languages available |
| 30. Feeding Guide | Adjustable guiding system for stable coil entry |
| 31. Forming Accuracy | Designed for consistent wave pitch and panel dimensions |
| 32. Cutting Accuracy | Accurate length cutting for easy installation and packing |
| 33. Surface Protection | Roller design helps reduce scratches on coated metal sheets |
| 34. Safety Design | Emergency stop button and controlled operation system |
| 35. Installation Type | Floor-mounted industrial roofing sheet equipment |
| 36. Optional Decoiler | Manual decoiler or hydraulic decoiler can be supplied |
| 37. Optional Output Table | Run-out table or automatic stacker available |
| 38. Optional Devices | Protective film device, punching unit and encoder measuring system |
| 39. Suitable Factory | Roofing material plant, metal sheet workshop, steel structure supplier |
| 40. Application Buildings | Warehouses, factories, sheds, garages, villas, farm buildings and prefabricated houses |
| 41. Finished Sheet Features | Lightweight, strong, weather-resistant and easy to install |
| 42. Production Advantage | High efficiency, stable output and reduced labor cost |
| 43. Machine Advantage | Rigid structure, smooth running and convenient operation |
| 44. Maintenance Design | Accessible forming stations, transmission parts and hydraulic components |
| 45. Customization Scope | Profile drawing, machine color, layout, voltage, speed and component brand |
| 46. Brand Marking | TOPPO Machinery branded machine body with CE and ISO marks |
| 47. Export Use | Suitable for international roofing sheet production projects |
| 48. Complete Line Option | Can be integrated with decoiler, feeding table, forming machine, cutting system and stacker |
Product Details
The aluminum steel roofing sheet machine forms flat metal coil into roofing panels by passing the material through a series of precision roller stations. Each station gradually changes the sheet shape until the required corrugated or trapezoidal profile is achieved. This step-by-step cold forming process keeps the sheet surface smooth and helps maintain stable panel dimensions during long production runs.
The hydraulic cutting system is positioned after the forming section, allowing the finished sheet to be cut according to the programmed length without interrupting the forming process. The PLC touch-screen control cabinet improves operation convenience, making it simple to set product length, quantity and automatic cutting parameters. The heavy-duty base and long roller table provide strong support for continuous production.
This machine is widely used by roofing sheet manufacturers, steel building suppliers, metal cladding factories and construction material producers. The finished sheets can be used for roof covering, wall cladding, exterior decoration, industrial shed roofing, warehouse roofing, agricultural buildings and prefabricated building projects.
Main Benefits
Automatic production of aluminum and steel roofing sheets.
Suitable for corrugated, trapezoidal and customized metal roof profiles.
PLC touch-screen control for convenient operation and batch production.
Hydraulic profile cutting provides clean and accurate sheet ends.
Heavy-duty welded frame ensures stable forming performance.
Custom design available according to customer profile drawings and local power requirements.
Recommended Configuration
A complete production line can include manual or hydraulic decoiler, feeding guide, main roll forming machine, hydraulic cutting station, PLC control cabinet, run-out table and automatic stacker. According to production needs, additional options such as protective film laminating, hydraulic punching, servo feeding and high-speed cutting can also be supplied.
Typical Applications
The finished aluminum and steel roofing sheets are suitable for industrial plants, warehouses, logistics centers, farm buildings, workshops, garages, commercial buildings and residential roofing projects. The panels offer reliable covering performance, attractive appearance and convenient installation for many construction environments.
