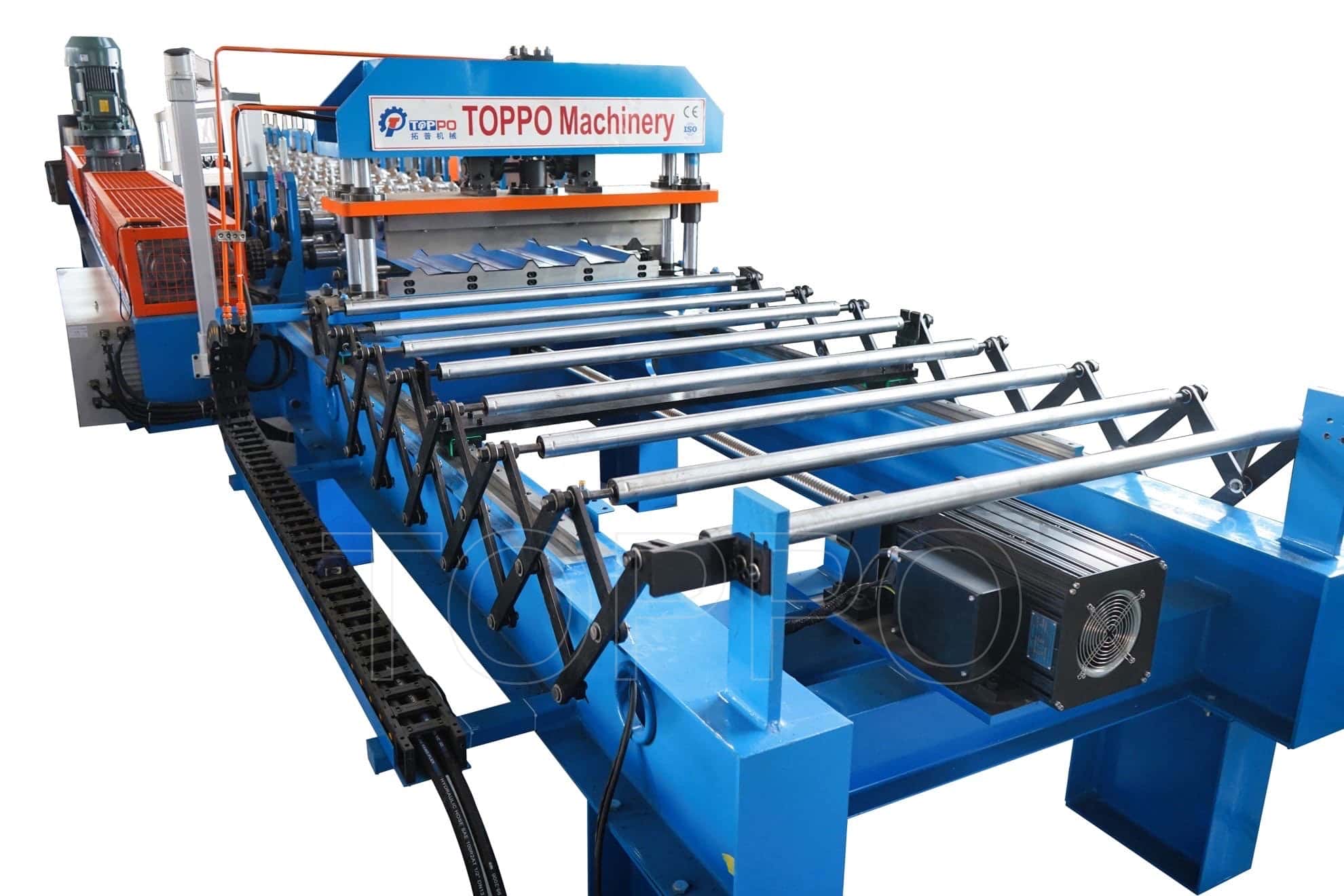

High Speed Roofing Panel Making Machine

This high-performance roofing panel making machine is engineered for producing durable metal roofing sheets, trapezoidal panels, and corrugated roof profiles with high precision and stable operation. The machine adopts advanced cold roll forming technology and automatic PLC control system, making it ideal for industrial roofing sheet production lines.

The equipment is manufactured with a heavy-duty steel structure, precision forming rollers, and hydraulic cutting system to ensure smooth operation and accurate finished products. It supports continuous production and provides excellent efficiency for roofing manufacturers, steel structure companies, and construction material factories.

TOPPO Machinery provides customized roll forming solutions according to customer drawings, profile requirements, and production capacity needs. The machine can process galvanized steel, color coated steel, aluminum coil, and PPGI materials.

Advantages of the Machine

• Automatic continuous production system

• PLC intelligent control operation

• High forming precision and stable quality

• Hydraulic cutting with accurate length control

• Strong and durable machine structure

• Easy installation and maintenance

• Energy-saving and efficient production

• Suitable for large-scale roofing production

• Long service life and low maintenance cost

• Custom profile design support

Technical Specifications & Attributes

• Product Name: Roofing Panel Making Machine

• Machine Function: Roof Sheet Roll Forming

• Application Industry: Construction & Building Materials

• Forming Technology: Cold Roll Forming

• Suitable Material: GI/PPGI/Aluminum Steel Coil

• Material Thickness Range: 0.3mm-0.8mm

• Coil Width: Customized

• Production Speed: 8-20m/min

• Control System: PLC Automatic Control

• Touch Screen: Included

• Encoder Measuring System: Included

• Roller Material: 45# High Grade Steel

• Roller Treatment: Hard Chrome Coating

• Shaft Material: High Strength Steel

• Shaft Diameter: 70mm

• Forming Stations: 13-18 Stations

• Main Motor Power: 5.5KW

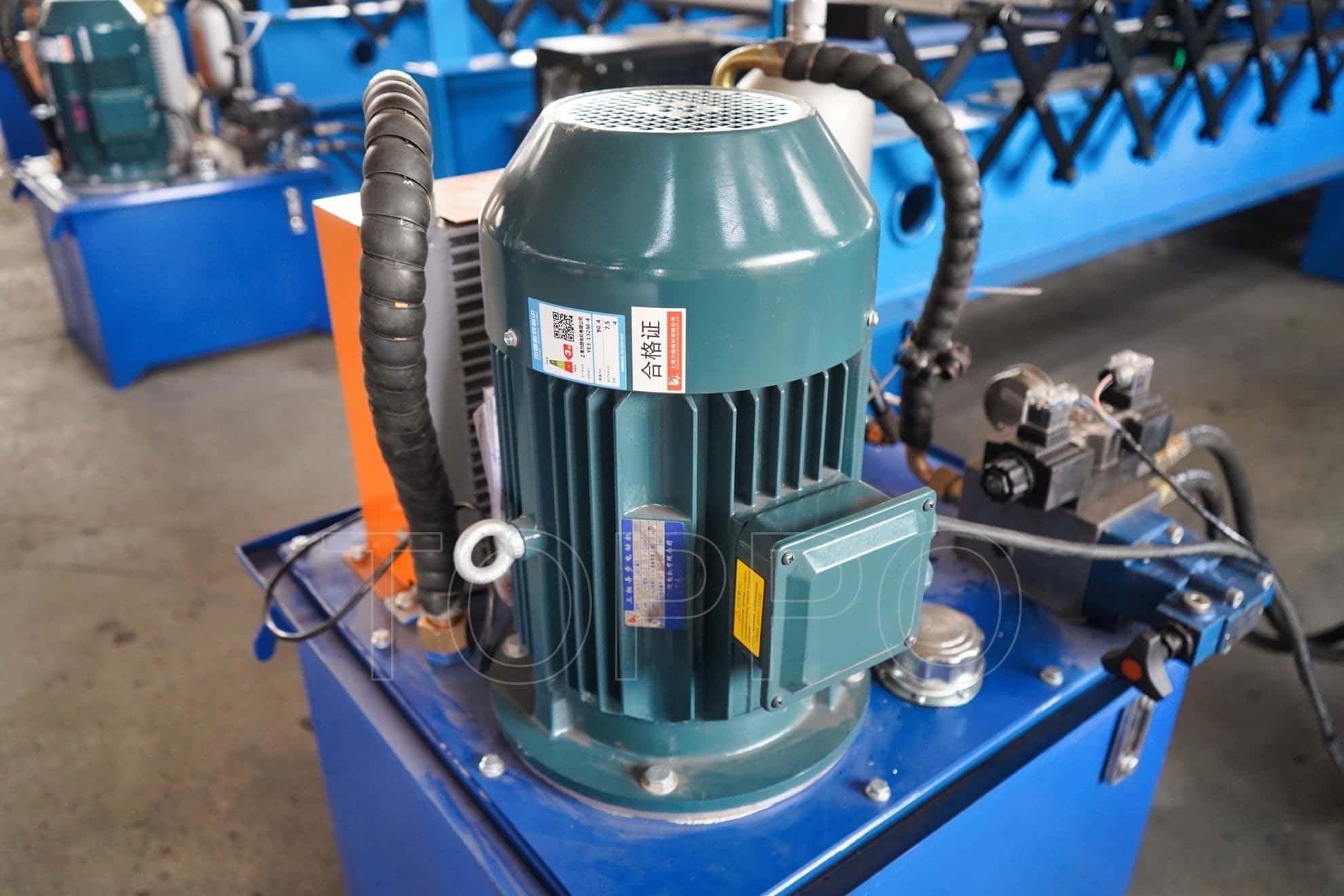

• Hydraulic Station Power: 4KW

• Cutting System: Hydraulic Cutting

• Cutting Accuracy: ±1mm

• Drive Method: Chain Transmission

• Voltage Standard: 380V 50Hz 3Phase

• Machine Structure: Welded Steel Frame

• Machine Color: Blue

• Operation Mode: Fully Automatic

• Hydraulic Oil Cooling: Natural Cooling

• Material Feeding: Automatic Feeding

• Production Type: Continuous Forming

• Machine Layout: Industrial Production Line

• Safety Protection: Optional Safety Cover

• Electrical Components: International Brand

• Lubrication Method: Automatic Lubrication

• Decoiler Type: Manual/Hydraulic Optional

• Finished Product Type: Roofing Sheet

• Roof Profile Type: Corrugated/Trapezoidal

• Machine Length: Customized

• Frame Base: Heavy Duty Structure

• Hydraulic System: Included

• Operation Interface: User Friendly

• Machine Performance: Stable and Efficient

• Maintenance Requirement: Low Maintenance

• Energy Consumption: Low Power Consumption

• Machine Durability: Long Working Life

• Installation Service: Available

• Technical Support: Online Support

• Training Service: Available

• Warranty Period: 12 Months

• Packaging Method: Export Standard Package

• Transportation Method: Container Shipment

• Production Efficiency: High Output Capacity

• Customization Service: Supported

The roofing panel making machine is widely used for industrial workshops, warehouses, factories, agricultural buildings, commercial roofing systems, and residential construction projects. With reliable performance and advanced forming technology, this machine is an excellent choice for customers seeking efficient roofing sheet production equipment.

TOPPO Machinery focuses on providing professional roll forming machine manufacturing solutions with excellent after-sales support, technical guidance, and customized production services for global customers.
