Industrial aluminum and steel roofing sheet roll forming machine with hydraulic cutting and automatic PLC control system. Designed for high precision production of trapezoidal metal roofing panels and wall sheets.

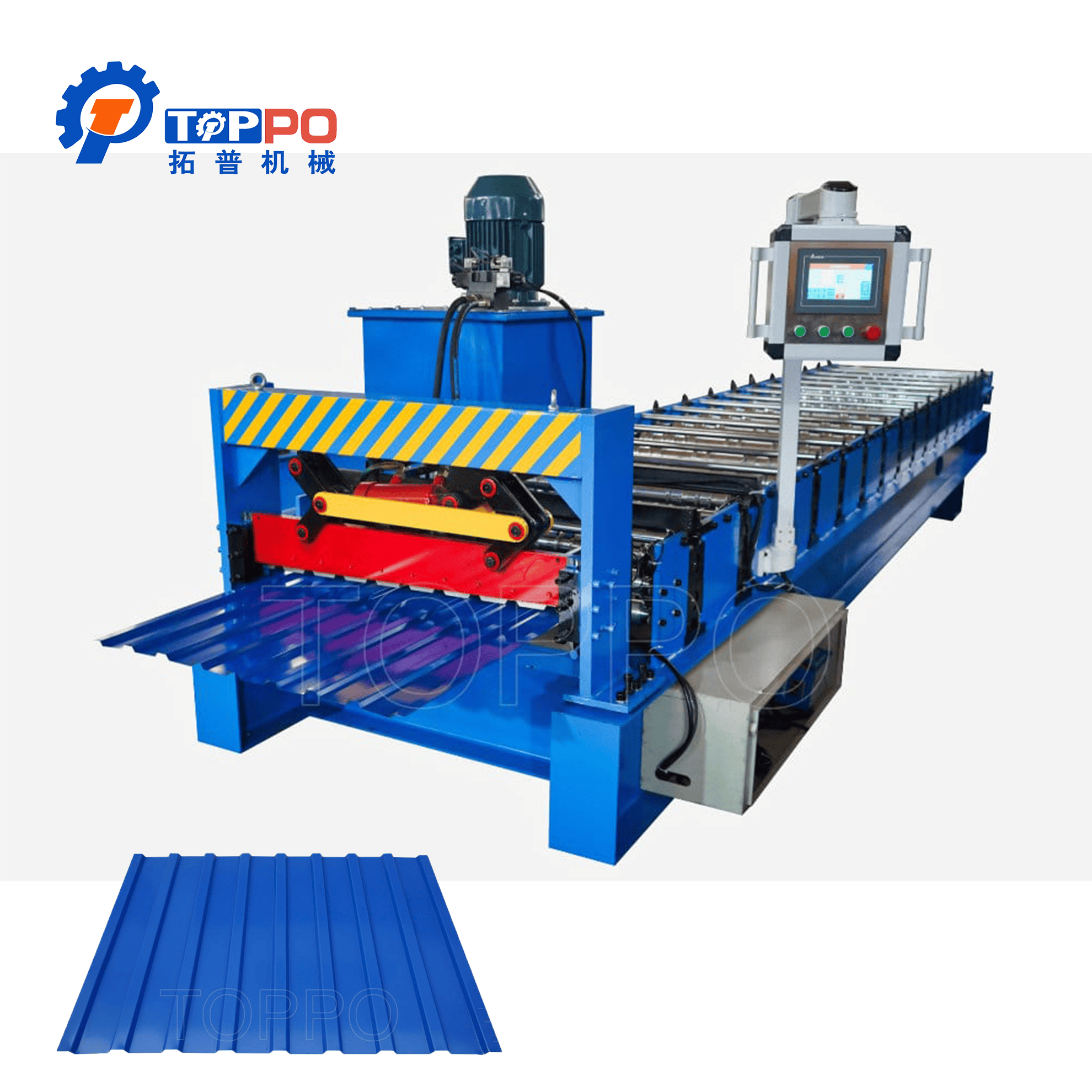

Industrial Aluminum Steel Roofing Sheet Roll Forming Machine Line
This industrial roofing sheet roll forming machine is designed for manufacturing high-quality metal roofing sheets and wall cladding panels with excellent precision and production efficiency. The machine adopts advanced cold roll forming technology, hydraulic cutting systems, and intelligent PLC automation to provide stable operation and continuous production performance.
The machine is suitable for processing aluminum coils, galvanized steel sheets, color-coated coils, and PPGI materials. Equipped with durable forming rollers, heavy-duty frame construction, and high-strength transmission systems, the machine ensures long service life, smooth panel forming, and reliable operation.
The finished roofing sheets are widely used in industrial workshops, warehouses, shopping centers, steel structure buildings, agricultural projects, airports, and prefabricated construction systems due to their durability, corrosion resistance, and attractive appearance.
Main Features
PLC automatic intelligent control system
Precision hydraulic cutting device
Continuous automatic production line
Heavy-duty steel frame structure
High precision roll forming rollers
Stable chain transmission system
Easy operation and maintenance
Low noise and smooth performance
Custom profile design available
Long service life and reliable operation
Technical Specifications & Product Attributes
| Machine Name | Roofing Sheet Roll Forming Machine |
| Machine Type | Automatic Roll Forming Production Line |
| Suitable Materials | Aluminum, Galvanized Steel, PPGI |
| Material Thickness | 0.3mm-0.8mm |
| Material Width | Customized |
| Panel Profile | Trapezoidal Roofing Sheet |
| Production Speed | 10-25m/min |
| Control System | PLC Automatic Control |
| Operation Interface | Industrial Touch Screen |
| Cutting System | Hydraulic Automatic Cutting |
| Cutting Accuracy | ±1mm |
| Roller Material | 45# Chrome Coated Steel |
| Shaft Material | High Strength Steel |
| Transmission Type | Chain Transmission |
| Forming Stations | 15-20 Stations |
| Main Motor Power | 5.5kW-11kW |
| Hydraulic Power | 4kW |
| Voltage | 380V / 50Hz / 3 Phase |
| Machine Structure | Heavy Duty Steel Frame |
| Automation Level | Fully Automatic |
| Feeding Method | Automatic Feeding |
| Machine Weight | Approx. 5 Tons |
| Machine Length | Approx. 7m-12m |
| Blade Material | Cr12 Mould Steel |
| Surface Treatment | Anti-rust Painting |
| Cooling Method | Air Cooling |
| Noise Level | Low Noise Operation |
| Profile Accuracy | High Precision |
| Application Industry | Construction Industry |
| Finished Product | Metal Roofing Sheet |
| Decoiler Option | Manual or Hydraulic |
| Machine Color | Customized |
| Production Efficiency | High Efficiency |
| Safety Device | Emergency Stop Equipped |
| Maintenance | Easy Maintenance |
| Installation Service | Engineer Support Available |
| Training Service | Operation Training Provided |
| Warranty | 12 Months |
| After-sales Service | Lifetime Technical Support |
| Customization | Supported |
| Export Markets | Worldwide |
| Working Environment | Industrial Factory |
Applications
The roofing sheet roll forming machine is widely used for manufacturing roofing and wall panels for industrial plants, warehouses, steel structure projects, agricultural buildings, workshops, commercial centers, prefabricated houses, and modern construction systems.
Complete Production Line
The complete production line generally includes hydraulic decoiler, feeding table, roll forming machine, hydraulic cutting device, PLC control cabinet, touch screen operation system, and receiving table. Automatic stacking systems can also be customized according to customer production requirements.
Why Choose Our Equipment
Our roofing sheet roll forming machines are manufactured with advanced engineering technology and strict quality inspection standards. We provide reliable machinery, professional technical support, installation guidance, spare parts service, operation training, and comprehensive after-sales support to ensure stable and efficient production for customers worldwide.
