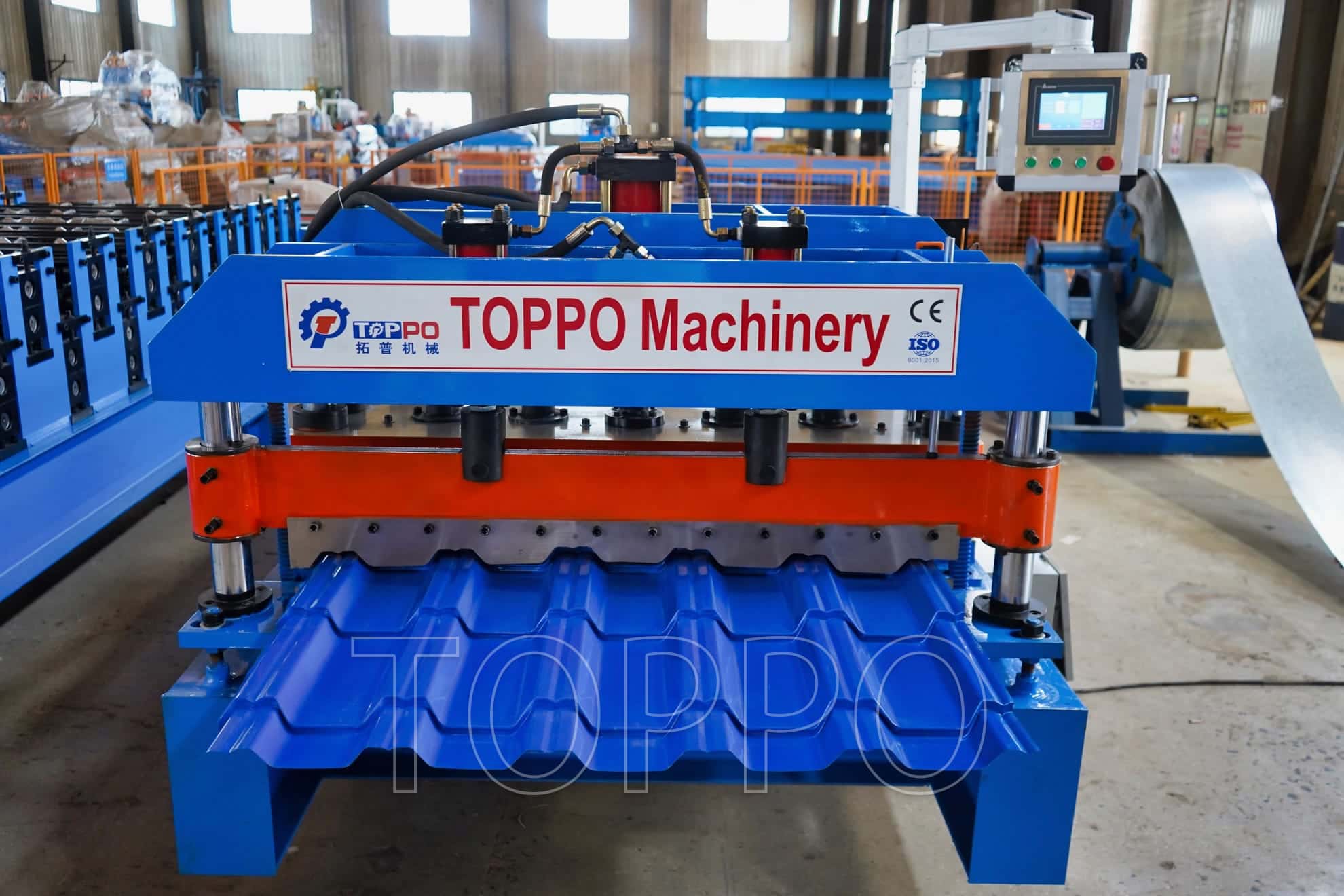

Machine Type: Roof panel and glazed tile roll forming machine
Function: Forming metal roof panels and glazed tiles
Material: PPGI, GI, Aluminum, Color steel
Sheet Thickness: 0.3–0.8mm
Material Width: 1000–1250mm
Effective Width: 828–1100mm (depends on profile)
Roller Material: 45# steel, hard chrome coated
Roller Stations: 16–18
Roller Shaft Diameter: 70mm solid shaft
Forming Speed: 8–12m/min
Drive Type: Chain drive or gear drive
Cutting System: Hydraulic post-cutting
Blade Material: Cr12Mov high-grade steel
Control System: PLC (Siemens/Mitsubishi/Delta)
Display: Touch screen HMI
Power Supply: 380V/50Hz/3Phase or customized
Main Motor Power: 5.5kW
Hydraulic Station Power: 4kW
Hydraulic Pressure: 10–12MPa
Structure: Welded steel frame
Side Wall Thickness: 18mm
Color: Customizable per client request
Operation: Fully automatic
Production Line: Manual decoiler – Forming unit – Hydraulic cutter – Run-out table
Weight: 6–8 tons
Dimensions: 10.5m x 1.5m x 1.6m
Noise Level: Less than 80dB
Working Environment: Indoor, dry and dust-free recommended
Cooling System: Natural or optional air-cooled
Maintenance: Lubricate rollers and gears regularly
Warranty: 12 months
Certification: CE & ISO 9001
Safety Protection: Emergency stop, protective covers
After-sales Support: Online support, field installation & training
Application: Residential roofing, industrial workshops, warehouses

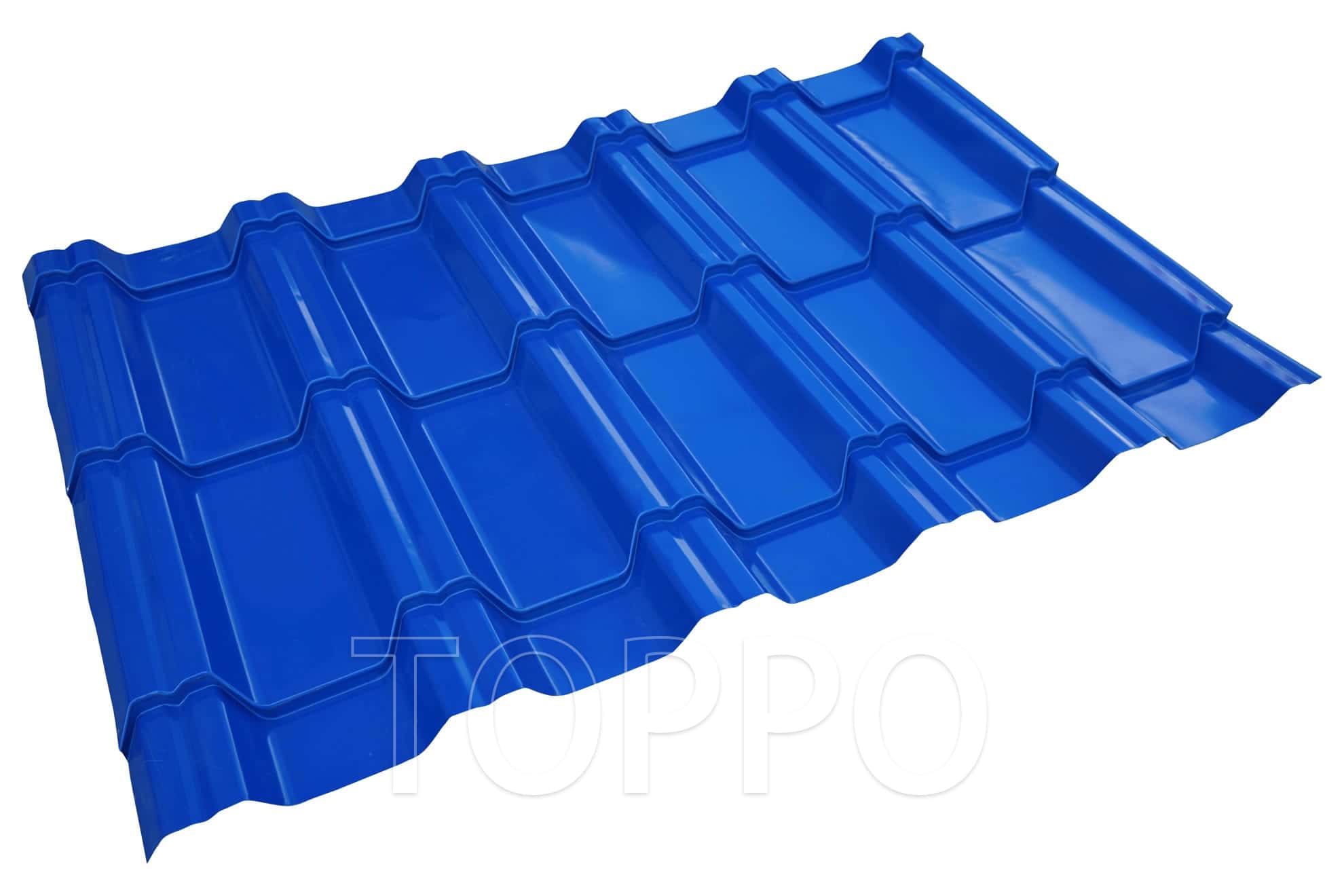

Profile Shape: Curved glazed tile type
Profile Customization: Available on request
Efficiency: High production with low energy consumption
Automation: Fully automated forming and cutting
Feeding Guide: Manual/Automatic guiding system
Usage: Mass production of decorative roof panels
This fully automatic hydraulic roll forming machine is engineered to produce decorative glazed tiles and durable roof sheet panels for various construction projects. With a robust frame, accurate cutting, and programmable PLC control, it is ideal for businesses requiring high-volume and precision tile manufacturing.
