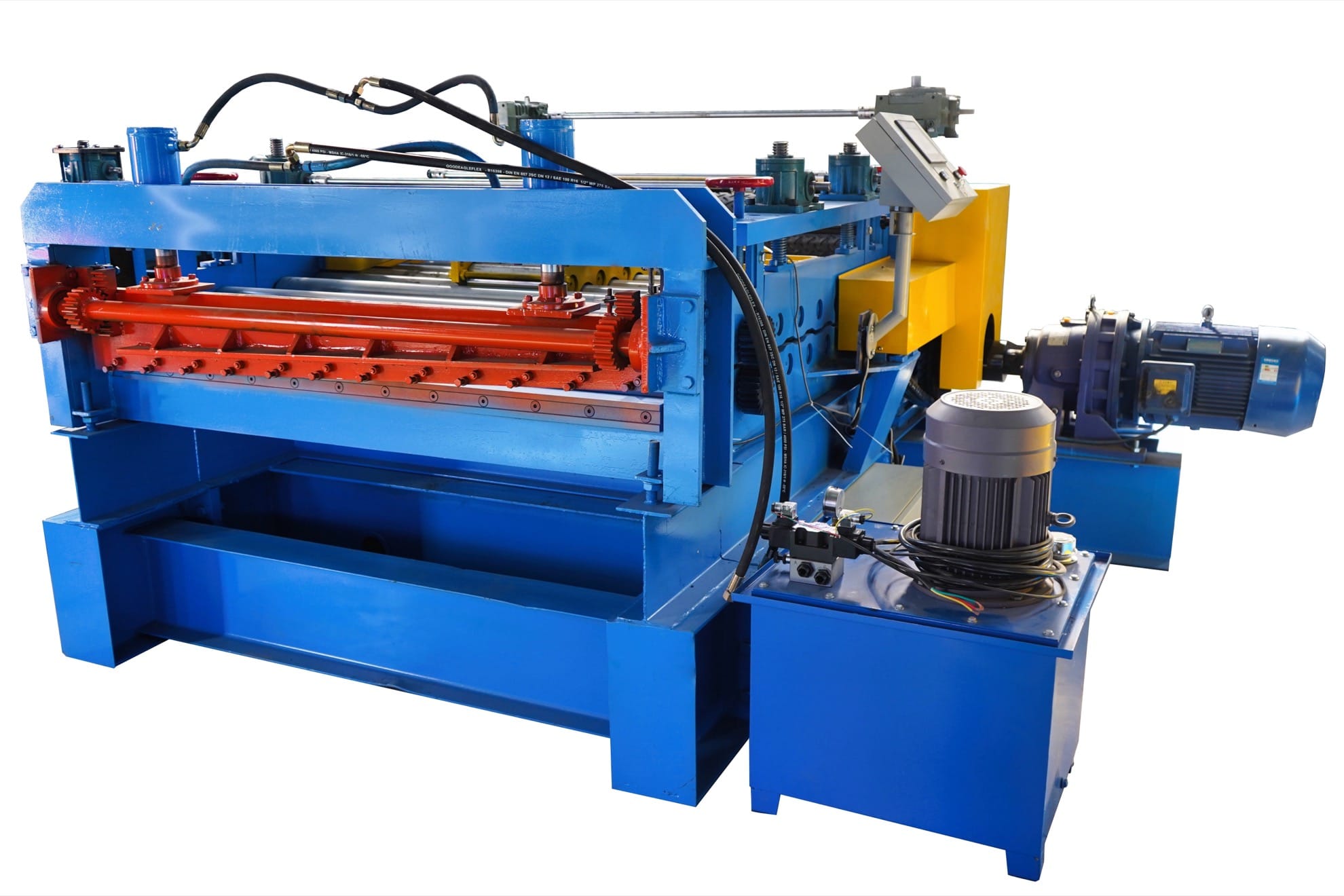

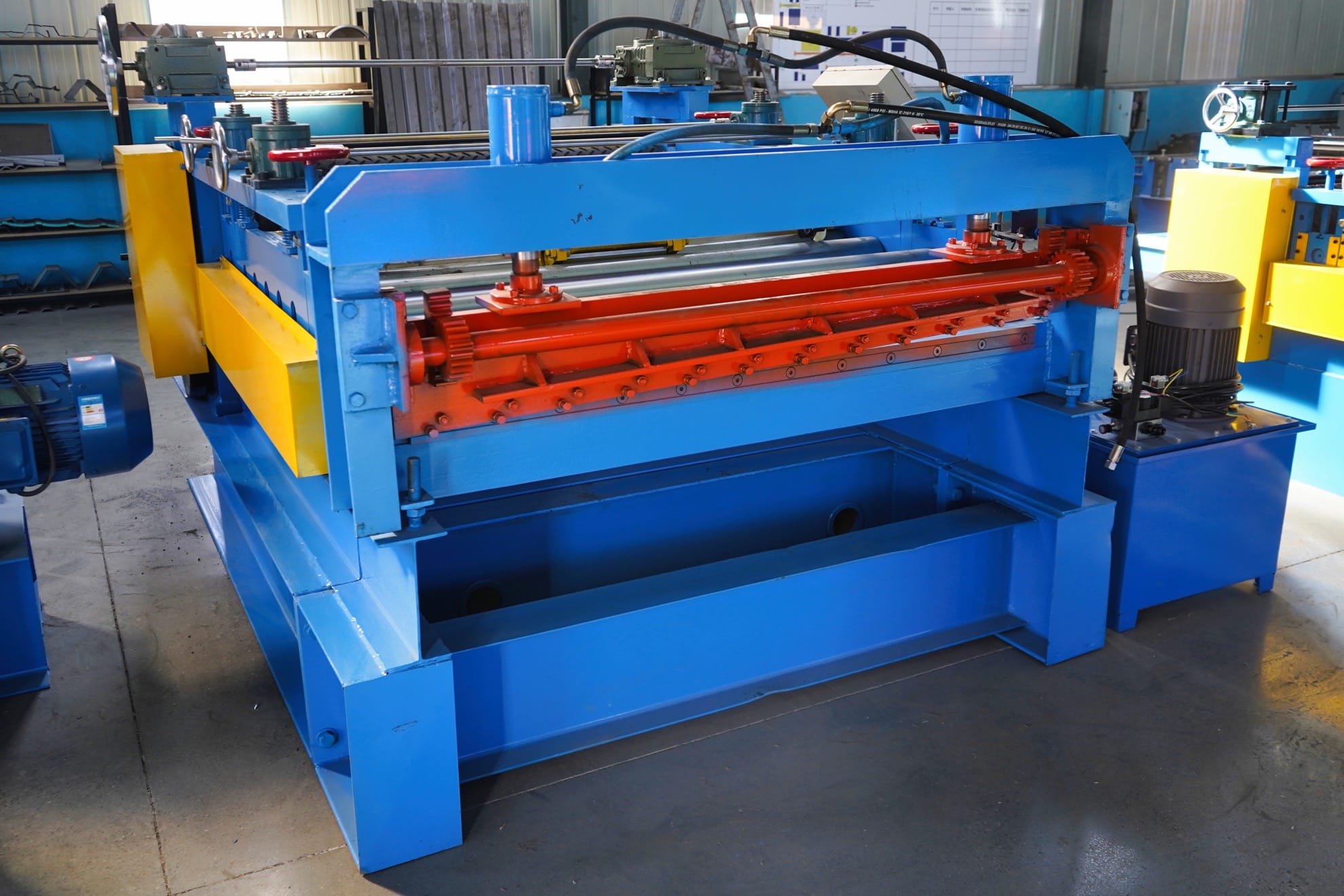

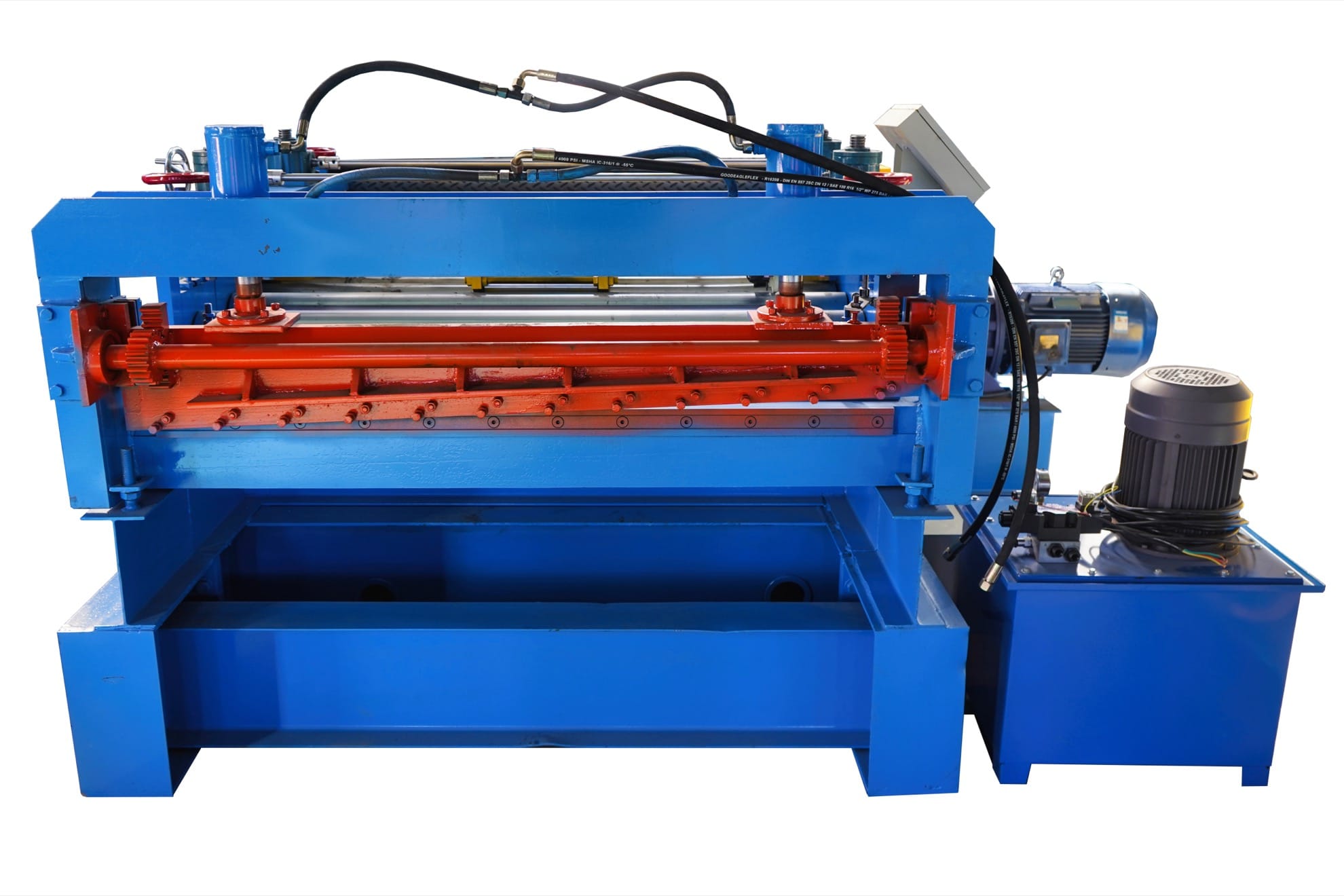

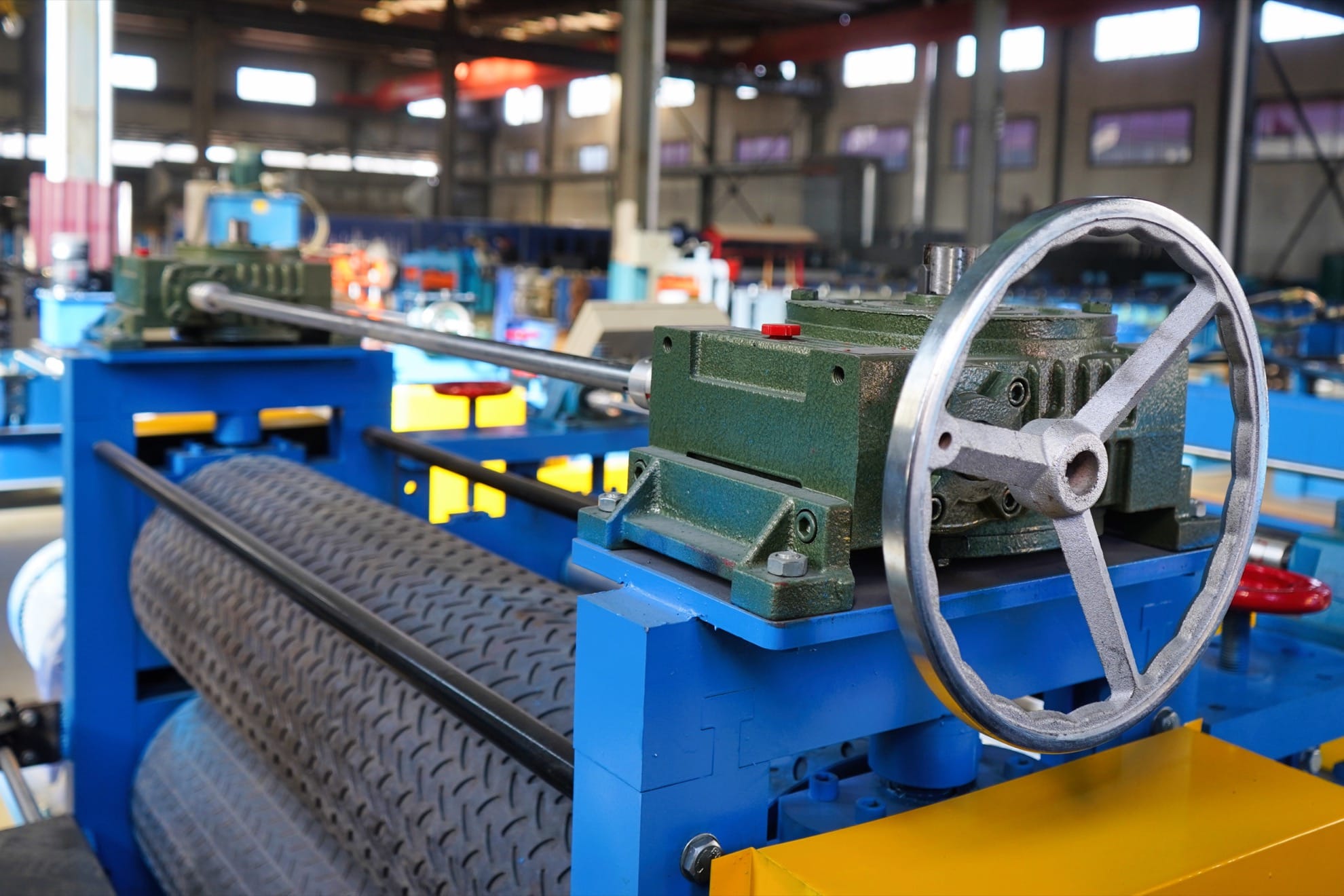

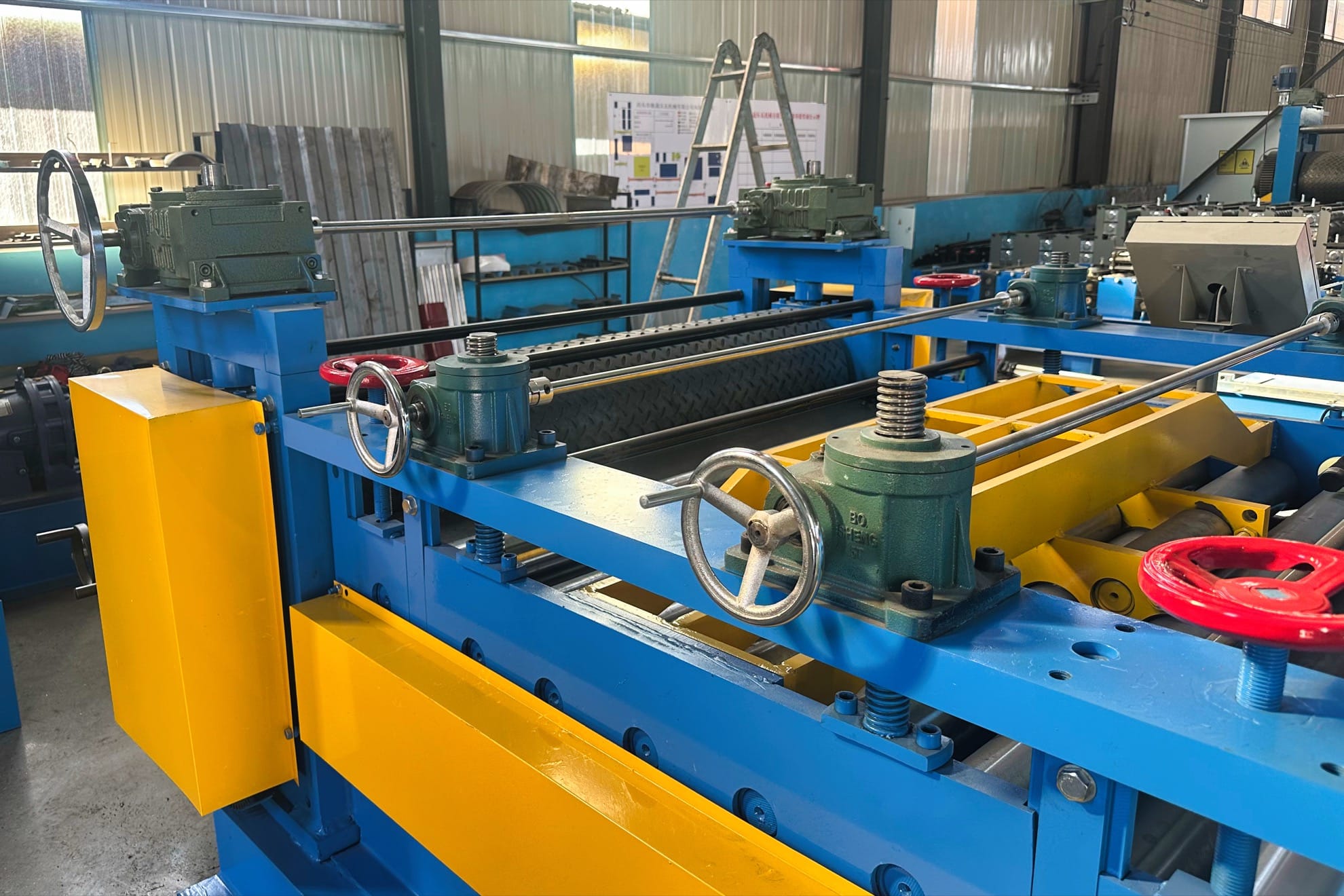

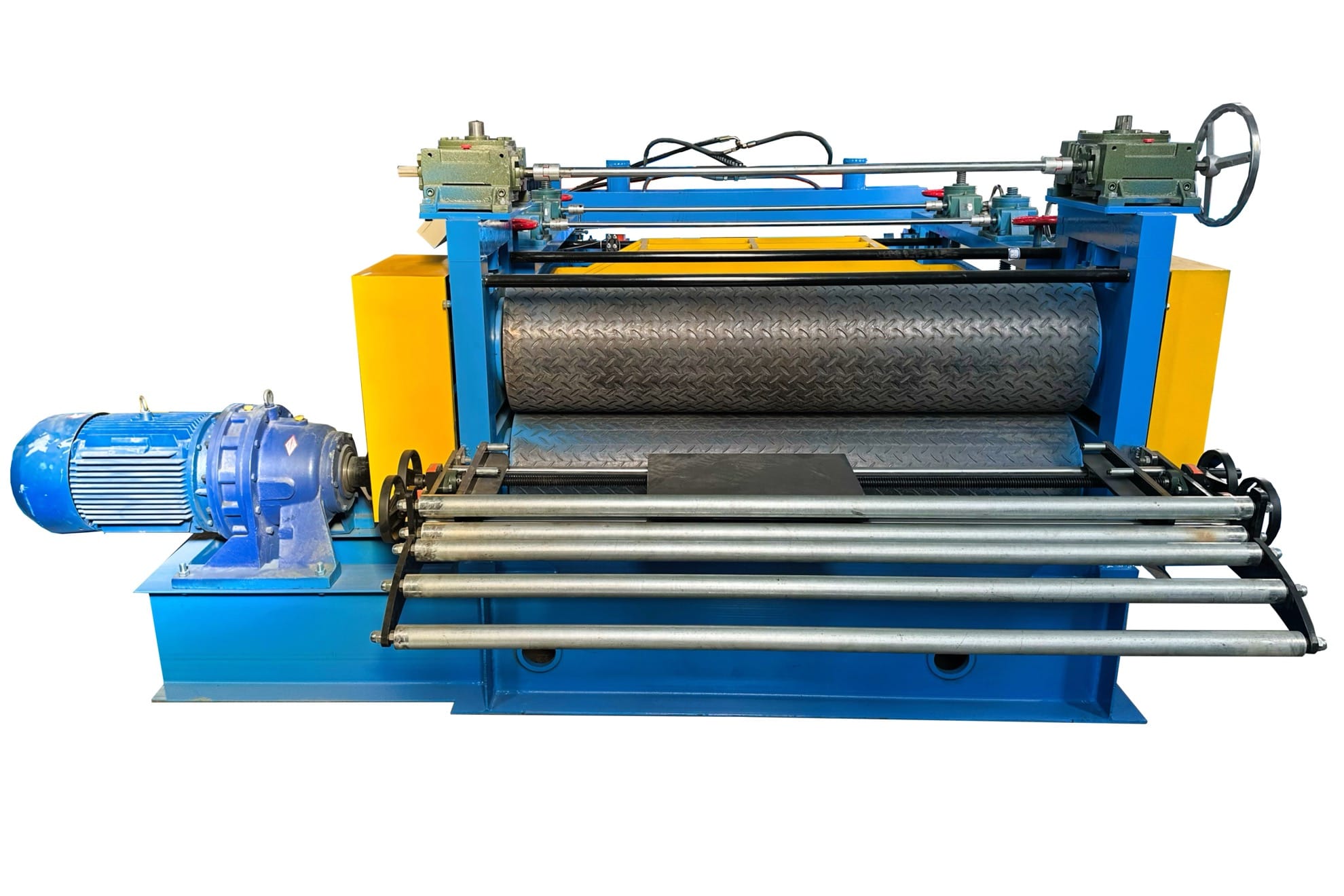

Heavy Duty Diamond Pattern Metal Sheet Embossing Machine
This embossing machine is designed for producing diamond pattern (checkered) metal sheets widely used in anti-slip and industrial applications. The machine features a robust steel frame, high-strength embossing rollers and a stable drive system, ensuring deep, clear and uniform patterns during continuous operation.
Product Attributes
| 1. Product Name | Diamond Pattern Embossing Machine |
| 2. Function | Embossing metal sheets |
| 3. Pattern Type | Diamond / checkered pattern |
| 4. Machine Type | Industrial sheet metal forming equipment |
| 5. Material | Carbon steel, galvanized steel, aluminum |
| 6. Application | Anti-slip plates, flooring sheets, industrial panels |

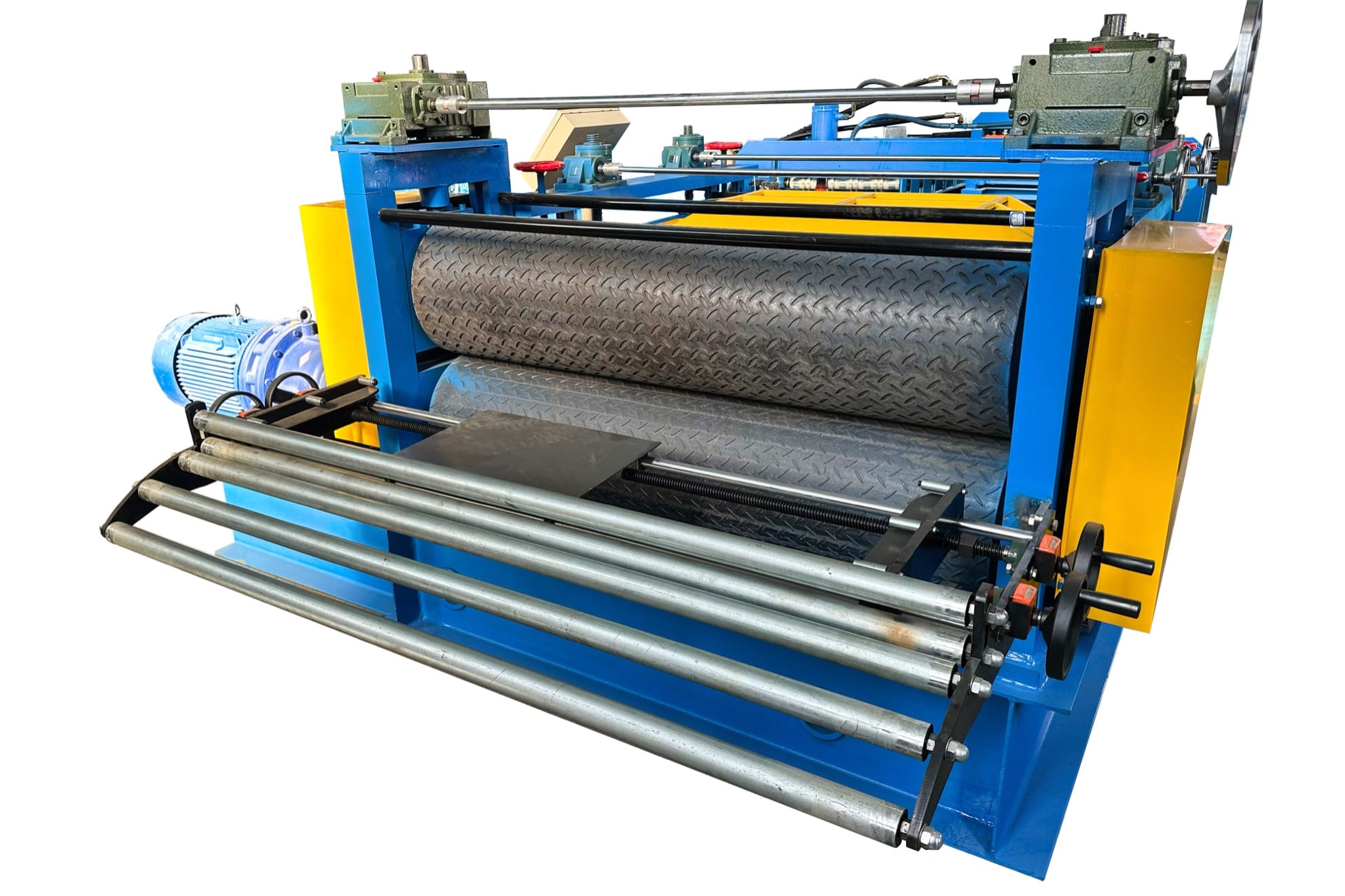

| 7. Roller Structure | Double embossing rollers |
| 8. Roller Material | High-strength alloy steel |
| 9. Drive System | Electric motor with reducer |
| 10. Transmission | Gear transmission |
| 11. Structure | Heavy-duty welded frame |
| 12. Surface Treatment | Anti-corrosion coating |
| 13. Control System | Electrical control cabinet |
| 14. Operation Mode | Automatic operation |

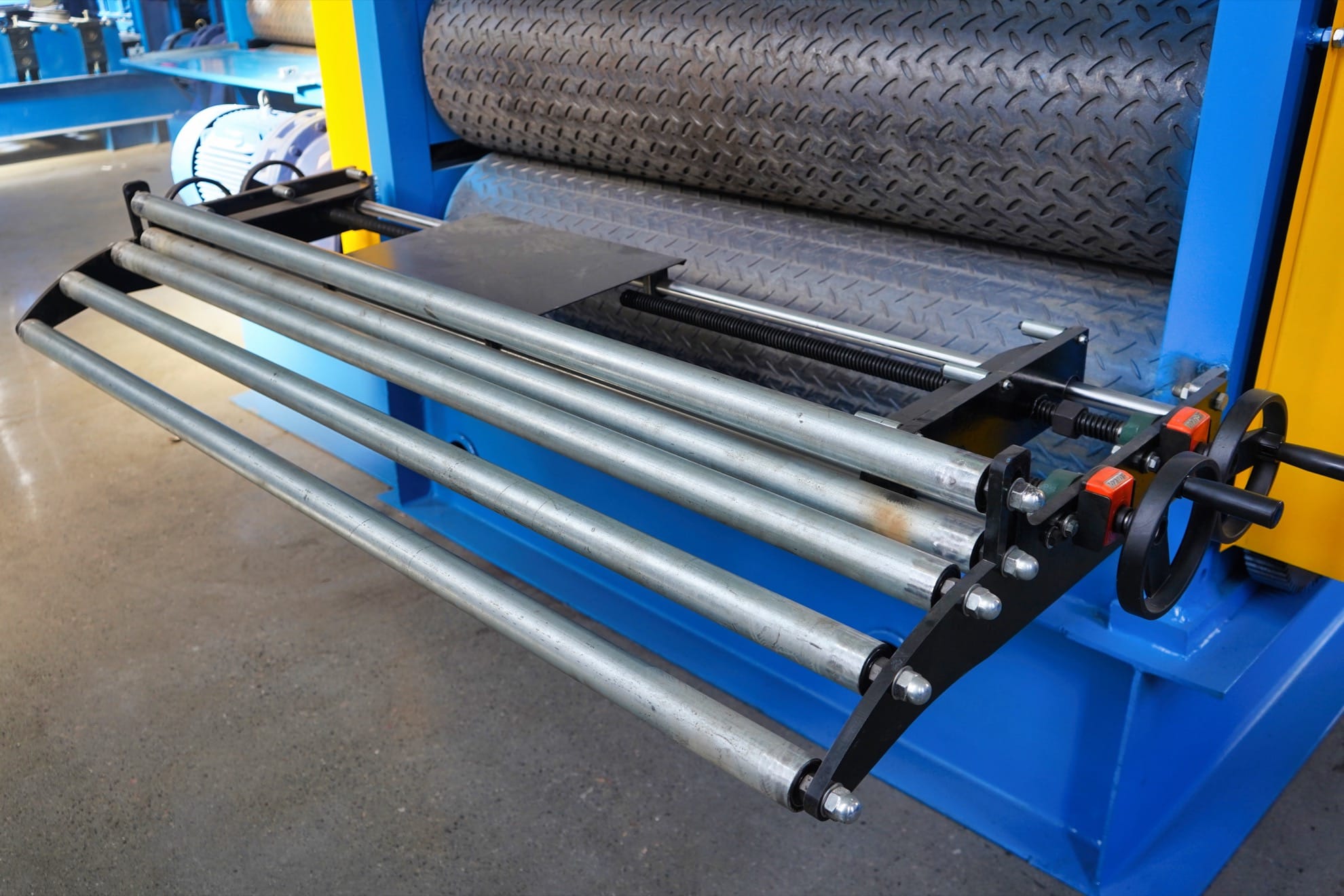

| 15. Feeding | Continuous sheet feeding |
| 16. Output | Embossed metal sheets |
| 17. Working Width | Customizable |
| 18. Thickness Range | Adjustable |
| 19. Speed | Stable production speed |

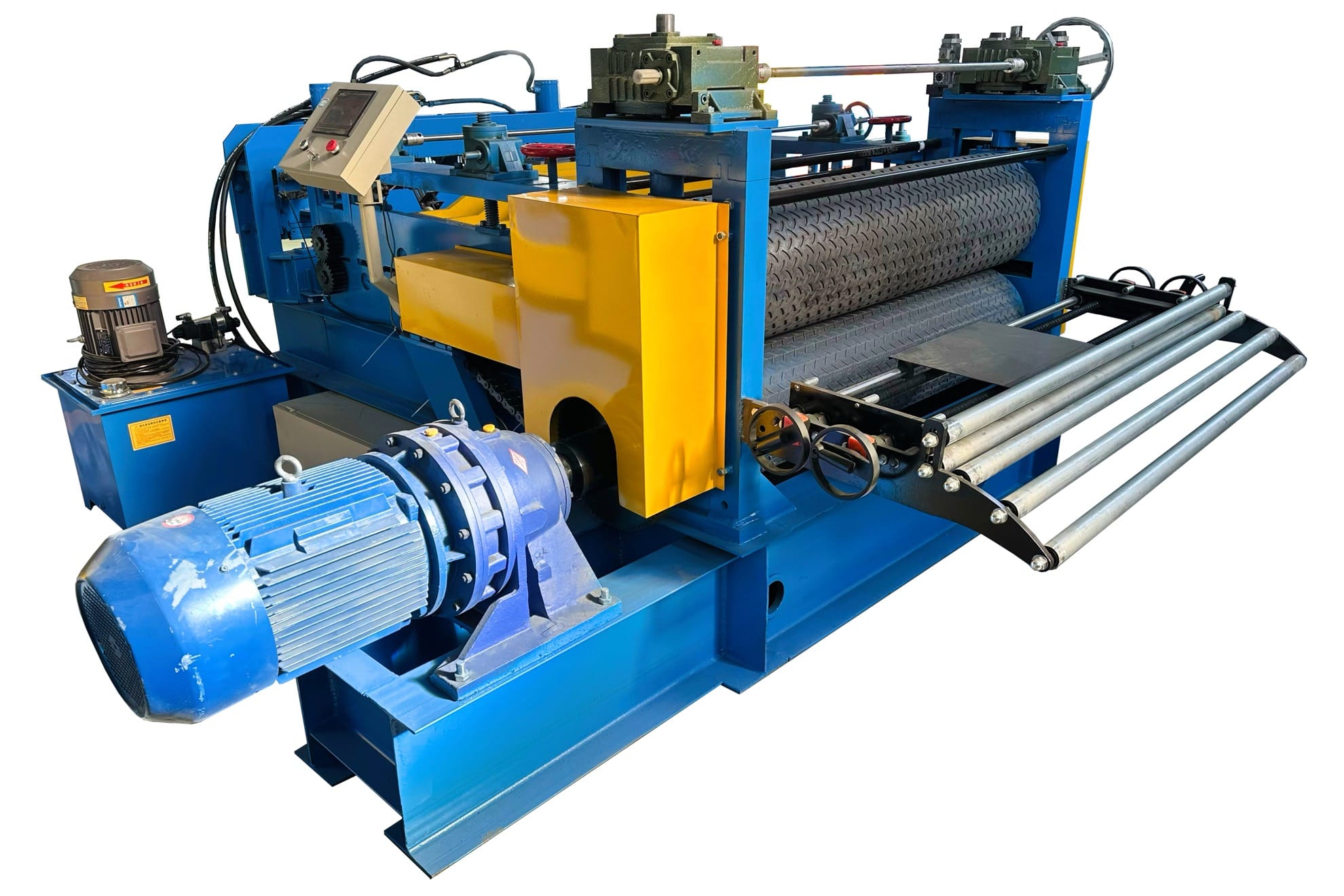

| 20. Motor Position | Side-mounted motor |
| 21. Base Structure | Reinforced base platform |
| 22. Stability | Low vibration operation |
| 23. Accuracy | Uniform embossing depth |
| 24. Maintenance | Easy maintenance design |
| 25. Safety | Protective covers |
| 26. Installation | Floor-mounted equipment |
| 27. Power Supply | Custom voltage available |
| 28. Production Mode | Continuous processing |
| 29. Processing Type | Cold embossing |
| 30. Industry | Construction, industrial flooring, manufacturing |
| 31. Environment | Factory workshop |
| 32. Customization | Fully customizable |
| 33. Advantage | High strength and deep embossing capability |
| 34. Output Feature | Clear diamond texture with anti-slip function |
| 35. Design | Compact and stable |
| 36. Service | Technical support available |
| 37. Durability | Long service life |
| 38. Frame Color | Blue industrial coating |

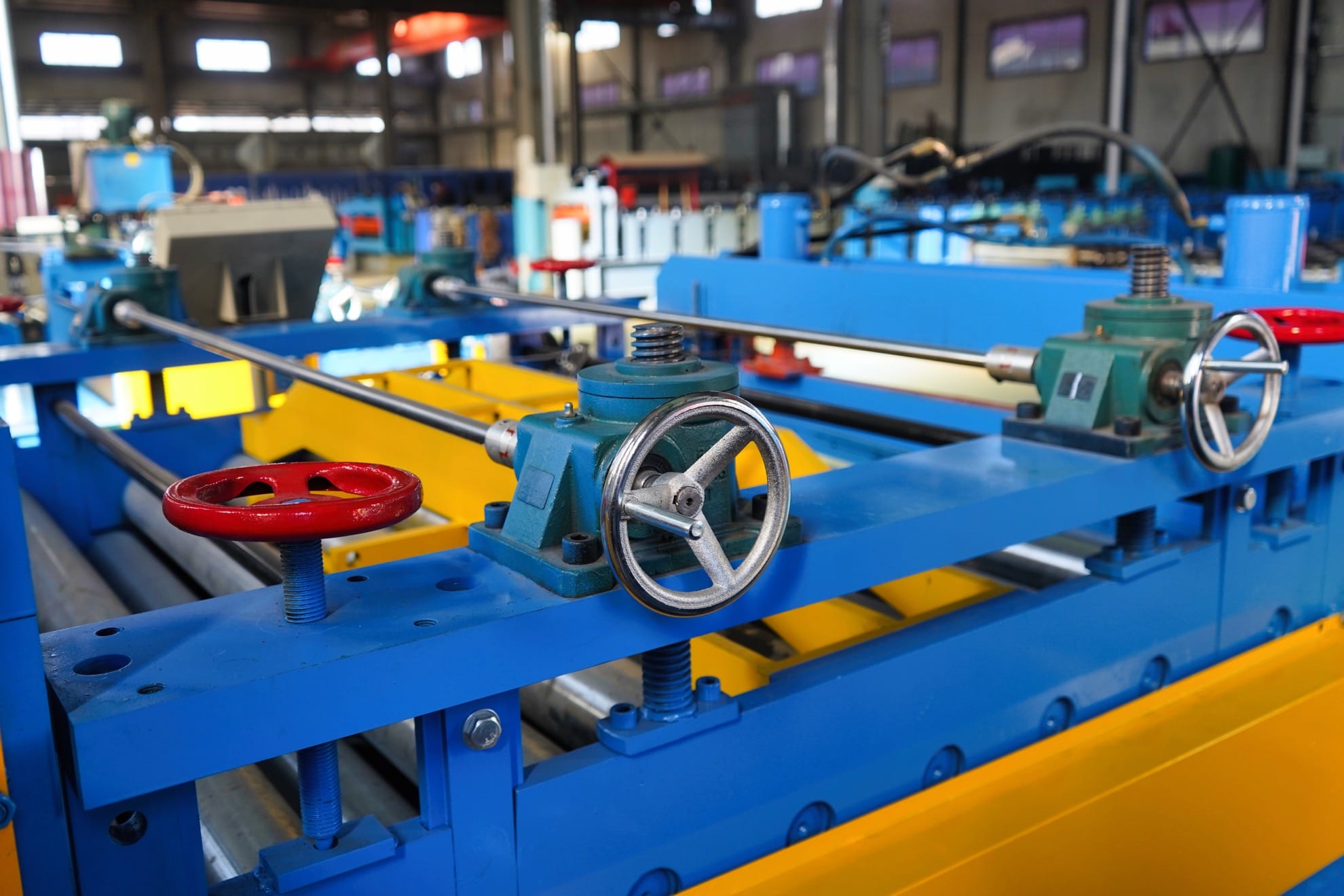

| 39. Pressure | Adjustable roller pressure |
| 40. Efficiency | Improves production efficiency |
| 41. Roller Diameter | Large diameter rollers |
| 42. Surface Quality | Uniform embossed finish |
| 43. Interface | Simple control panel |
| 44. Expansion | Supports full production line integration |
| 45. Application Range | Wide industrial use |
Features and Advantages
The machine uses high-strength diamond pattern rollers to produce anti-slip surfaces with excellent durability. The strong frame and stable transmission system ensure consistent embossing quality even in long-term continuous production.
Its modular design allows integration with decoilers, leveling machines and cutting systems, forming a complete metal sheet processing line.
Applications
Anti-slip flooring plates
Industrial platforms and walkways
Truck bed and container flooring
Decorative metal panels
Customization
Machine specifications including working width, thickness, embossing pattern and configuration can be customized to meet different production needs.
