Automatic corrugated roofing panel making machine for producing high-quality metal roof sheets. Equipped with PLC control, hydraulic cutting system, and precision roll forming rollers, ensuring stable, efficient, and continuous production for construction and roofing industries.

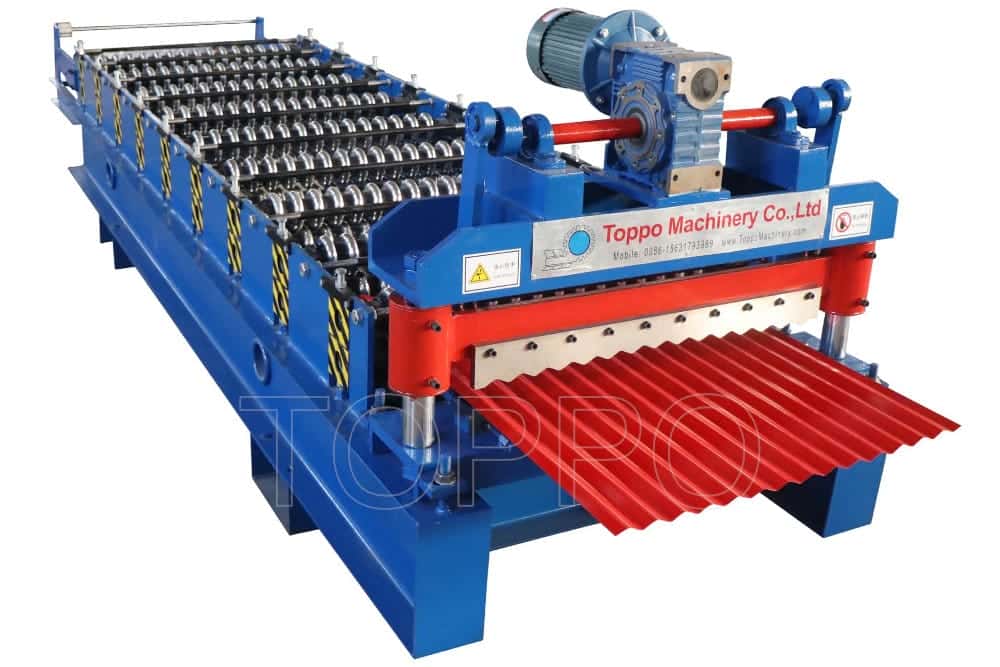

Automatic Corrugated Roofing Panel Making Machine
This roofing panel roll forming machine is designed for manufacturing corrugated and trapezoidal metal roofing sheets with high efficiency and precision. The machine integrates coil feeding, roll forming, hydraulic cutting, and PLC control into a complete production system. Its robust structure and advanced technology ensure stable performance and long-term operation.
Product Attributes & Specifications
| 1. Product Name | Corrugated Roofing Panel Making Machine |
| 2. Machine Type | Roll forming production line |
| 3. Application | Roof sheets, wall panels, cladding sheets |
| 4. Material | PPGI, GI, aluminum, color steel |
| 5. Forming Method | Cold roll forming |
| 6. Control System | PLC automatic control |
| 7. Cutting System | Hydraulic cutting |
| 8. Frame Structure | Heavy-duty welded steel frame |
| 9. Drive System | Motor with chain or gearbox transmission |
| 10. Roller Material | Alloy steel with heat treatment |
| 11. Shaft Material | High-strength steel shafts |
| 12. Forming Stations | Multiple forming stations |
| 13. Profile Type | Corrugated / trapezoidal customizable |
| 14. Thickness Range | Customizable |
| 15. Coil Width | Based on profile design |
| 16. Effective Width | Customized |
| 17. Production Speed | High-speed adjustable |
| 18. Length Control | Automatic cutting by preset length |
| 19. Cutting Accuracy | High precision |
| 20. Operation Mode | Automatic/manual |
| 21. Voltage | Customized industrial voltage |
| 22. Hydraulic System | Stable hydraulic unit |
| 23. Safety System | Emergency stop and protection |
| 24. Feeding System | Smooth coil feeding guide |
| 25. Leveling Device | Optional |
| 26. Cutting Blade | Profile-matched blade |
| 27. Output Product | Corrugated roofing sheets |
| 28. Installation | Floor-mounted equipment |
| 29. Automation Level | Fully automatic |
| 30. Labor Requirement | 1-2 operators |
| 31. Surface Protection | No coating damage |
| 32. Working Environment | Indoor factory |
| 33. Industry | Construction, steel structure |
| 34. Usage | Warehouse, factory, residential roofing |
| 35. Customization | Available |
| 36. Machine Layout | Decoiler, forming, cutting, output table |
| 37. Advantages | Stable, efficient, durable |
| 38. Maintenance | Easy maintenance |
| 39. Service Life | Long-lasting |
| 40. Packing | Export standard packing |
| 41. After-sales Service | Technical support |
| 42. Coil Compatibility | Wide material compatibility |
| 43. Forming Quality | Consistent profile accuracy |
| 44. Production Capacity | Industrial level production |
| 45. System Integration | Complete production line |
Additional Information
This machine is ideal for manufacturers looking for high efficiency and stable production. The advanced PLC control system allows easy parameter setting and precise control of length and quantity. Its strong frame and precision rollers ensure smooth forming and high-quality finished panels. Custom designs are available to meet specific customer requirements.
Working Principle
The metal coil is fed into the machine and passes through multiple roll forming stations to achieve the desired shape. Once the preset length is reached, the hydraulic cutting system cuts the panel automatically. The process is continuous and controlled for maximum efficiency.
Applications
Widely used in roofing sheet factories, construction companies, steel structure manufacturers, warehouses, industrial buildings, agricultural structures, and residential roofing projects.
