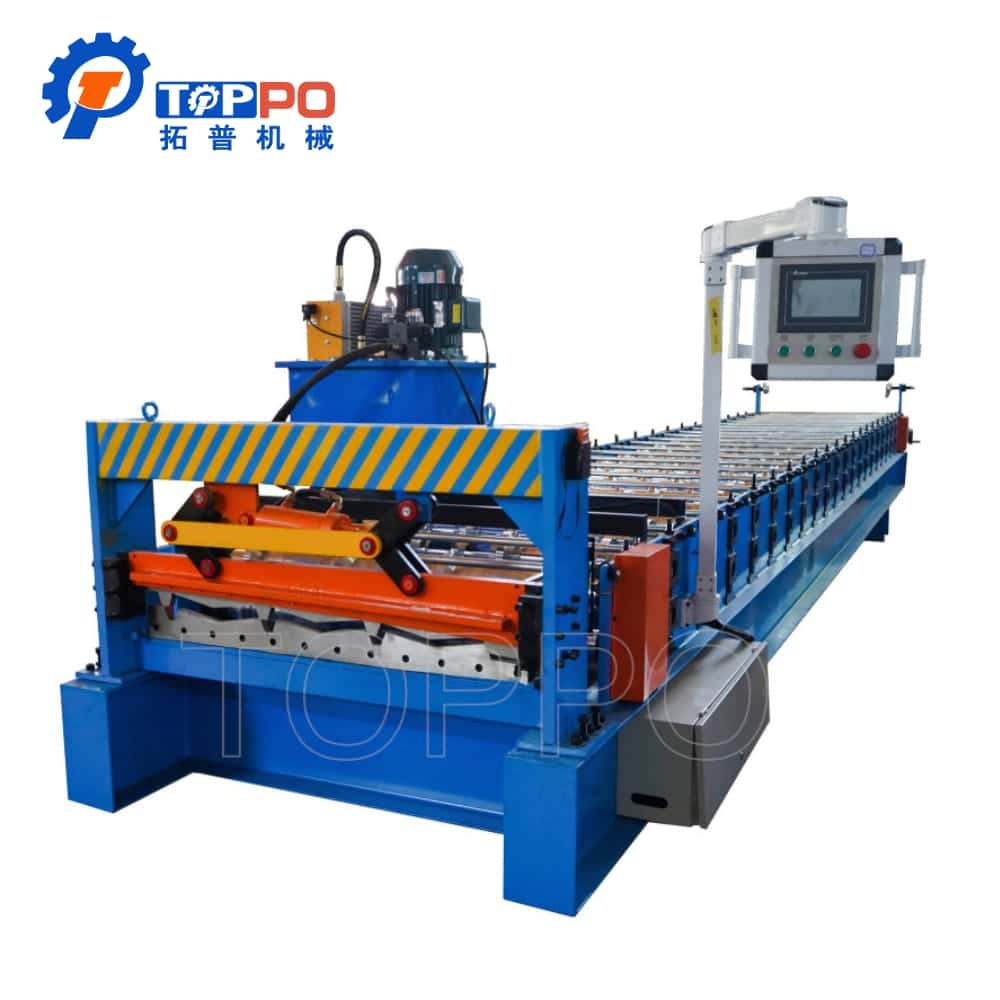

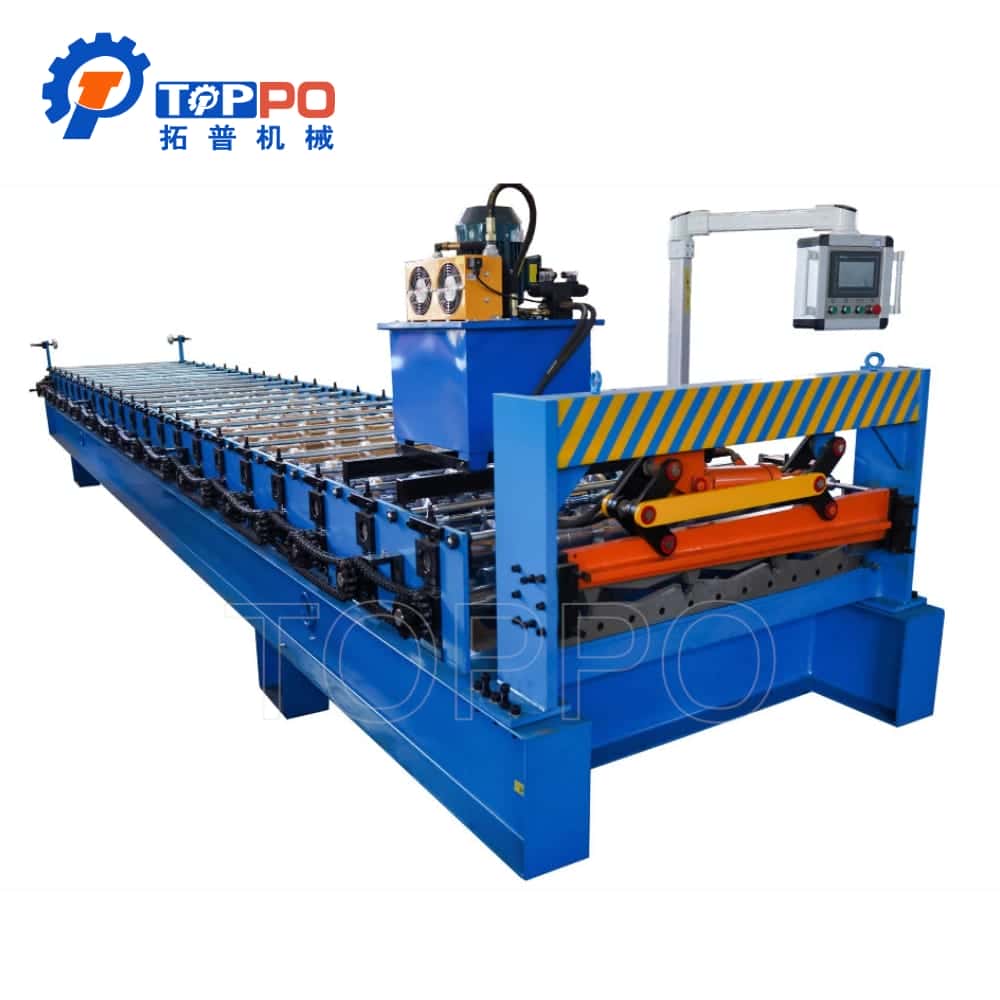

High Efficiency Aluminum Steel Roofing Sheet Roll Forming Machine

This aluminum steel roofing sheet roll forming machine is designed for continuous production of high-quality metal roofing panels. It is suitable for processing aluminum, galvanized steel, color coated steel and other metal sheets into various roofing profiles with high precision and efficiency.

The machine integrates decoiling, feeding, roll forming, hydraulic cutting and automatic control into one complete production line. It is widely used in construction material manufacturing, steel structure buildings and roofing system production.

Product Attributes

• Product type: Roofing sheet roll forming machine

• Material compatibility: Aluminum sheet

• Material compatibility: Galvanized steel sheet

• Material compatibility: Color coated steel

• Material compatibility: Cold rolled steel

• Sheet thickness: 0.3-0.8 mm

• Feeding width: Customized

• Finished product: Metal roofing sheet

• Profile type: Trapezoidal / corrugated / customized

• Forming process: Cold roll forming

• Production mode: Continuous automatic production

• Control system: PLC intelligent control

• Operation interface: Touch screen panel

• Length measurement: Encoder automatic measurement

• Cutting system: Hydraulic cutting system

• Cutting type: Post cutting

• Cutting blade: Cr12 high strength steel

• Cutting precision: ±2mm

• Main frame: Heavy-duty welded steel frame

• Roller material: 45# high-grade steel

• Roller treatment: Chrome plated

• Shaft material: 45# steel solid shaft

• Transmission type: Chain drive / gearbox optional

• Main motor power: 5.5-11KW

• Hydraulic power: 4-7.5KW

• Forming stations: 10-18 stations

• Production speed: 10-25m/min

• Decoiler: Manual or hydraulic decoiler

• Output table: Included

• Electrical components: Schneider / Delta optional

• Machine color: Customizable

• Voltage: 380V 50Hz 3Phase

• Lubrication system: Automatic lubrication

• Cooling system: Industrial cooling fan

• Noise level: Low noise operation

• Safety system: Emergency stop device

• Operation: Easy operation and maintenance

• Installation: On-site installation support

• Training: Technical training provided

• After-sales service: Full technical support

• Warranty: 12 months

• Application field: Building construction

• Application field: Warehouse roofing

• Application field: Factory roofing sheets

• Application field: Steel structure buildings

• Automation level: High automation

• Production line: Complete roll forming line

• Durability: Long service life

• Efficiency: High productivity output

• Customization: Profile design available

Performance & Advantages

The machine features a robust structure and precision rollers to ensure stable forming and accurate dimensions. The PLC system enables fully automatic operation, improving efficiency and reducing labor costs. Hydraulic cutting ensures smooth and clean edges for finished roofing panels.

With customizable profile design and flexible configuration, this machine can meet different market demands. It is an ideal solution for manufacturers seeking reliable and efficient metal roofing sheet production equipment.

Working Process

Decoiling → Feeding → Roll forming → Hydraulic cutting → Product output

Why Choose Our Machine

Our roofing sheet machine is built with high-quality materials and advanced technology, ensuring long-term stable performance. It is widely trusted by global customers for its efficiency, durability and precision manufacturing capabilities.
