Metal Chequer Plate Embossing Press Machine

This metal chequer plate embossing press machine is designed to press textured anti-slip and decorative patterns onto flat metal sheets. It can produce orange peel texture plate, chequer plate, diamond plate, tread plate and customized embossed metal sheets for construction, transportation, machinery, flooring and decorative panel applications.

The machine shown adopts a blue heavy-duty welded frame, large orange-peel texture embossing rollers, front feeding support table, manual handwheel adjustment, reducer and motor drive, side protective cover and control system. The surface texture roller can be customized according to different finished plate styles, allowing customers to produce functional anti-slip plates or decorative metal panels with stable pattern quality.

Main Product Attributes

Product Advantages

• Decorative orange peel embossing: The patterned rollers create a fine orange peel texture suitable for decorative sheet metal, appliance panels, elevator panels and industrial surfaces.

• Heavy-duty frame structure: The welded steel base and reinforced upright supports provide stable operation during continuous embossing work.

• Adjustable pressing gap: The handwheel and screw adjustment system allows operators to set roller pressure according to sheet thickness and required texture depth.

• Electric drive performance: The motor and reducer drive system provides reliable power for stable sheet feeding and consistent embossing.

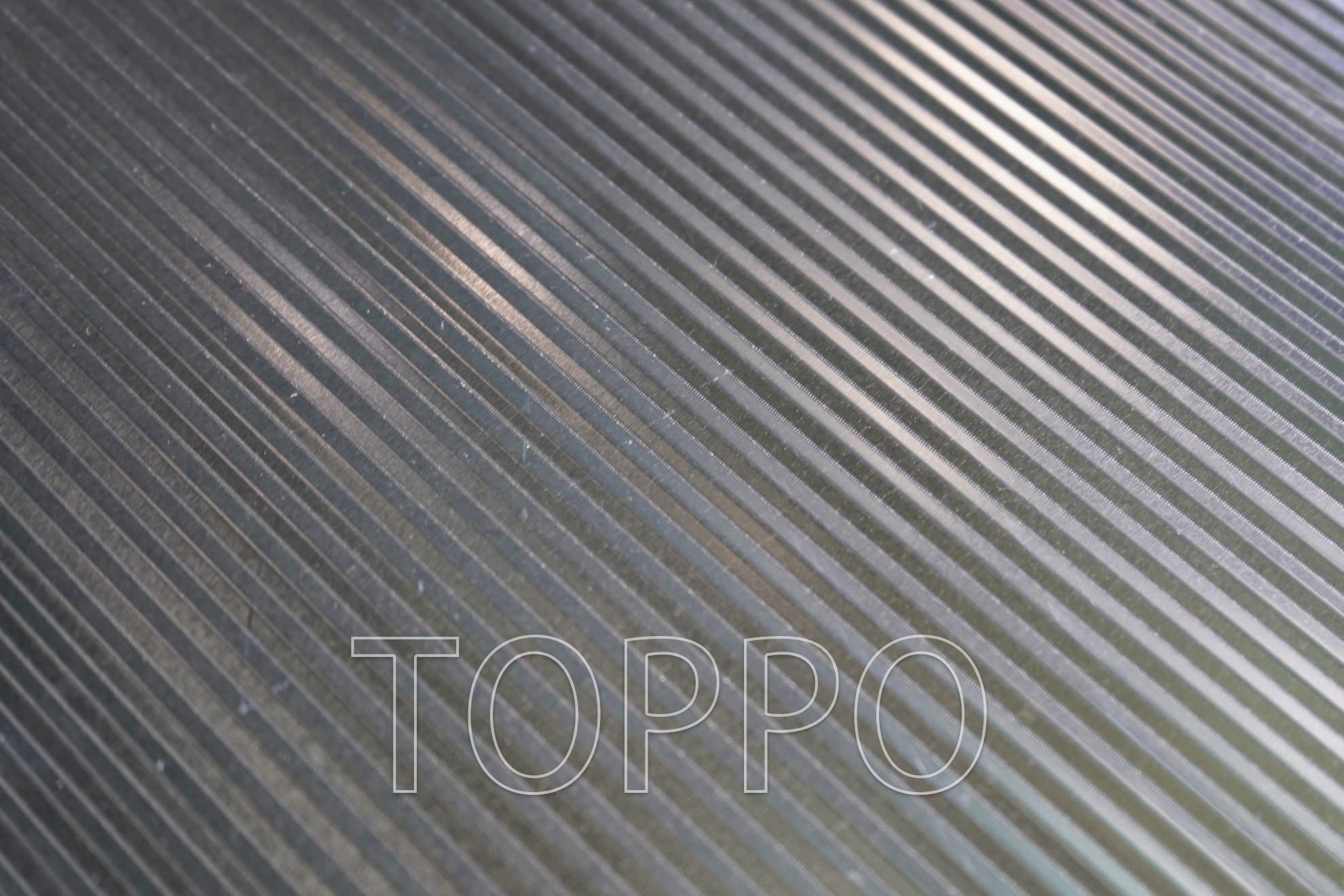

• Flexible pattern choice: Orange peel, chequer, diamond, ribbed, willow-leaf and other custom roller patterns can be supplied for different market applications.

Working Principle

The metal sheet is placed on the front support table and guided into the space between the upper and lower embossing rollers. The electric motor and reducer drive the roller system, while the manual adjustment mechanism sets the required roller gap and pressure. As the sheet passes through the rollers, the texture on the roller surface is transferred to the sheet, forming a uniform orange peel or customized embossed pattern.

Application Fields

Embossed metal sheets produced by this machine are widely used for decorative wall panels, elevator interior panels, appliance panels, machinery covers, industrial platforms, anti-slip floor plates, stair treads, warehouse ramps, vehicle decks, trailer floors, ship decks and building material products. The textured surface can improve appearance, reduce visible scratches and provide practical grip depending on the selected pattern.

Customization and Complete Line Solution

We can design the machine according to the customer’s material type, sheet width, thickness range, embossing depth, pattern style, production capacity, local voltage and workshop layout. Optional auxiliary equipment such as decoiler, leveling unit, feeding table, cutting system, conveyor and stacking table can be combined to form a complete metal chequer plate or decorative sheet embossing production line.

Why Choose This Embossing Press

This metal chequer plate embossing press machine combines strong mechanical construction, reliable electric drive, convenient manual adjustment and flexible roller customization. It is suitable for manufacturers who need stable production of anti-slip or decorative embossed metal plates for construction, decoration, machinery, transportation and industrial safety applications.
