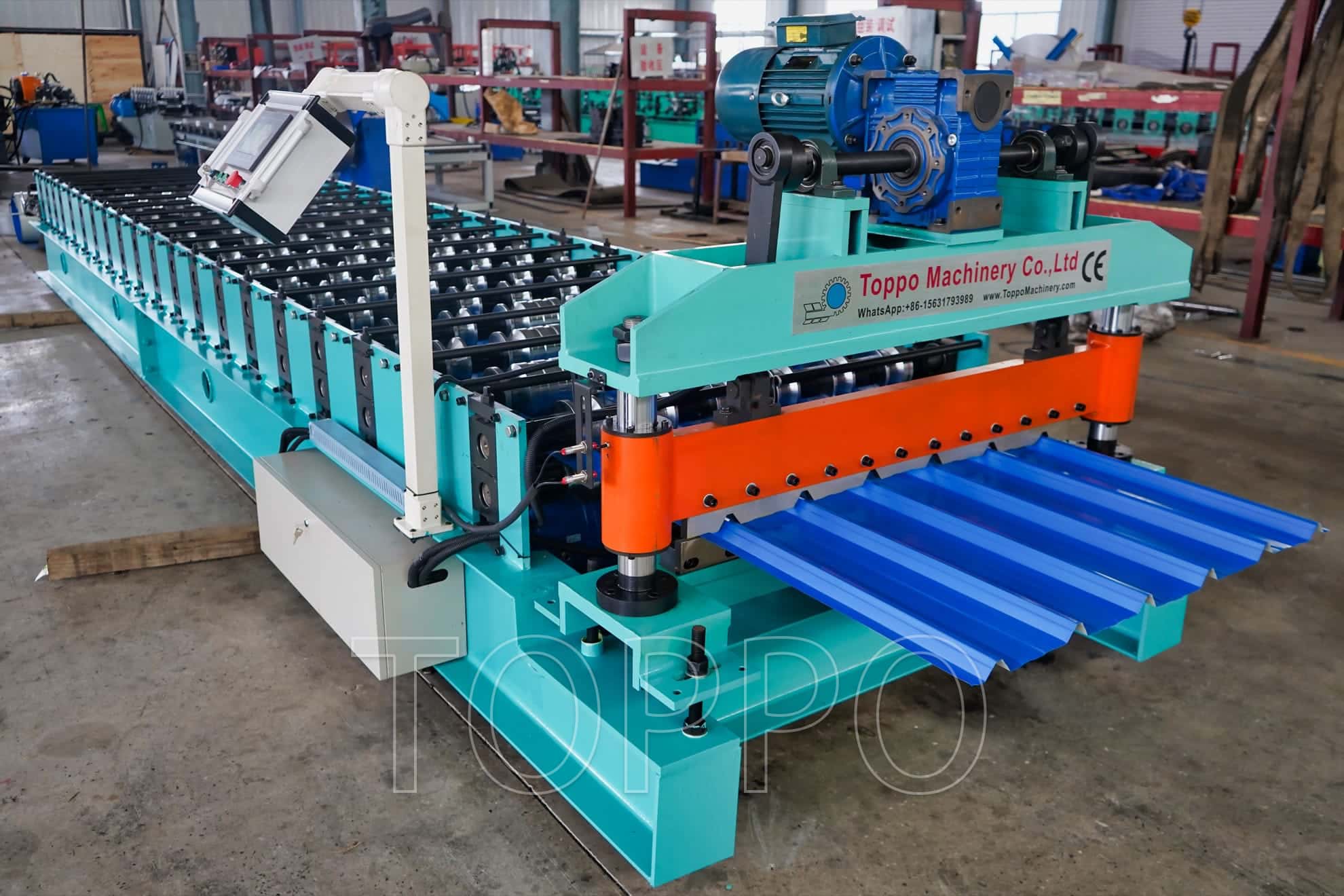

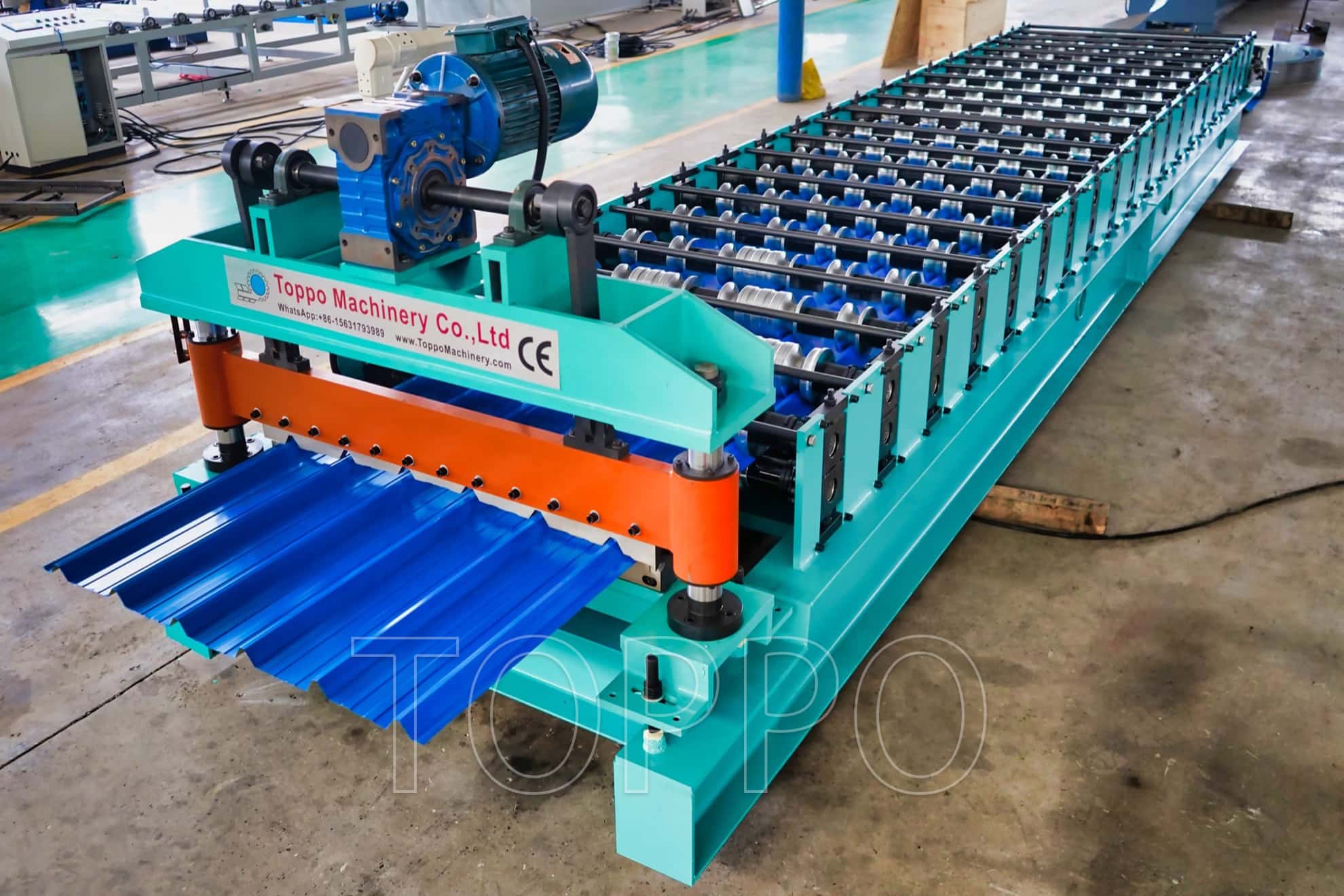

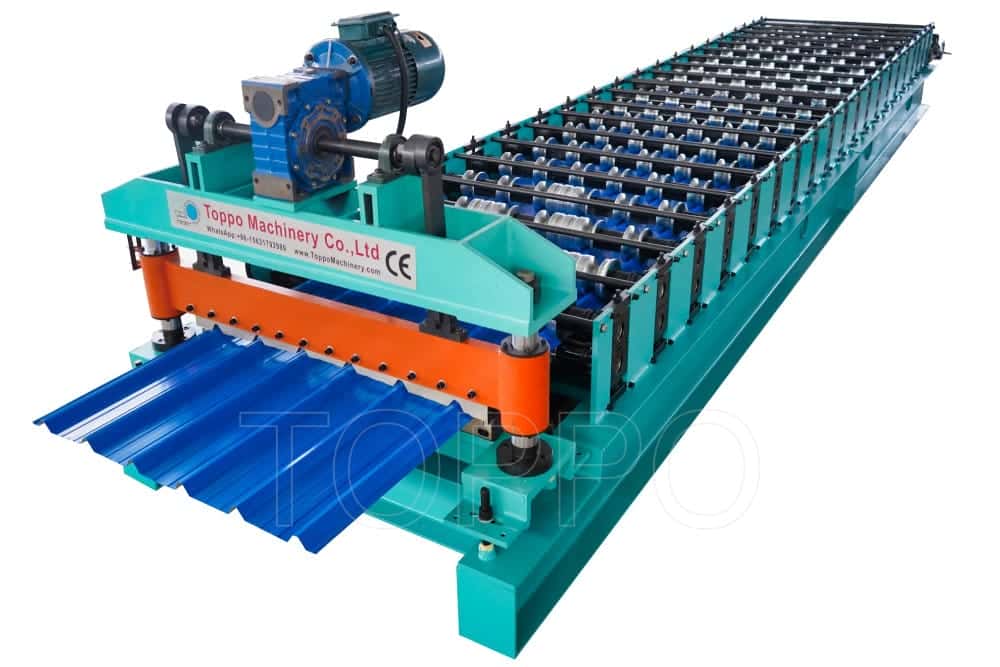

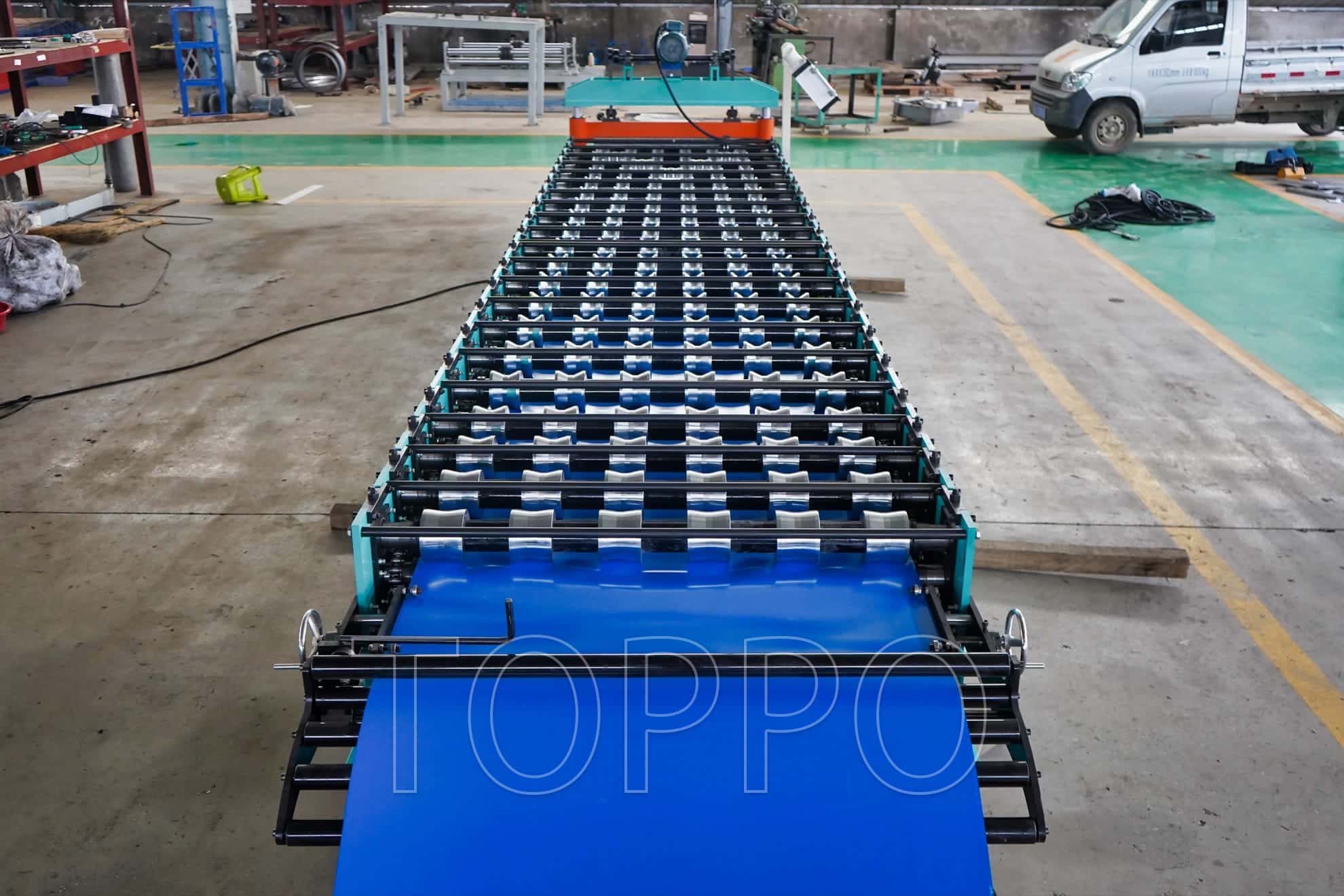

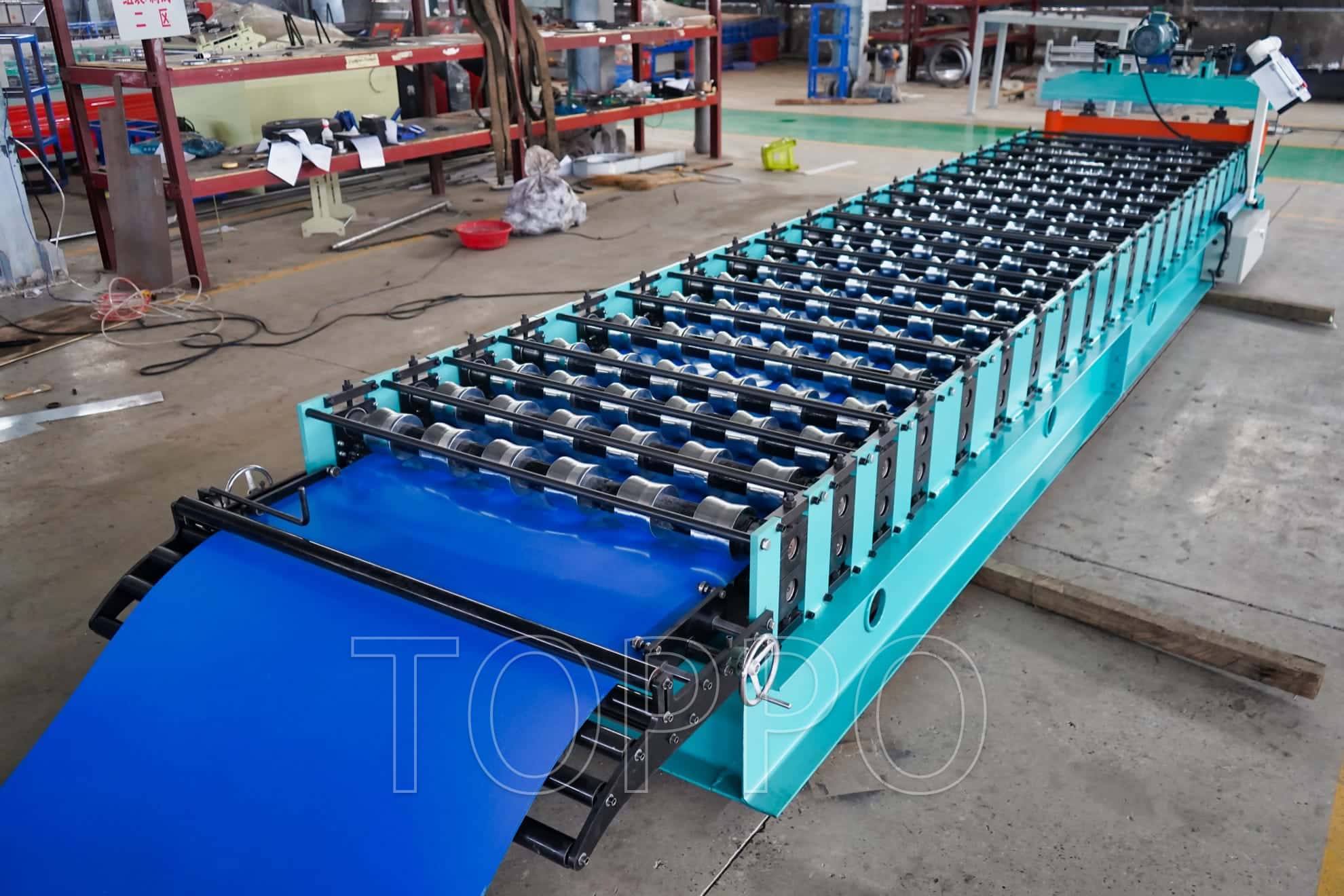

Machine Type: Trapezoidal Roll Forming Machine
Material: PPGI, GI, Aluminum coils
Input Width: 1220 mm
Output Width: 1000 mm
Material Thickness: 0.3–0.7 mm

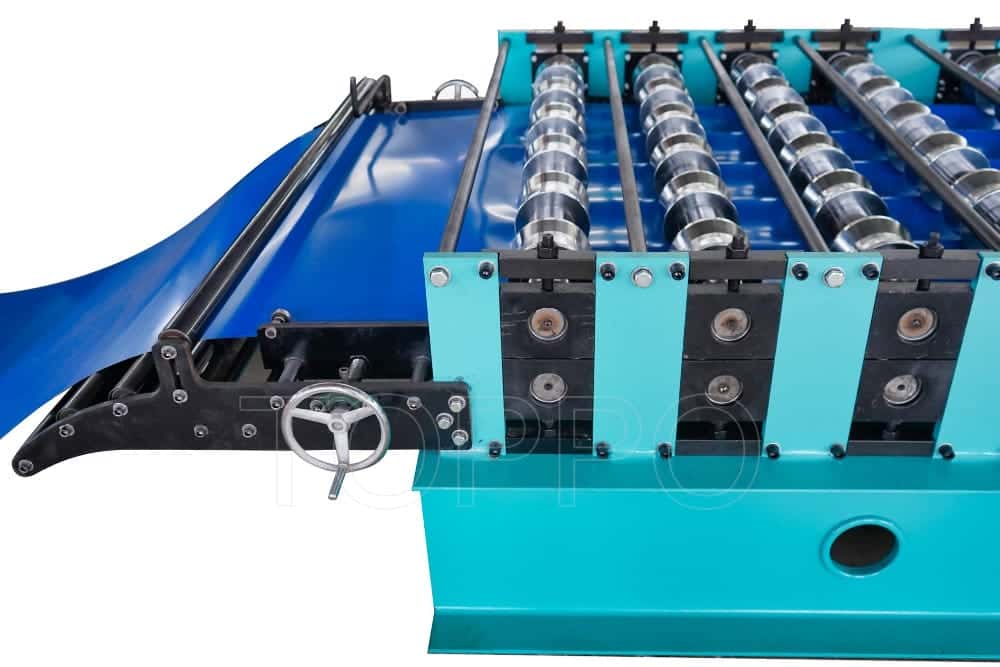

Roller Stations: 18–22

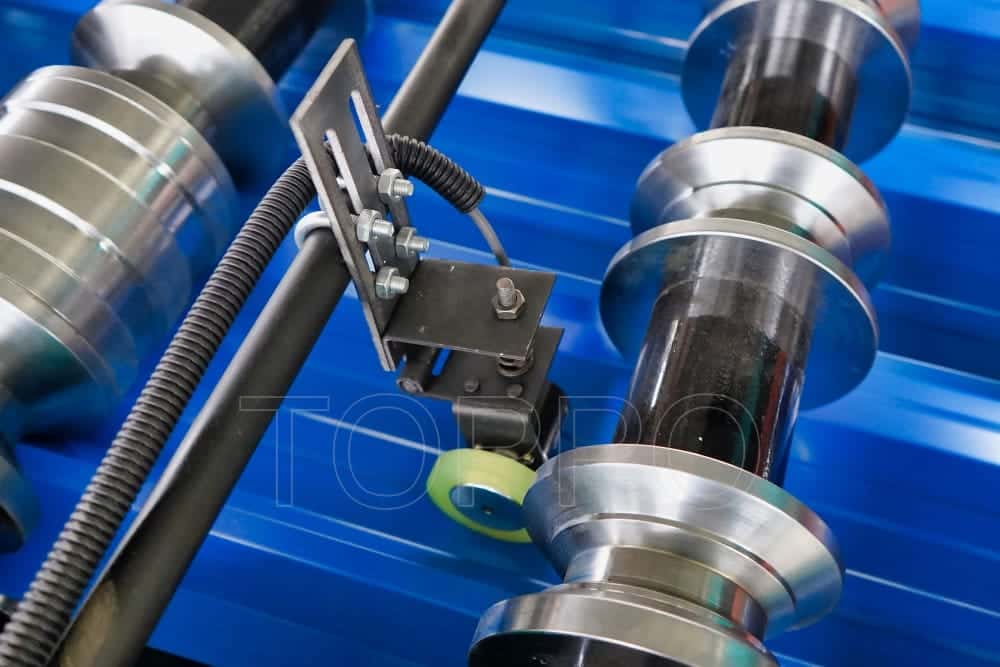

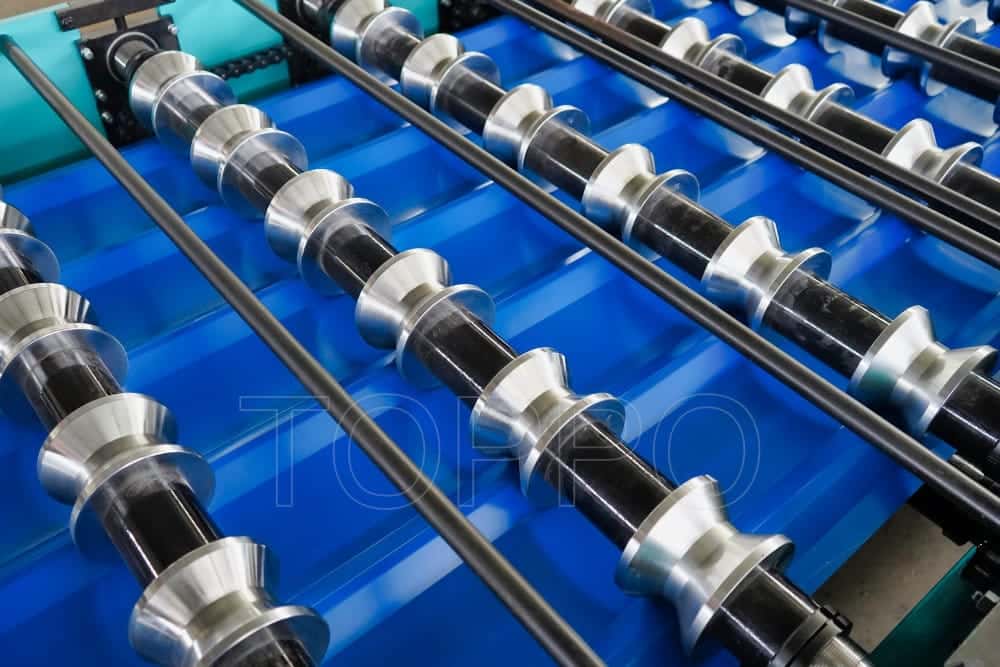

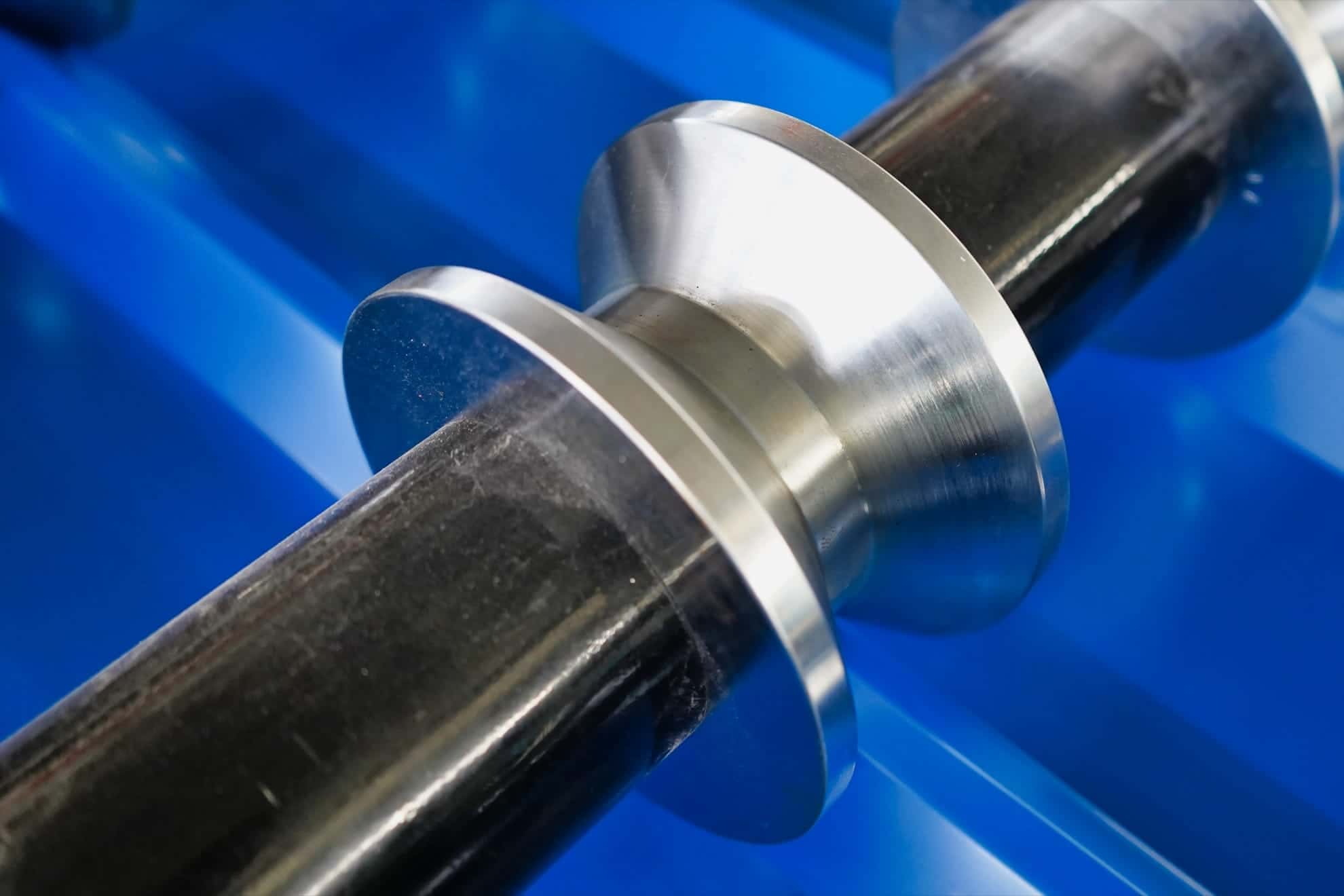

Roller Material: GCr15 with hard chrome treatment
Shaft Diameter: 75 mm
Forming Speed: 12–18 m/min
Drive Mode: Gearbox drive system

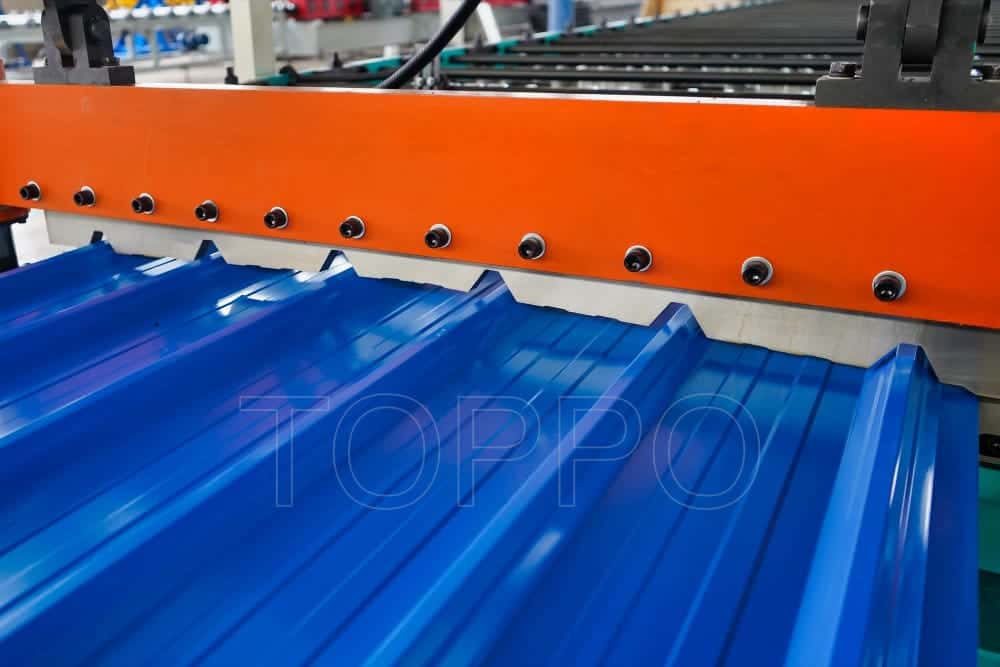

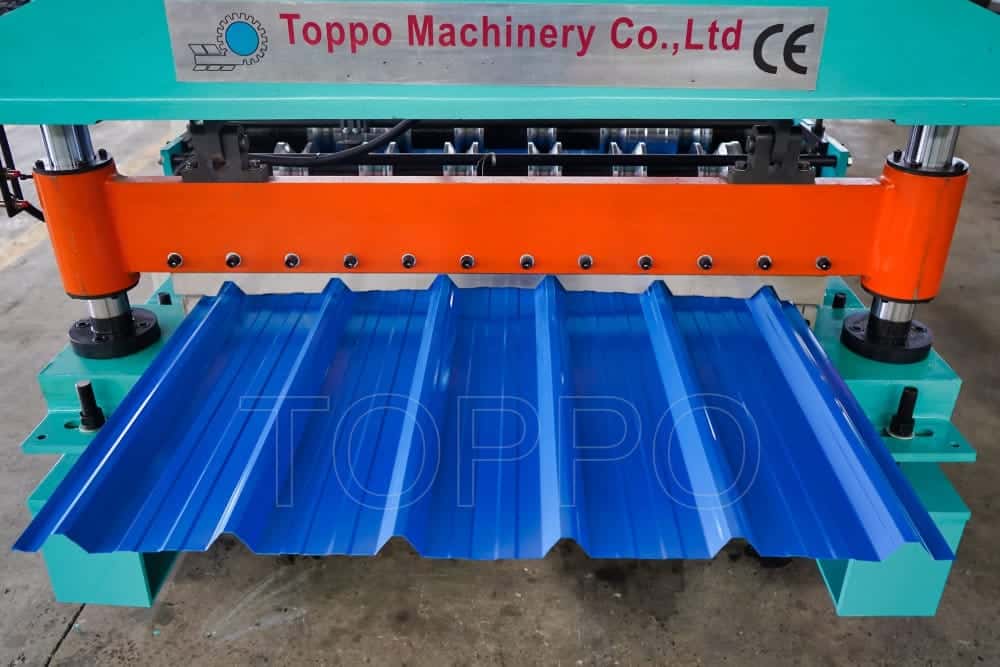

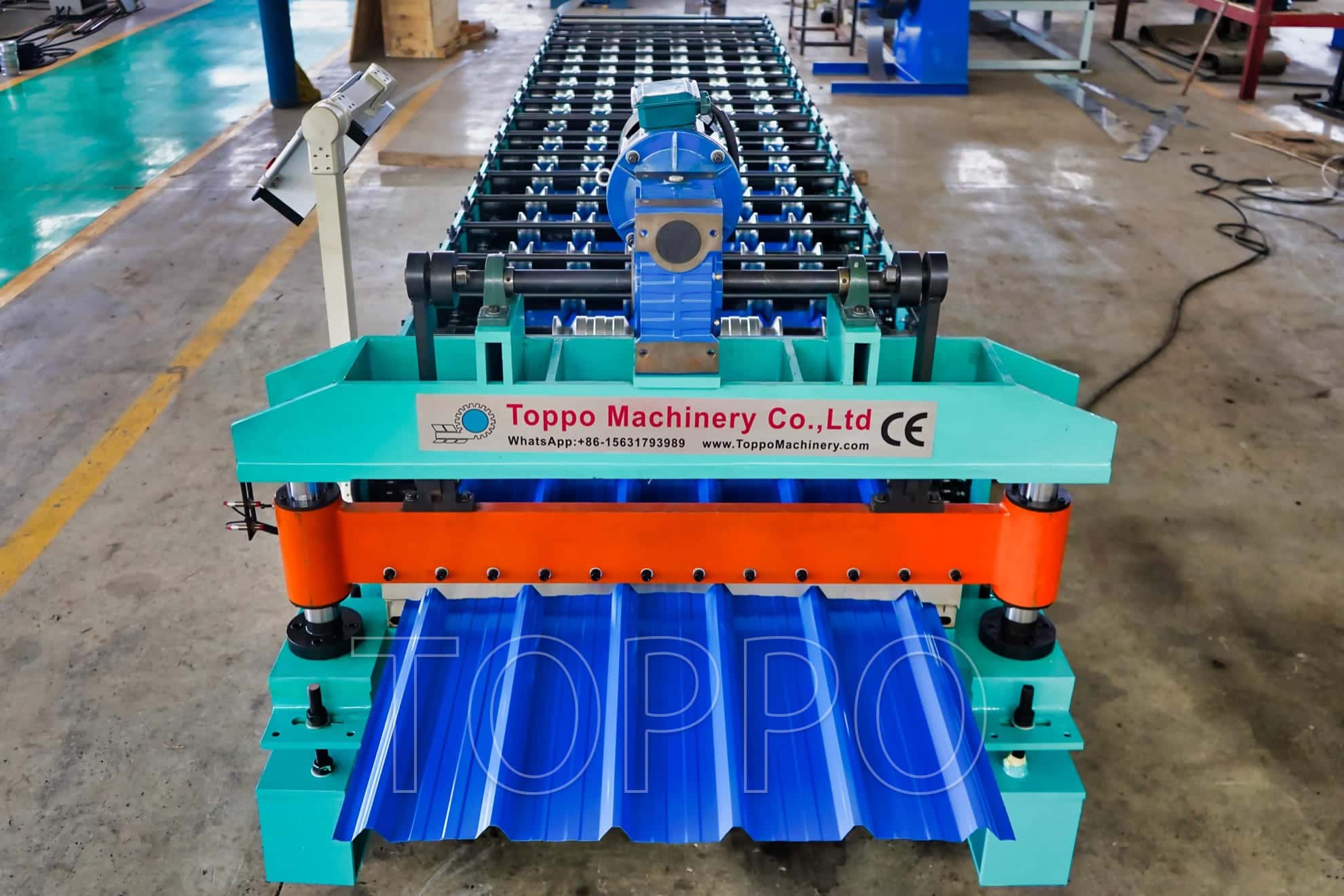

Cutting System: Hydraulic post-cutting
Blade Material: Cr12 steel with heat treatment

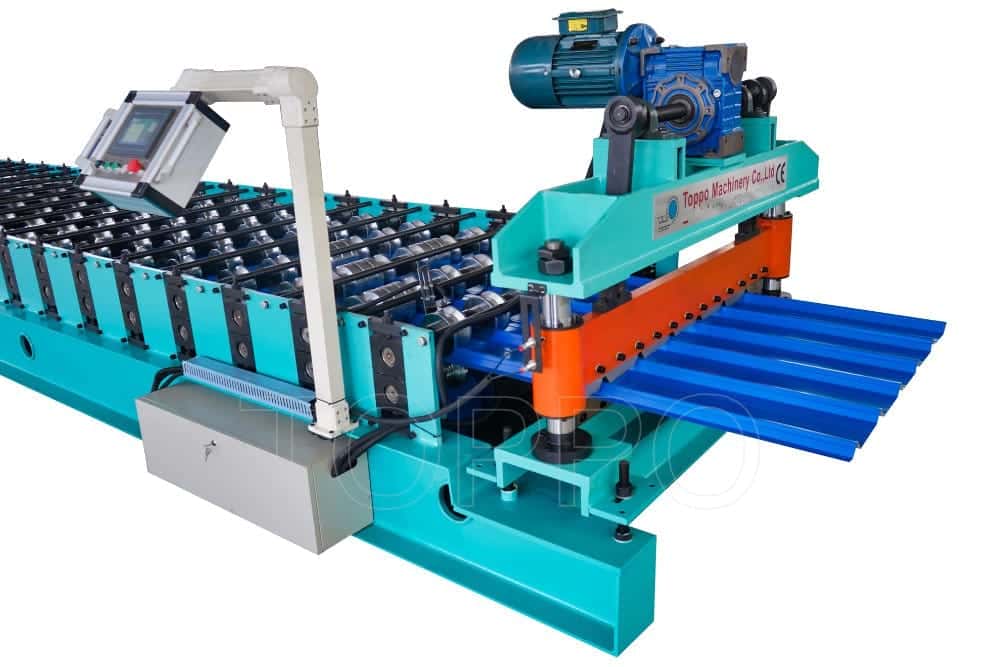

Control System: PLC with touchscreen (Delta/Siemens)
Main Power: 7.5 kW
Hydraulic Power: 5.5 kW
Voltage: 380V/50Hz/3Phase (customizable)
Frame Structure: 350H steel with welded and tempered structure
Machine Size: 10.5m x 1.5m x 1.6m
Machine Weight: About 8 tons

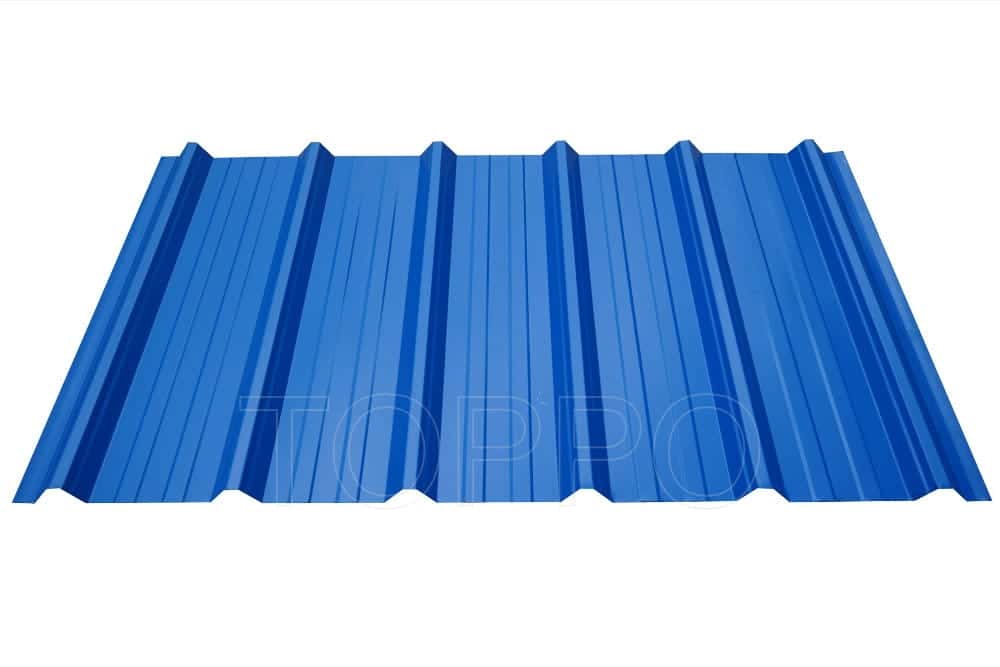

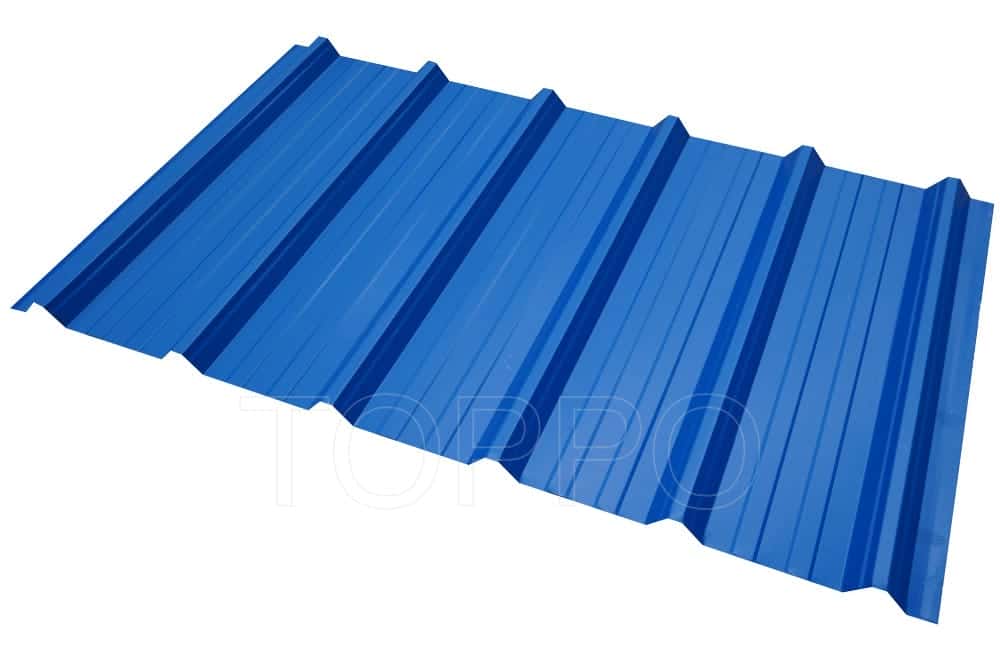

Output Profile: Trapezoidal corrugated sheet
Application: Roofing, wall cladding, metal buildings
Accuracy: ±1 mm
Lubrication System: Available for long-term operation
Auto Stacker: Optional
Decoiler: Manual or hydraulic decoiler (5 Ton)
Safety Protection: Emergency stop, safety shield
Noise Level: ≤ 75 dB
Operation Interface: Multi-language supported
Packaging: Plastic film wrap and wire fixed inside container
Color: Teal & Orange (customizable)
Installation: Overseas service available
Warranty: 12 months
Certification: CE / ISO 9001
After-Sales Support: Online technical support + spare parts
Custom Profile: Acceptable upon drawing/sample
This gear-driven roll forming machine is optimized for stable high-precision output with minimal noise and maintenance, making it an ideal solution for efficient and cost-effective production of trapezoidal roofing panels.
