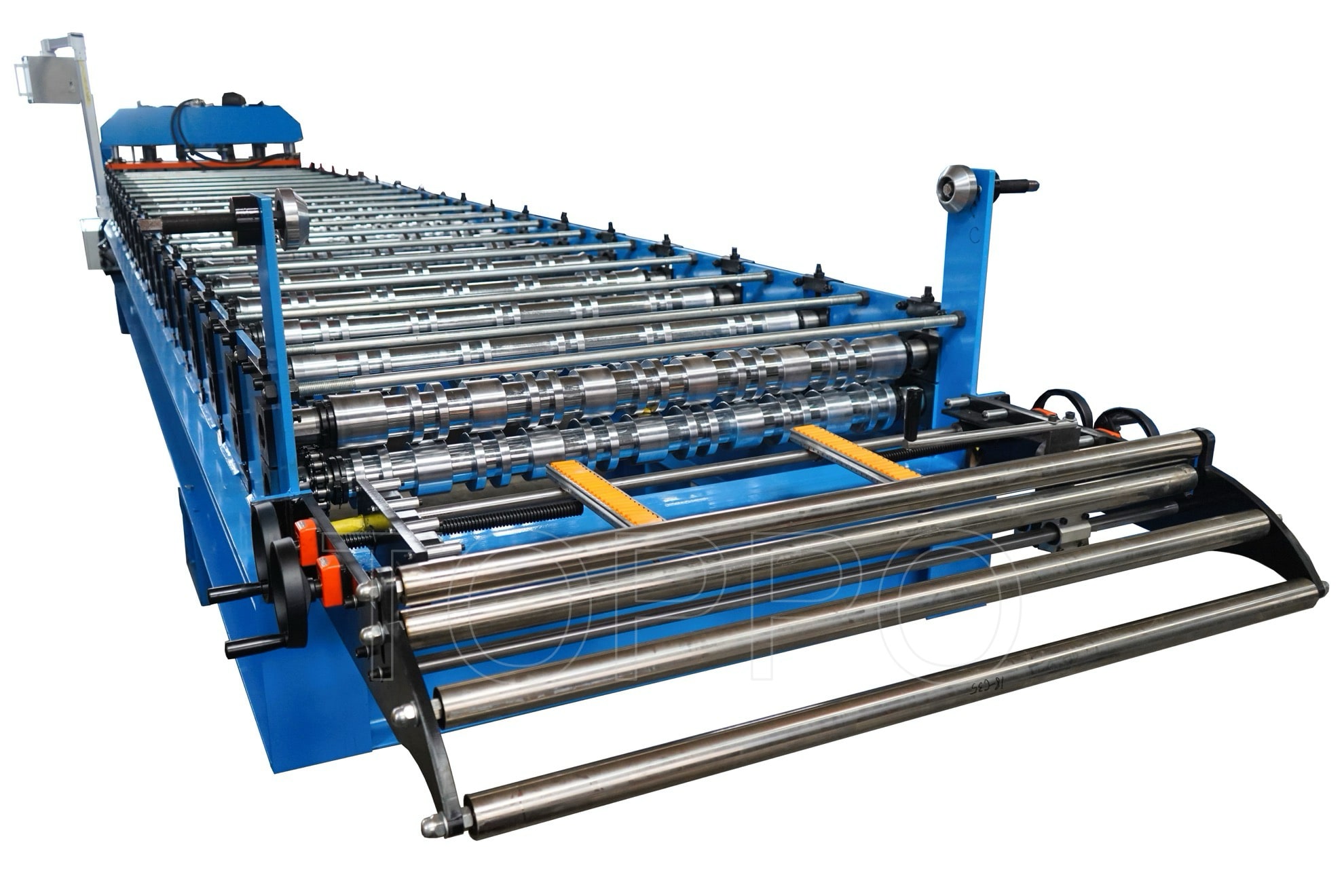

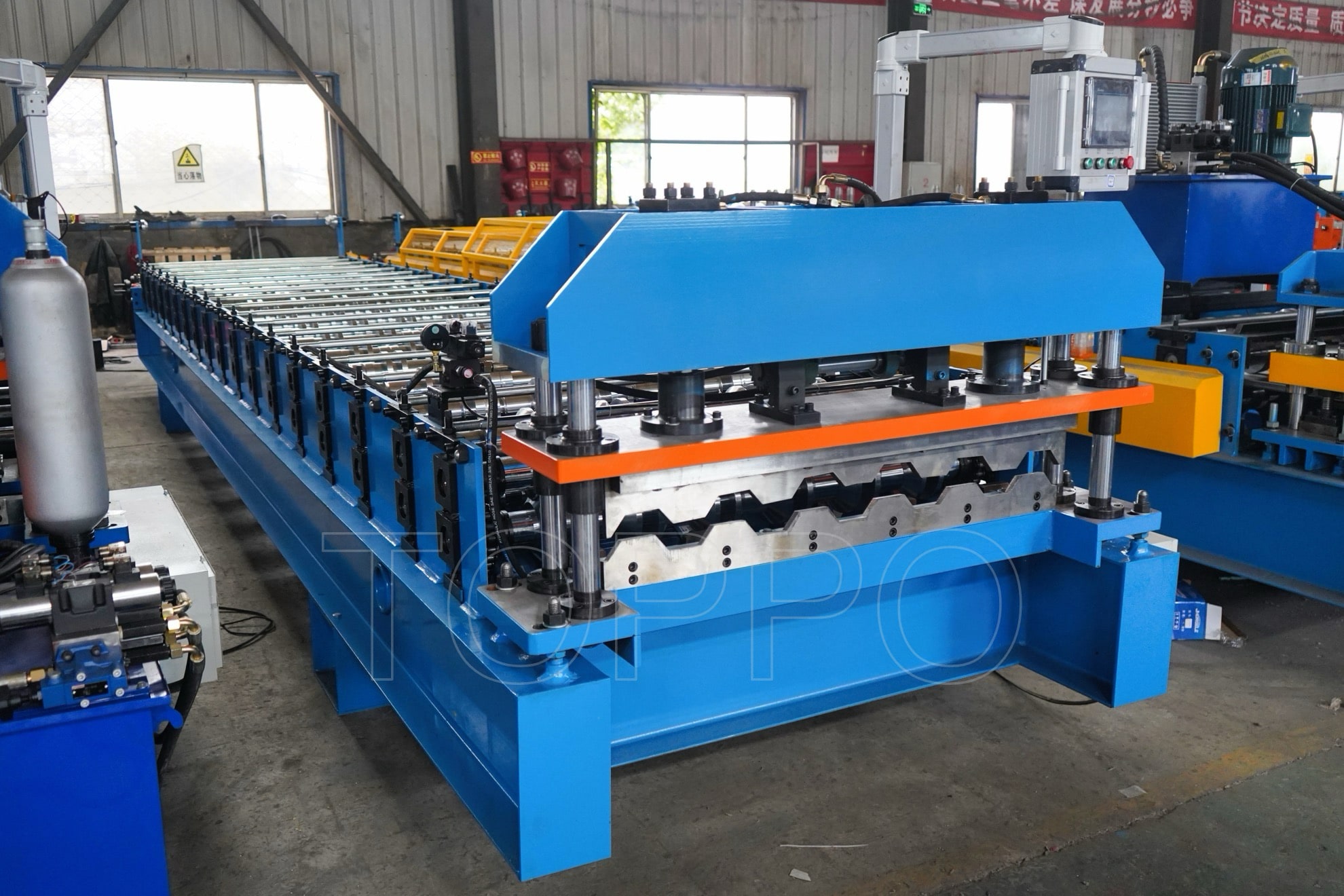

Machine Type: Trapezoidal Roll Forming Machine
Applicable Material: PPGI, GI, Aluminum
Material Thickness: 0.3–0.7 mm
Input Width: 1250 mm
Effective Output Width: 1000 mm
Roller Stations: 18 stations

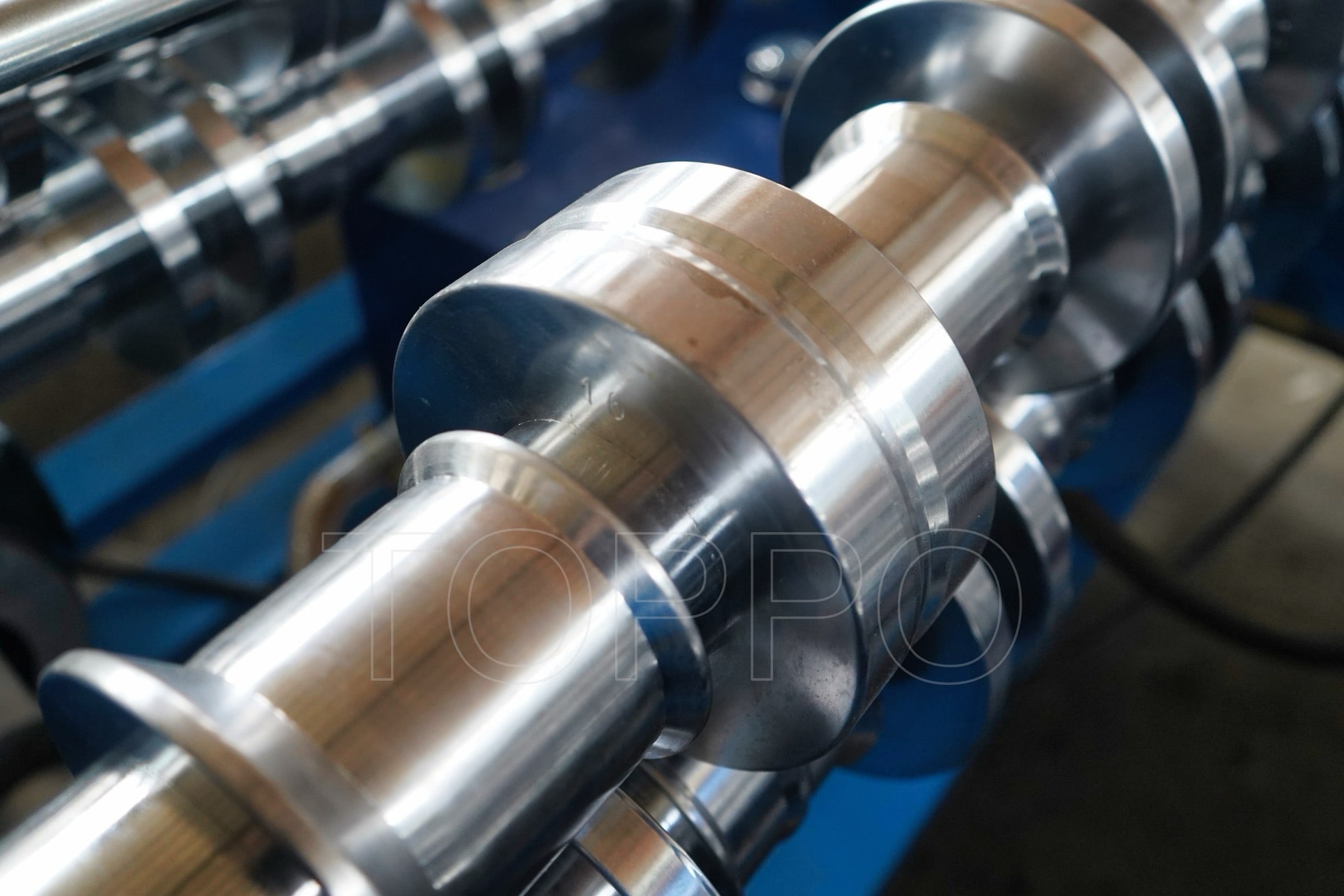

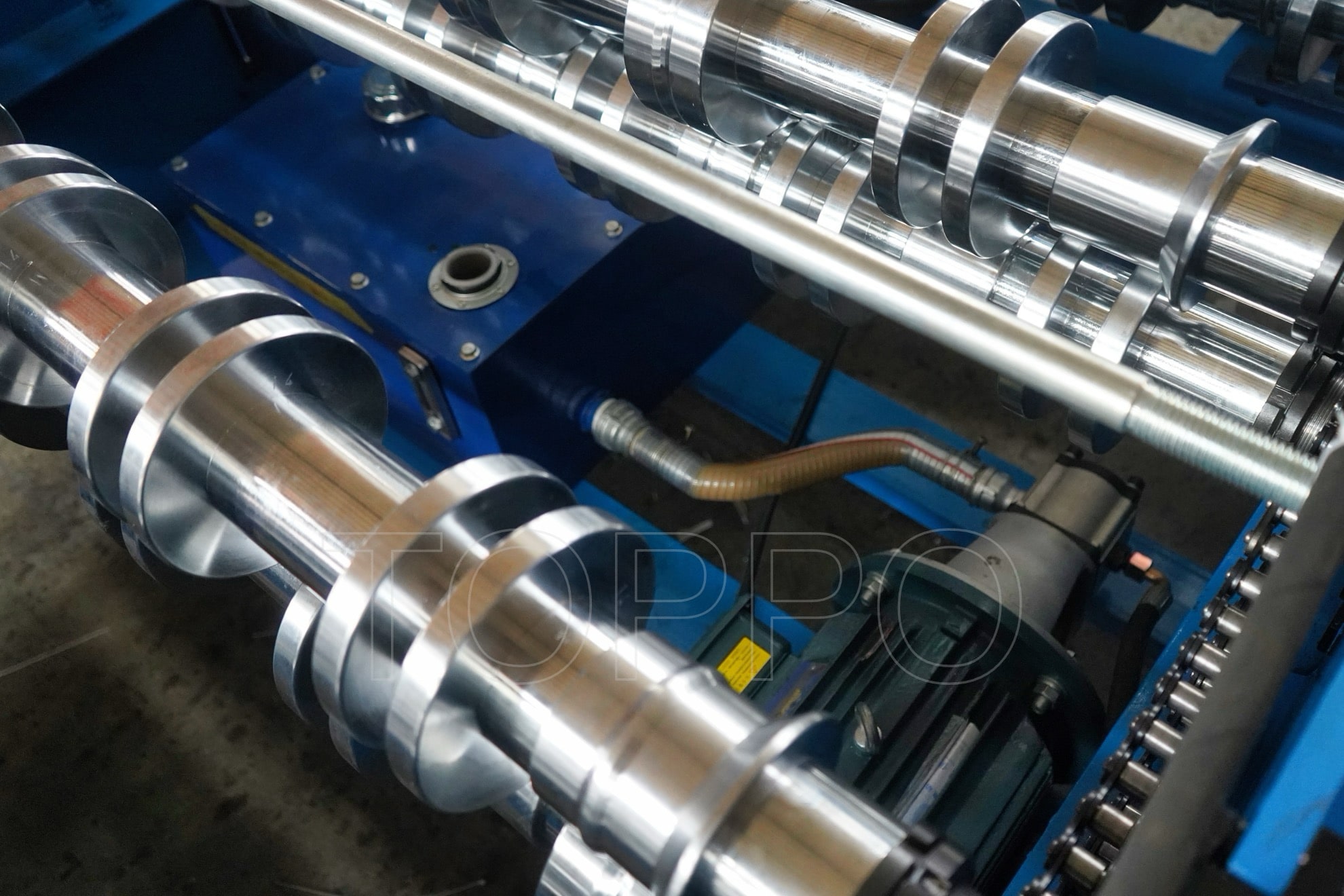

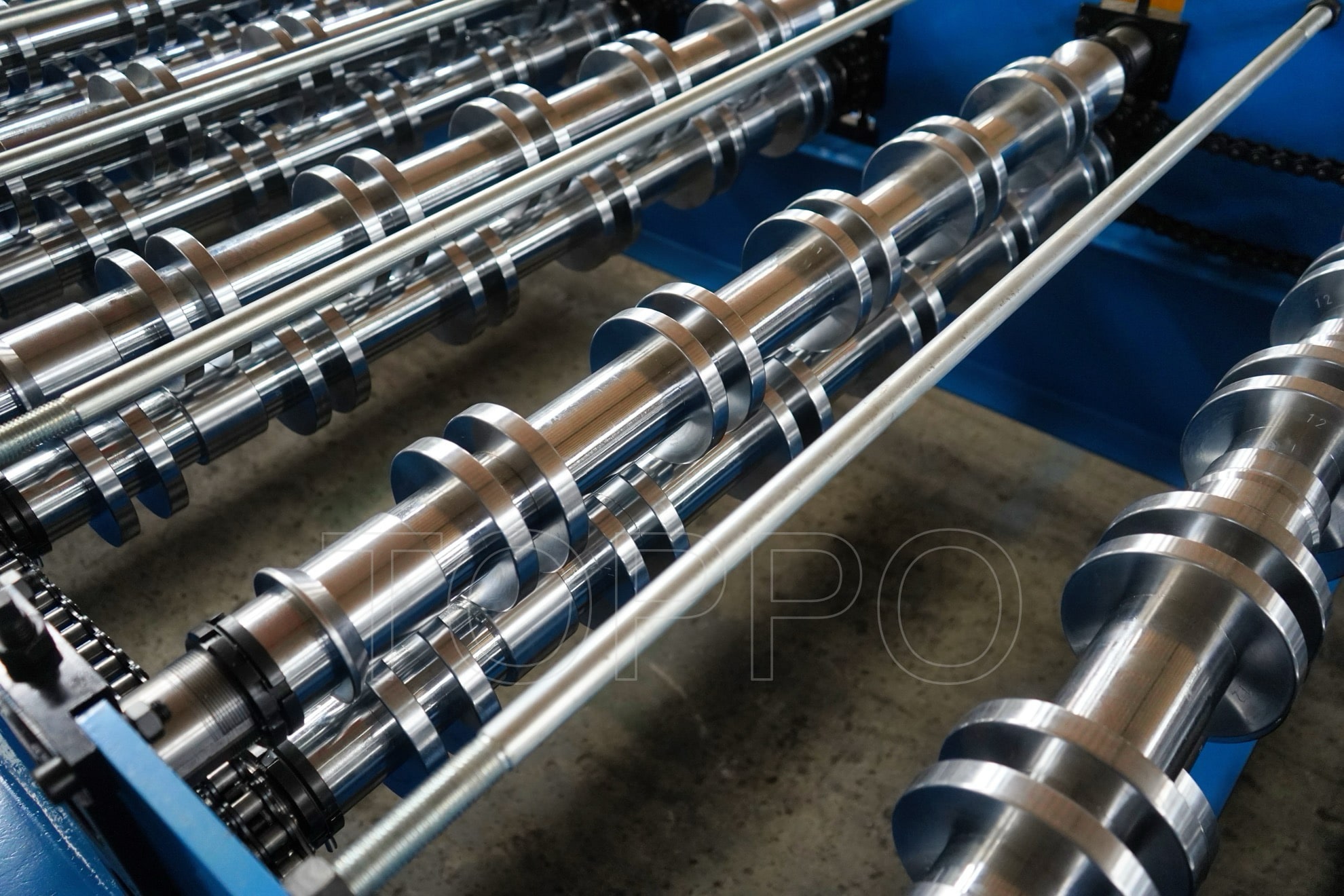

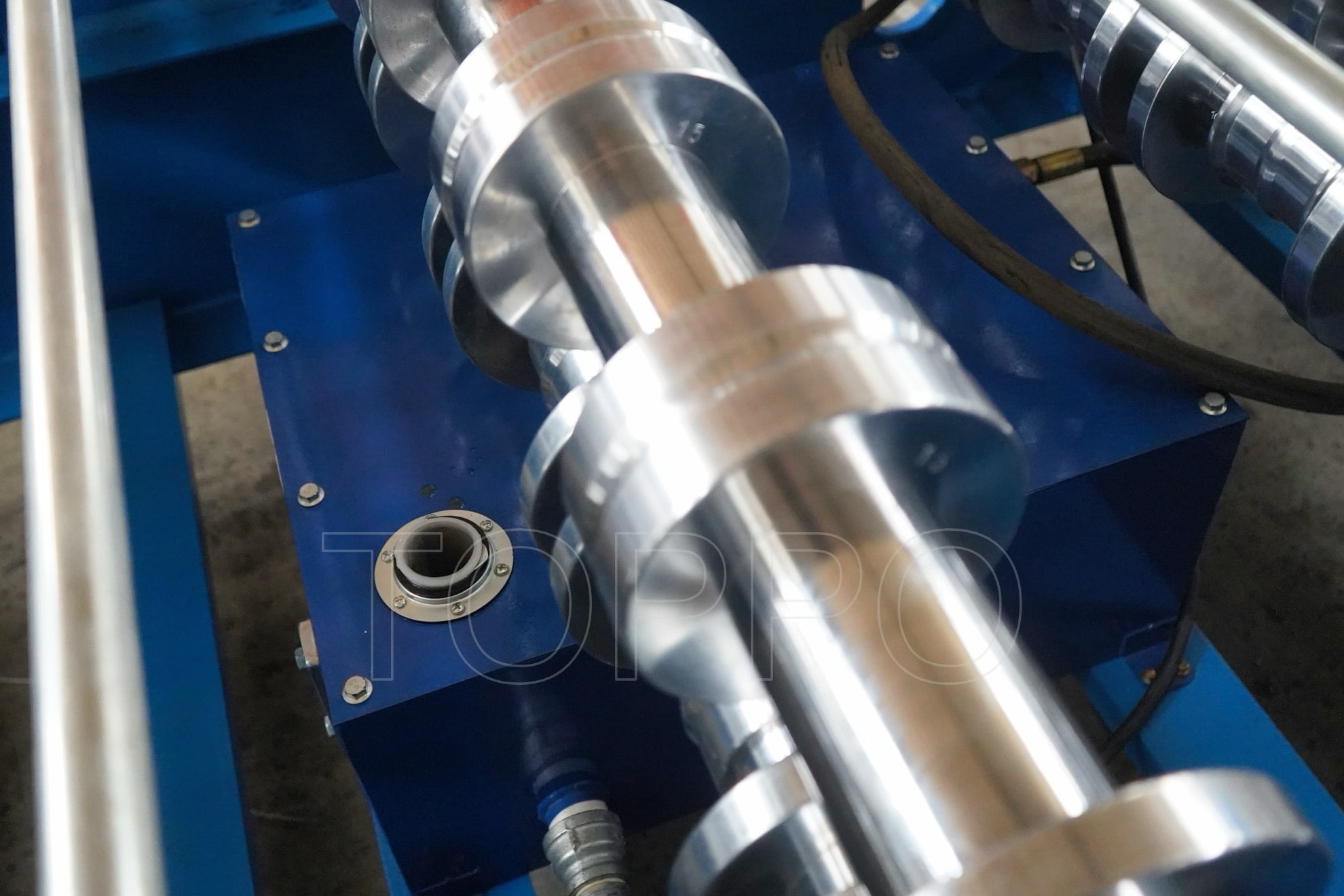

Roller Material: GCr15 steel with hard chrome coating
Shaft Diameter: 70 mm
Forming Speed: 10–18 m/min
Transmission: Chain drive or gearbox

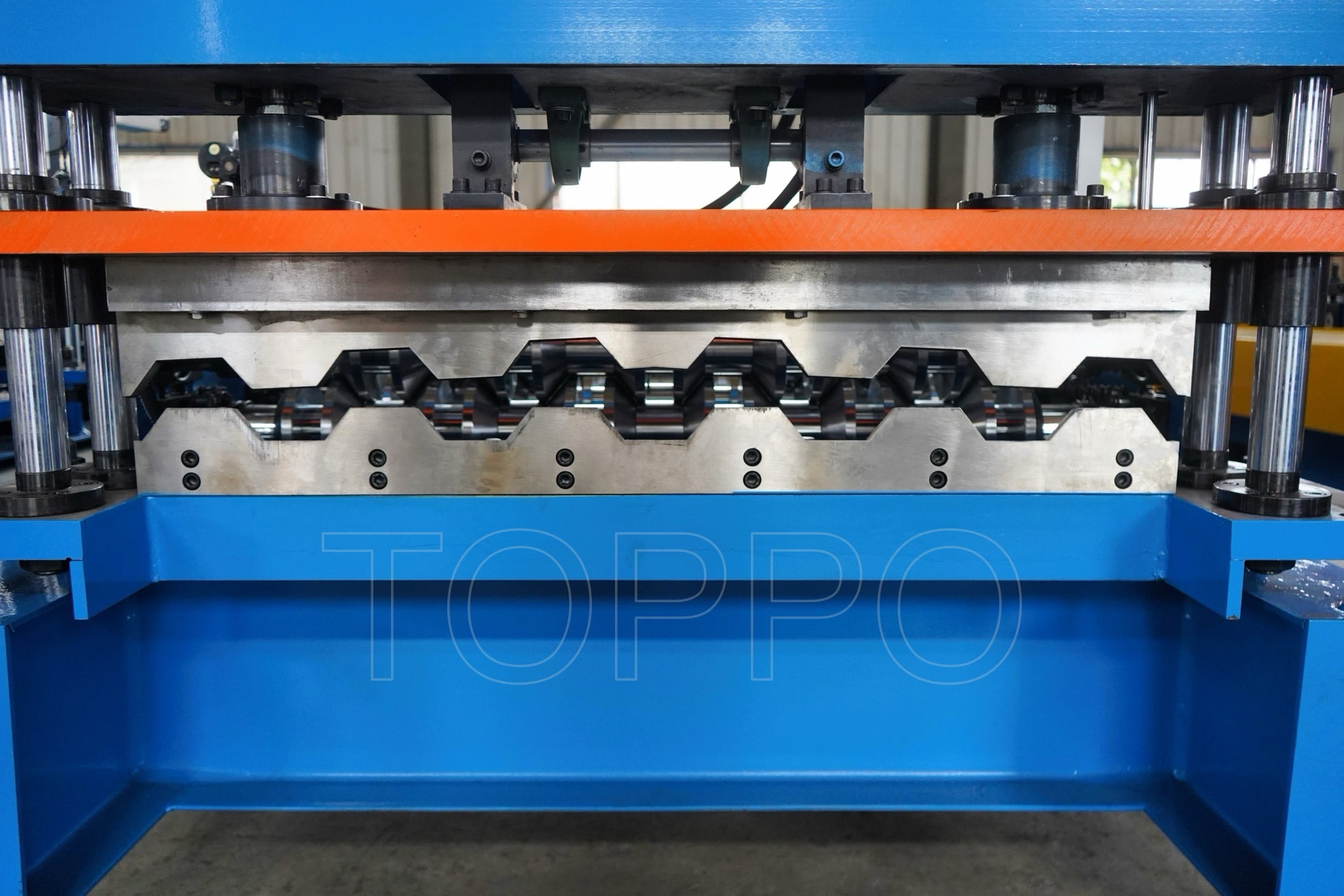

Cutting Type: Hydraulic post-cutting
Cutting Blade: Cr12Mov steel, quenched
Control System: PLC with Delta touchscreen (customizable)

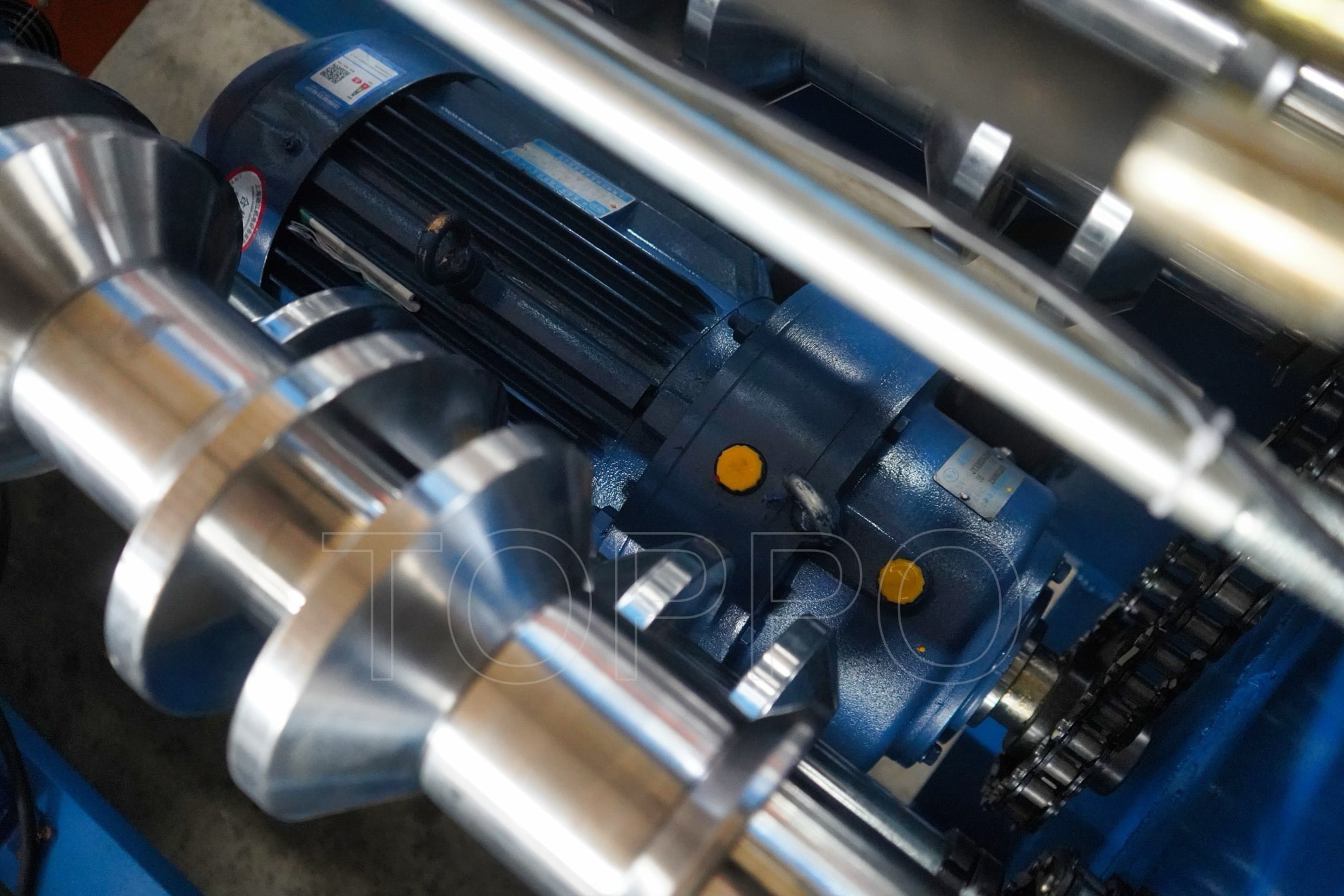

Main Motor Power: 7.5 kW

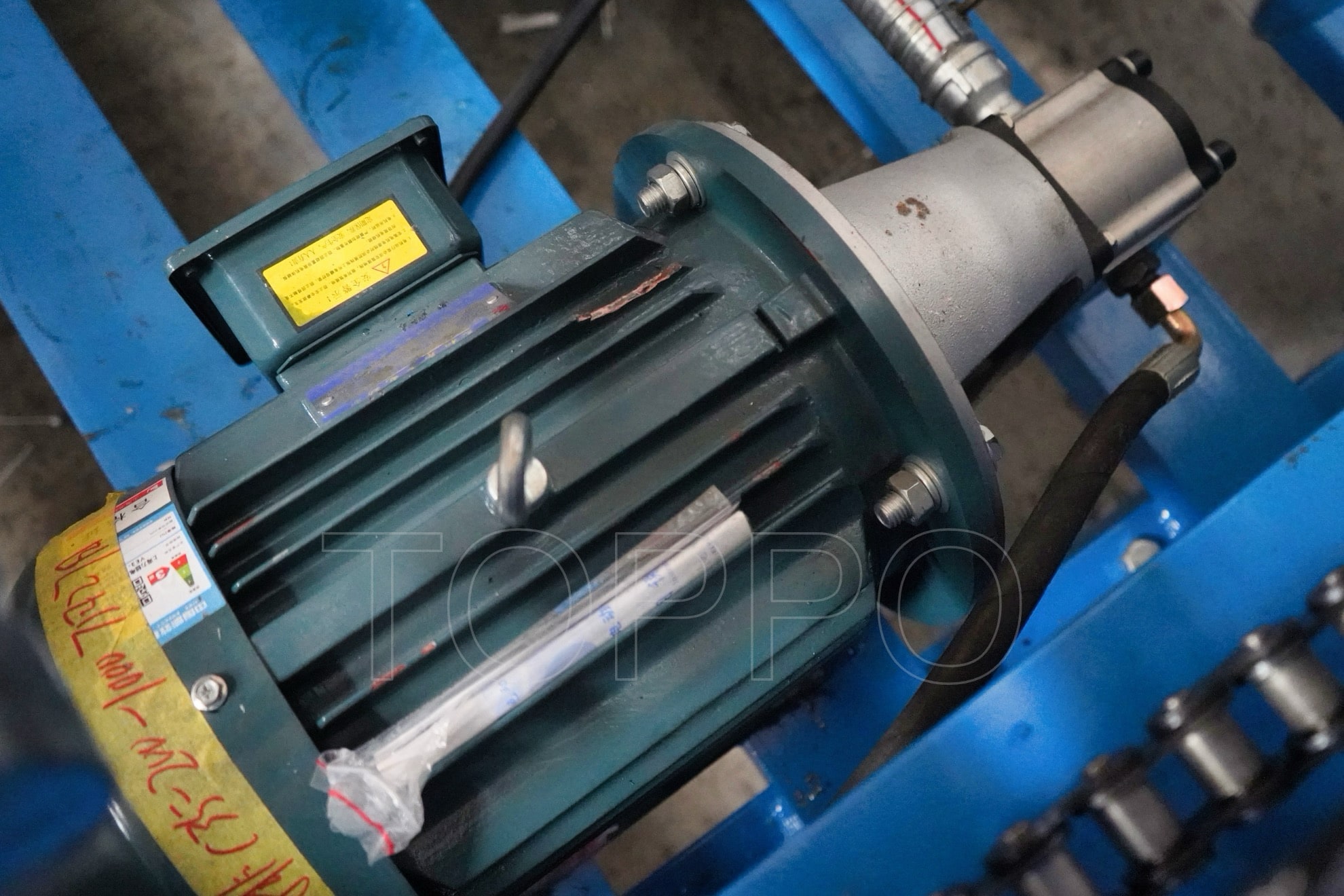

Hydraulic Power: 4.0 kW
Voltage: 380V/50Hz/3Phase (adjustable)
Machine Frame: 350H steel frame, welded
Machine Dimensions: 10m x 1.5m x 1.6m
Weight: About 7.5 tons
Profile Output: Trapezoidal roofing panel
Usage: Roofing, siding, steel structures
Cutting Accuracy: ±1 mm
Decoiler: Optional 5T manual or hydraulic
Auto Stacker: Optional
Encoder: Omron
Safety Protection: Emergency stop & full guarding
Cooling Method: Natural air cooling
Language Support: Multi-language HMI interface
Packaging: Anti-rust film + wire fixed in container
Installation: Video guide or engineer abroad
Warranty: 12 months
Certification: CE / ISO9001
After-Sales Service: 24/7 online + free spare parts
Profile Customization: Available upon drawing/sample
Color: Blue-gray standard (customizable)
Production Capacity: Up to 8000 meters/day
Control Cabinet: Dustproof, IP54 certified
This roll forming machine is built for professional-level metal forming tasks. The machine ensures clean cutting and high-precision shaping for trapezoidal sheet production. With industrial-grade strength and advanced automation, it's an excellent solution for roofing panel manufacturers.
