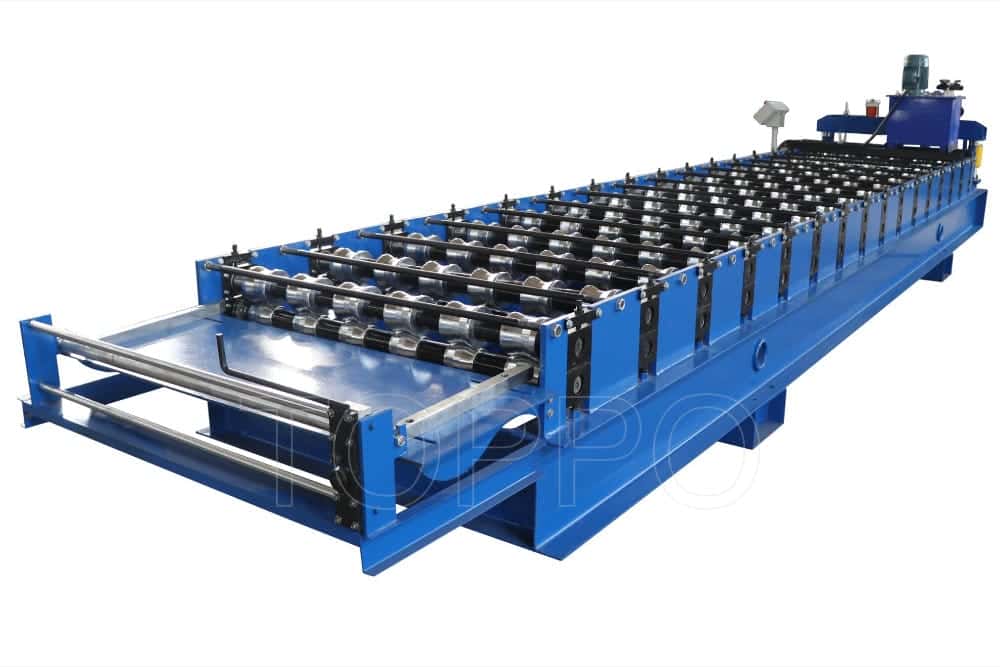

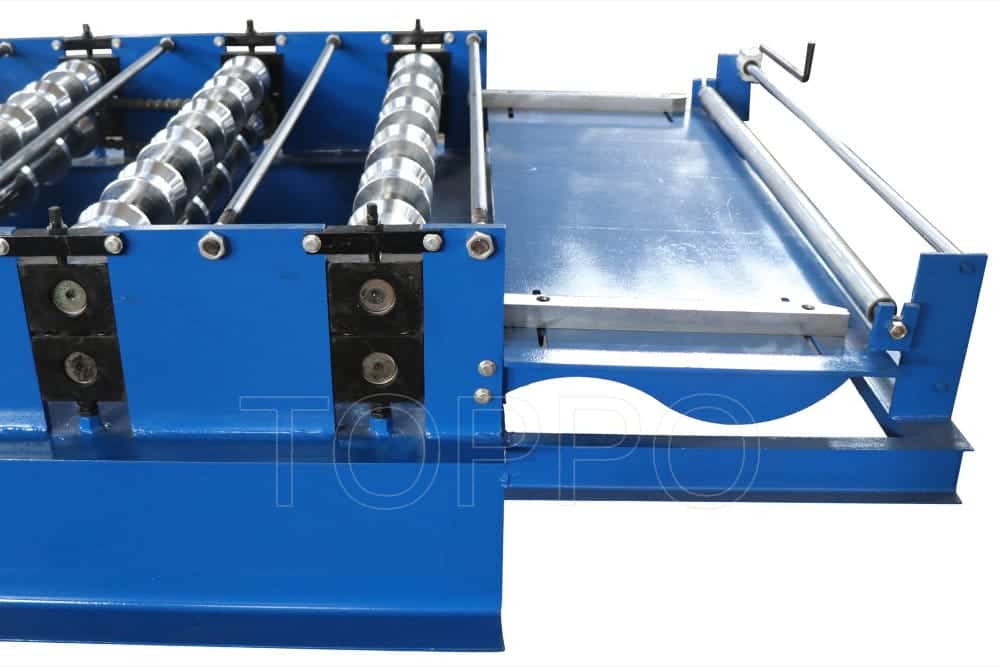

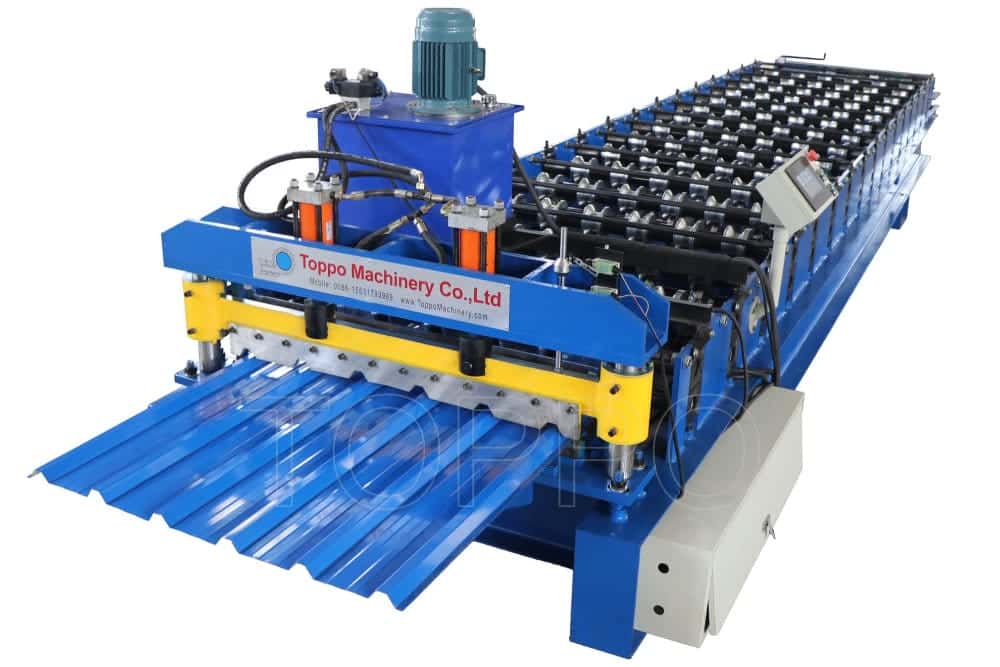

Machine Type: Trapezoidal Roll Forming Machine
Suitable Materials: PPGI, galvanized steel, aluminum
Material Thickness: 0.3–0.8 mm
Input Coil Width: 1220 mm
Effective Output Width: 1000 mm

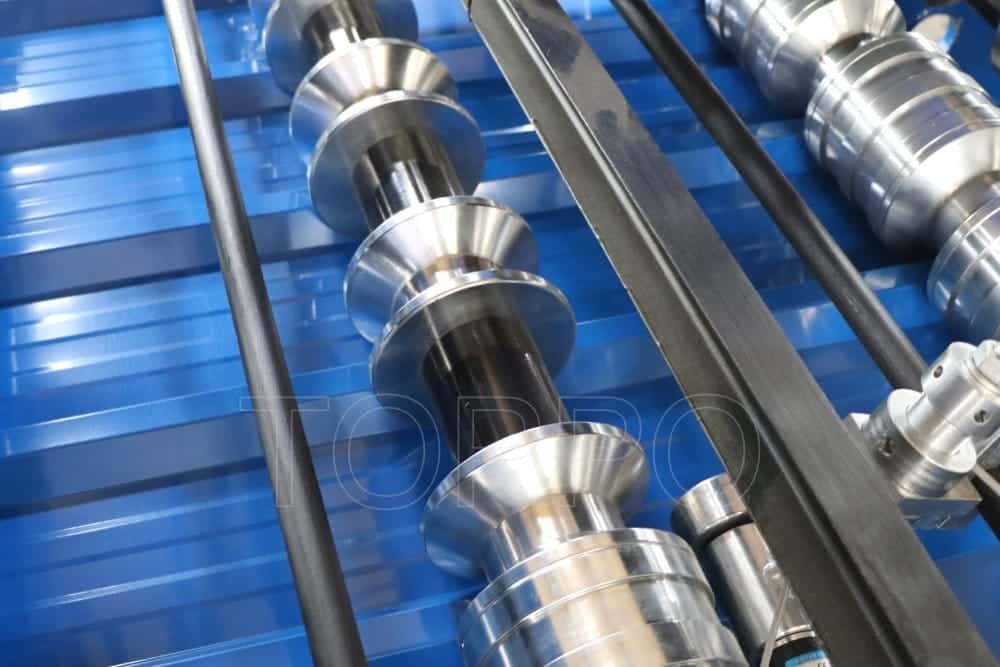

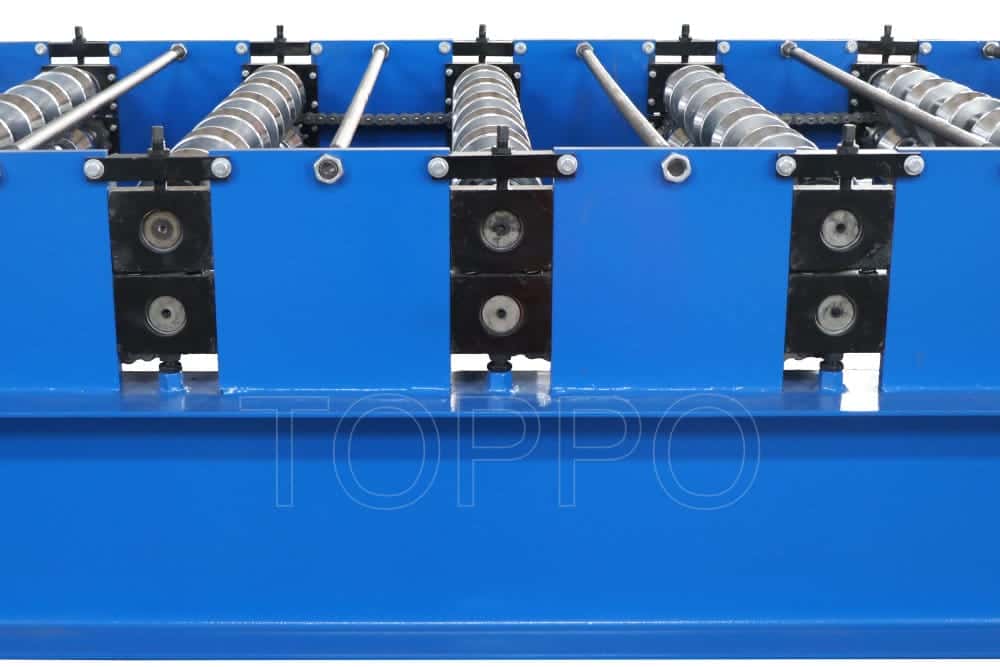

Roller Stations: 16–22 steps
Roller Material: 45# steel, chrome plated
Shaft Diameter: 70 mm
Forming Speed: 12–18 meters/min
Drive Type: Chain or Gear drive

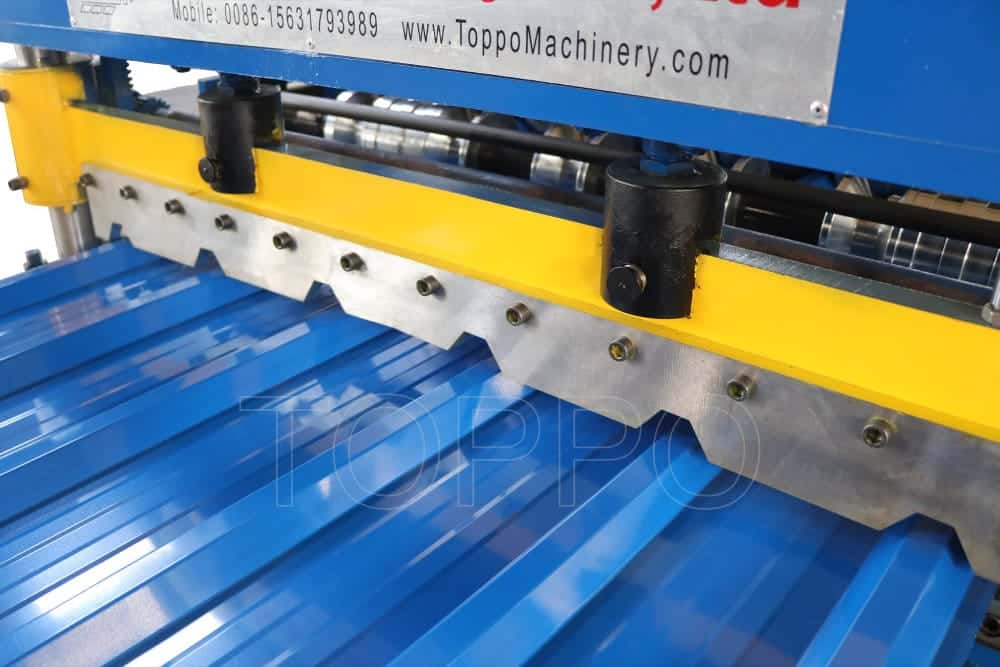

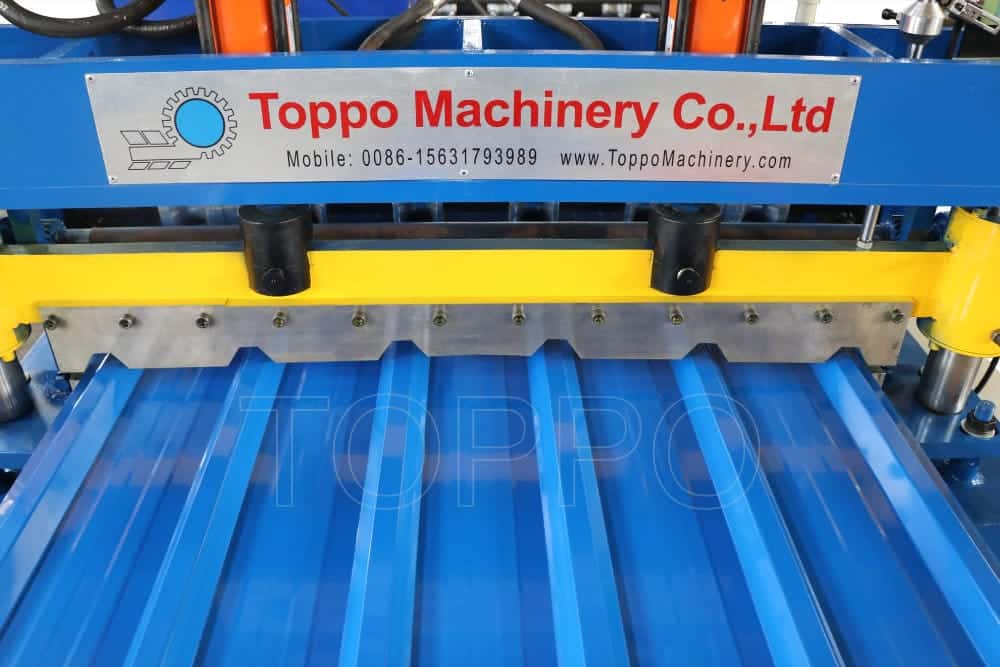

Cutting Type: Hydraulic cutting

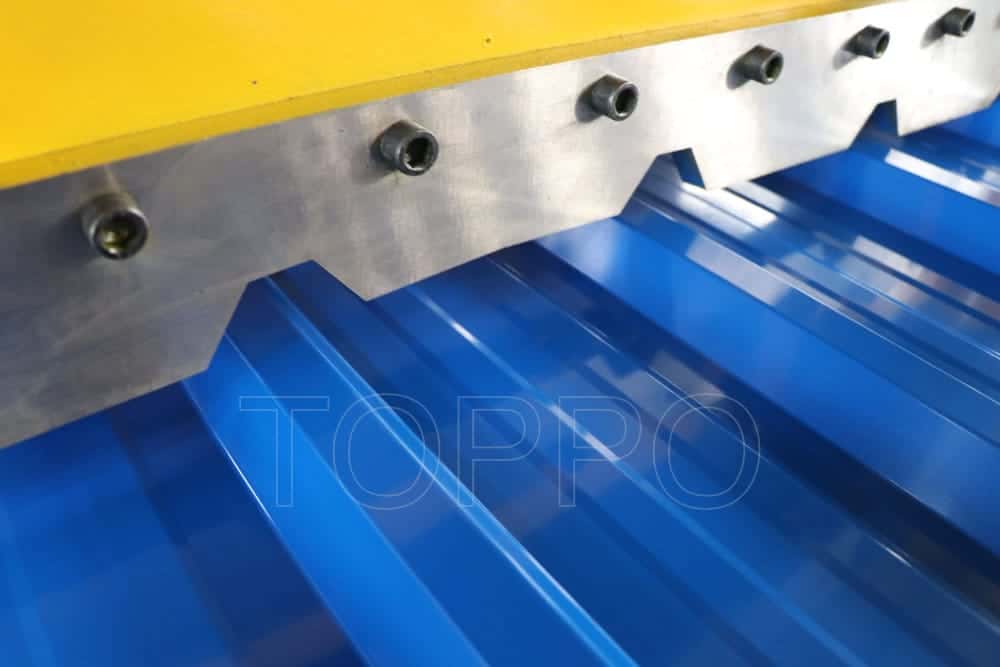

Cutting Blade Material: Cr12Mov with quenching
PLC Brand: Siemens / Delta / Mitsubishi

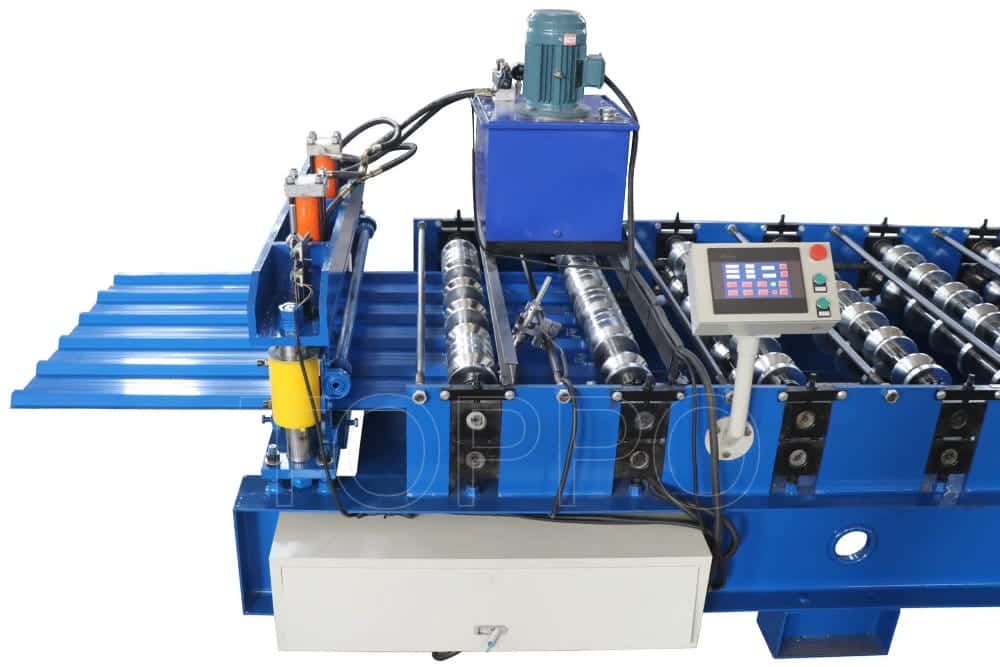

HMI: Touch screen panel with multi-language support
Main Motor: 7.5 kW
Hydraulic Power: 4.0 kW
Voltage: 380V, 50Hz, 3Phase (or customized)
Frame Structure: 350H welded steel
Overall Dimension: 10m x 1.5m x 1.6m
Weight: Approx. 8 tons

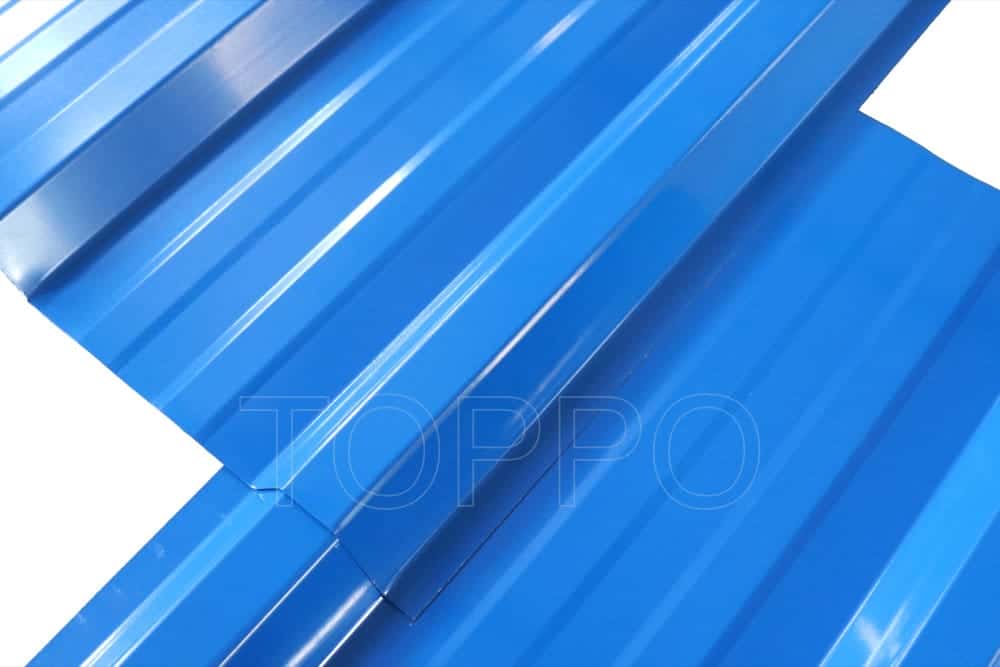

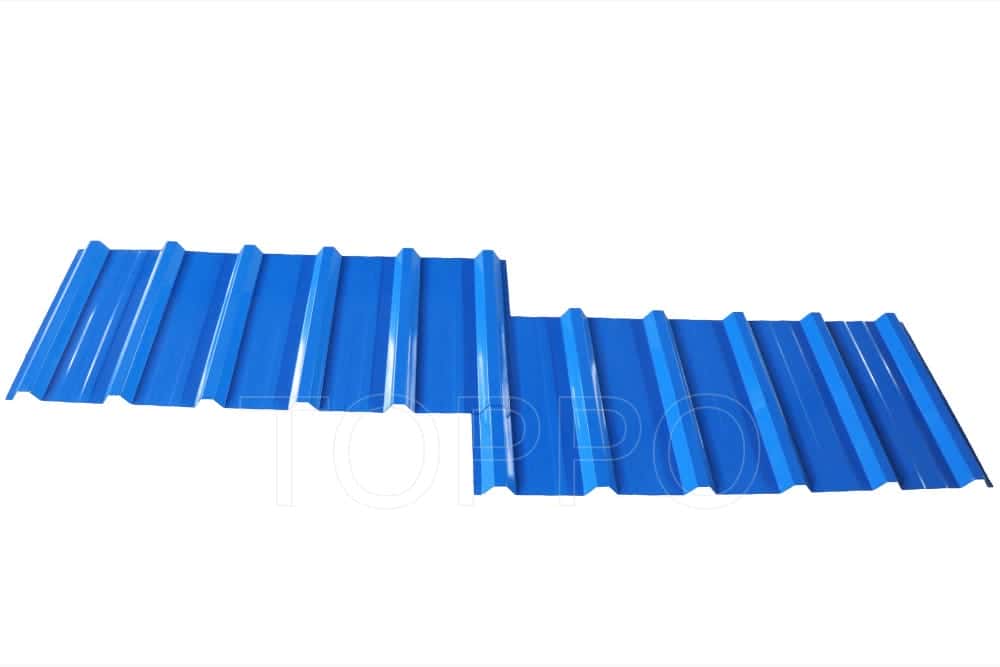

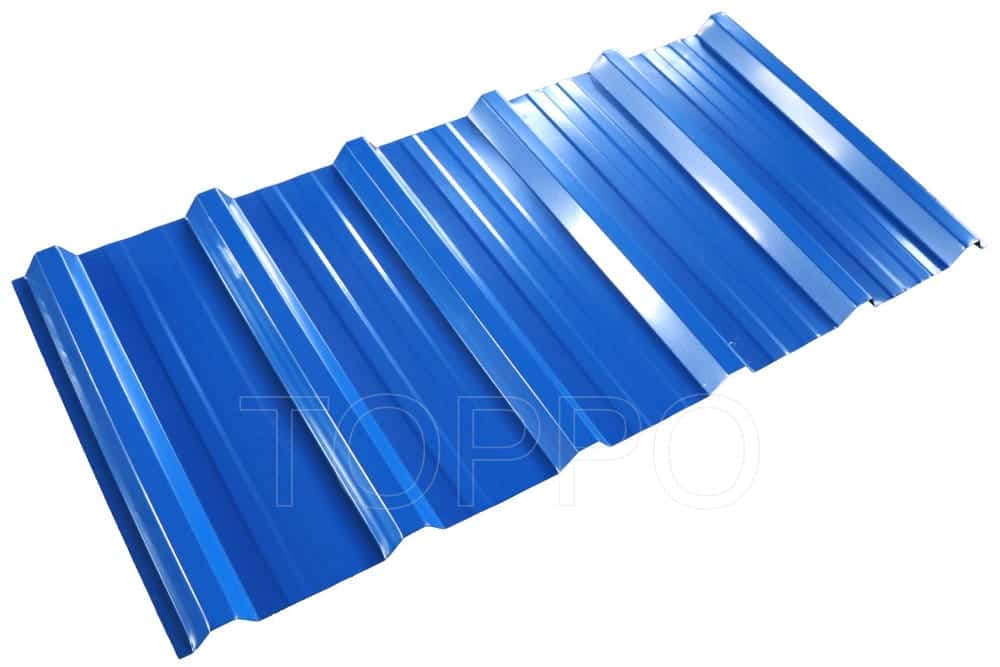

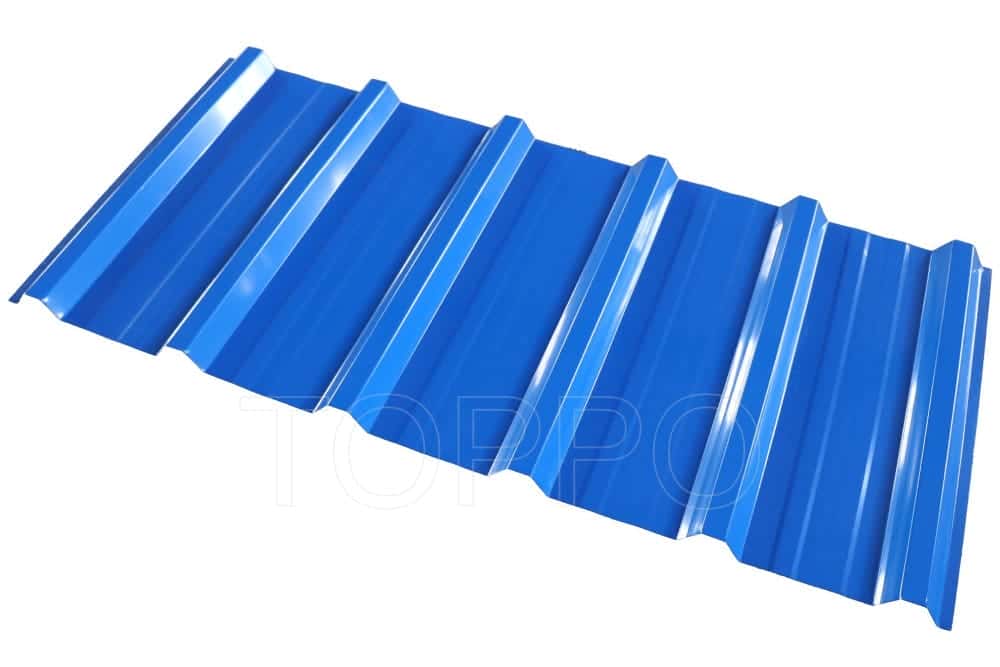

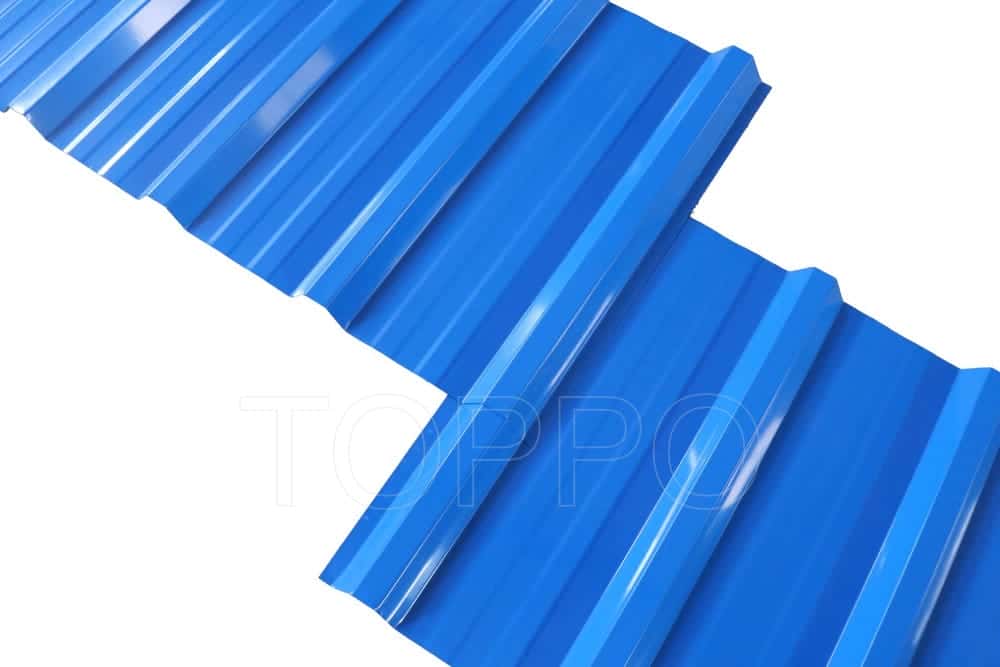

Profile Output: Trapezoidal roofing/wall panel
Application: Steel buildings, roof cladding, warehouse
Decoiler: Optional 5T manual/hydraulic
Stacker: Optional automatic/manual

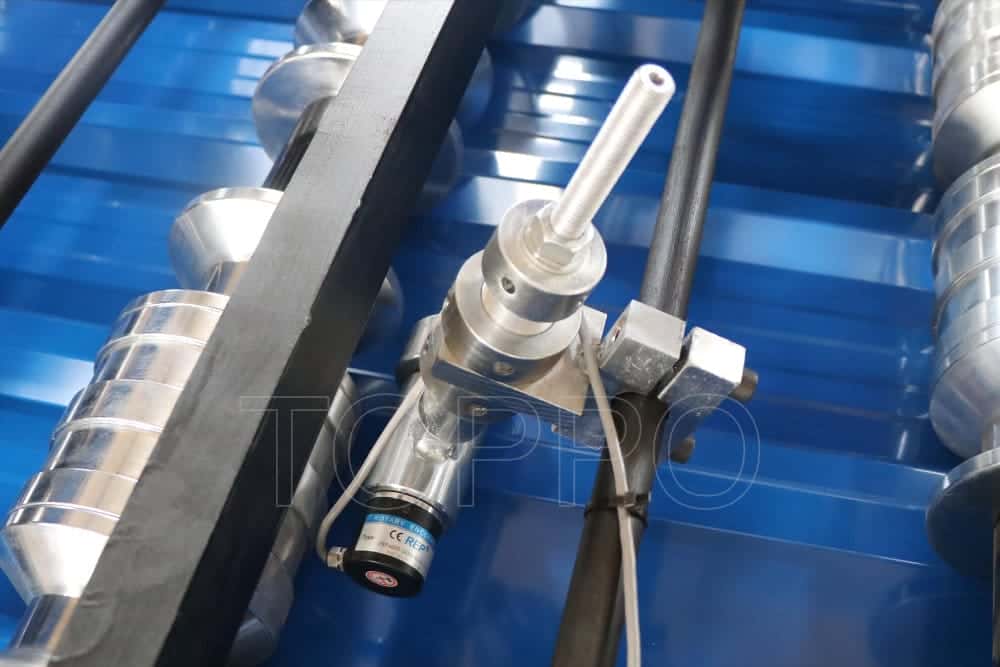

Encoder: Omron high-accuracy type
Safety Devices: Emergency stop button, guards
Noise Level: ≤ 75 dB
Control Accuracy: ±1 mm
Color: Blue + yellow (can be customized)
Lubrication System: Equipped for long-term operation
Installation Service: Onsite or video guide
Training: Operation manual and video provided
Certification: ISO9001 / CE
Warranty: 12 months
After-sales: Online support + spare parts
Customization: Supported for various profiles
Packing: Anti-rust oil, plastic film, container fixed
This machine is widely used in steel structure industries for mass production of high-quality trapezoidal panels. It is a perfect solution for reliable, efficient, and fully automated metal sheet processing lines.
