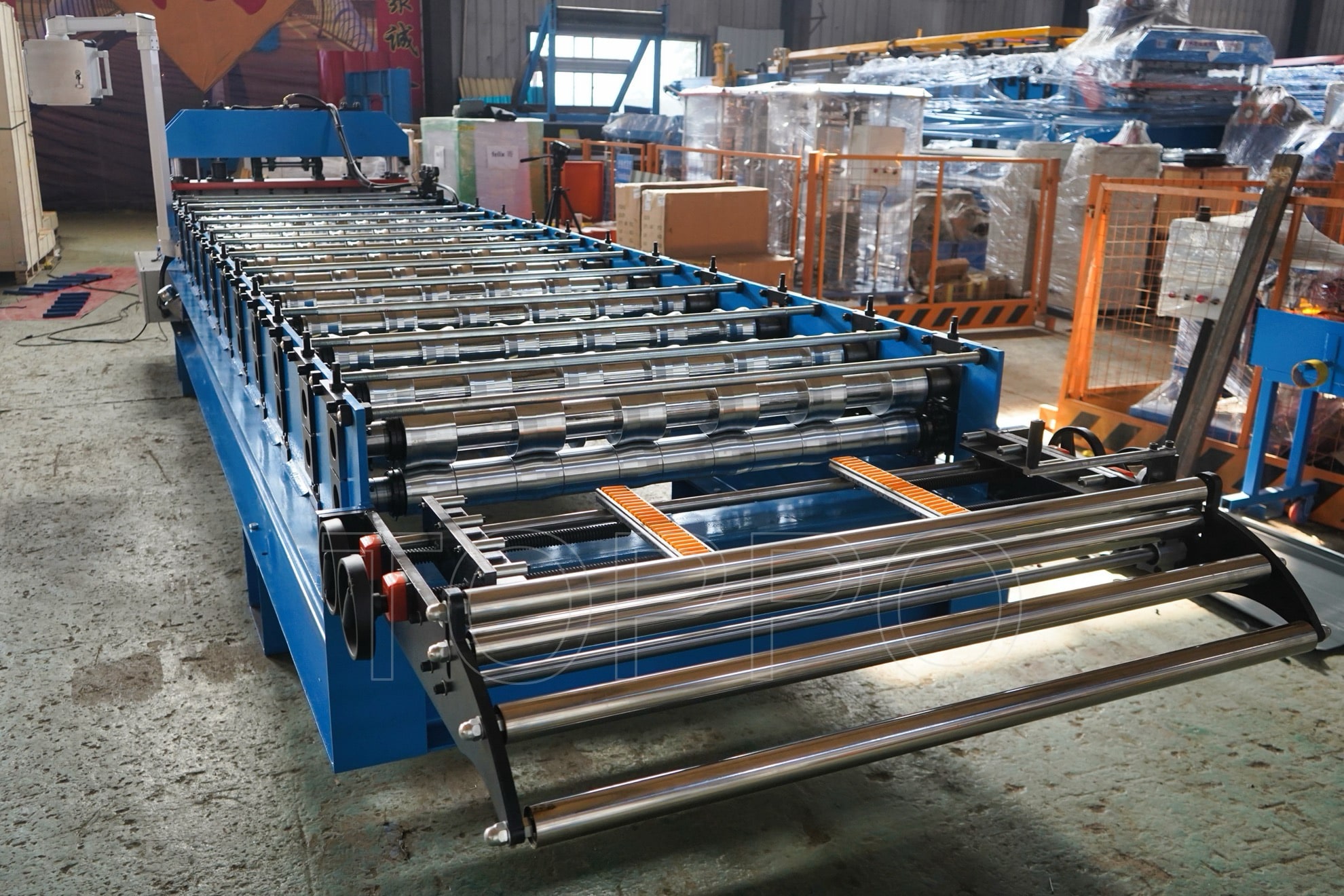

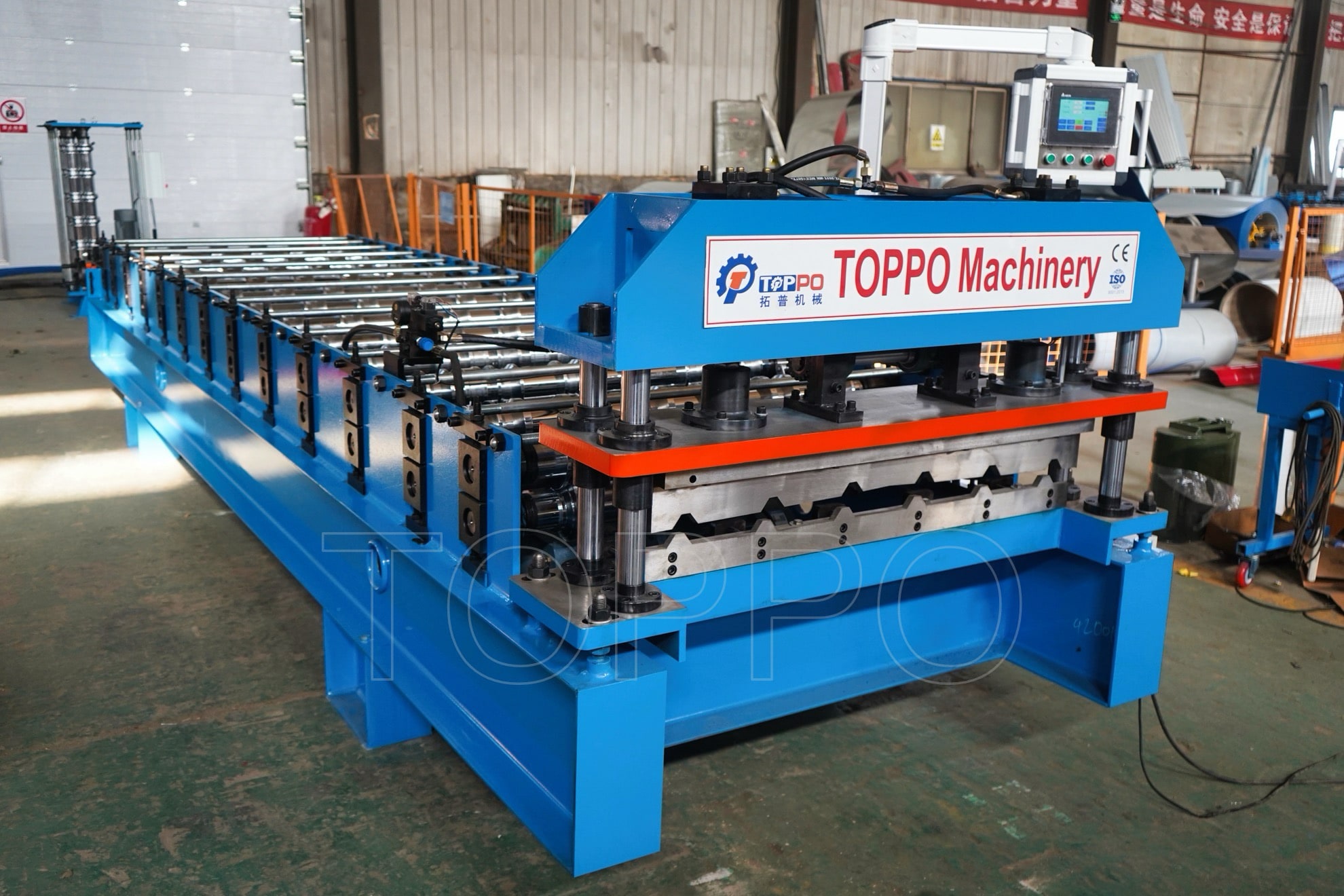

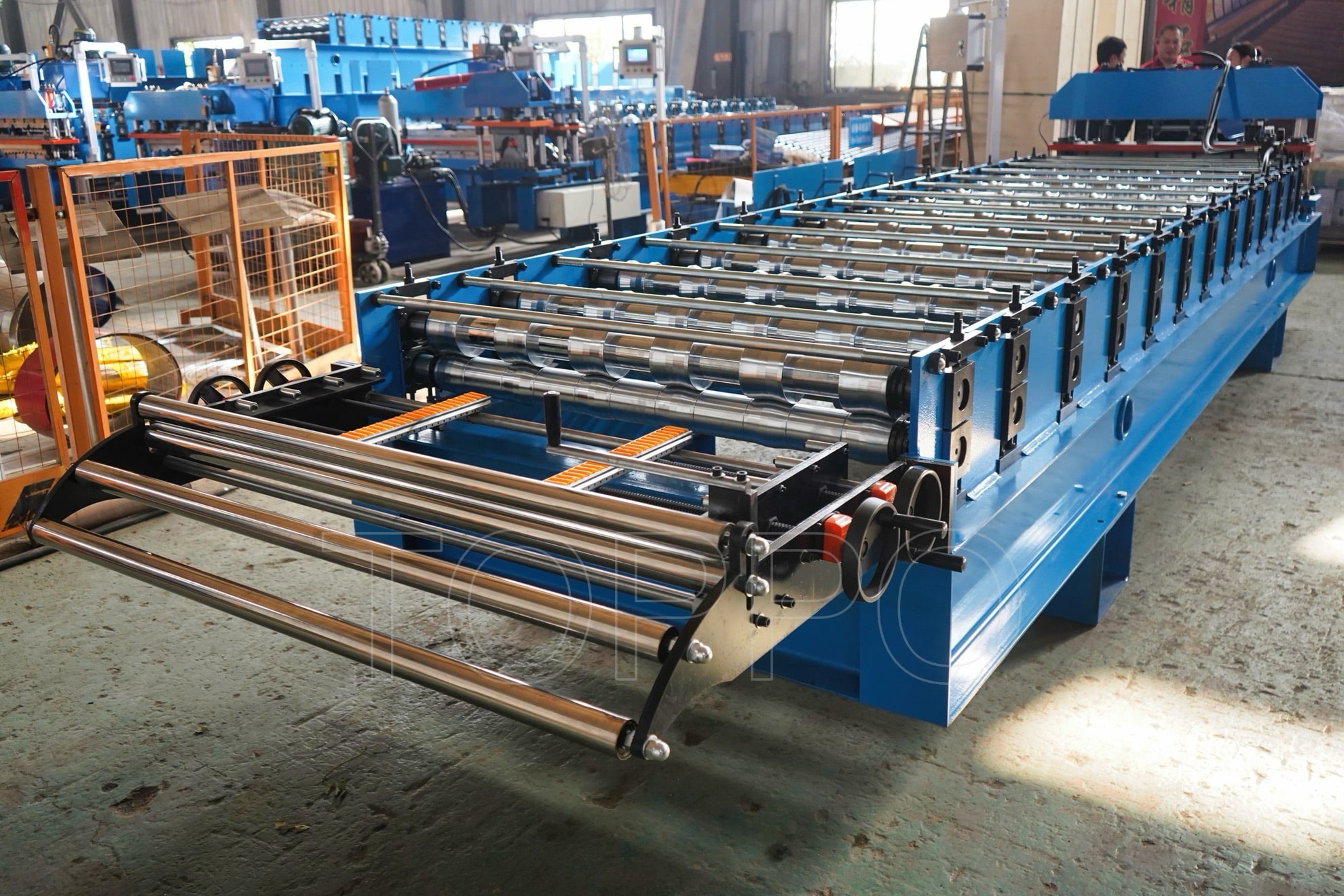

Machine Type: Trapezoidal Roll Forming Machine
Applicable Materials: GI, PPGI, Aluminum
Material Thickness: 0.3–0.8 mm
Feeding Width: 1220 mm
Effective Width: 1000 mm

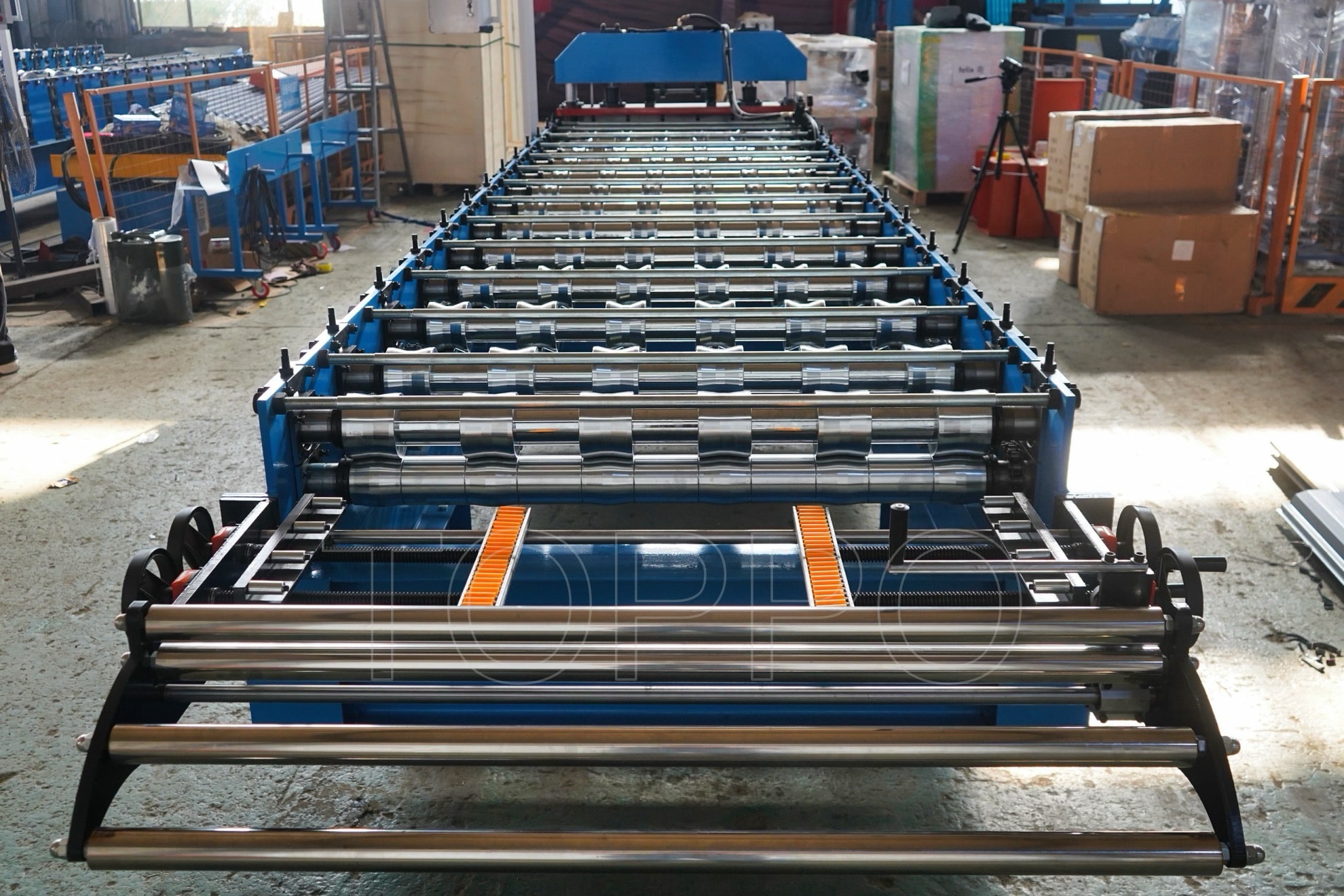

Roller Stations: 18–22

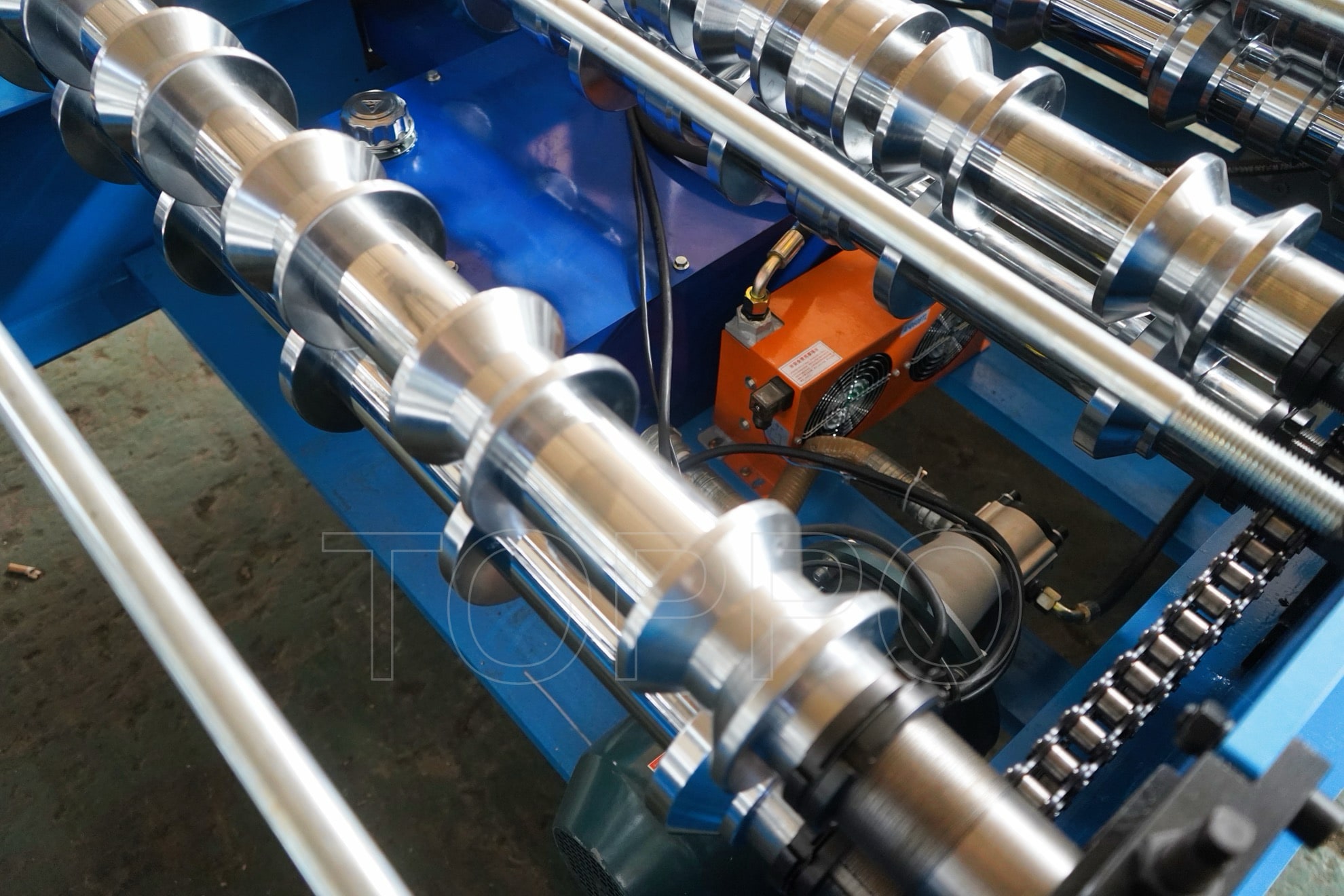

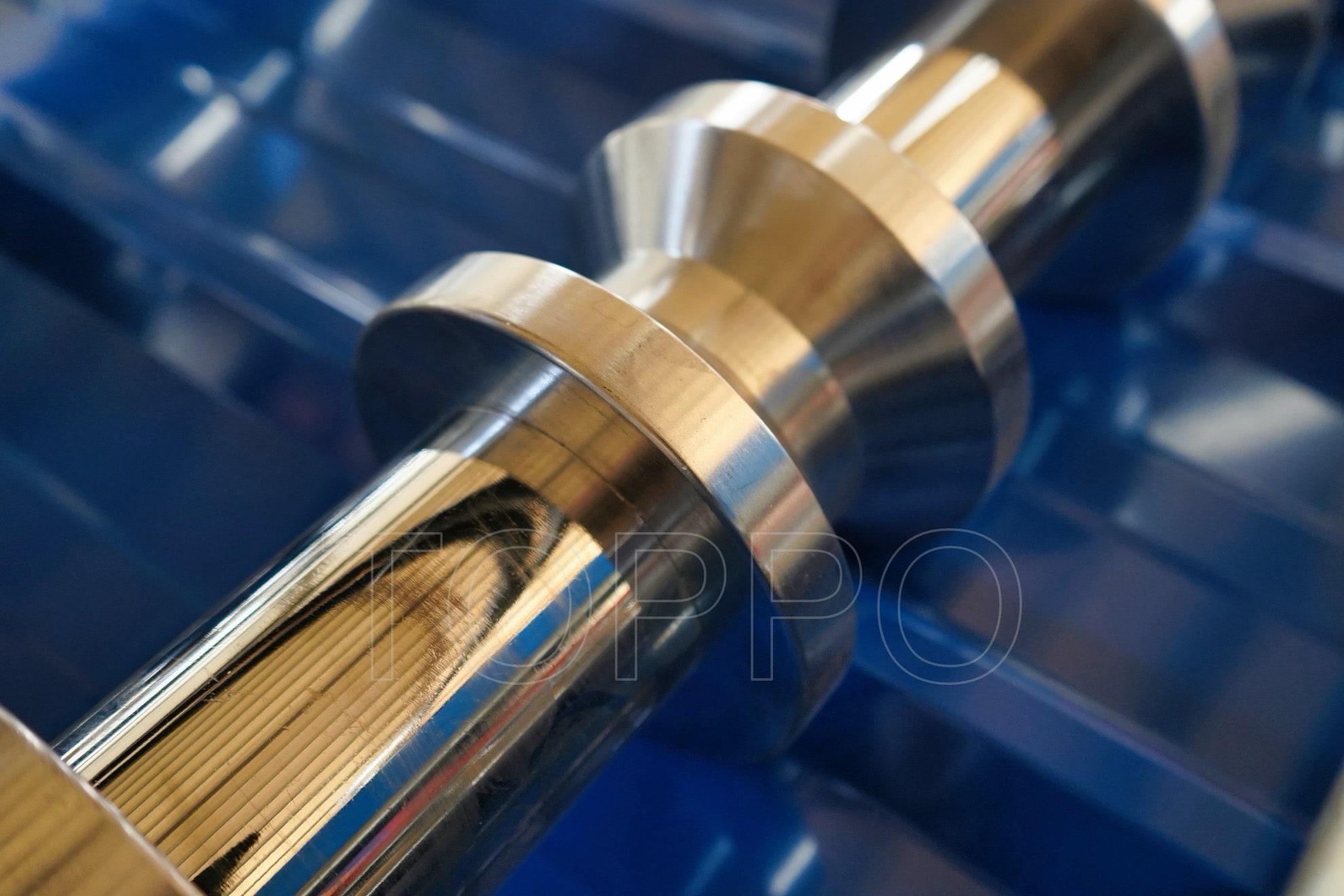

Roller Material: GCr15 or 45# steel with chrome plating
Shaft Diameter: 70 mm
Forming Speed: 12–20 m/min
Drive Type: Gearbox drive / chain optional

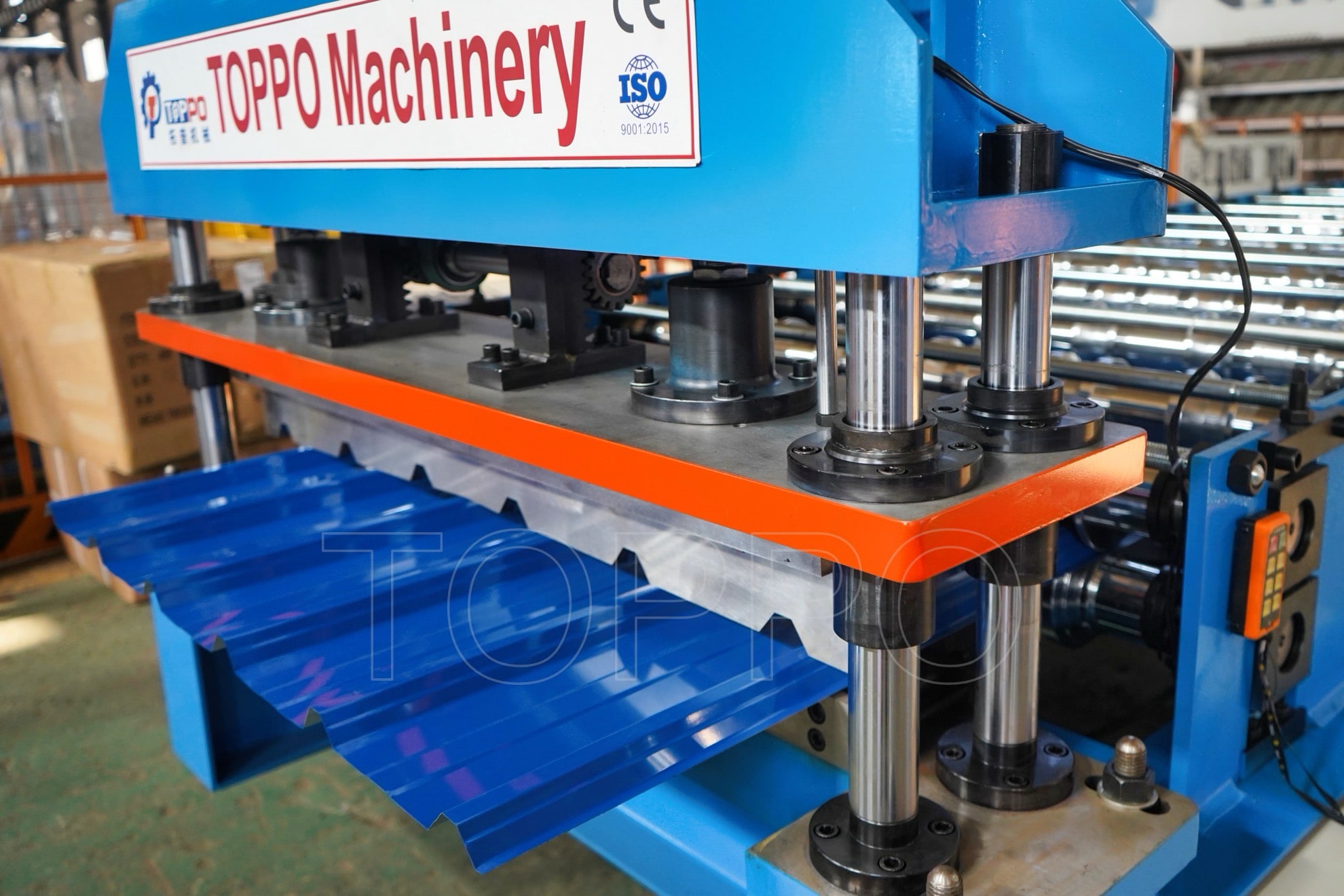

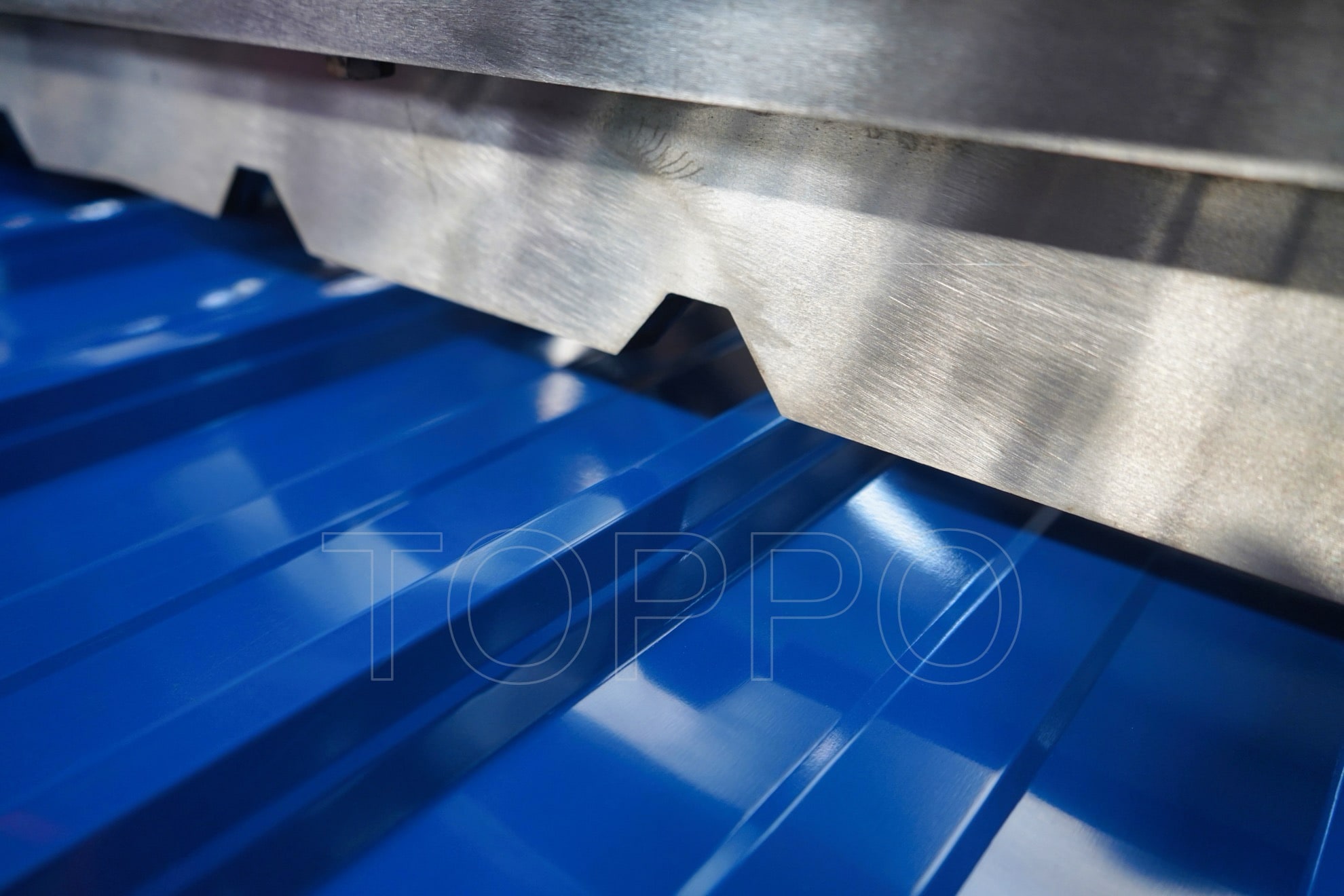

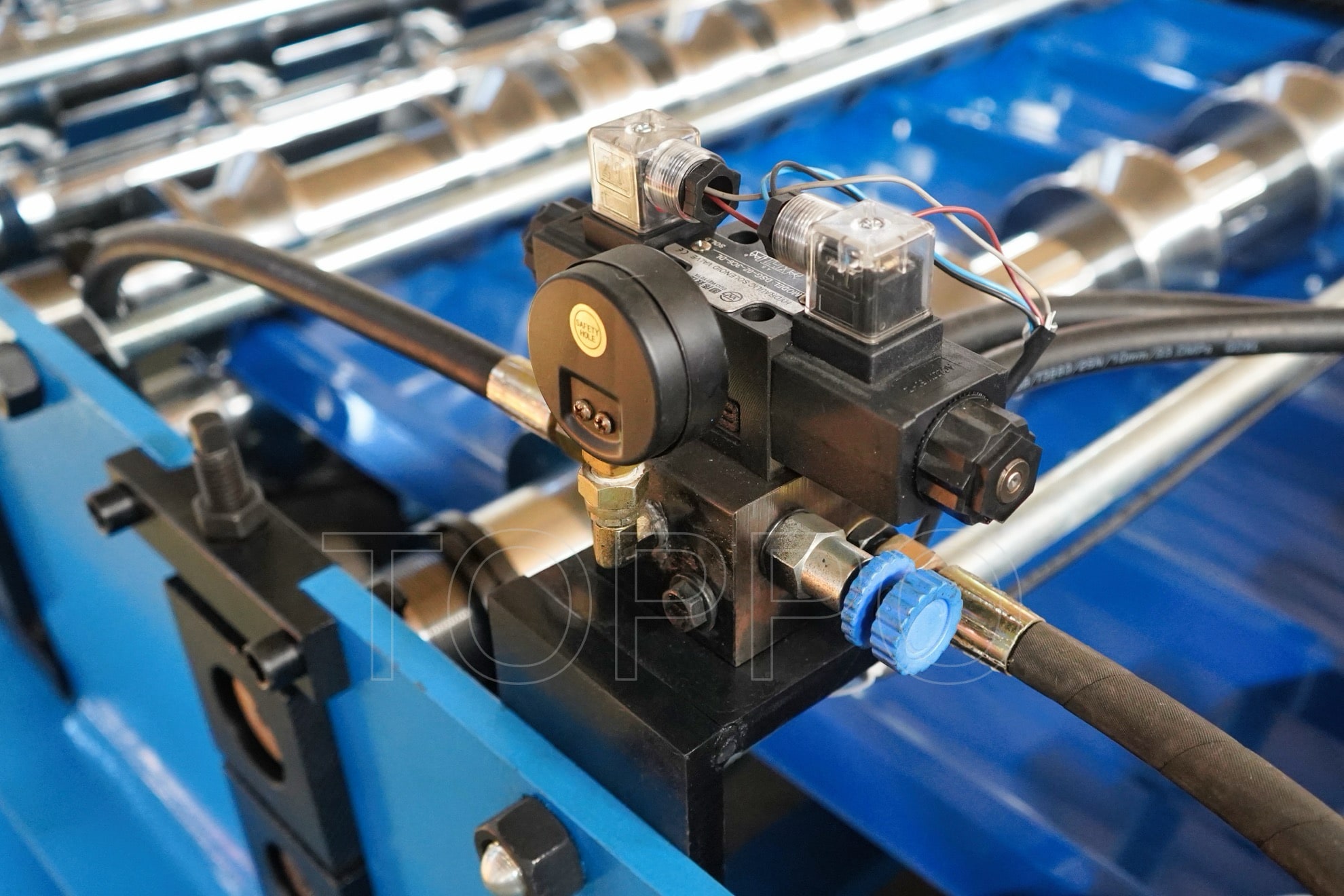

Cutting System: Hydraulic shearing system
Blade Material: Cr12Mov steel, quenched
PLC System: Delta / Siemens / Mitsubishi

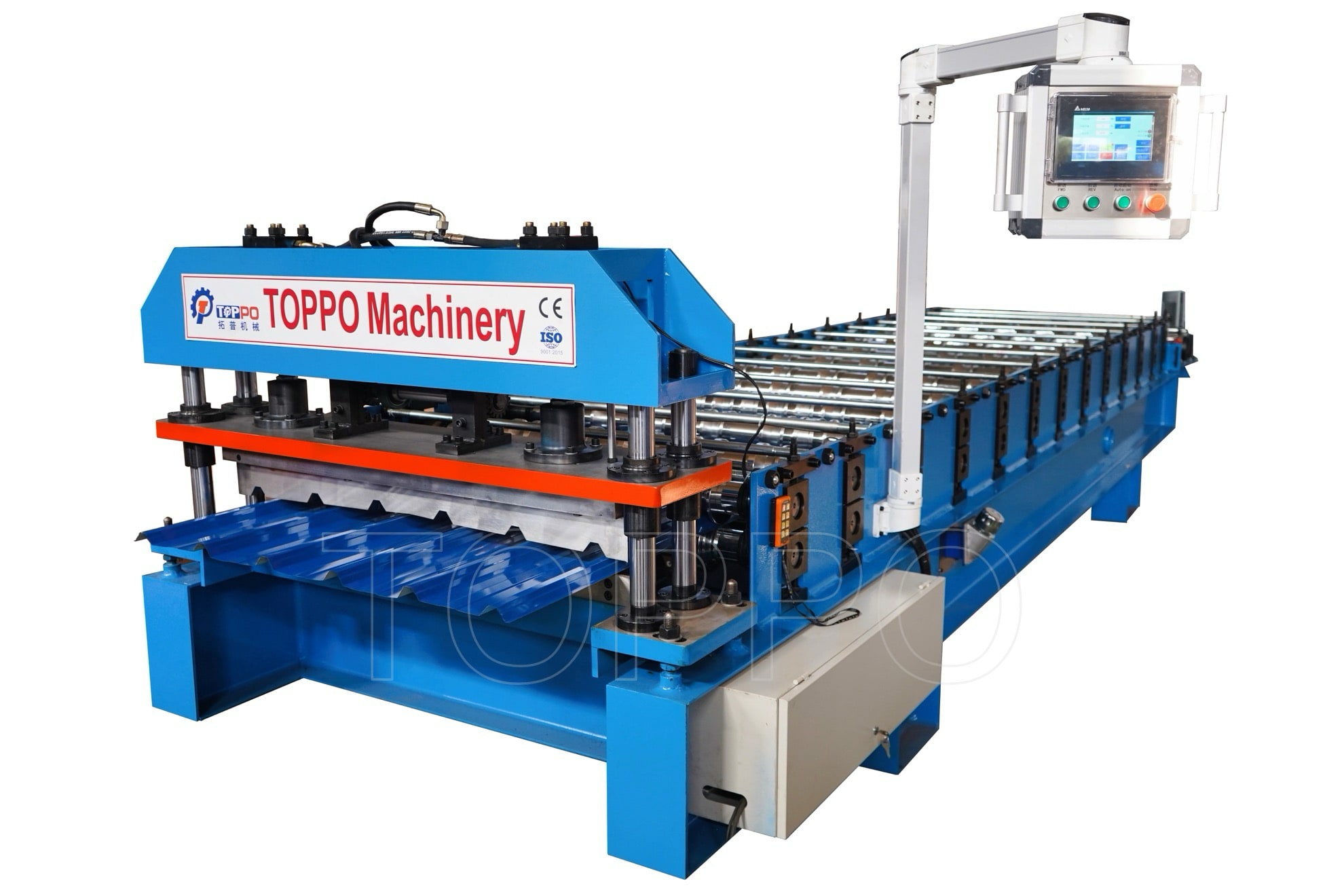

HMI: Color touchscreen (multi-language)
Main Motor Power: 7.5 kW

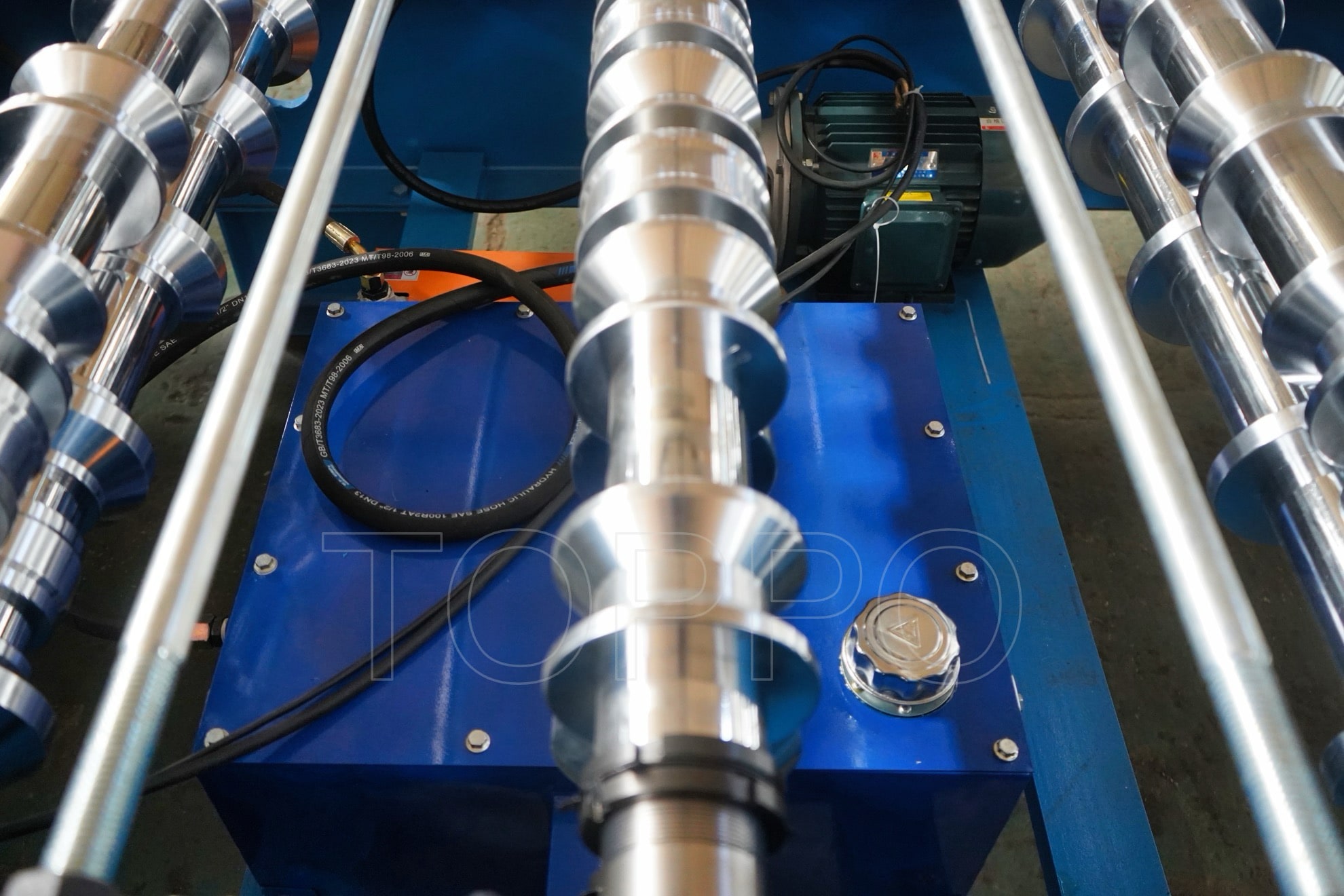

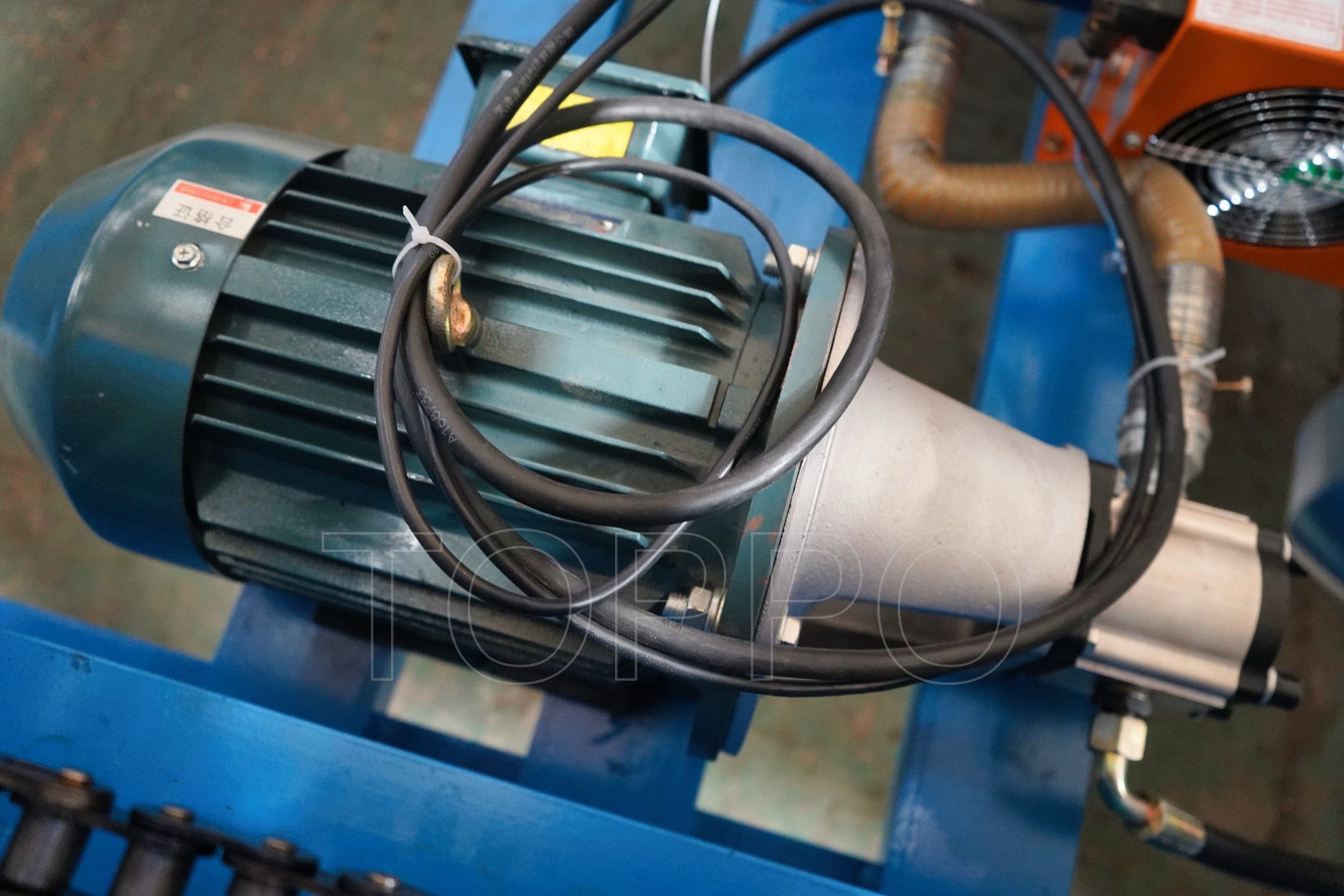

Hydraulic Motor Power: 4.0 kW
Voltage: 380V, 50Hz, 3-phase (or customized)
Machine Frame: 350H steel frame, welded and stress relieved
Machine Size: 10.5m x 1.5m x 1.6m
Weight: 7.5–8 tons
Panel Profile: Trapezoidal metal roofing/wall sheets
Application: Residential, commercial, warehouse, steel buildings
Control Accuracy: ±1 mm
Decoiler: 5 Ton manual/hydraulic optional
Stacker: Optional auto/manual stacker
Cooling System: Natural air cooling
Encoder: Omron
Safety Features: Emergency stop, safety cover
Noise Level: ≤ 75 dB
Color: Blue (customizable)
Packaging: Plastic film + wire secured in container
Warranty: 12 months
Installation Service: Overseas support or video instruction
After-Sales: Free parts + 24/7 technical service
Customization: Available by drawing/sample
This equipment is the ideal solution for precise and automated production of trapezoidal sheet metal panels. Designed for easy operation and minimal maintenance, it suits both medium and large-scale production needs.
