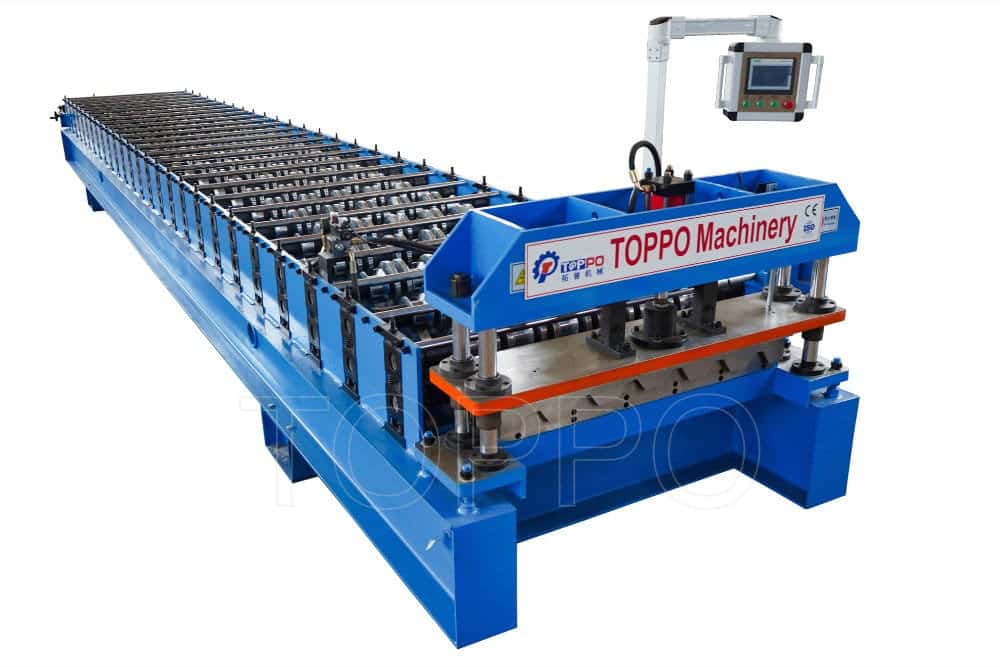

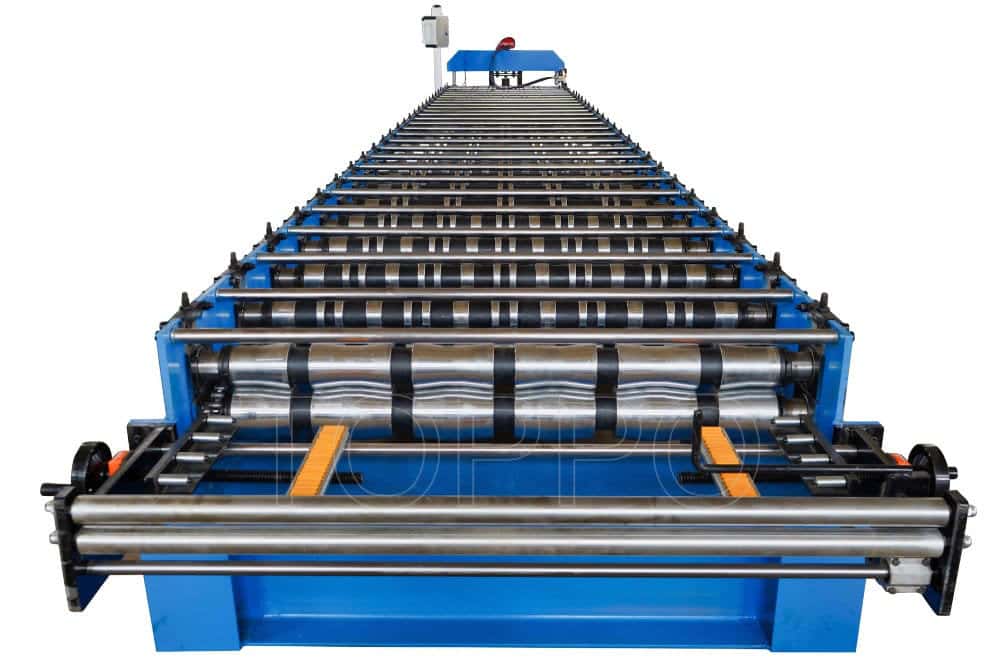

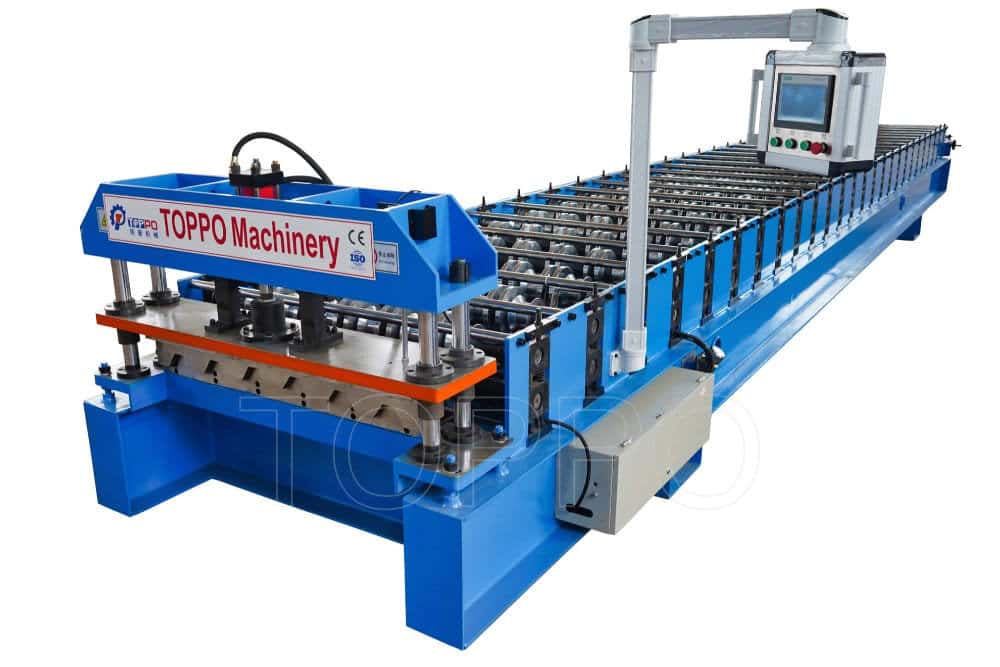

Machine Type: Trapezoidal Roll Forming Machine
Material Compatibility: Galvanized steel, PPGI, aluminum
Material Thickness: 0.3–0.7 mm

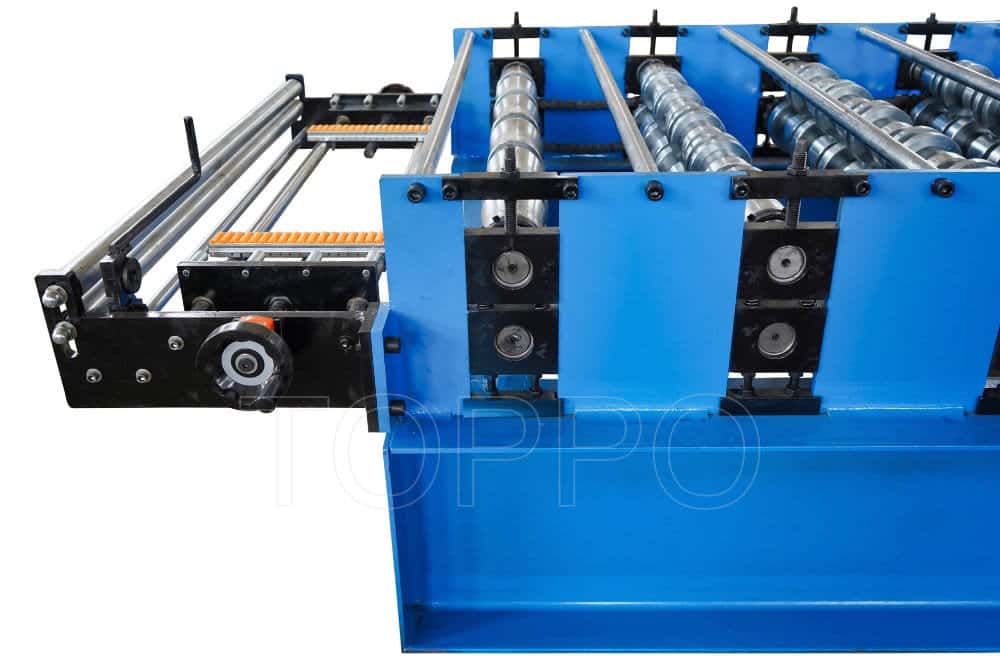

Feeding Width: 1220 mm
Effective Panel Width: 1000 mm

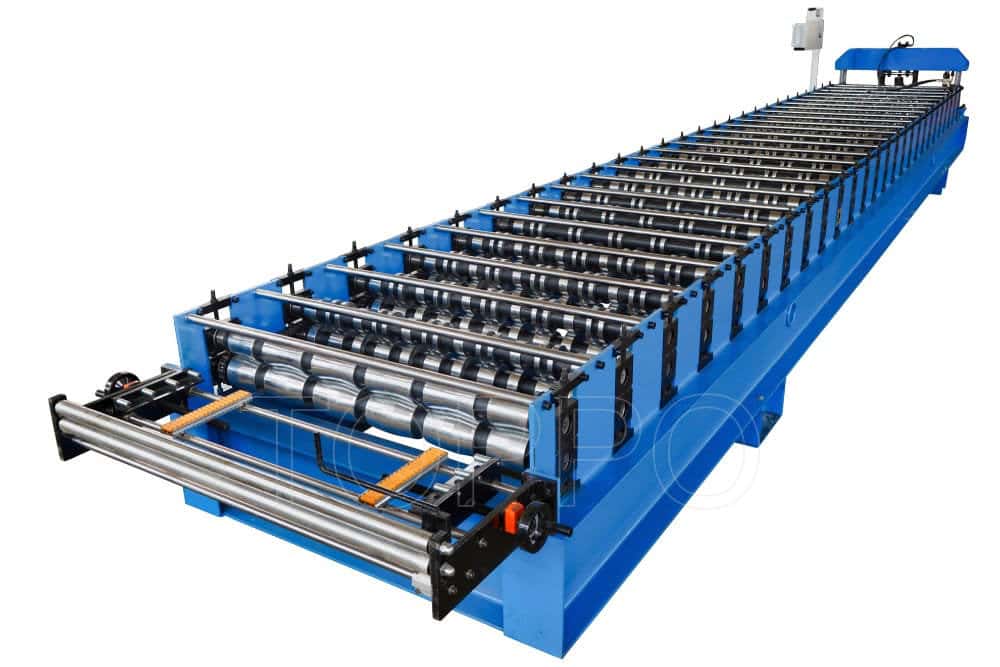

Forming Stations: 16–20 rollers

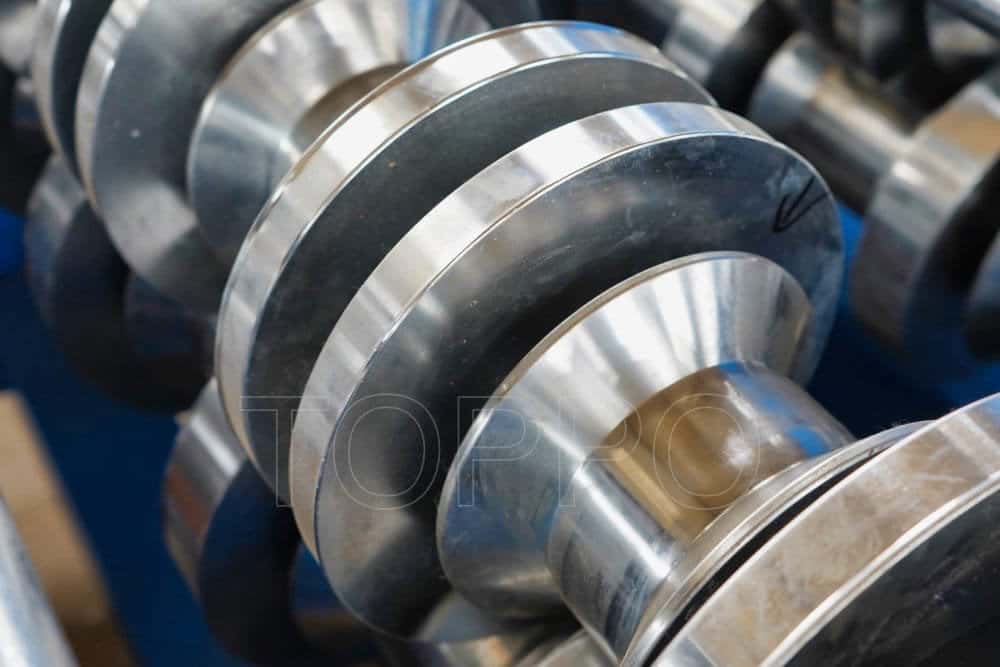

Roller Material: 45# steel, hard chrome coated
Shaft Diameter: 70 mm
Forming Speed: 10–18 m/min
Drive Type: Chain drive or optional gearbox

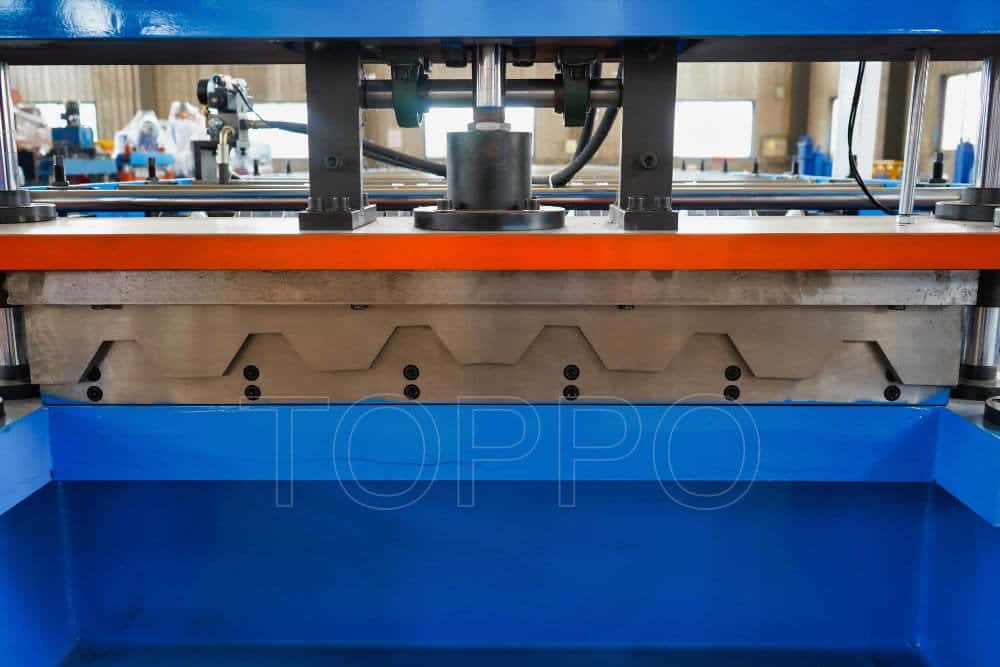

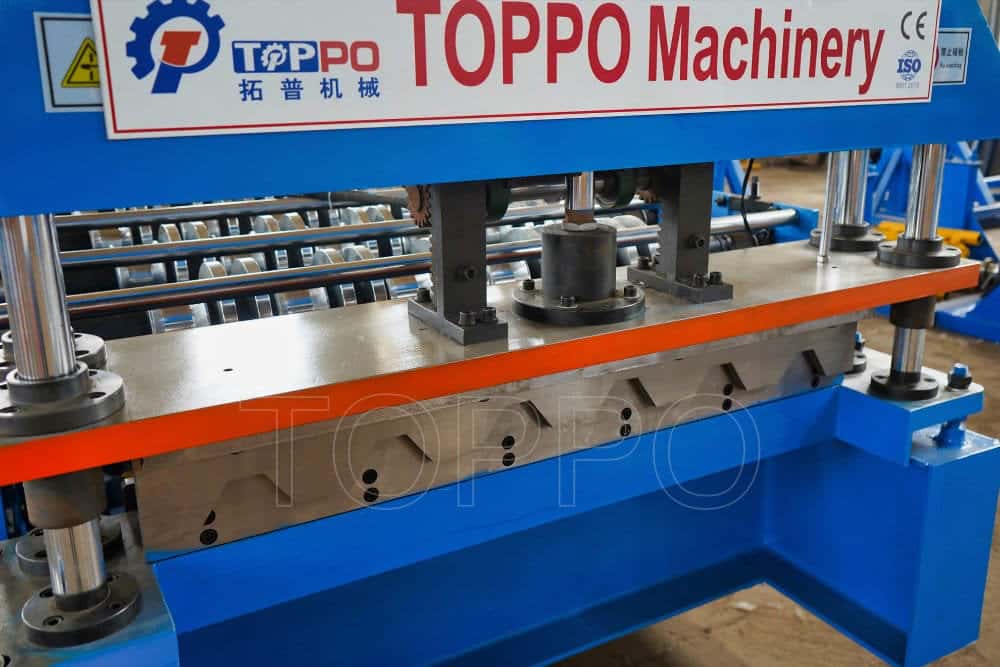

Cutting System: Hydraulic cutting
Blade Material: Cr12 steel, quenched

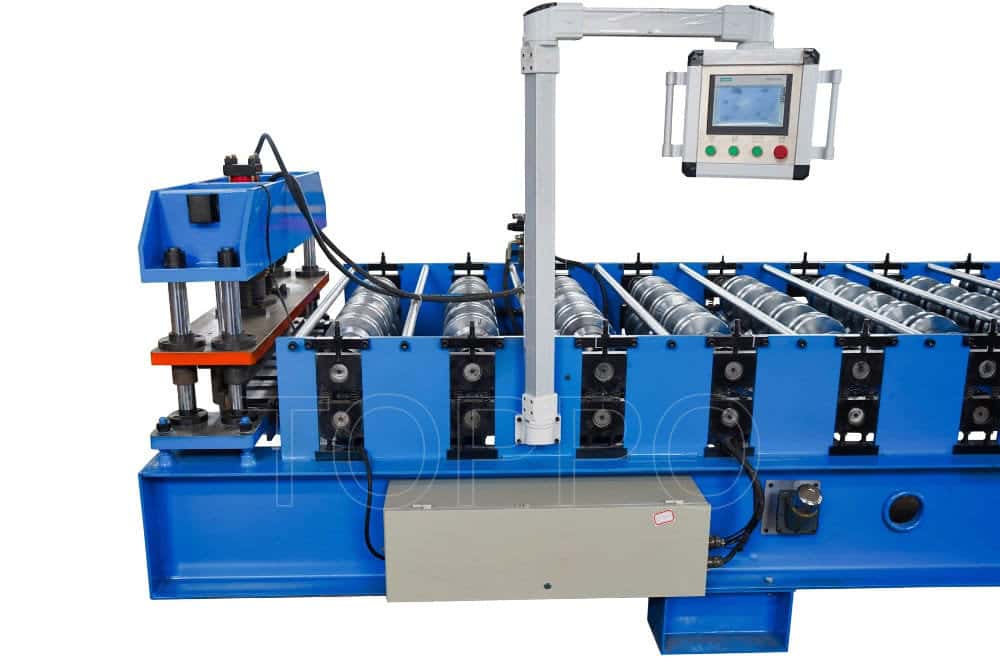

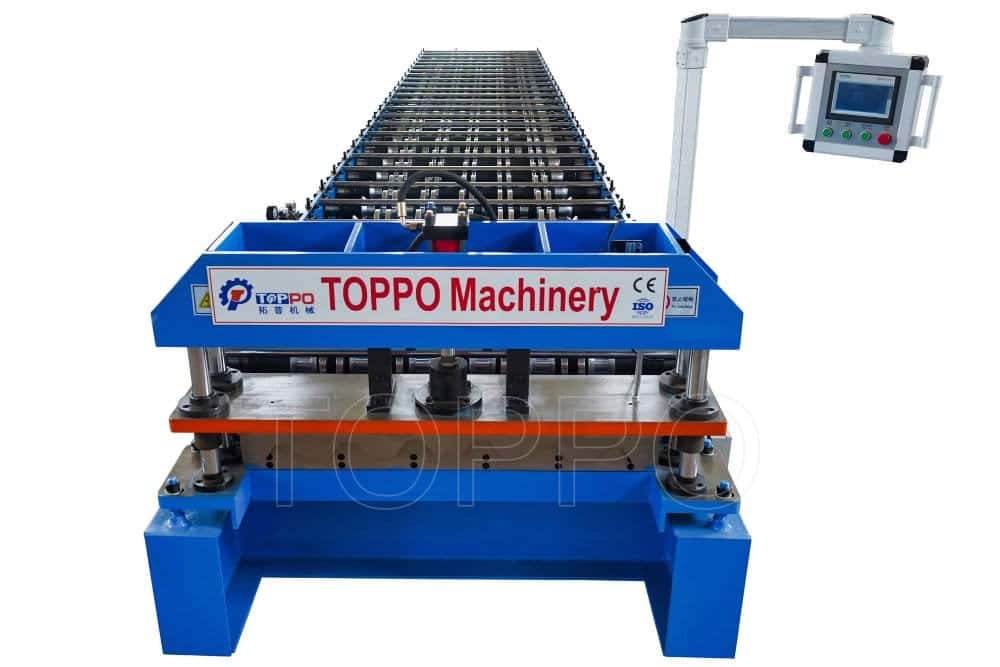

Control Panel: Digital display with push-button operation
PLC System: Delta / Siemens (customizable)

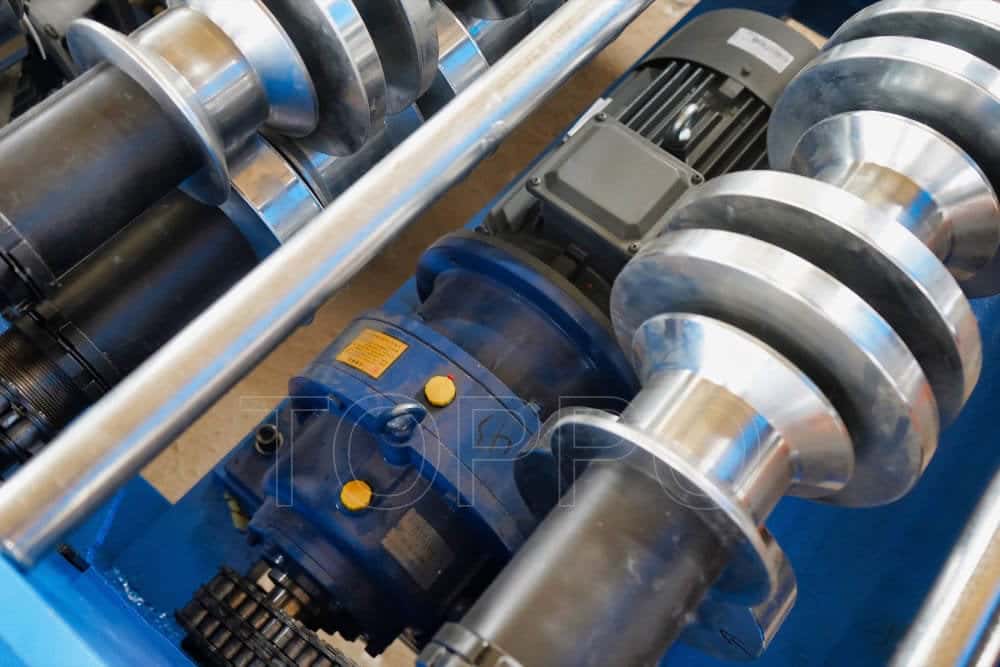

Main Motor: 5.5 kW
Hydraulic Power: 4.0 kW
Power Supply: 380V, 50Hz, 3-phase (customizable)

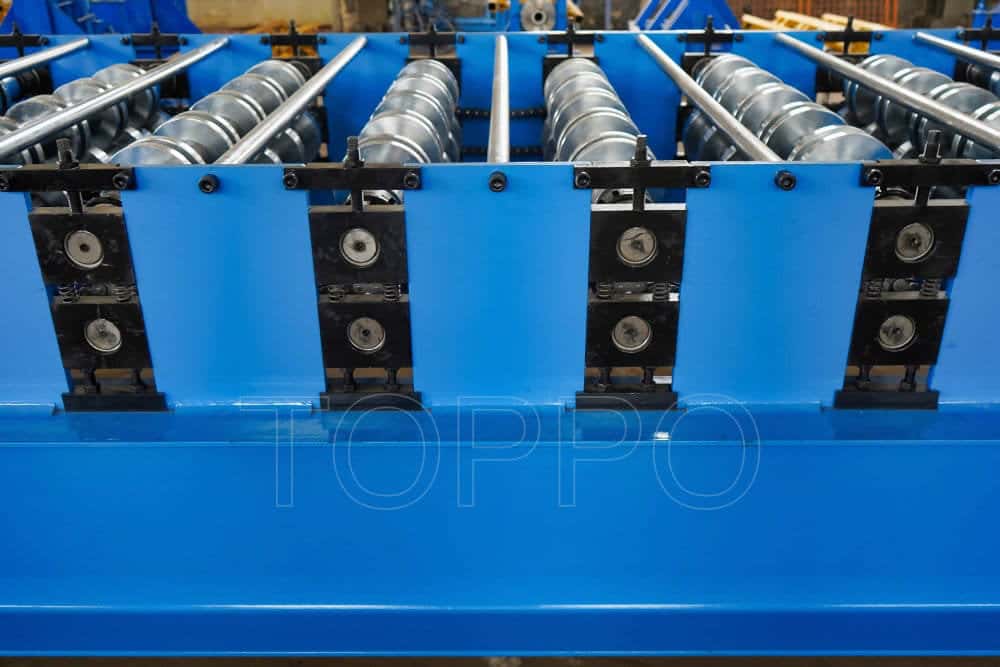

Frame Structure: 350H beam, welded
Dimensions: 9m x 1.3m x 1.4m
Weight: Approx. 7 tons
Panel Type: Trapezoidal roofing or siding
Applications: Warehouses, factories, residential roofs
Control Accuracy: ±1.0 mm
Safety Protection: Emergency stop, cover guards
Lubrication System: Manual lubrication
Noise Level: ≤ 75 dB
Color: Standard blue (customizable)
Packaging: Film wrapped, wire fixed in container
Warranty: 12 months
Certification: CE / ISO9001
Installation: Overseas engineer or video guide
After-sales Support: 24/7 online + spare parts
Customization: Accepted with profile drawing
This machine combines performance and practicality for small and medium workshops. It features digital control, fast forming, and clean hydraulic cutting—delivering reliable panel production at an affordable cost.
