Model: TRFM-HD1450
Feeding Width: 1250–1450 mm
Material Thickness: 0.3–1.0 mm
Material Type: Galvanized, Color-coated, Aluminum
Effective Sheet Width: Customized as per profile
Roller Stations: 20 steps
Roller Material: High-strength GCr15 with chrome finish
Shaft Diameter: 80 mm (solid shaft)
Machine Frame: Welded 400H beam structure
Transmission Type: Gearbox and chain drive
Main Motor Power: 11 kW
Hydraulic Power: 5.5 kW
Cutting System: Hydraulic cutting
Blade Material: Cr12Mov, hardened
Forming Speed: 12–20 m/min
PLC Control: Siemens / Delta / Mitsubishi
Touch Screen: 7-inch HMI with multi-language
Voltage: 380V/50Hz/3 Phase or customized

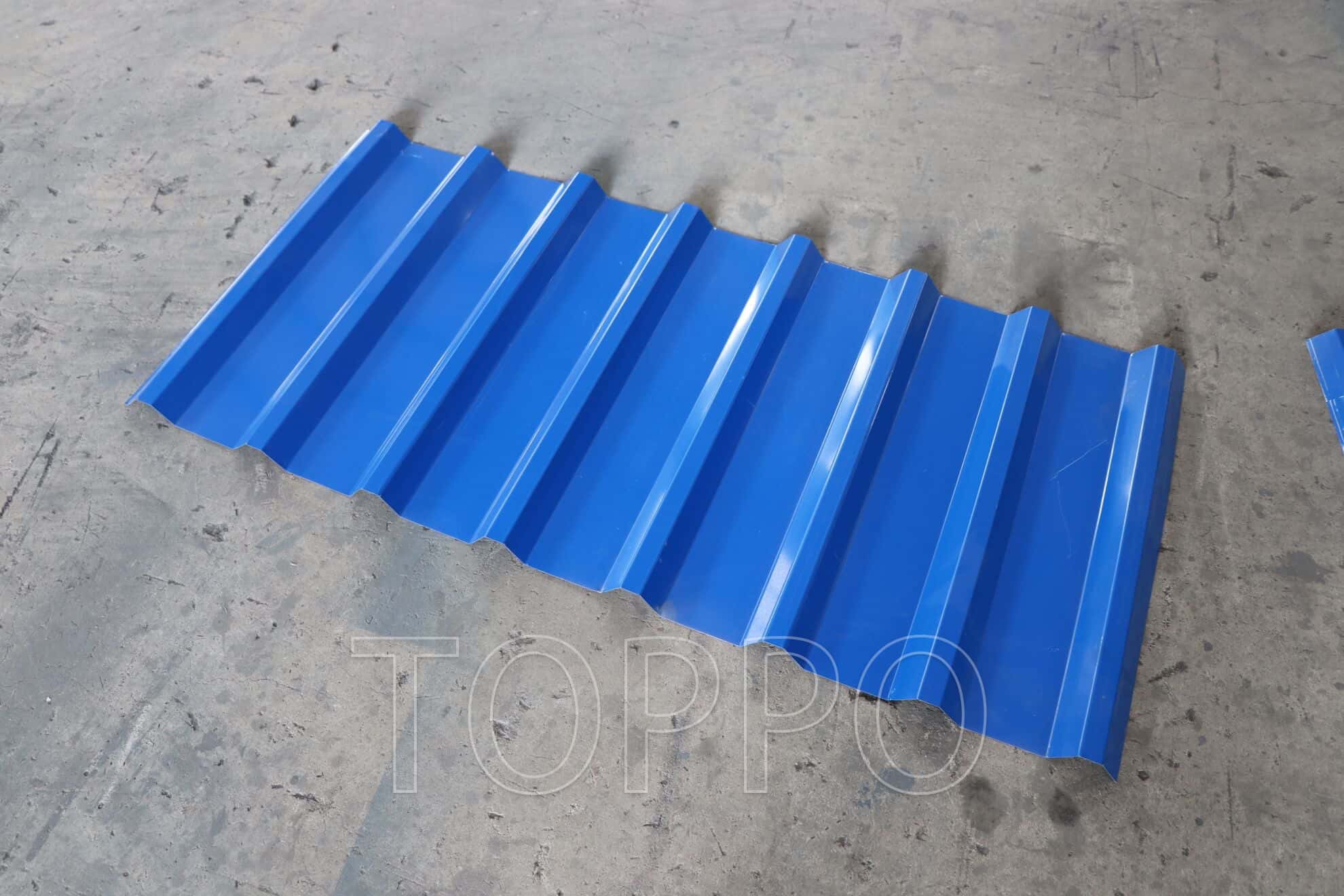

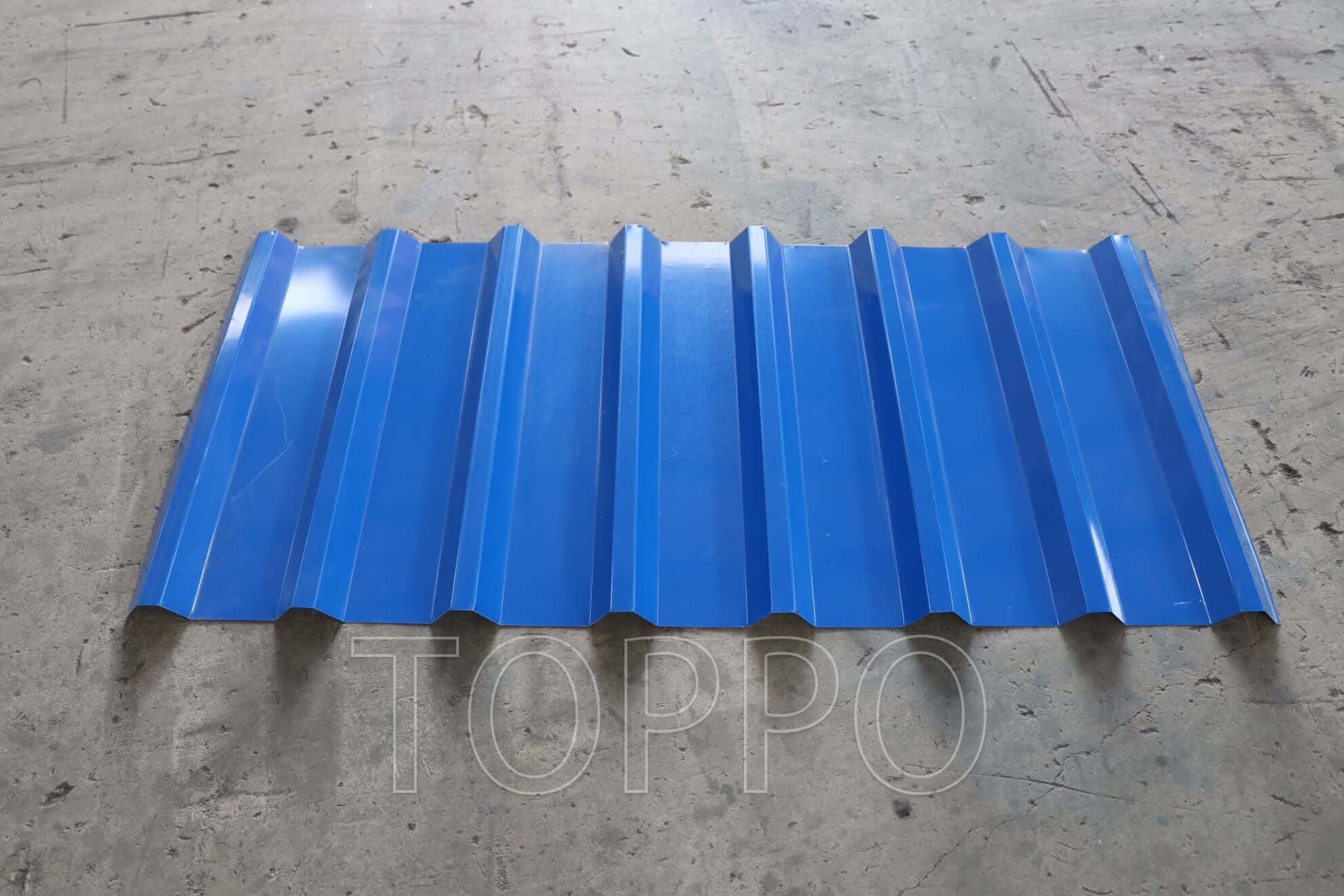

Panel Profile: Trapezoidal roofing sheet
Dimension: 11000 × 1700 × 1400 mm
Weight: Approx. 8.5 tons
Forming Accuracy: ±0.5 mm
Decoiler: 5T Manual/Hydraulic optional
Runout Table: 3m manual
Color: Custom paint option
Noise Level: ≤70 dB
Lubrication: Central auto lubrication system
Safety Features: Emergency stop, side guards
Installation: Onsite or remote guide
Warranty: 1 year
OEM Support: Available
Spare Parts: Free with machine
Tool Kit: Provided
Maintenance: User-friendly design
Production Output: 20+ machines/month
Lead Time: 25–40 working days
Certifications: CE, ISO9001
Packaging: Plastic film + steel frame fixed
After-sales Support: Online training, video call, technician available overseas
Application: Industrial roofing sheet manufacturing
Upgrade Options: Motor efficiency, servo feeder
Surface Finish: Powder coated anti-rust
Energy Saving: High-efficiency transmission design
Our heavy-duty trapezoidal roll forming machine is built for industrial-grade production environments, providing robust performance and long-term durability. It integrates advanced cutting, smart PLC controls, and precise roller alignment to produce consistent, high-quality trapezoidal roof sheets with minimal material waste. This is the ideal solution for large-scale construction material manufacturers seeking reliable and efficient forming machinery.
