Model: TRFM-HS1250
Feeding Width: 1250 mm
Material Thickness: 0.3–0.8 mm
Effective Panel Width: 1000 mm (customizable)
Applicable Material: Galvanized steel, color-coated coils, aluminum
Forming Steps: 16 stations
Roller Material: GCr15, chrome coated
Shaft Diameter: 75 mm
Machine Frame: 350H steel structure
Drive Mode: Chain or gearbox
Main Motor: 7.5 kW
Hydraulic Power: 4.5 kW
Cutting Method: Hydraulic post-cut
Blade Material: Cr12Mov with heat treatment
Forming Speed: 15–25 m/min
PLC System: Delta/Siemens/Mitsubishi
Touch Screen: 7-inch HMI
Voltage: 380V/50Hz/3 Phase (customizable)
Lubrication: Automatic
Color: Custom colors available
Output Accuracy: ±1.0 mm
Machine Size: 9500 × 1500 × 1300 mm
Machine Weight: 6.8 tons
Noise Level: Low (≤70 dB)
Safety Guards: Provided
Decoiler: 5T Manual or Hydraulic
Runout Table: 3m, manual type
Maintenance: Easy with tool box provided
Warranty: 12 months
OEM/ODM: Available
Installation: Engineer support on-site or remote
Spare Parts: Delivered with machine
Control Cabinet: Integrated with emergency stop
Certifications: CE, ISO9001
Energy Efficient: Optimized transmission
Production Capacity: 20 sets/month
Delivery Time: 25–35 working days
Operation Personnel: 1–2 operators
Training: Online/onsite available
Surface Treatment: Powder-coated anti-rust
Roller Shaft: Solid forged steel
Cooling System: Air cooled for motors
Dust Protection: Integrated design for control cabinet

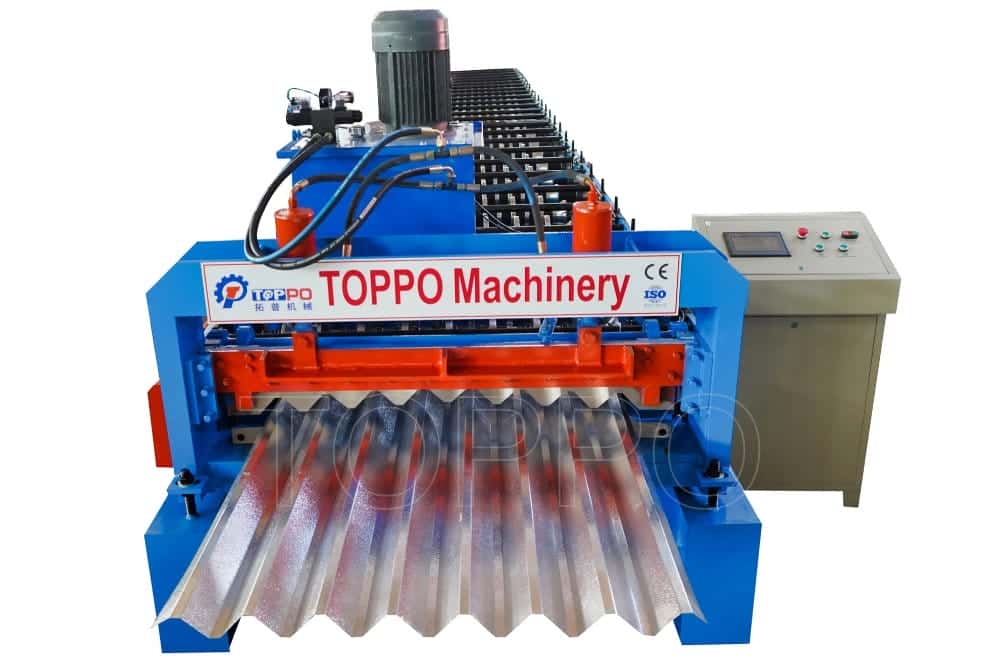

This high-speed trapezoidal roll forming machine is ideal for roofing contractors and sheet manufacturers aiming for precision, efficiency, and low waste. Its integrated PLC system, durable build, and customizable profile setup allow for seamless metal roofing panel production with minimal downtime and high repeatability.
