Model: TRFM-P1250
Input Material Width: 1250 mm
Material Thickness: 0.3–0.8 mm
Effective Sheet Width: 1000 mm (adjustable)
Material: Galvanized steel, aluminum, color-coated steel
Forming Stations: 18

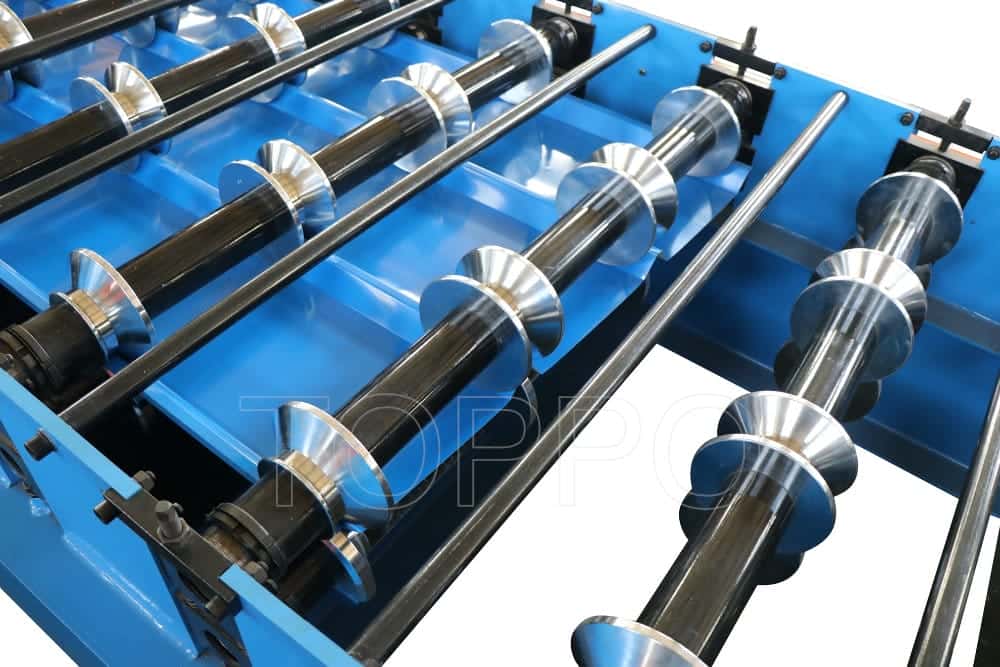

Roller Material: GCr15 with hard chrome finish
Shaft Diameter: 76 mm
Frame Type: 350H steel structure
Drive Type: Gearbox or chain
Main Motor: 7.5 kW
Hydraulic Station: 5.5 kW

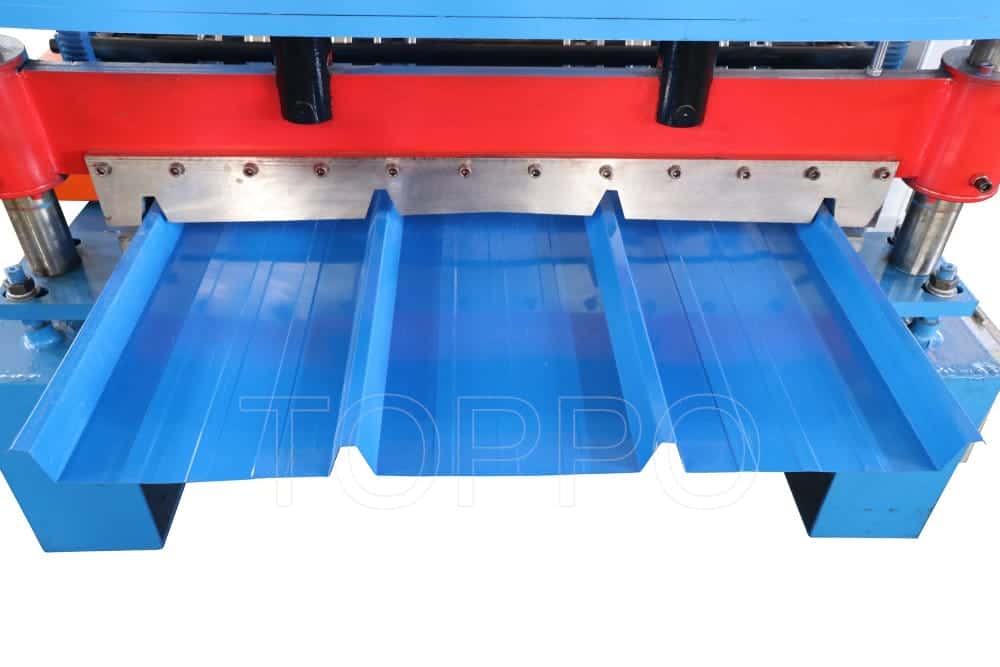

Cutting Type: Hydraulic cut after forming
Blade Material: Cr12Mov, quenched
Forming Speed: 15–20 m/min
Control System: PLC (Delta/Siemens)
Touch Panel: 7-inch multilingual HMI
Power Supply: 380V/50Hz/3 Phase
Machine Dimensions: 9800 × 1500 × 1300 mm
Weight: About 6.8 tons
Forming Precision: ±1.0 mm
Color: Customized painting available
Lubrication: Integrated system
Noise Level: ≤70 dB
Safety Protection: Full cover and emergency stop
Decoiler: 5T manual or hydraulic optional
Runout Table: 3 meters long
Toolbox: Equipped
Maintenance: Easy and minimal
Warranty: 1 year
OEM/ODM: Acceptable
Installation: Onsite or remote guidance
After-sales Service: Video support, online guidance, overseas engineer
Production Output: 20 sets/month
Lead Time: 25–35 working days
Certification: CE, ISO9001
Application: Trapezoidal roofing sheet manufacturing
Roller Shaft: Solid steel
Coating: Rust-resistant powder finish
PLC Cabinet: Integrated with cooling fan
Efficiency: High-speed forming with low power consumption
Training: Available with operation video or onsite
Environment: Suitable for industrial factory setup
This roll forming machine is designed with precision, ease of operation, and durability in mind. It features high-grade components and smart automation to ensure stable and accurate panel production. Perfect for sheet metal fabricators and construction material suppliers who demand consistent profile quality and quick production turnaround.
