This glazed tile roll forming machine is specialized in producing beautiful and durable metal roofing tiles through a fully automated cold roll forming process. The machine ensures consistent tile shape, precise dimensions, and minimal material waste. It is suitable for mass production of glazed roof tiles widely used in residential, commercial, and industrial buildings.
1. Product Type: Glazed Tile Roll Forming Machine
2. Raw Material: Color Steel Sheet, Galvanized Steel
3. Material Thickness: 0.3–0.6 mm
4. Coil Width: 1000 mm (customizable)
5. Forming Steps: 18–22
6. Main Frame Material: 350H Steel
7. Shaft Diameter: 70 mm solid shaft
8. Shaft Material: 45# Steel with Heat Treatment
9. Roller Material: 45# Steel with Hard Chrome Plating
10. Roller Stations: 18 Rows
11. Drive Type: Chain Drive / Gearbox Drive (optional)

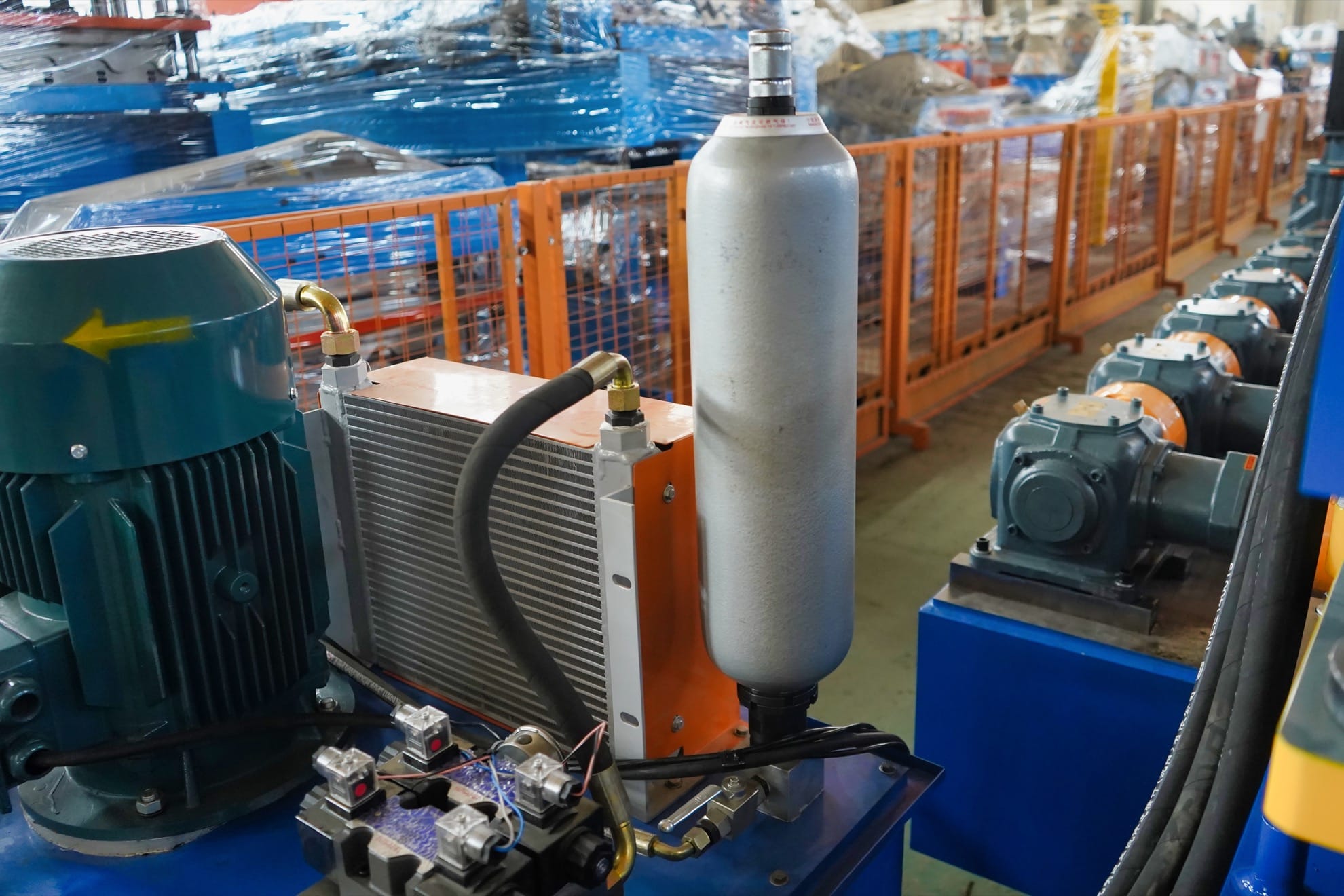

12. Cutting Type: Hydraulic Cutting
13. Hydraulic Power: 5.5 kW
14. Main Motor Power: 5.5 kW
15. Control System: PLC Automatic Control (Delta/Siemens)
16. Operation: Touch Screen Interface
17. Transmission: Chain or Gearbox
18. Line Speed: 2–5 m/min (depends on tile type)
19. Cutting Tolerance: ±1 mm
20. Machine Frame: Welded Steel Frame with Sandblasting Treatment
21. Voltage: 380V/50Hz/3Phase (Customizable)
22. Weight: Around 7.5 Tons
23. Dimension: Approx. 7.5m x 1.5m x 1.5m
24. Surface Finish: Blue Industrial Paint
25. Safety System: Emergency Stop, Protective Covers
26. Lubrication: Manual or Automatic
27. Application: Roofing Tile Manufacturing
28. Suitable Industries: Construction, Steel Processing Plants
29. Cooling System: Optional Air Cooling
30. Tile Type: Step Tile / Glazed Tile
31. Decoiler: Manual or Hydraulic 5T Decoiler
32. Feeding System: Adjustable Feeding Guide
33. Cutting Blade Material: Cr12 Mov Steel
34. Production Capacity: 15–25 meters/min
35. Warranty: 12 Months
36. Installation: Overseas Installation Support
37. Certification: CE, ISO9001
38. Noise Level: Low
39. Maintenance: Easy
40. Packaging: Plastic Film + Steel Frame
