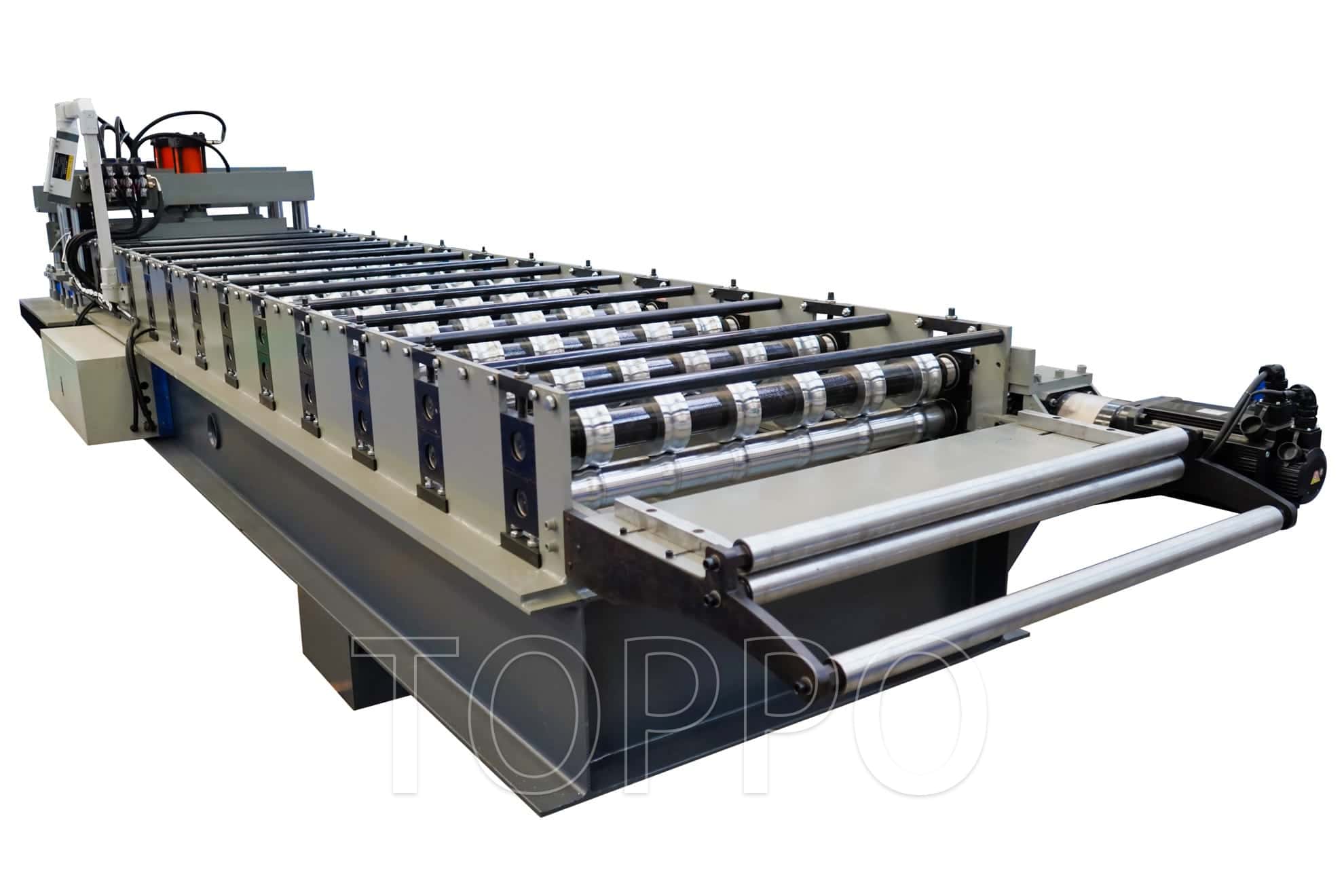

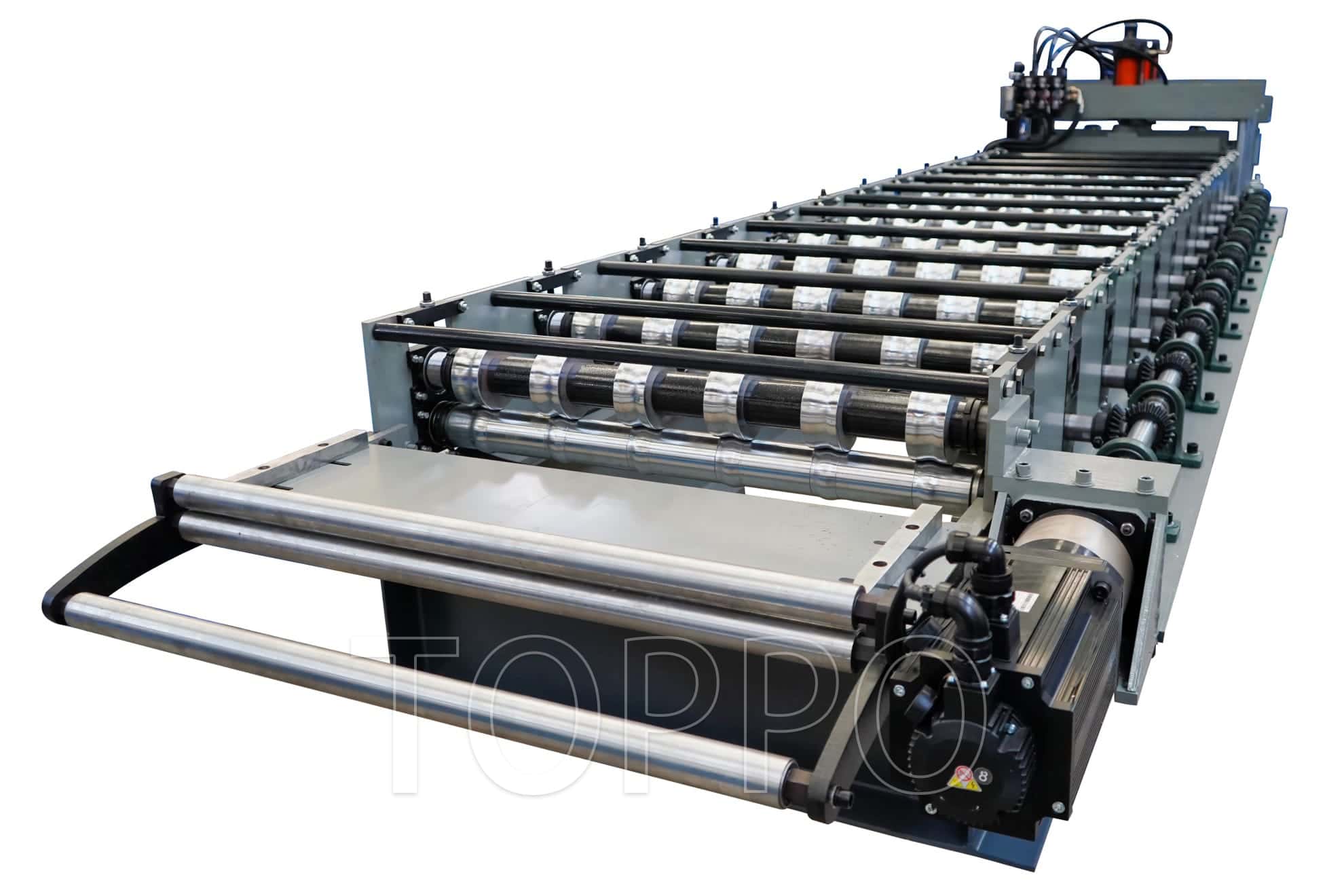

This automatic glazed tile roll forming machine is a highly efficient solution for producing wave-type metal roof tiles. With robust construction and advanced automation, it ensures precision tile forming, stable performance, and low maintenance. Ideal for continuous production lines in the metal roofing industry.
1. Product Name: Automatic Glazed Tile Roll Forming Machine
2. Application: Corrugated/Glazed Roof Tile Production
3. Raw Material: Color Steel, Galvanized Sheet
4. Sheet Thickness: 0.3–0.8 mm
5. Input Coil Width: 1000–1250 mm
6. Effective Width: 828–1050 mm
7. Forming Steps: 18–22 steps
8. Roller Shaft Diameter: 70 mm
9. Shaft Material: High Grade 45# Steel (quenched and tempered)

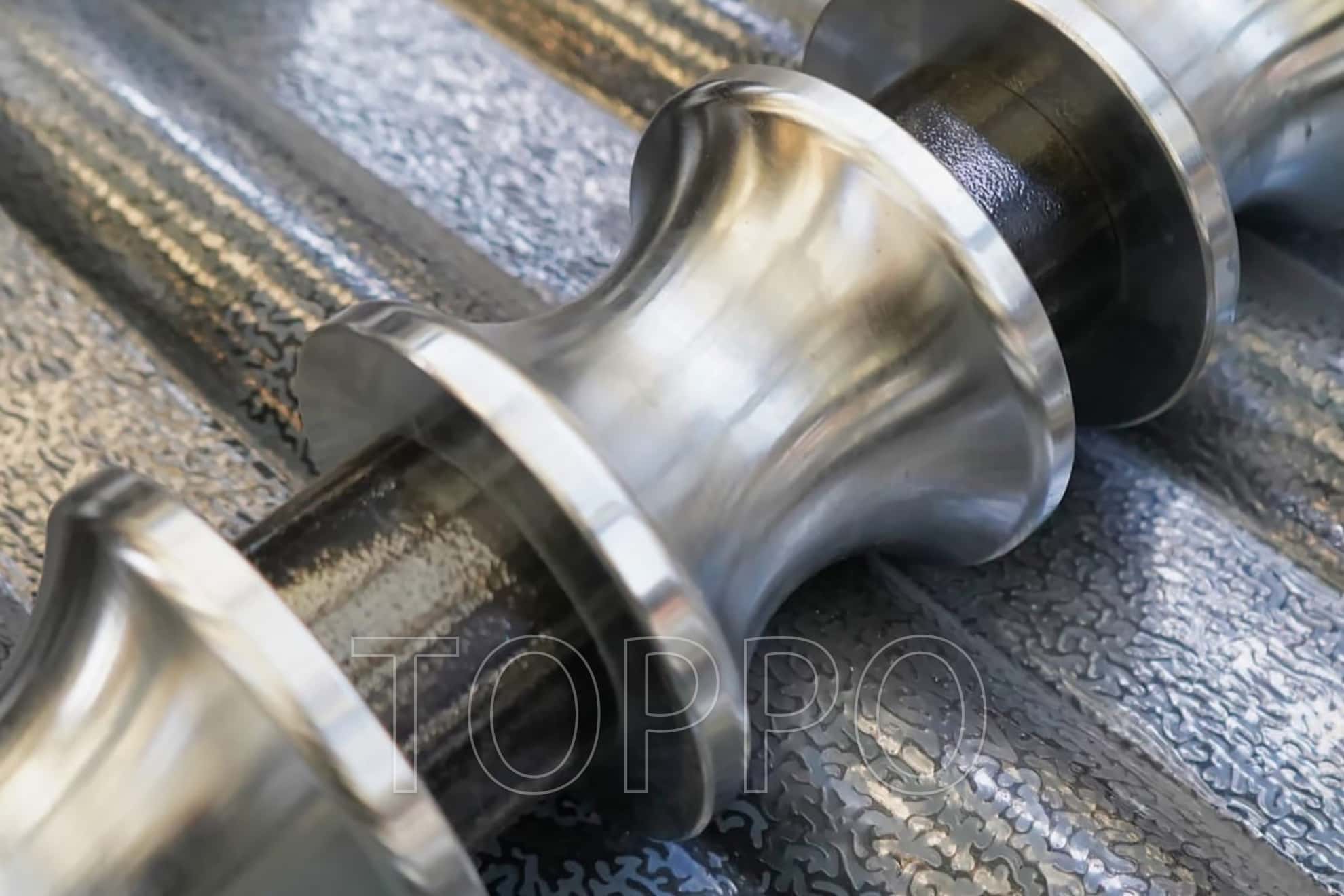

10. Roller Material: GCr15 Steel with Hard Chrome Coating
11. Drive System: Chain Drive or Gearbox
12. Hydraulic Cutting Power: 5.5 kW
13. Main Motor Power: 7.5 kW
14. Forming Speed: 3–5 m/min
15. Cutting Blade Material: Cr12Mov with Heat Treatment
16. PLC Brand: Delta / Siemens
17. Control Panel: Touch Screen (Multilingual Available)
18. Voltage: 380V/50Hz/3Phase (customizable)
19. Weight: About 7 Tons
20. Machine Size: 7.8m x 1.6m x 1.5m
21. Frame Structure: Welded with Stress Relief Treatment
22. Machine Color: Customizable
23. Operation Type: Fully Automatic
24. Safety Devices: Emergency Stop, Cover Protection
25. Maintenance: Low and Easy
26. Noise Level: ≤65 dB
27. Production Capacity: Up to 25 m/min
28. Cutter Control: Separate Hydraulic Station
29. Lubrication: Manual/Oil Bath
30. Tiling Profile: Glazed/Step Profile
31. Decoiler: Manual/Hydraulic Optional

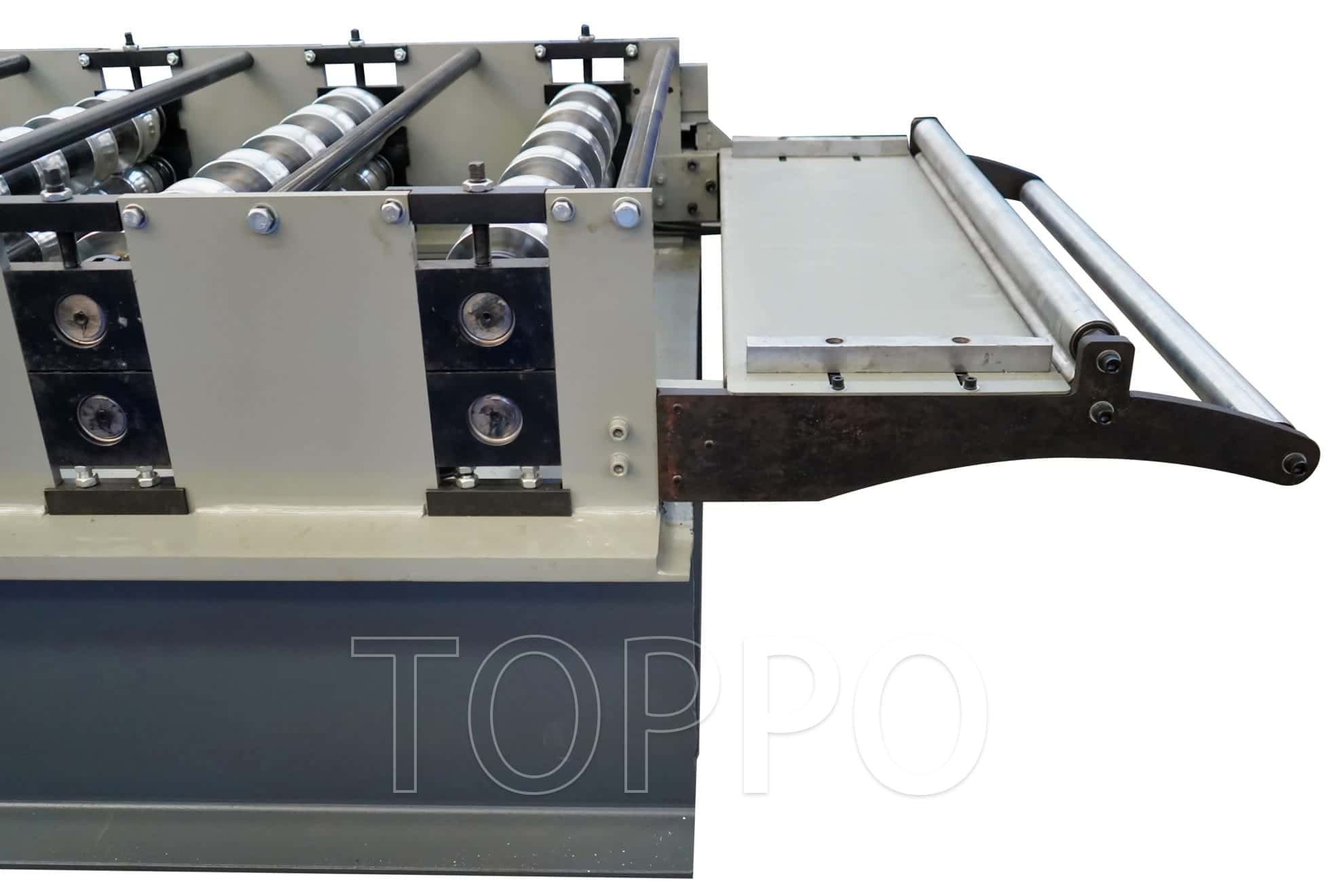

32. Feeding System: Servo Motor Control Optional
33. Working Temperature: -10°C to 45°C
34. Certifications: ISO9001, CE
35. Warranty: 1 Year
36. Support: Overseas Installation & Training
37. Packaging: Plastic Film + Steel Frame
38. Delivery Time: 25–35 Days
39. Usage Field: Roofing Manufacturing, Construction Projects
40. Customization: Tile Profile, Color, Logo
