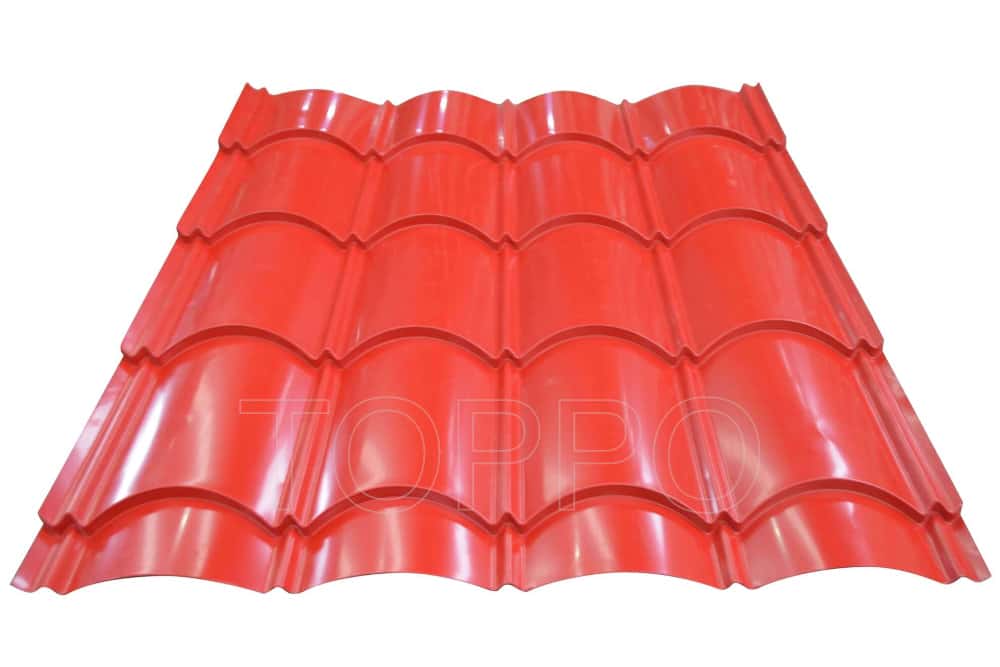

The color steel glazed tile roll forming machine is engineered for fast and precise shaping of steel sheets into glazed roof tiles. It features a vibrant and robust structure, easy-to-operate control panel, and precision-cutting blades. This machine is suitable for use in a variety of metal roofing fabrication projects with minimal labor input and high automation.
1. Product Name: Color Steel Glazed Tile Roll Forming Machine
2. Usage: Roofing Tile Forming
3. Input Material: Pre-painted Steel, Galvanized Steel
4. Material Thickness: 0.3–0.6 mm
5. Coil Width: 1000 mm
6. Effective Tile Width: 828 mm
7. Forming Stations: 18–20
8. Roller Shaft Diameter: 70 mm
9. Roller Material: 45# Steel with Hard Chrome Plating
10. Shaft Material: High Grade Steel with Quenching
11. Frame Material: 300–350H Steel
12. Drive Mode: Chain Drive
13. Cutting System: Hydraulic Cutting
14. Main Power: 5.5 kW
15. Hydraulic Power: 4 kW
16. Cutting Blade: Cr12 with Heat Treatment
17. Control System: PLC (Delta/Siemens)
18. Operation: Touch Screen Panel
19. Voltage: 380V/50Hz/3Phase
20. Machine Length: 7.2 m
21. Machine Width: 1.5 m
22. Height: 1.5 m
23. Weight: Around 6.5 Tons
24. Line Speed: 3–6 m/min
25. Cutting Accuracy: ±1 mm
26. Color: Red/Blue/Yellow (Customizable)
27. Control Accuracy: High Precision
28. Application Area: Residential, Commercial Roofing
29. Safety Protection: Emergency Stop + Safety Covers
30. Decoiler: Optional Hydraulic Decoiler
31. Maintenance: Simple Routine
32. Lubrication: Manual
33. Output: Up to 20 meters/min
34. Certifications: ISO, CE
35. Noise Level: Low Operation Noise
36. Operation Mode: Fully Automatic
37. Material Feed Guide: Manual or Servo Controlled
38. Customization: Logo, Paint, Profile Design
39. Support: Technical Guidance, Video Support
40. Packaging: Plastic Film + Steel Base Frame
