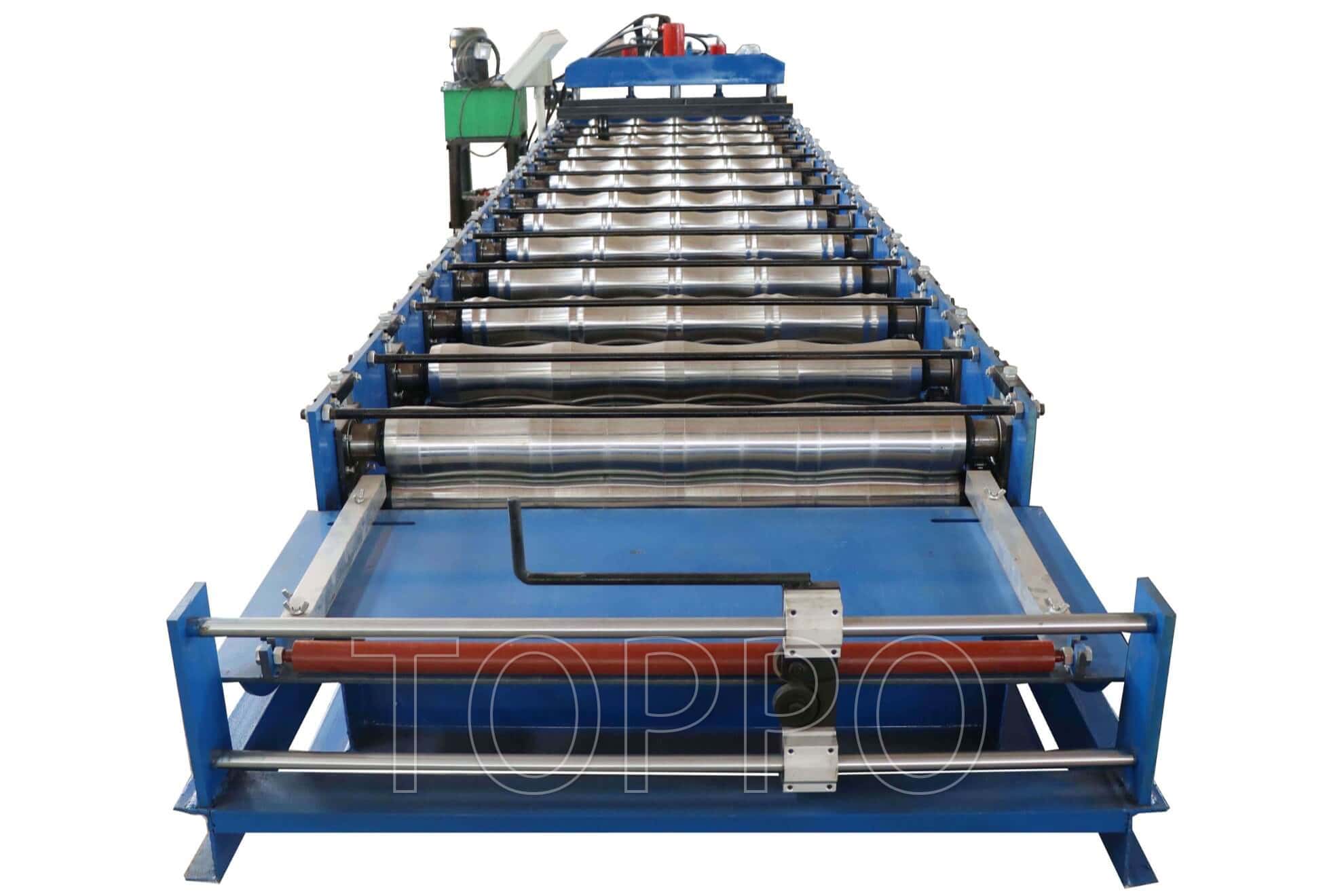

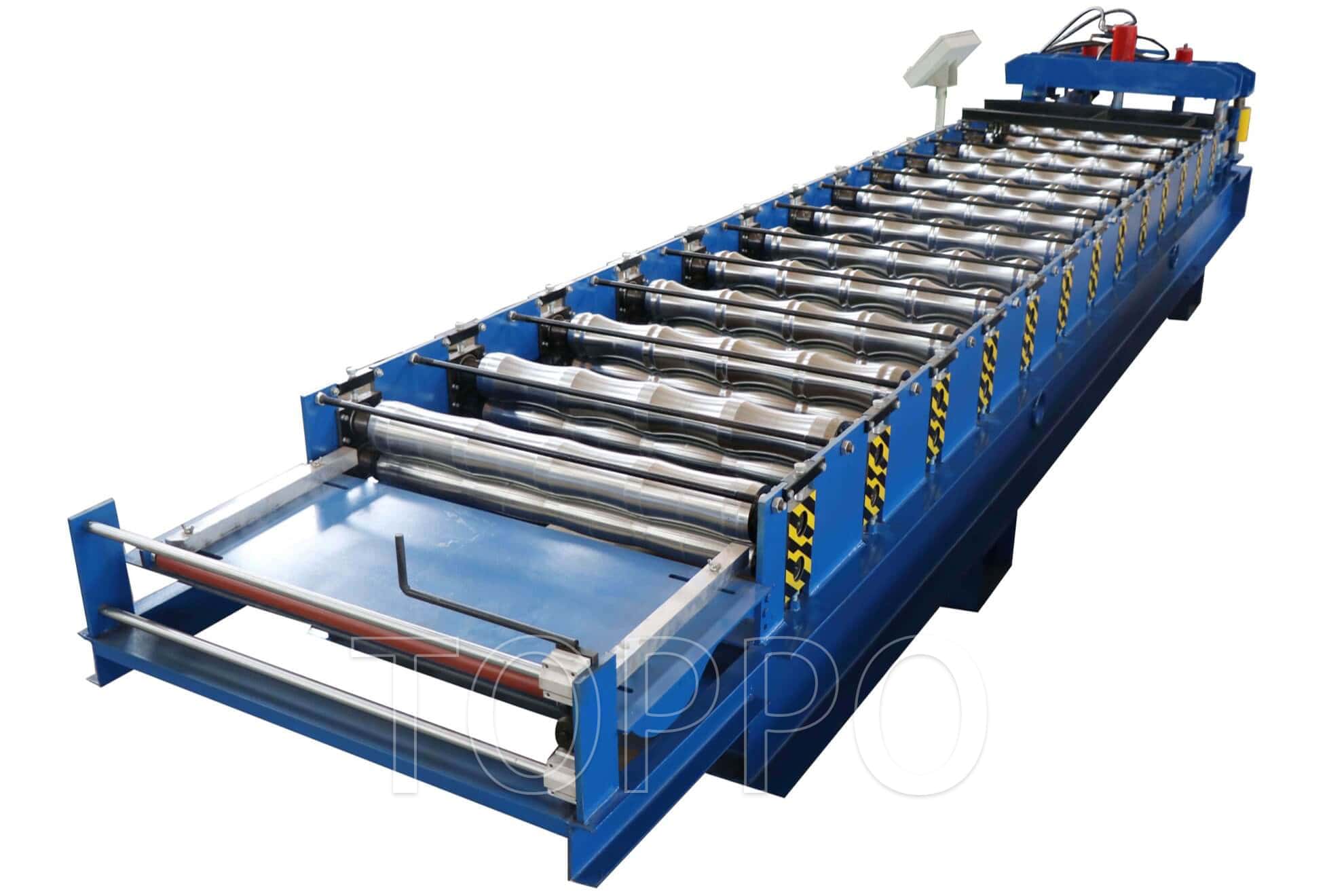

This compact glazed tile roll forming machine is optimized for producing elegant, symmetrical metal tiles used in modern roofing systems. It integrates hydraulic cutting, PLC control, and precise roller forming for smooth and accurate tile production, making it ideal for both small-scale and industrial tile fabrication.
1. Product Name: Compact Glazed Tile Roll Forming Machine
2. Raw Material: Color Coated Steel, Galvanized Sheet
3. Thickness Range: 0.3–0.6 mm
4. Coil Width: 1000–1220 mm
5. Effective Width: 828–1050 mm
6. Forming Stations: 16–20
7. Roller Material: High-grade 45# Steel with Hard Chrome Plating
8. Shaft Diameter: 70 mm
9. Shaft Material: Heat-treated Steel
10. Drive Mode: Chain Drive
11. Transmission: Gearbox Optional
12. Cutting System: Hydraulic Cutting with Sensor Switch
13. Main Motor: 4 kW
14. Hydraulic Station Power: 3.7 kW
15. Cutting Blade Material: Cr12 with Quenching
16. Forming Speed: 3–5 m/min
17. Voltage: 380V/50Hz/3Phase (Customizable)
18. Machine Size: 6.8m x 1.5m x 1.4m
19. Weight: About 5.8 Tons
20. Control System: PLC with Touchscreen Interface
21. Control Brand: Siemens / Delta
22. Operation: Full-Automatic
23. Noise Level: ≤65 dB
24. Cooling System: Air Cooling Optional
25. Decoiler: Manual or Hydraulic Optional
26. Feeding Guide: Adjustable
27. Lubrication: Manual
28. Safety Features: Emergency Stop Button, Protective Covers
29. Tile Profile: Classic Glazed/Step Tile
30. Cutting Accuracy: ±1 mm
31. Profile Customization: Available
32. Productivity: 20–25 m/min
33. Application: Roofing Material Fabrication
34. Industries: Building Materials, Construction, Metal Roofing
35. Warranty: 1 Year
36. Certification: ISO9001, CE
37. Technical Support: Online/Overseas
38. Paint Color: Customizable (Default Blue & Yellow)
39. Packaging: Film Wrapping + Steel Frame
40. Delivery Time: 20–30 Days
