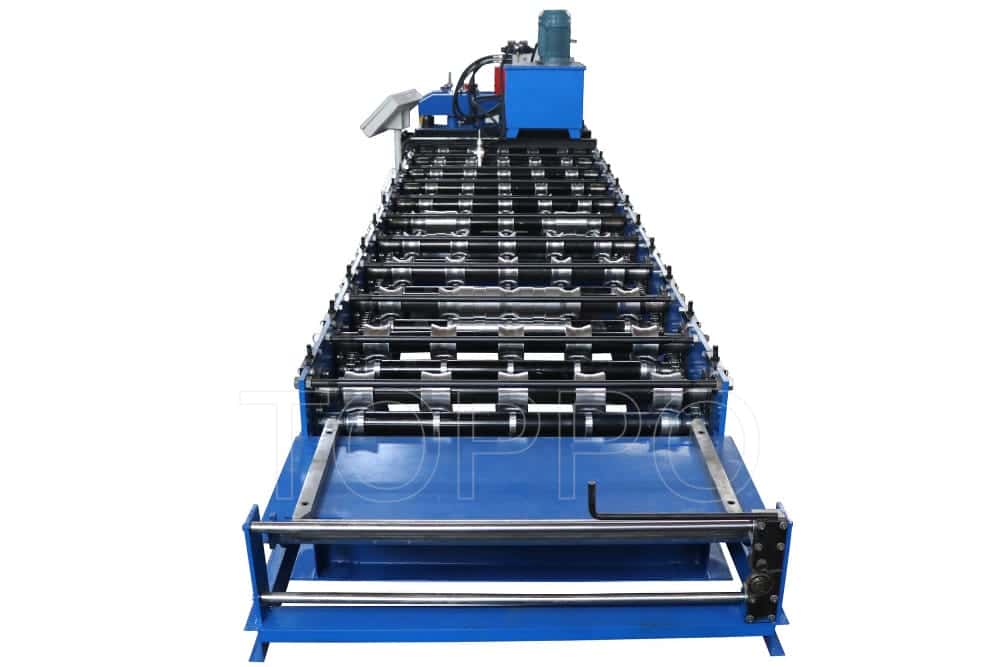

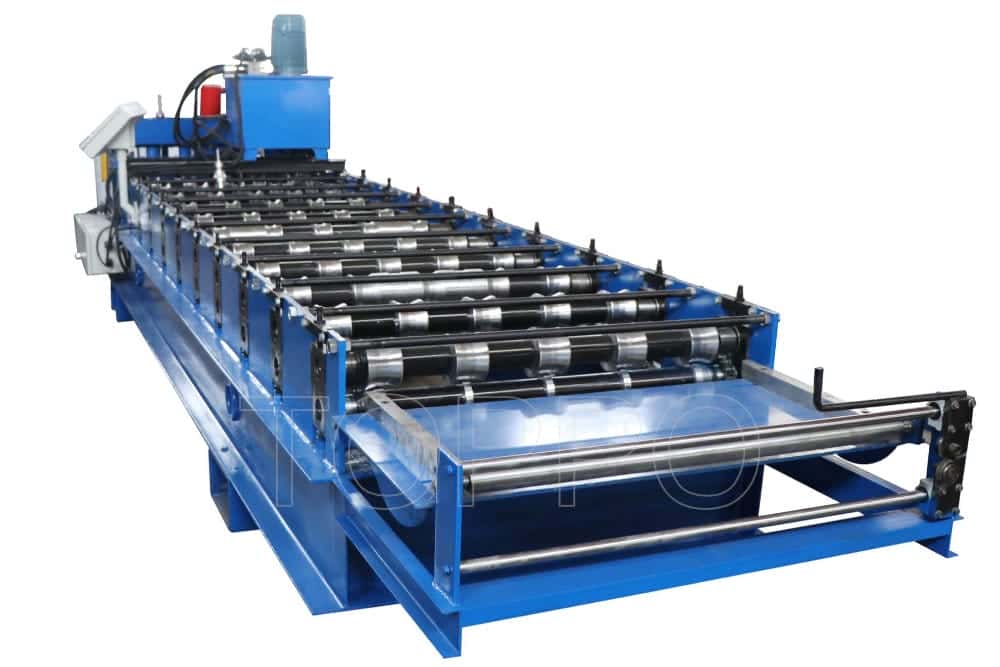

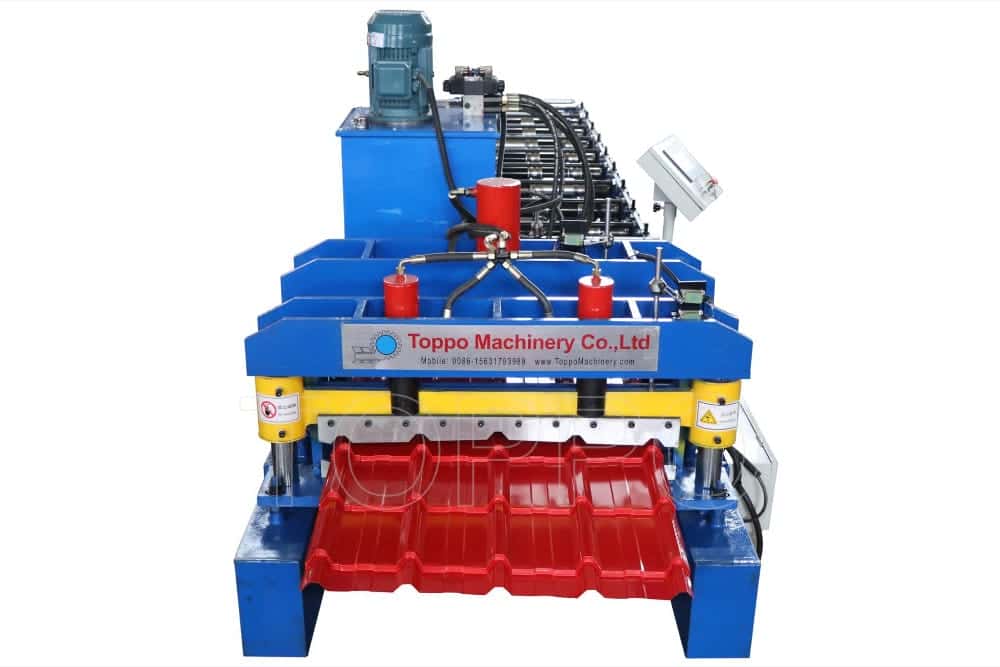

The red tile profile glazed roll forming machine is designed for forming colorful glazed steel roof tiles. It combines high-strength frame, precision roller dies, and advanced control systems to deliver reliable and high-speed tile production. The output tiles are widely used in various architectural roofing systems due to their aesthetics and durability.
1. Product Name: Red Tile Profile Glazed Roll Forming Machine
2. Application: Decorative Metal Roof Tile Making
3. Material: Color Coated Steel / Galvanized Sheet
4. Material Thickness: 0.3–0.7 mm
5. Coil Width: 1000–1220 mm
6. Effective Width: 828–1050 mm

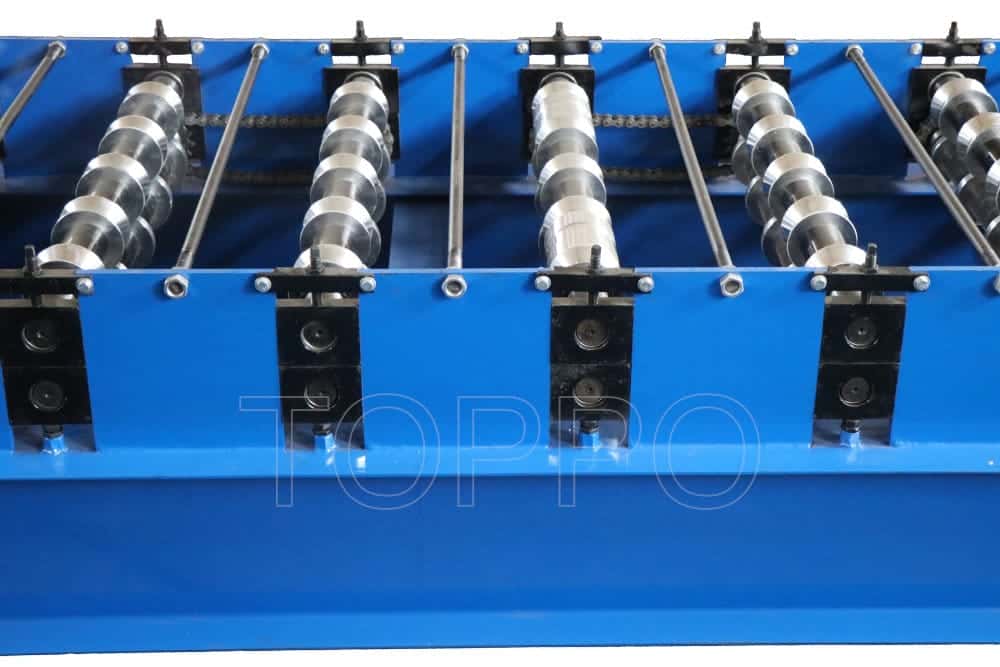

7. Roller Stations: 20
8. Shaft Diameter: 75 mm
9. Roller Material: 45# Steel + Hard Chrome Coated
10. Shaft Material: Heat Treated High Grade Steel

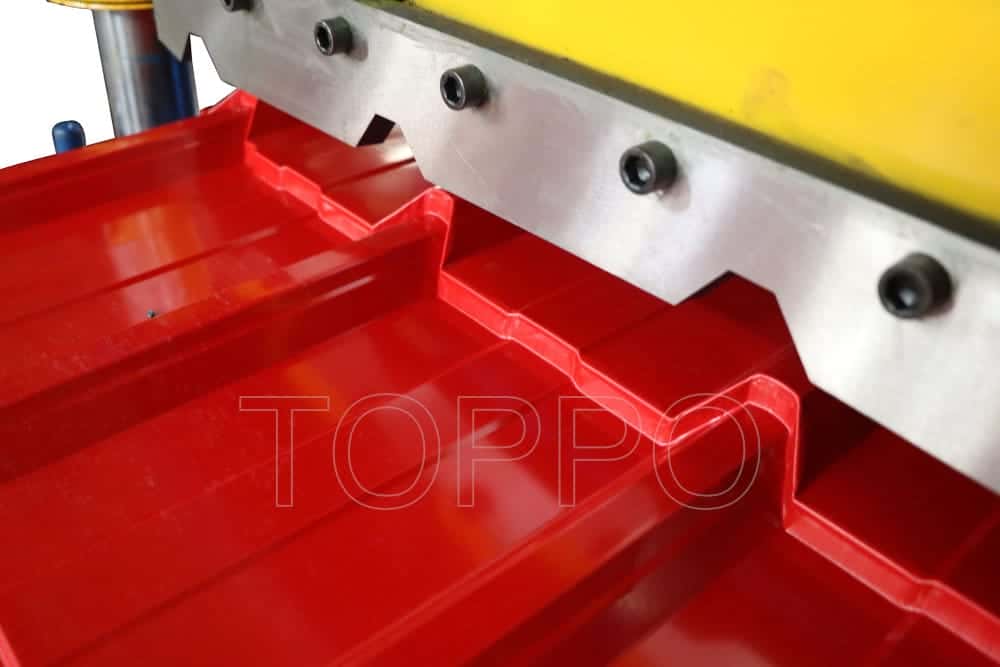

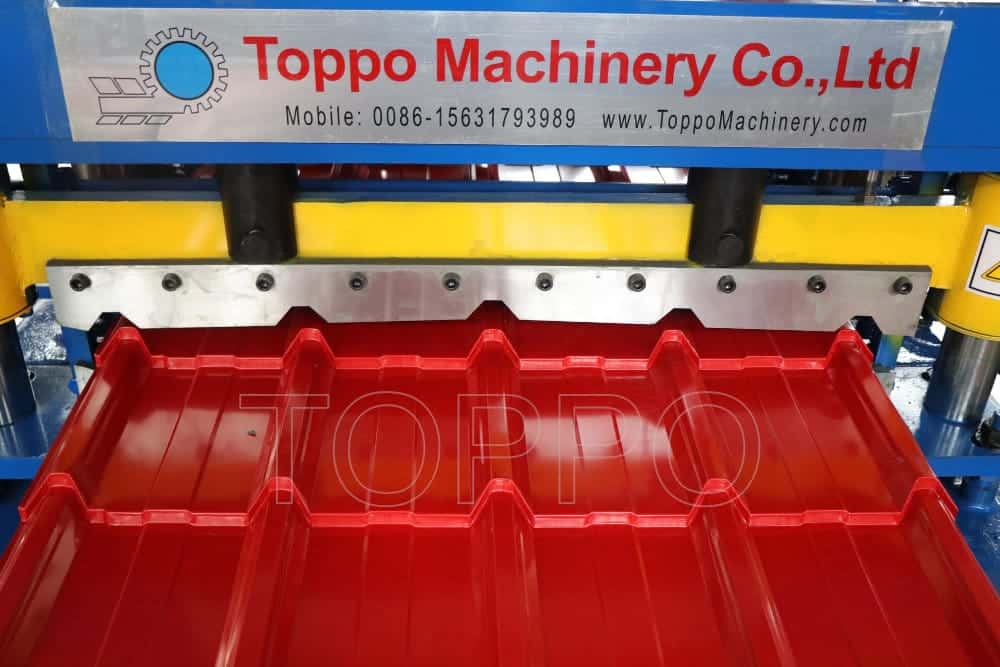

11. Cutting Blade Material: Cr12MoV
12. Drive System: Chain or Gearbox

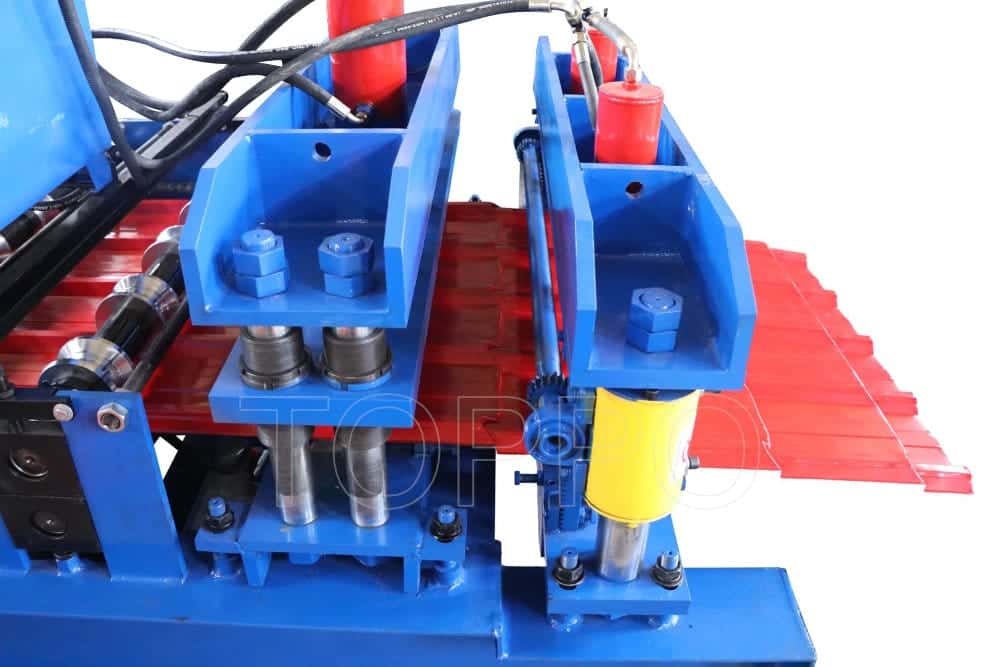

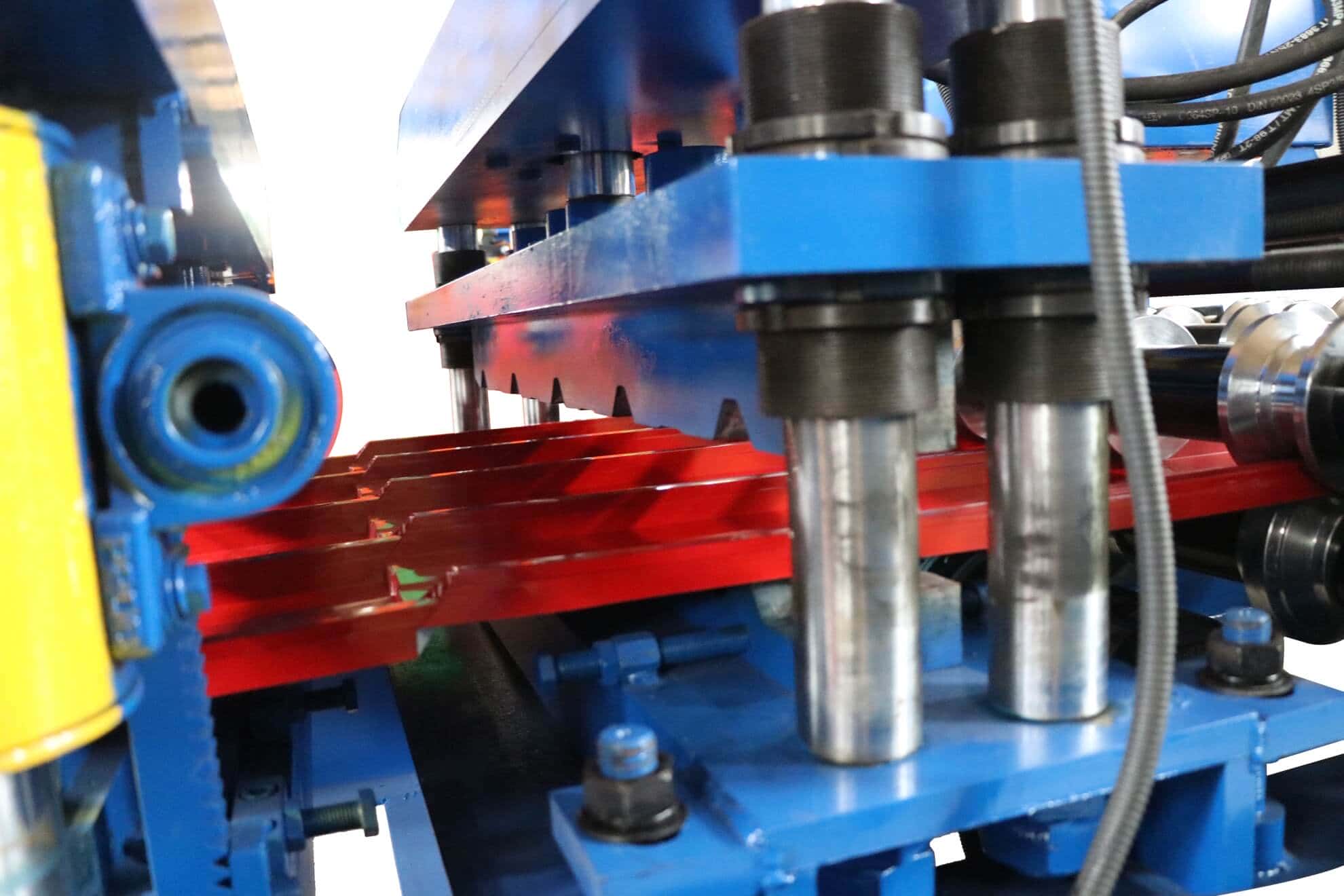

13. Cutting Type: Hydraulic Cutting with Auto Sensor
14. Hydraulic Power: 5.5 kW
15. Main Motor: 7.5 kW
16. Voltage: 380V/50Hz/3Phase
17. Forming Speed: 4–6 m/min
18. Cutting Accuracy: ±1 mm
19. Control System: PLC with Touchscreen (Delta/Siemens)
20. Operation Type: Automatic
21. Machine Size: 7.5m x 1.6m x 1.6m
22. Weight: About 7 Tons
23. Color: Blue with Red/Yellow accents
24. Noise Level: ≤68 dB
25. Decoiler: Manual or Hydraulic (Optional)

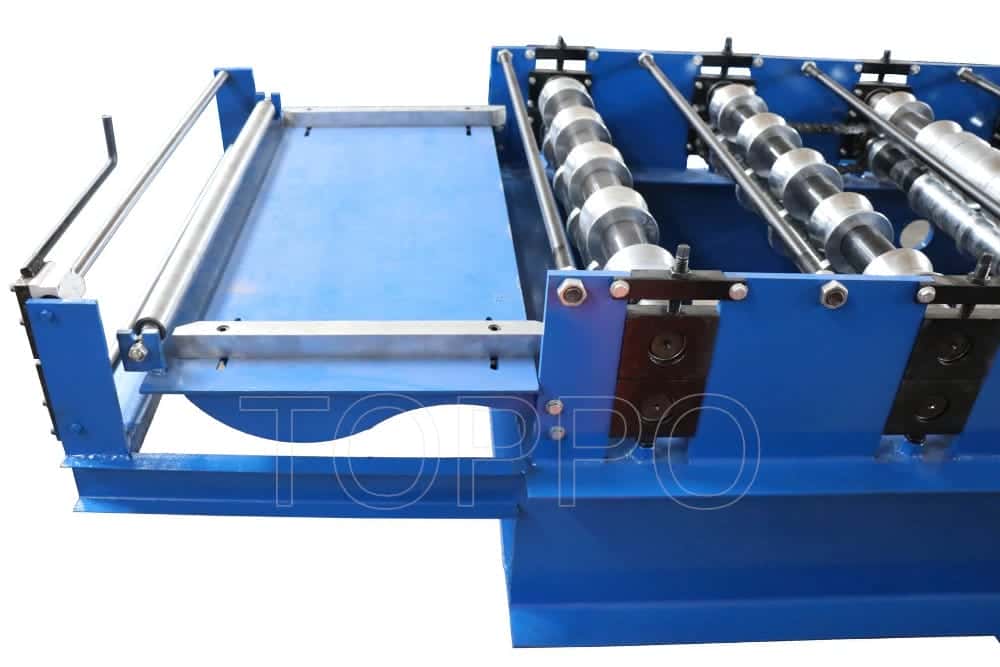

26. Feeding Guide: Adjustable
27. Maintenance: Easy Access Design
28. Tile Type: Glazed Step Tile
29. Application Areas: Residential, Villas, Commercial Roof
30. Customization: Color, Logo, Tile Profile
31. Safety Features: Emergency Button, Shield Covers
32. Certification: CE, ISO9001
33. Support: Overseas Installation / Remote Guidance
34. Packaging: PE Film + Steel Frame
35. Delivery Time: 25–30 Days
36. Productivity: Up to 22 meters/min
37. Cooling Method: Optional Air Cooling
38. Lubrication: Manual
39. Control Accuracy: High
40. Tooling Change: Available for Multiple Tile Profiles
